506 Carlton Streetcars vs Buses: Part I – Travel Times (Updated)

Updated April 23, 2018 at 9:30 am: A section has been added following the original article to discuss travel times over the full route from Main Station to High Park including weekend data.

With the temporary conversion of the 505 Dundas and 506 Carlton routes to bus operation for much of 2018, there is a chance to compare how these routes operate with each vehicle type. In this and future articles, I will review travel times across the routes as well as headway reliability.

Data for 506 Carlton that I have collected runs from June to October 2017, and from January to March 2018. For the purpose of speed comparisons, weekdays from January 8-19 (streetcar) and March 19-28 (bus) 2018 are used. This avoids major storms as well as periods when schools were closed and traffic was lighter than normal.

There are seasonal variations in travel times due to the nature of streets and neighbourhoods transit services run through. As the year progresses, it will be possible to compare data for warmer months when the streets are busy between 2017 and 2018 data, although this must be tempered with the effect of diversions that were in effect during 2017.

There is a slight improvement in travel time at certain periods of the day and certain locations/directions for buses, but this is not large or widespread even in off-peak periods. Buses tend to reach higher peak speeds between stops where conditions permit, but in many cases the speed profiles are comparable for the two modes.

Bus headway reliability has been a topic of some discussion on Twitter along with the capacity of the replacement service, but I will turn to those issues in the second part of this analysis.

Route History

The 506 Carlton route changed from time to time over the past year, and this affects the travel times reported here.

  • June 18, 2017: Service diverted via Dundas and Bathurst both ways for streetscape work on College. This increases travel times on the west end of the route starting in mid-June.
  • June 19 to July 9, 2017: Service diverted via Queen between Parliament and Coxwell for construction on Gerrard.
  • July 10 to 25, 2017: Service diverted to Coxwell-Queen Loop for construction on Upper Gerrard. Bus shuttles provided service east of Coxwell.
  • July 26, 2017: Service returned to Main Station. West end diversion via Dundas continues.
  • October 14, 2017: Service resumes standard routing.
  • February 18, 2018: Conversion to bus operation. Western terminus extended to High Park Station.

Chart Formats

The charts presented here are similar to those I have used in previous articles with some minor changes.

In the chart sets containing percentiles of travel time values, there are three groups of charts.

  • The first three pages show the 85th percentile values by hour through the day. Most trips fall within this range, and using the 85th percentile shaves off the worst of the peaks.
  • The next three pages show the 50th percentile values by hour. The format is the same as in the first group, but the values are the medians – half of the trips take longer, and half take shorter.
  • The last four pages show four percentiles from 25th (only 1/4 of trip take this time or less), 50th (median), 85th (most trips) and 100th (maximum values) for four one-hour periods through the day representing the am peak, midday, pm peak and early evening.

For the collection of 85th percentiles, the travel times rise and fall through the day. Detailed comments appear later in the article, but a few points are worth noting here:

  • Travel times in the summer (until Thanksgiving weekend) were longer than in the fall and winter.
  • Some of the highest values fall not in the AM peak but in the late morning.
  • Where there is a spike up, this indicates a delay severe enough to push the 85th percentile to a high value. Where there is a spike down to zero, there was no service over thr route section and direction during the hour in question (for example below, on September 22 between 11 am and noon).

Data are grouped based on the hour when a vehicle enters the section being measured, in this case crossing Yonge Street westbound.

Sample 85th percentile values for 6 am to noon

The charts with the four percentile bands give a sense of the range of values. At the low end, the 25th percentile (purple) gives a sense of the best case times as only one quarter of the trips achieve this time or better. At the high end, the 100th percentile (red) shows the maximum that can occur. This might only be one vehicle or it could be several. The space between the lines gives a sense of how spread out the values are.

Sample percentile values for the AM peak hour

The charts showing average speeds are organized differently to show vehicle behaviour over the length of the route.

  • There are 20 pages to each set of charts, one for each hour from 6-7 am to 1-2 am.
  • To allow the charts room to “breathe”, the data are split into the east and west half of the route divided at Yonge Street, and there are separate chart sets for westbound and eastbound travel.
  • Westbound charts should be read left to right. Eastbound charts should be read right to left.
  • To the degree that the blue (streetcar) line hangs below the green (bus) line, this shows areas where streetcars travel, on average, more slowly than buses during the hour in question, averaged over the period. Where the blue line rises above the green line, the streetcars are faster.
  • One can get a sense of the evolution of travel times for both modes over the course of the day by stepping through the pages to view the rise and fall of values.
  • Late at night, the number of vehicles in service falls, and with that the number of data points. Charts for the period from 1-2 am have less granularity as a result.

Methodology: From the tracking data, we know where each vehicle is every 20 seconds, and from this can derive the speed at that location and time. The route is subdivided into 10m segments, and the calculated speeds are allocated to wherever the vehicle is observed at a given time. The total is then divided by the number of observations to produce average speeds. The downward notches in the charts correspond to places where vehicles stop, or at least slow, typically on the approach to a transit stop or signal. Not all trips stop at all locations, and so a non-zero average can result. Where the downward “notch” approaching a stop is wide, this indicates vehicles queueing on the approach due to congestion.

Eastern Half of 506 Carlton Westbound

Travel times on this section of the route show the effect of the Parliament/Queen/Coxwell diversion in June-July 2017, and the absence of through service from Main Station to Yonge Street in July. At other times, the data represent travel via the standard route.

  • 85th percentiles
    • During the 8-9 am period, there is a drop in travel times in mid-March that is not matched in other data between 6 am and noon.
    • During the afternoon, notably during the 5-6 pm period, travel times in March are a bit shorter than in January.
    • During the evening, there is only a slight decline in March relative to January.
  • 50th percentiles show similar results

506_201706_201803_WB_DanforthYonge_MonthLinkStats

In the speed comparisons, the streetcar and bus data stay close together for much of the eastern half of the route with a few notable exceptions where buses outpace streetcars:

  • Over the Main Street bridge southbound
  • On Gerrard west of Main
  • Between Jarvis and Church westbound

506_201801_201803_SpeedStats_WB_MainStnYonge_Comparison

Eastern Half of 506 Carlton Eastbound

Travel times are slightly shorter during the peak hours for buses in March versus streetcars in January. The effect is smaller during the off peak hours.

506_201706_201803_EB_YongeDanforth_MonthLinkStats

The eastbound speeds for buses tend to be better in areas where they get a fairly free run. It is worth noting that the average speeds for buses (and occasionally streetcars) exceed the 40 km/h speed limit fairly regularly.

506_201801_201803_SpeedStats_EB_YongeMainStn_Comparison

Western Half of 506 Carlton Westbound

On the western half of the route, travel times are affected by diversions between June and October 2017. There are some differences between the January and March values, but not to the same degree as for the eastern half.

506_201706_201803_WB_YongeParkside_MonthLinkStats

As on the eastern half of the route, the points where buses show higher average speeds than streetcars are for the intervals where they reach top speed between stops. Comparative speeds west of Lansdowne were affected by construction that affected the bus running times.

The speed chart for buses extends to High Park Station via Parkside (a particularly brisk part of the route where the speed limit is 50 km/h) and there are no corresponding streetcar data.

506_201801_201803_SpeedStats_WB_YongeHighPark_Comparison

Western Half of 506 Carlton Eastbound

As with the westbound trips, there are slightly shorter time for buses, but the effect is smaller than on the east end of the route.

506_201706_201803_EB_ParksideYonge_MonthLinkStats

506_201801_201803_SpeedStats_EB_HighParkYonge_Comparison

Updated April 23, 2018 at 9:30 am:

Full Route Travel Time Data

The charts above show a lot of the fine grained detail of travel time behaviour, but miss one obvious point of comparison: how long does it take for a vehicle to travel across the entire route?

This section presents data from January through March 2018 where the first month is all streetcar, the third is all bus, and the middle is a transition between them. There are a few important caveats here:

  • The “full trip” time is measured between the intersection of Main & Danforth and Parkside & Howard Park. This omits terminal times which can be highly variable given the tendency of vehicles to take long layovers due to schedule padding, and it clips off the extended route of the 506 bus to High Park Station so that the same distances are measured for both modes.
  • None of the data have been filtered to omit the effects of storm days or service delays.
  • Both January and March include weeks with school breaks (first week of January, middle of March) during which traffic is lighter than normal.
  • Statutory holidays (New Year’s Day, Family Day, Good Friday) are included with Sunday data.
  • Data have not been broken out by days of the week as I did for some of the King Street Pilot charts, except for weekends.

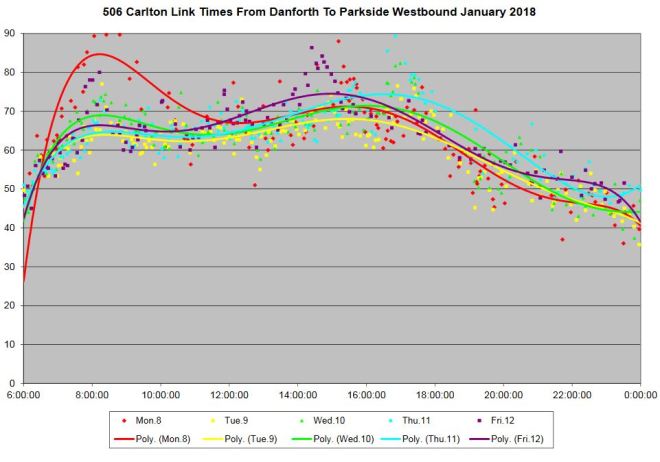

The sample page below is for westbound trips on weekdays, and it compares the data for January (streetcars) with March (buses). The linked PDF contains six charts for weekdays, Saturdays and Sunday/Holidays; eastbound and westbound.

  • The solid lines in the middle of the bands at the top of the chart are the average travel times for each mode. The data are averages of all trips taken during each hour of the day (assigned to the hour when they began) for all weekdays in their respective months.
  • The solid lines at the bottom are the standard deviation values (SD) for the data.
  • The dashed and dotted lines show the range of one SD plus or minus from the averages.

For westbound trips, the average lines lie almost on top of each other for all days including weekends. Travel times are shorter on Saturdays, and shorter again on Sundays. Weekdays show the familiar double-humped curve for the AM and PM peaks with the PM peak being higher as there is more competing traffic on the roads in the afternoon. The standard deviation values are almost flat through the day showing that there is only a small difference in the range of observed values between peak and off peak.

For eastbound trips, the bus averages are a few minutes shorter than the streetcar values during many periods, but the standard deviations are quite similar. The differences, such as they are, are not uniform across the route as the detailed speed comparison charts above show. Also, the irregularity in headways can contribute more to the length of a trip by either mode than the actual in-vehicle travel time differences, where any exist.

506_201801_201803_ComparativeTravelTimes

For an even more detailed look, the following charts show all of the travel times for each month and direction. Here is a sample page showing westbound trips in the second week of January.

  • Each dot represents one trip, colour coded by day.
  • The trend lines are a polynomial interpolations (6th order) to show the overall shape of the data.
  • There are five charts, one for each week of the month, and separate charts for Saturdays and Sundays.

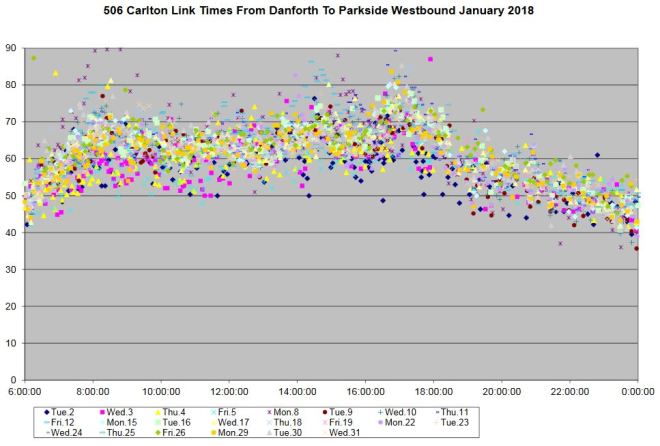

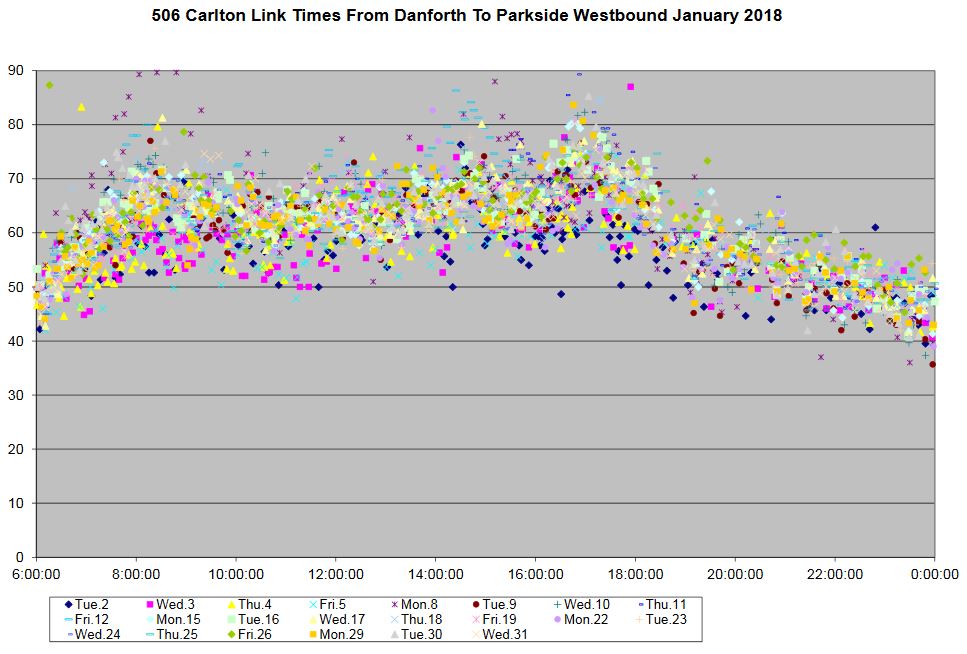

One page consolidates all of the data for weekdays. The purpose of this is to show the shape and distribution of the data. Average values will thread their way through this cloud of points, while standard deviations will reflect the scatter of values around the averages.

The chart sets also include average and standard deviation values for each type of day. These are the same values as used in the Bus to Streetcar comparison chart above.

The lines for each day are always slightly different depending on conditions (weather, congestion, delays, special events). For example, Tuesday, January 2 was a lighter than normal day for traffic and this is reflected in the travel time values and trend line. Similarly Saturday, January 6 and Monday, January 1 have lower travel times than other weekend days.

506_201801_Danforth_Parkside_MonthLinks

506_201801_Parkside_Danforth_MonthLinks

February data are included here to show the change, or lack of it, between the streetcar weeks (up to Saturday, February 17) and the bus weeks (after Sunday, February 18). Average and SD values are not included in these charts to avoid mixing data from the two modes together.

506_201802_Danforth_Parkside_MonthLinks

506_201802_Parkside_Danforth_MonthLinks

In the March data, Thursday the 29th was a storm day, and this is reflected in longer travel times through much of the day.

506_201803_Danforth_Parkside_MonthLinks

506_201803_Parkside_Danforth_MonthLinks
