Service on 501L Queen to Long Branch

Apologies in advance to readers as this is a long post with a lot of charts both inline and linked. It is intended as a resource to show how the TTC has provided less than sterling service on the 501 Queen route west of Humber Loop over past years, and especially since mid-February 2018.

Updated March 19, 2018 at 7:30 am: The TTC has assigned 15 additional buses to the 501L service to deal with overcrowding and the route extension from Windermere (planned) to Dufferin (actual).

Updated March 20, 2018 at 9:15 am: A chart of the time spent by buses at Long Branch Loop for the first two months of 2018 has been added at the end of this article.

Riders on the western end of the 501 Queen route might be forgiven for thinking that the TTC really does not want their business. For many years, service west of Humber Loop has had the feeling of an afterthought, an unimportant outlying part of the TTC’s system.

Until 1995, the (507) Long Branch car was a separate route operating between Humber and Long Branch loops. This split was a vestige of the former zone boundary at Humber when the service further west was outside of the City of Toronto, and a recognition that demand on Lake Shore Boulevard was not at the same level as on the principal route as (501) Queen further east. The forced transfer was a mixed blessing in that service west of Humber was immune to disruptions on Queen Street downtown, but riders bound to and from destinations east of Humber always faced an uncertain transfer connection thanks to the frequent short-turns of Queen cars at Sunnyside Loop. During off peak periods, demand west of Humber is more local between the residential and commercial areas, and a dedicated service gave rider some certainty that a car would show up reliably.

When the two routes were amalgamated, service on Lake Shore was always at the mercy of short turns on the Queen car and the inherently “gappy” nature of service arriving westbound after an hour or more crossing the city from Neville to Humber.

When the Long Branch route operated separately, it had strong ridership, almost 15,000 per day in 1976. This fell over the years for various factors including the declining industrial base on southern Etobicoke, a reorientation of traffic to north-south routes linking with the Bloor Subway, and a decline in service level. In the last year for which the TTC reported separate ridership numbers on the two routes, 1993, Long Branch was down to 7,000 riders per day. Over the same period, Queen fell from 66.5k to 49.4k partly due to riding losses brought on by less frequent and reliable service with the route’s conversion to the larger ALRV streetcars on wider headways. Daily car mileage on 501 Queen fell from 8,263 in 1976 to 4,300 by 1993. The early 1990s were also a period of recession when riding on the TTC as a whole fell back from historically higher levels in the 1980s.

Recent years brought a partial restoration of local service to Lake Shore thanks both to schedule tinkering and to complete shutdowns of streetcar service for track and road works. Buses operating on the “501L” service run much more frequently thanks to the TTC’s substitution for streetcars at a high ratio to compensate both for vehicle capacity and presumed requirements for extra construction-related running time. Riders tend to like these substitutions if only for the more frequent service. Reliability, however, is another matter and the TTC’s supervision of “temporary” construction routes tends to be even more “hands off” than for regular routes.

Service on 501L is further complicated by the lack of a proper turnaround at Roncesvalles where the streetcar route has ended for over a year, and the buses have, until recently, been scheduled to operate east on Queen and then south to Dufferin Loop which they shared with 29 Dufferin and 514 Cherry. This takes the route through a notoriously congested part of Queen Street.

From February 18, 2018 onward, the service design has been completely out of whack with actual operations because the 501L buses, scheduled to terminate at Windermere on the assumption that streetcar service to Humber would resume, are operating east to Dufferin.

Continue reading

PTIF Phase 2: The Lottery Win Is Not As Big As It Seems (Updated)

Updated March 16, 2018 at 5:15 pm: The Fire Ventillation Project which includes second exits from several stations was omitted from the list of major projects in the original version of this post. It has been added.

Updated March 16, 2018 at 3:25 pm: The Ontario Ministry of Infrastructure has clarified that the Ontario funding for the Scarborough Subway is separate from the $4 billion in matching dollars shown in the table below.

On March 14, 2018, the Federal and Provincial governments announced the scale of the second phase of the Public Transit Infrastructure Fund (PTIF) to be spent over the next decade. Some of the details are in a backgrounder.

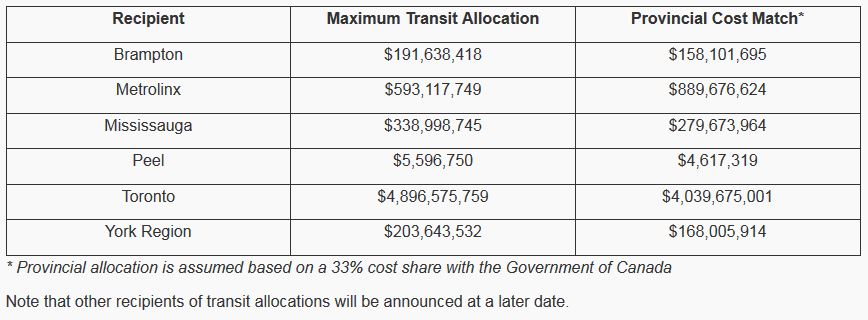

Funding allocations for the Toronto area are summarized in the table below. The amounts are based on transit ridership, not on population, and so Toronto gets by far the largest share of the pie.

Source: Infrastructure Canada Backgrounder

If one believed the ecstatic response of politicians and some media, one might think that all our transit prayers have been answered.

Not quite.

An additional $9 billion is not exactly small change, but Toronto has a huge appetite for transit spending and a daunting project backlog. The new money will help, but with it comes the requirement that Toronto pony up about $3 billion for projects that are not in the city’s long-term budget.

Capital planning for many years understated the infrastructure deficit by hiding projects “below the line” outside of the budget, and even more by leaving important work off of the list completely. The infrastructure deficit is much larger than the TTC reports and city financial plans indicate.

That, in turn, affects the city’s financial planning, subject of a recent report from the City Manager. Despite assurances from city staff that all known TTC costs have been included in their projections, there is a long history of the TTC leaving significant projects out of funding lists to keep their total “ask” down to a politically acceptable number.

Much needed work is not the sexy, photo-op rich stuff of subway extensions, but the mundane business of buying new equipment to replace old cars and buses, and to increase system capacity.

The new plan is to run for ten years. The money will not all land in Toronto’s hands this year, but will be parceled out as projects are approved and actual spending occurs. There is no guarantee that a future government will stick to any commitments especially if the “funded” projects are not the subject of a binding agreement. Toronto has its share of cancelled projects including the Sheppard Subway, cut back to Don Mills, and the Eglinton West Subway (both victims of Mike Harris), not to mention Transit City and the pliable attitude of various governments to the worth of a subway in Scarborough.

Updated March 16, 2018 at 3:25 pm:

Before we even start into the possible projects to be funded, some money is lopped off the top based on a past commitment.

  • Ottawa will provide “up to $660 million for the Scarborough Subway extension project, pending submission and approval”.
  • It is unclear how much of the provincial commitment to the SSE of nearly $2 billion is included in the $4 billion under the new program.

This brings the available federal funding down to about $4.237 billion.

Whether the total available from Queen’s Park is $6 billion ($4b new plus $2b for the Scarborough Subway), we do no know. I have a question in to the Ontario Ministry of Infrastructure to clarify this. They have acknowledged the question, but have not replied as of 11:45 am, March 16.

Update: The Ministry of Infrastructure has clarified how the previous SSE funding fits with the newly announced program:

Ontario is committed to cost-matching federal funding for municipal projects at 33 percent. This equates to $4 billion from the province to match the City of Toronto’s $4.9 billion federal allocation. No previously committed funding for Toronto projects is included in this allocation.

Ontario’s commitment to match this new federal funding at a 33 per cent share is separate from and above the province’s previous commitment of $1.48 billion in 2010 to the Scarborough Subway. [Email from Alex Benac, Press Secretary to the Minister]

Continue reading

New SmartTrack/GO Station Designs (II)

On March 6, 2018, the City of Toronto and Metrolinx hosted a meeting at Scarborough City Hall to present the two new SmartTrack stations proposed for the Stouffville corridor. This follows on from a meeting to present the west end stations, and the series will conclude on March 21 with a presentation of the downtown east side stations (East Harbour and Gerrard-Carlaw) at Queen Alexandra School.

The Scarborough meeting dealt with two stations: Finch-Kennedy and Lawrence-Kennedy.

The audience was not particularly supportive of the project. Complicating this situation was a group of presenters who seemed either not fully in command of information about the stations, or unwilling to engage in discussion, and a moderator who lost his credibility as an impartial actor. Some statements were, to put it charitably, badly misinformed on two key issues.

Service Levels

The viability of the Scarborough SmartTrack stations, especially the one at Lawrence which will replace the existing RT station, depends on service frequency. Past Metrolinx publications including the GO RER website claim that the line will see seven trains/hour of which four would run through to/from Lincolnville and three would run to/from Unionville. (For details, see my previous article A Few Questions For Metrolinx.) Originally, all trains were to stop at all stations, but Metrolinx has recently changed their service plan so that only the Unionville trains will run “local” and stop at the SmartTrack stations (among others). This fundamentally alters the attractiveness and usefulness of the service.

At the meeting, a Metrolinx representative claimed that the service plan was actually for seven local trains, not four, as well as the four express trains. This is the first time that service plan has been claimed for the corridor. Whether it is actually possible given the absence of passing tracks and the effective headway of under six minutes is quite another matter. An express train can only make up more than the time between two locals if it can overtake them. Metrolinx has not presented a track design that would allow this, and the corridor is constrained for additional tracks especially where GO must co-exist with the Scarborough RT. The whole point of the 4+3 service plan was to fit within the capabilities of planned GO RER infrastructure.


The attractiveness of a train in the GO corridor as part of the local transit system also depends on the fare that will be charged. Although Mayor Tory’s SmartTrack plan claims that free transfers would be available between the TTC and GO, information from Metrolinx varies with options including:

  • A flat fare structure as promised by Mayor Tory with free transfers.
  • A discount for GO+TTC usage similar to that now in place for riders who pay with single fares on Presto (not passholders).
  • Reduced GO fares within Toronto, but not necessarily to “TTC” levels.

It is irresponsible and misleading for anyone at a public meeting to say definitively what the fare structure will be. This has not yet been negotiated between Metrolinx and the City of Toronto, much less approved by the two bodies as to the cost sharing arrangements. Toronto is supposed to be on the hook for all “SmartTrack” costs, and a subsidized transfer fare would be on the City’s account.

A further problem is the question of how extensively a “Toronto” fare would apply on the GO network, whether it would be valid on the “express” trains running in the SmartTrack corridor, and whether it would be valid at all stations including existing GO stations like Agincourt and Bloor (Dundas West), let alone on other GO corridors like the Lakeshore East and West.

Continue reading

A Few Questions For Metrolinx

The recent publication of updates to the New Stations review together with information at two public SmartTrack station meetings raises several questions about Metrolinx plans and their methodology in evaluation of the worth of new facilities.

In attempting to dig through the contradictions, I asked Metrolinx for the detailed background reports for their updated “business cases” for new stations, and was advised that there are no reports beyond the technical paper that is part of the board’s agenda for their March 8, 2018 meeting.

This is not a credible statement.

The evaluation of new stations depends heavily on the projected demand at each location. This demand depends on several factors:

  • The frequency and capacity of service provided at the station
  • The travel time to destinations for trips served by the station
  • The cost of a trip
  • Feeder services for riders including connecting transit routes and parking lots

Land use patterns around the station are also a factor, but they are secondary in two senses. First, demand projections are generally run against a fixed land use model while changing other factors such as service frequency and cost. Second, land use is not under the direct control of a transit agency while service and fare factors are, and they can have a much more immediate effect on demand.

The newly modelled demand for stations follows on from the Initial Business Cases (IBCs) of 2016:

The overall methodology and approach to modelling used in carrying out the business case analysis is consistent with the approach used in undertaking the 2016 IBC’s and has been independently peer-reviewed and validated. In particular, the current business case analysis measures and captures the same key benefits (e.g. new station users benefit from the station) and impacts (e.g. delays to upstream riders due to the station). The current business case analysis for new stations take advantage of updated input information, including GO rail service assumptions, land use, connecting rapid transit infrastructure, and a refined approach to ridership forecasting and modelling.

The economic and financial cases for each new station depend on forecasts of how travellers will respond to the presence of a new station. Stations can support increased system ridership by providing a new access opportunity that may be closer to household locations and employment, school, or other travel destinations. Individuals who use the new station benefit by saving time relative to their previous travel option – travelling farther to another GO station, or using a different transport mode such as subway, bus, or auto. Existing GO passengers that do not use the station, on the other hand, can be delayed if they travel on a train that now stops at the new station. Examining travel time savings, delays, and modal shifts is the focal point of the business case analysis. [p 7]

Metrolinx is all about “transparency”, and in that spirit here are several questions about their models and plans.

Continue reading

Metrolinx Continues Its Pursuit of Hydrogen Trains

Metrolinx has released a long study about the feasibility of using electricity generated from hydrogen fuel cells as an alternative to conventional railway electrification with overhead wires. The “Hydrail” project page contains links to both a quicky “fact sheet” and to a 353-page report. The report itself contains a 13-page Executive Summary giving a high level view of the proposals and recommendations without much of the technical detail.

It is impractical here for me to review the entire document, and indeed this is not really needed because a great deal of the content is a tutorial on hydrogen technology. The report is clearly written by people with more of a background in hydrogen technology and marketing than in railway planning and operations.

Fascinating though this is, the report does not address the most crucial issue of all – what are the implementation scenarios for hydrogen propulsion depending both on technical maturity and on policy decisions still to be made about the evolution of the GO Regional Express Rail (RER) system.

A great deal of confusion lies in the process Metrolinx is following to provision RER. Their intent is to farm the entire thing out to a private consortium:

Design-Build-Finance-Operate-Maintain (DBFOM) Procurement Process

Metrolinx is intending to engage a contractor to upgrade the GO network using a Design-Build-Finance-Operate-Maintain (DBFOM) model. As part of the tender process, bidders will be able to propose both hydrail and overhead wire technology to electrify the GO network. The benefit of this DBFOM approach is it allows one single party to manage all the interrelated decisions necessary and oversee each phase of the process from design to maintenance. This ensures optimal performance is achieved for the entire system, which can create efficiencies. [Website]

However, as the industry now stands, the information needed to allow an informed assessment of technical maturity, feasibility and risk for hydrogen trains at the scale of a GO/RER implementation does not exist. There is a lot of speculation, but it is based on much, much smaller and simpler implementations of various aspects of the technology.

The intent of the proposed study is to acquire as much information and experience as possible so that bidders can bid intelligently. The real challenge will be for this to happen before the Request for Proposals is issued at the end of 2018.

There is a subtle change in the text above to statements by Metrolinx CEO Phil Verster in 2017 when he said that it would be up to bidders to decide which technology they would choose to offer. Instead, the description above states that bidders can propose either technology and it would be up to Metrolinx and the Government of Ontario to decide which version to implement. It is quite likely that for the riskier new technology, bidders will be less willing to accept broad technical risk, and they will charge a premium for this. Whether the government of the day will see any extra costs as worth the investment remains to be seen.

Indeed, although the report states that the Cost:Benefit ratios for conventional and hydrogen options are similar, there is no mention of the risk premium a bidder might place on one option over the other. Moreover, the actual calculation of the ratio is not explained, nor are the total costs given. This raises the question of whether a higher cost is offset by a higher assumed benefit so that the ratios come out similarly, even if the magnitudes of investment differ.

At a recent Board of Trade appearance, Verster was asked about electrification, and replied with praise for Ontario’s “hydrogen economy”. It is quite clear that he drank the Kool-Aid and the government’s usual fascination with technology is getting in the way of his proper role as CEO. Immediately afterward, he reverted to the position that it is up to the would-be builders/operators of the RER network to propose technologies and the risk they are willing to assume.

Later the same day, when asked at a Metrolinx Town Hall about the possibility that hydrogen efforts would delay electrification, Verster replied with the standard response that the vendors will decide. However, the timelines for investigation of hydrogen and the contract award date suggest that a lot of work will be jammed into a very short period, and that Metrolinx’ own technical investigations will overlap the bid process.

A fundamental problem with Metrolinx “benefit cases analysis” (also misleadingly termed “business case analysis”) lies in the calculation of presumed benefits which are built up from a variety of factors. These include not just direct spending, but also the imputed value of effects such as reduced travel times, reduction of congestion and the value of environmental improvements. This side of the analysis is not present in the report, and so it is difficult to ascertain the “benefits” against which each scheme is measured. As for costs, so many elements of the hydrogen train proposal are little more than assumptions about the scalability of existing technology, it is hard to believe that the cost estimate is much beyond the back-of-an-envelope stage.

The capital and operating cost estimates presume a level of certainty about the hydrogen option which simply cannot exist at this point. Indeed, a major purpose of the planned work is to provide the technical basis on which a bidder might construct a proposal. Some capital costs included for conventional electrification are not included in the hydrogen scenario, and there is a wide variation in the range of projected operating costs.

With a planned launch of RER by 2025, the timelines are quite tight because major decisions on the infrastucture needed for either alternative must be made soon so that RER is “ready to roll” when planned.

Notable by their absence are key pieces of information:

  • What is the relationship between the timelines of the proposed hydrogen investigations and prototyping, and the timespan of the DBFOM procurement through all of its phases from initial tender up to revenue service? Can the research phase be completed in time to inform bids from potential builders/operators of the GO/RER network?
  • If the DBFOM bidders depend on investigative work done by Metrolinx or others on its behalf, what liability will Metrolinx have for non-performance if their work turns out to be incomplete or faulty, and therefore prevents the successful execution of the contract?
  • What is or will be the position of the railways, CN and CP, to the presence of hydrogen trains on their systems? Their dislike of electrical distribution and overhead structure in their territory is cited as a benefit of the hydrogen alternative, but one must ask how the railways will view the risks of a new propulsion technology co-existing with their operations.

This brings us to a fundamental question about RER and electrification, regardless of the technology. At the risk of being accused of environmental insensitivity, it must be said that electrification is not a prerequisite for RER implementation at the service levels now planned. Indeed, electrification makes the system design more complex especially where GO services operate over other railways’ territory. The tradeoffs are between many issues including the increased intrusion of more frequent GO service in corridors now hemmed in by residential development rather than by industry. This brings noise and pollution from frequent service with diesel locomotives. Even electric trains are not silent.

Reading between the lines, one might well think that full electrification is now contemplated as something for the future, in the mid 2040s, not in the 2020s. This is fundamentally tied up with questions of implementation and roll out, none of which is addressed in the report because it assumes this is a matter for future study.

Although much discussion reads as if RER will appear overnight in January 2025, Metrolinx plans to begin building up service levels from current to the RER proposal on an incremental basis as infrastructure improvements are completed. This means that a substantial portion of “RER” based on existing technology would exist before electrification, by whatever scheme, actually is “turned on”.

An important part of any implementation plan will include the mechanism by which a DBFOM bidder will take over existing assets, and this necessarily must be spelled out as part of the tender process. This will lead to two huge transitions occurring in parallel: the move from direct Metrolinx capital and operating responsibility for the GO system to a separate provider, and the technology transition from diesel to electric on some or all of the network. Whether Metrolinx has the capability to manage something on this scale, or will simply dump the responsibility in the provider’s lap and hope for the best, remains to be seen.

There is also the fantasy that the “risk” will be transferred from the government to the provider, but that risk comes at a price, and what is effectively “risk insurance” usually has a cap. Examples of capped liabilities, or even of providers walking away from their responsibilities, are not hard to find. Of course there could be problems with conventional electrification too, but they are less likely with a mature technology.

In this article, I will review the recommendations so that readers who want the “short version” can get my opinion without reading all the way to the end. In a separate future article, I will turn to specifics in the detailed report.

Continue reading

TTC Service Changes Effective Sunday, April 1, 2018

April 2018 brings several adjustments to TTC schedules, but nothing like the upheaval of February’s streetcar/bus changeovers or the subway opening of December 2017.

After a long absence, streetcars will return to The Queensway subject to construction at Humber Loop reaching a point where this is physically possible. Schedules on the 66 Prince Edward and 80 Queensway buses will revert to the pre-construction route configurations with the following effects:

  • 66A Prince Edward buses will terminate at Humber Loop rather than running east to the on street Ellis/Windermere loop.
  • 80B Queensway buses will terminate at Humber Loop rather then at Keele Station late weekday evenings and on Sundays.

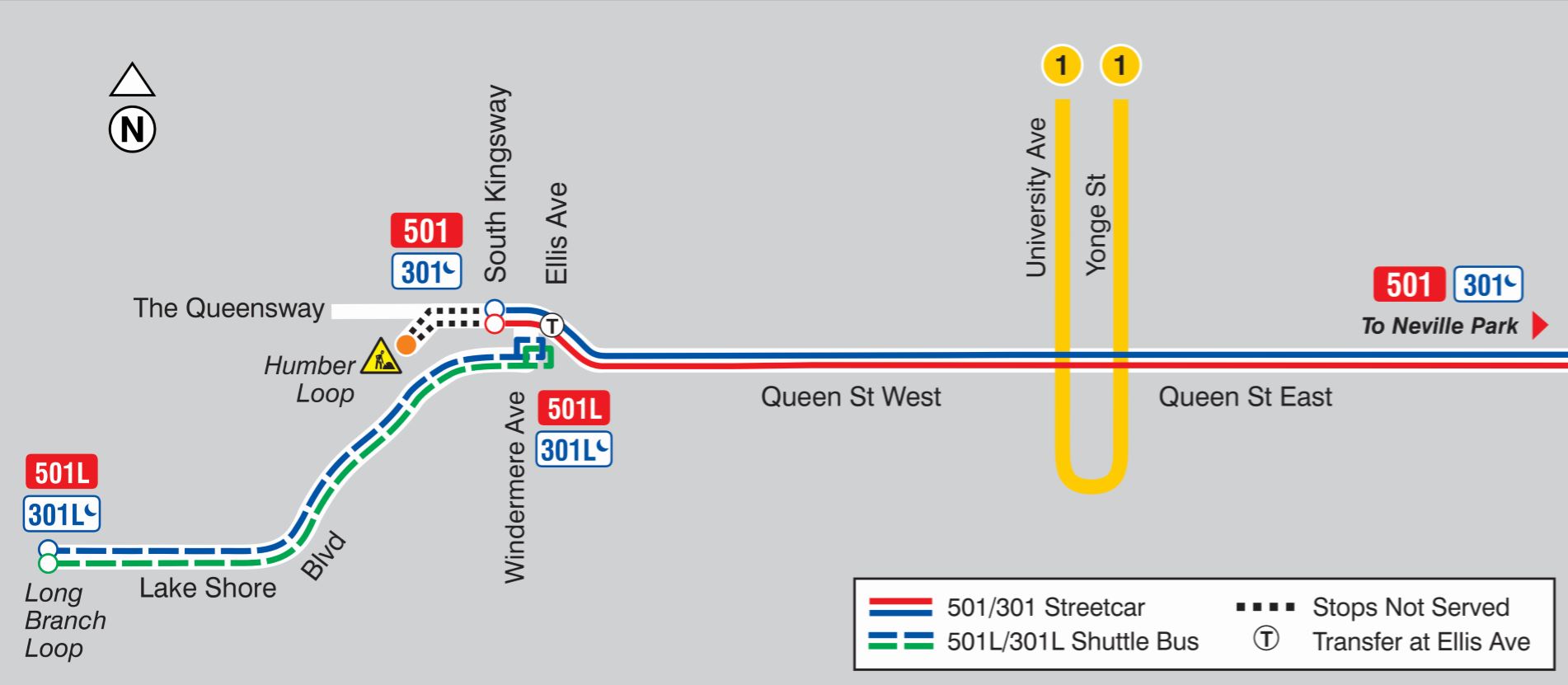

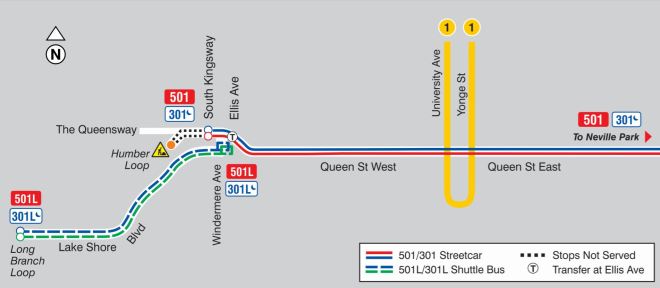

The TTC’s service memo does not set out the arrangements for the 501L buses to Long Branch connecting with the 501 streetcars, or where the east end of the bus shuttle will be. Details of the bus operations will be announced closer to the start of the new schedules.

Through 501 Queen streetcar service to Long Branch will be scheduled for the May 13, 2018 board period.

The 512 St. Clair streetcar will become an officially low-floor route with all off-peak service designated to receive Flexity cars. Peak period extras will become fully low-floor as new cars are available. The service frequencies are almost identical to the current schedules.

As approved in November 2017, two routes will lose late evening service because their ridership is below the 10 riders per bus hour standard. These are:

  • 5 Avenue Road all days
  • 169 Huntingwood weekends

The 73B Royal York to La Rose Avenue branch will lose its weekend late evening service at the end of 2018 when construction at Royal York Station and the current interline between the two Royal York routes (73/76) ends.

The 94 Wellesley bus will lose its direct subway access at Wellesley Station during elevator construction. The 94B service which normally terminates at this station will be extended to loop around Queen’s Park as 94C. On street stops at Yonge and Wellesley will require transfers for token/ticket/cash users as at other stations where surface routes do not have a closed connection to the subway. This arrangement is expected to last until December 2018.

Minor changes in routes serving Pioneer Village station will ensure that last buses provide a connection with the last northbound subway train.

Several routes have minor changes in service levels and/or running times for construction (Metrolinx projects), adjustments to demand and correction of timings to match actual conditions.

2018.04.01 Service Changes

New SmartTrack/GO Station Designs

In two recent articles, I wrote about new stations that are proposed on some of the GO corridors, and their recently updated evaluations and designs:

The reports did not include any illustrations of the proposed designs, but these are starting to appear through the SmartTrack station consultation meetings. As they become available, I will post excerpts in this article.

The March 1 meeting dealt with four stations on the west side of the old City of Toronto. The presentation materials are not yet online, but I have included excerpts from them here.

Among the issues discussed in an earlier round of meetings were:

  • Noise during the construction period, and later from trains including the bells which sound as they enter and leave stations.
  • The service plan – what will be the frequency of service through and at each station?
  • Fare integration – what will the fare be for a combined TTC/GO trip?

A Metrolinx representative was somewhat evasive on the issue of noise on two counts. First, there is the question of how long it will be before the majority of service will be electrified. If one believes the original electrification plan (cited by the Metrolinx rep), some trains will always be diesel on some lines because they will run into territory owned by other railways where electrification will not occur. Conversely, if one believes the optimistic claims of the hydrogen train study, all GO trains will convert to hydrogen-electric operation, although on exactly what timetable is unclear.

The noise of the bells raises two concerns. First is the question of whether there can be an exemption so that neighbours are not constantly annoyed by the bells of passing trains. The other is the methodology by which an “environmental assessment” treats transient noises like this. Past EAs have dismissed transient noises because they average out with lots of quiet time between trains, but this does not address the problem of occasional noises such as roaring engines or ringing bells. Moreover, with the planned increases in service levels, these noises will be present more frequently.

SmartTrack was described broadly in the following slide:

A pressing issue for most stations is the recently revised service plan that Metrolinx announced in its updated stations report.

Express (non-stop) and tiered service patterns typically have trains serving outer stations. They typically run non-stop past inner stations which are served for by other trains. Such tiered service patterns impact business case assessment in the following key ways:

  • Reduces the number of upstream riders that need to travel through the station. Upstream users that are travelling through may now choose to use a faster express train to reach their destination. This reduces upstream delays and the number of riders that switch to other modes. This will have a positive impact on station performance.
  • Reduced train frequency at stations without express service (i.e. trains that previously stopped at the station can now skip some stations). Riders may also divert to stations with express services resulting in a negative impact on station performance.

As the GO RER service plan is still evolving, a conceptual service plan has been developed for modelling purposes only, which considers the following express or tiered inner/outer service concepts on the Lakeshore West, Barrie and Stouffville corridors.

  • Lakeshore West corridor: Alternating trains with bi-directional 15 minutes service on the corridor with stops at Mimico and Park Lawn stations. Mimico and Park Lawn stations would therefore receive 30 minutes service inbound and outbound all day.
  • Barrie corridor: Outer service stopping at all stations between Allandale Waterfront and Aurora; trains will also stop at Downsview Park and Spadina stations, otherwise, express to Union Station. Inner services will serve all stations between Union Station and Aurora.
  • Stouffville corridor: All-stop peak direction outer service between Lincolnville and Unionville stations; trains will also stop at Kennedy and East Harbour stations, otherwise, express to Union Station. “Inner” services will stop at all stations between Unionville and Union Station.

This does not match the service plan adopted for RER in June 2016 where all trains would serve all stations, although that appears to be the plan staff at the March 1 meeting were working from.

The claim of “all-day two-way service, with more frequent trains during peak periods and every 15 minutes during off-peak periods” can be read to mean quarter-hourly service all day with even better peak service, or it can be read as “better service than you have today” during peak periods, but not necessarily every 15 minutes, let alone 10 minutes or below. As things now stand, the difference between Metrolinx’ updated service plan and the claims of SmartTrack service levels border on misrepresentation.

Continue reading

Metrolinx New Stations Report: The Details

In a previous post, I reviewed the updated evaluation of proposed new stations on the GO/RER/SmartTrack network. In brief, the situation for some locations is not as dire as in mid-2016 because Metrolinx has changed some of the operating rules and plans for it services. Whether the newly proposed services can actually be operated remains to be seen and is, as usual, a subject for further study.

This article is a station-by-station review of the primary issues at each proposed new stop. The stations are ordered here by corridor for ease of reference by geographical grouping, whereas in the Metrolinx report they are in alphabetical sequence.

(There will doubtless be a small industry in pushing for reviews of stops that are not in the Metrolinx list. That is not the purpose of this piece which reviews the updated evaluations as presented by Metrolinx.)

My apologies in advance for a long, text-only read. There were no illustrations beyond general maps in the Metrolinx report, and so there are none here either.

There is a series of planned public meetings about SmartTrack stations, and it is possible that these will include more details of current designs. If so, I will update this article to include them.

Lithuanian House
1573 Bloor Street West
6:30 pm – 8:30 pm
Presentation begins at 7:00 pm

Scarborough Civic Centre,
Council Chamber
150 Borough Drive
6:30 pm – 8:30 pm
Presentation begins at 7:00 pm

Queen Alexandra Middle School,
Small Gym
181 Broadview Avenue
6:15 pm – 9:00 pm
Presentation begins at 7:30 pm

A total of 17 stations are reviewed in this study. Of these, 5 were not recommended in the initial report in 2016. Of these, only Park Lawn has been resurrected to go forward for reasons discussed later. One of the 12 in the approved list, Mulock, has negative benefits and might fall off of the table if Metrolinx cannot find a way to make a better case for it.

General issues that are either not addressed by or not detailed in the report include:

  • There are no detailed design drawings of the stations, only very general location maps.
  • Details of the service plan(s) used to model demand. There are some specific references with respect to express and local operations at certain stations, but not for existing stations or the network as a whole. This affects demand modelling.
  • Modelled demand at all stations, not just the new ones, and of the cumulative on-train loads. This is important to ascertain whether the planned service can actually support the projected demand.
  • Details of the boardings and alightings at stations. Combined values are shown, and the descriptive text indicates which is the predominant flow, but not the proportions.
  • Differentiation of new riders attracted to GO service by the station as opposed to existing riders diverted from nearby stations (i.e. net new ridership).
  • The degree to which, if at all, performance improvements through electrification (whether by conventional power of hydrogen fuel cells) will offset the time penalty associated with new stations.
  • Additional infrastructure required for express and local operations to co-exist on each corridor. Some of this is mentioned, but not in a comprehensive way.
  • Details of train operations including use of express and local tracks, and track assignment on corridors with multiple services. Any requirement for individual services to cross each other affects capacity along the route and at Union Station.
  • Details of the implications for freight operations both with respect to existing spur lines and to clearance issues with new structures.
  • The anticipated volume and operational interference of freight operations on GO’s passenger service.

For the original station designs which, in some cases, have now been modified, please refer to the Metrolinx mid-2016 reports. Go to the Metrolinx New Stations page, scroll down to and open the Initial Business Cases bullet.

A consistent problem through all of these studies is the reliance on the imputed value of time savings to travellers. This is not “real money” in the sense that it can be recouped to pay for the transit investment, but a social benefit that transit confers. There is nothing wrong with this outlook, but readers are cautioned that when Metrolinx speaks of benefits exceeding costs, this does not mean that profits will roll in the doors at stations. Moreover, the model is very sensitive to the imputed effect of delays caused by new stations.

In their attempt to address the negative effect of adding stations to the corridors on riders making long trips, Metrolinx has changed their service design to include express and local trains. This fixes one problem, but adds others in terms of the resulting frequency at local stations, and the capacity of local trains to handle the projected demand.

All demand numbers cited here are for the 2031 projection which assumes the current fare structure with GO/TTC co-fares, but no “regional integration” beyond what is already in place:

The PDBC analysis assumes:

  • introduction of Presto on all TTC services across the City of Toronto;
  • the current discounted double fare agreement between the City of Toronto and Metrolinx – a $1.50 discount is applied when an adult Presto user’s journey includes both a TTC and GO segment;
  • the planned TTC 2-hour transfer to make the TTC more aligned with 905 transfer policy, planned for implementation in August 2018; and
  • progress by all transit agencies on addressing removal of fare barriers and improved service integration.

As a starting point, the base fare structure as of December 2017 is assumed for the PDBC analysis. [p 12]

Mayor Tory has trumpeted this report as showing a strong support for his SmartTrack project with 60-year benefits of $4.59 billion greatly exceeding the capital costs of $1.195 billion (2022$). However almost all of the benefit comes from two stations – East Harbour and King-Liberty.

East Harbour provides 55% of the demand and 84% of the imputed benefits from the six SmartTrack stations. King-Liberty adds a further 16% of the demand and 9% of the benefits. These stations stand on their own as worthwhile additions completely separate from SmartTrack.

Continue reading
