Analysis of Services on Wilson Avenue (Part I)

Wilson Avenue is served by many bus routes and branches, and this arrangement has been through two major reorganizations since fall 2015. In these articles, I will review the changes and the quality of service provided at various locations along the route.

Until March 27, 2016, service on Wilson Avenue was provided by 96 Wilson and 165 Weston Road North with most trips originating at York Mills Station.

In October and November 2015, both routes became part of the 10-minute network, and their schedules were reorganized accordingly. Blended service is provided in off-peak periods on the common section of the routes on Wilson Avenue between Weston Road and Yonge Street.

In March, this was changed to split off routes 118 Thistle Down, 119 Torbarrie and 186 Wilson Rocket as separate entities but on the same routes as the original branches of 96.

  Before                                      After

  96A Wilson YMS to Carrier Drive             Unchanged
  96B Wilson YMS to Claireville               Unchanged
  96C Wilson YMS/WS to Thistle Down           118 Thistle Down from WS
  96E Wilson WS to Humber College Express     186 Wilson Rocket from YMS
  96G Wilson YMS to Sheppard & Torbarrie      119 Torbarrie from WS
  165A Weston Road N YMS to Steeles & Weston  Unchanged

  YMS: York Mills Station
  WS:  Wilson Station
  • The 186 Wilson Rocket operates weekday peak and midday periods from York Mills Station whereas its predecessor 96E was peak only from Wilson Station.
  • All Thistle Down trips are now to/from Wilson Station only.
  • Service to Torbarrie remains peak only and its eastern terminus is now Wilson Station, not York Mills Station.
  • Additional 165 services operate into York Region with various destinations including seasonal service to Canada’s Wonderland.
  • The 96A and 96B services are identical over most of the route branching primarily at their outer ends just beyond Humber College, terminal for the 96E/186. The 96C/118 service branches off at Albion Road, and the 96G/119 west of Jane Street.

An obvious question here is whether all of this shuffling made any difference in the service beyond giving the various sub-routes their own numbers.

For those who want the short version, the service is a bit better, but still not very good, and it certainly does not meet the TTC’s goal of providing reliable service at terminals, let alone along the way. Wilson provides a good example of inferior service for riders notably when there is an attempt to blend multiple routes and branches. There is no individual location or time to point at, but rather an overall lack of rigour in provision of service throughout all of the routes at all times and days of the week.

There is no sign through any of the data here of an attempt to manage headways (or equivalently, to keep buses “on time”). In some periods and locations, many overlapping services could usually guarantee a bus to somewhere a rider is going. Inbound on Wilson, any bus will take you at least to Wilson Station, and most will go beyond to York Mills. However, for individual branches, simply letting the service operate as it might produces a much less satisfactory result with unreliable service, wide gaps and bunching.

These are services that would benefit from explicit “time point” dispatching with vehicles expected to leave points enroute, notably those where services merge as well as points where an enroute layover to achieve an even headway could easily be handled. A range of +1 to -5 minutes relative to the schedule on this route gives far too much latitude.

In Part II of this article I will examine running times in comparison with schedules for these services if only to deal with the usual “if only we had more running time” argument that has become the standard response to unreliable service.

The schedule summaries for these routes and periods are at the end of this article for reference.

Service Westbound from York Mills Station

In September 2015, the service westbound from York Mills was quite erratic at all hours as shown on the following chart.


The first five pages show the data for each of the five weeks in September by day and include trendlines threaded through the datapoints. Although the trendlines stay close to each other indicating that, overall, the headway values (intervals between buses) average out similarly for each day, the individual values are scattered considerably from the target values.  The situation for the month as a whole is shown on page 6 where there are many quite short, but also a substantial number of quite wide headways. The situation on weekends (pp 7-8) is even worse.

The values are summarized with averages and standard deviations (pp 9-11). The SD values are consistently at 5 minutes or higher indicating that a substantial number of the headways lies in a band 10 minutes or greater wide. This is utterly beyond the TTC’s stated goal of service leaving terminals on time and, by implication, regularly spaced. This is especially problematic when scheduled service runs infrequently and another bus is not just a few minutes away.

(The TTC aims for service leaving no more than 1 minute early or 5 minutes late, a considerable leeway for “on time”, but does not even achieve this. If a substantial proportion of the service actually achieved this, then the SD of the headways would be 3 minutes or less, half of the 6 minute window. This becomes a greater problem with blended services where the “blend” simply does not work unless all branches are “on time” relative to each other.)

Although the schedule summary shows the effect of blending the 96A, 96B and 96C services, in fact this blend is designed not to work at all because the 96C usually operated on a headway that did not mesh with those of the other services. For example, weekday midday service was every 15 minutes on 96A and 96B (producing in theory a 7½ minute combined service), but the 96C came once every 32 minutes and thereby had no relationship with the other services.

By March 2016, the service was somewhat improved, although far from perfect.


In March, there are far fewer headways over 20 minutes and also fewer very short headways with two (or more) buses leaving York Mills Station together. The SD values generally lie at about 4 minutes rather then 5, although neither of these keeps the service within the TTC’s target.

Weston Road North is little better than Wilson, and shows a similar pattern for its headways in March 2016.


In April 2016, the “96” service consists only of the 96A and 96B branches. In theory, one would hope that the simplification of the route might lead to more reliable service, but that is not what actually happened.


Although very short weekday headways are uncommon (little bunching among the 96s), headways above 20 minutes (twice the typically scheduled value) have become more common again. Weekends, especially Saturdays, show a great deal of bunching with short headways leaving York Mills Station throughout the afternoon.

Meanwhile, the Weston Road North service continues its pattern of erratic headways and bunching.


When the two services are view on a combined basis, the average headway is lower, but the reliability still leaves a great deal to be desired. Note that route “965” is a fictitious number I concocted for the consolidation of the two routes’ operations.


The headways, both scheduled at about 10 minutes, do produce a 5 minute average, but the actual values are scattered over the 10 minute range. The “blending”, such as it might be, is entirely accidental particularly on Saturdays when the SD and average values are often nearly the same.

Meanwhile on the 186 Rocket service to Humber College, service is erratic with an SD value of 4 minutes or more, although poor performance early in the month improves in later weeks.


Service Westbound from Wilson Station

With its off street bus loop, Wilson Station is a point where ill-spaced service could be re-martialled into a regular headway. That is not what happens, however. As at Yonge Street, headways in September 2015 ranged from zero to 20 minutes, and the standard deviation is high enough that this service cannot possibly meet the TTC’s on time performance target.


In March 2016, the situation is similar, but there is a marked improvement during the final week of the month when short headways generally vanish.


The Weston Road Service operated on the same schedule through March and therefore shows no change in the last week. The day to day trend lines are consistent, but they hide a variation in headways only slightly better than on Wilson itself.


In April 2016, the services are operating under their own route numbers. Wilson 96 headways remain scattered over a 20 minute range, and the SD values are at best about 4 minutes, hiogher notably on Saturday.


The Wilson Rocket’s headways are somewhat better behaved with a slightly lower SD value, but still not below the three minute line where service has a fighting chance of being “on time” much of the time.


Weston Road North, as at other points on the route, has headways scattered across a 20 minute range.


As for the “blended” service on Wilson and Weston Road North, in fact the SD values for the combined services are almost equal to the trend values (typically the combined scheduled headway). This indicates that many buses operated in pairs on Wilson Avenue rather than providing the alternating 96/165 service that is intended.


Service from Carrier Drive (96A)

In September 2015, service on the 96A inbound was erratic with SD values of 5 to 10 minutes (and above) at all times.


By March 2016, the situation was little different.


With the new schedules in April 2016, the SD values have finally dropped, but still not to a 3 minute level.


Service from Claireville (96B)

The situation on the Clairville branch is similar to Carrier with headways that vary considerably and SD values producing service beyond the target range of headways.




Combined Service inbound at Kipling (96A/B)

At Kipling, the two services have joined and should be providing a blended inbound headway. In practice, the SD value lies between 4 and 5 minutes, and for a 10 minute “blend” this will lead to gapping, bunching and uneven loads on buses.


Service to and from Thistle Down (96C/118)

In September 2015, the Thistle Down service was a branch of the Wilson route. The scheduled headway was quite wide, near 30 minutes during most periods. The SD values for outbound headways are quite high, and they are little better for inbound service. This shows that the benefit of a terminal where recovery to “on time” might occur had little effect. A 10 minute SD is quite high, indicating that a considerable amount of the service ranged up to 20 minute headways, and the timetable was effectively meaningless.



By March 2016, service to Thistle Down had improved, and the SD values were down to 5 minutes weekdays and Sundays, although Saturdays continued with 10 minute and worse values. These values would still give very erratic service, but only slightly less so that in the previous September.



Finally, in April 2016, the route was operating on its own as 118 and should have been free of disruption from other interlined operations on the 96. However, the actual service looked similar to the uneven headways we had seen when it was not a separate route. This shows quite strongly that left to its own devices, an independent service on a wide headway will operate very unreliably. This speaks volumes both to the operating ethos of the drivers and the laissez-faire nature of route management. Infrequent routes must operate very close to schedule because simply waiting for the next bus to show up is not an acceptable practice for riders.



Service to and from Torbarrie (96G/119)

119 Torbarrie is a peak only service, and it did not operate particularly reliably when it was part of 96 Wilson. As for the independent route, the actual reliability is summarized by a scatter map of the headways for all weekdays in April 2016 as seen at Dufferin westbound (not far from Wilson Station), and at the south end of the Oakdale Loop.



The number of headways showing here at about twice the scheduled value, especially in the PM peak, suggests that not all runs actually operated on all days. On a short route with a wide headway, this can have a large effect on the time riders will wait for a bus to show up.

Service on Weston Road North

Once the 165 branches off from Wilson Avenue onto Weston Road, reliability of service becomes more important because there are no other routes to fill in the gaps. However, the 165 operates with a range of headways wide enough to guarantee service that is more irregular than the TTC’s target value.

Northbound at Sheppard, headways vary over a range of 0-20 minutes with SD values typically around 6 minutes, double the value that would be seen if service were “on time” by TTC standards.


The situation is slightly better southbound south of Ormont (the southern end of the loop at Steeles), but still with SD values above 3 minutes as service leaves the terminus.


Service on Weston Road beyond Steeles Avenue

Most service on the 165 turns back at Steeles, but a limited number of trips operate into York Region. The charts below show the headways just north of Steeles, and they reveal a “service” that differs quite substantially from the regular spacing one would expect on a very infrequent operation. The concept of “on time” is quite impossible here where SD values of 10 minutes are not uncommon. This is service that operates when it shows up, not on any predictable schedule.



Service Summaries

Click on the summaries to view them full size.

September 2015

96 Wilson


165 Weston Road North


February-March 2016

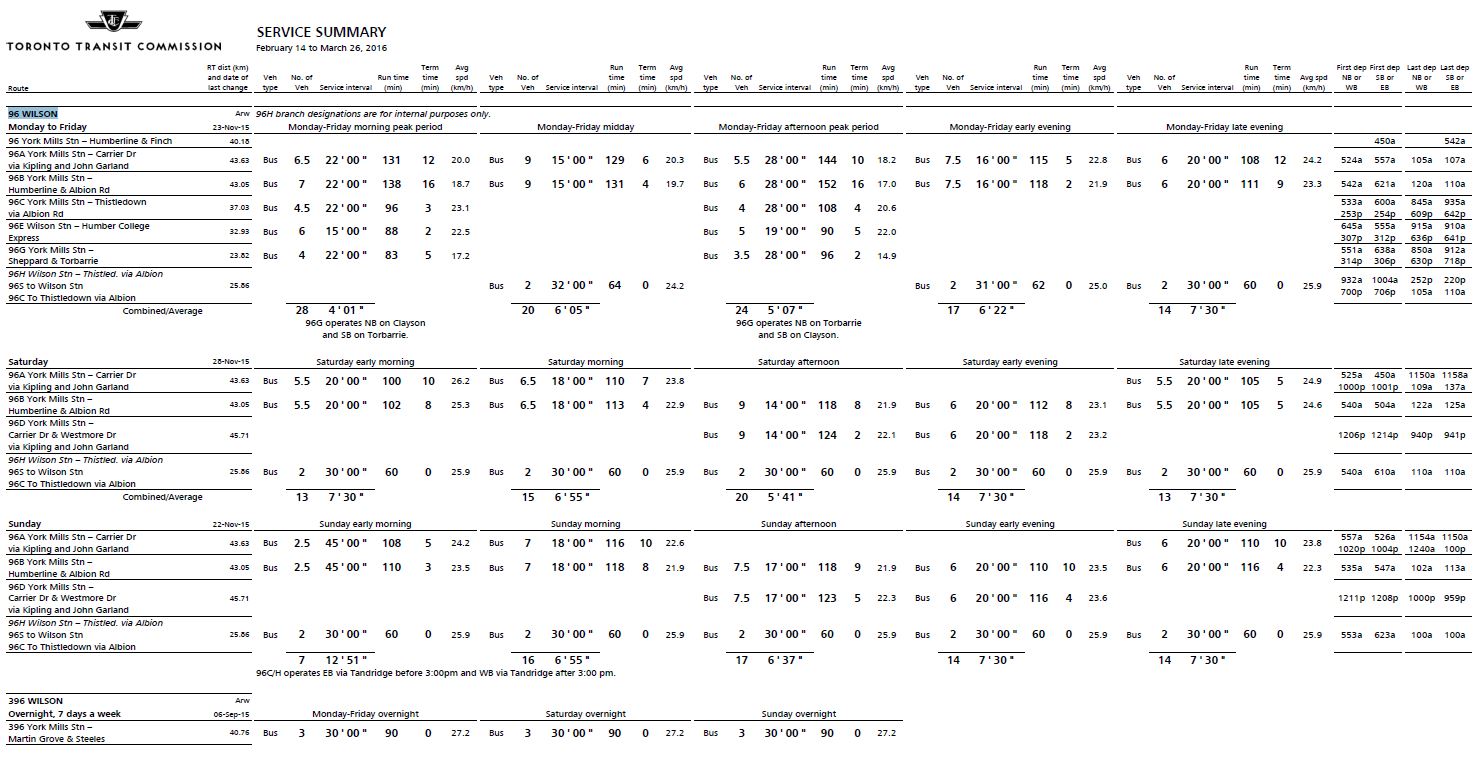

96 Wilson

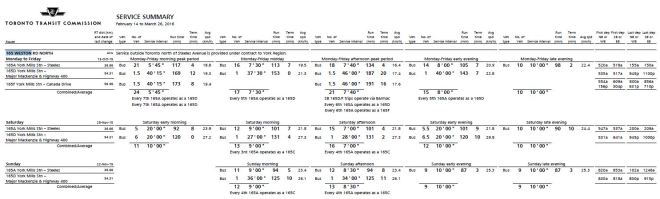

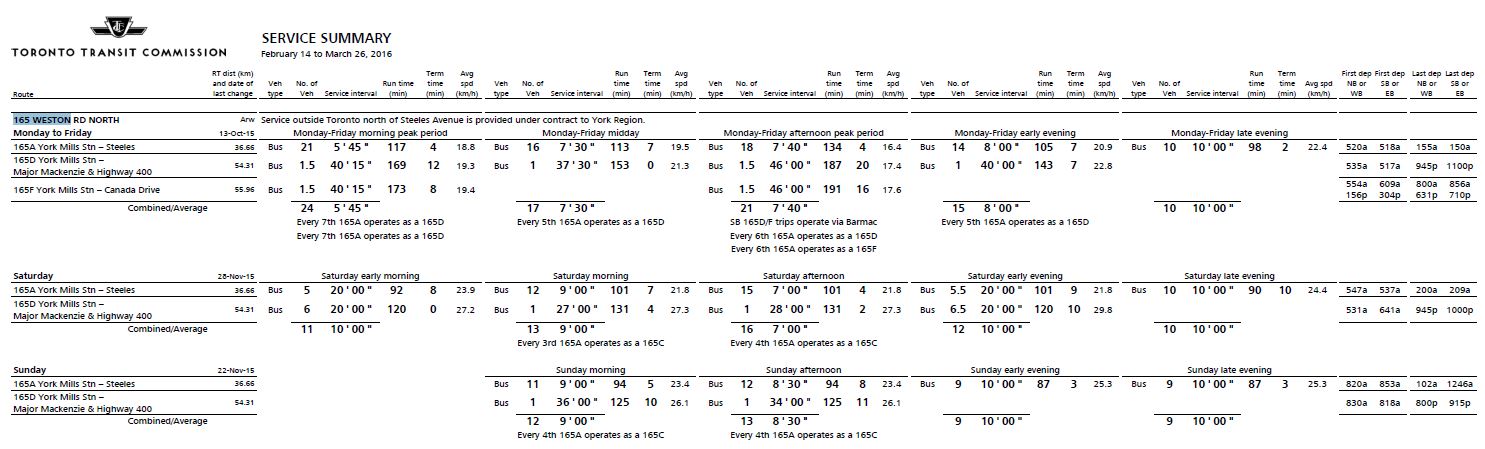

165 Weston Road North


March-April 2016

96 Wilson & 186 Wilson Rocket


165 Weston Road North

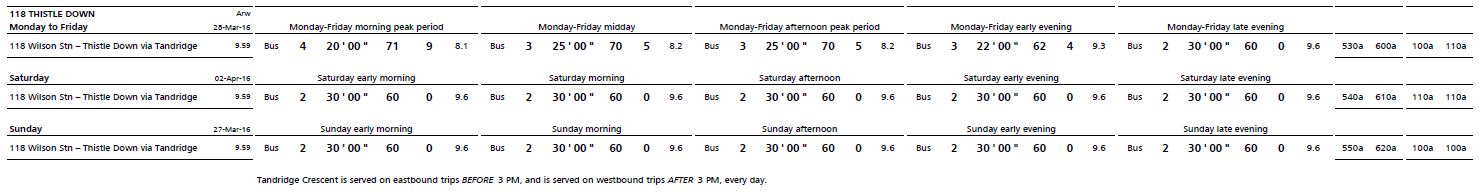

118 Thistle Down


119 Torbarrie
