TTC Service Changes Effective June 19, 2022

June 19 will bring the summer schedules on some routes, a return of streetcars at Broadview Station, and various minor changes scattered across the system.

Subway

There is no change in subway service.

Streetcars

With the completion of watermain work on Broadview in May, the streetcar service to Broadview station on 504 King and 505 Dundas will return.

504A Distillery to Dufferin service will remain, but will be blended with the 504B from Broadview Station to Dufferin. The combined service on the two branches will be more frequent in almost all periods than the 504A service now operating.

The 504/505 shuttle bus from Broadview Station to Parliament will no longer operate.

505 Dundas service will operate between High Park Loop and Broadview Station on the same headways as are currently provided just to Broadview. Dundas cars will not return to Dundas West Station until later in the year following completion of new platforms and overhead.

The 504C King/Roncesvalles shuttle bus will return to Dundas West Station, but, like all bus routes there, will loop on street and stop on Edna Avenue (north side of the loop) while work inside the station continues. Other bus routes currently diverting to Dufferin and Lansdowne Stations will return to Dundas West at the same time.

Work on Phase 3 of the King Queen Queensway Roncesvalles project including the North Gate of Roncesvalles Carhouse will begin in September.

Carhouse allocations of 504 and 505 will change with additional 504 cars operating from Leslie, and some 505 cars shifting to Roncesvalles. Allocations will change in August when construction work begins at Russell Carhouse, and again in September with the Phase 3 KQQR work.

There will be seasonal service cuts on several routes:

  • 503 Kingston Road AM Peak
  • 505 Dundas AM Peak bus trippers removed
  • 506 Carlton AM Peak bus trippers removed
  • 511 Bathurst all periods
  • 512 St. Clair almost all periods

See the spreadsheet linked later in this article for details.

From July 11 to August 1, 501L Queen and 301 Queen Night buses will divert westbound from Lake Shore via 15th, Birmingham and 22nd Streets during reconstruction of the intersection at Kipling. Eastbound service is not affected.

With overhead on the central section of Queen now converted for pantograph use, streetcars running between Leslie Barns and routes 510 Spadina and 512 St. Clair will operate via Queen west of the Don River rather than via King.

Buses

Routing Changes Due To Frequent CNE Closures

The following routes will be changed because streets in and near the CNE are often closed during the summer.

  • 29 Dufferin will loop through Liberty Village via King, Strachan and East Liberty.
  • 929 Dufferin will loop at Dufferin Loop.
  • 174 Ontario Place/Exhibition will operate via Fleet, Fort York and Lake Shore for the southbound trip.

30 High Park and 189 Stockyards Interline

Buses on routes 30 and 189 will interline to better use the running time on the combined route.

A new 30B High Park service will operate from High Park Station to the park via West Road and Colborne Lodge Drive. This seasonal shuttle will run separately from buses on the combined 30/189 service.

Seasonal Changes

The following routes are affected by seasonal reductions in demand:

  • 39/939 Finch East
  • 102 Markham Road
  • 905 Eglinton East Express
  • 927 Highway 27 Express

Miscellaneous Changes

  • 21C Brimley service to STC will be adjusted on Sundays.
  • 44/944 Kipling South service will divert both ways around track construction work at Lake Shore from July 15 to August 1.
  • 363 Ossington night service will return to Eglinton West Station Loop.
  • 72 Pape service will be adjusted during all time periods for reliability.
  • 86 Scarborough will have a trip added at 2:13 pm weekdays from Kennedy Station to fill a gap in the schedule.
  • 118 Thistle Down service will be improved in peak periods.
  • 134 Progress service will be adjusted on Saturdays.
  • 172 Cherry service will continue to bypass the Distillery District due to road construction.

600 Run As Directed

The number of scheduled RAD buses has been reduced substantial on weekdays from 40 to 5 crews. On weekends there will be more RAD buses with 39, up from 25, on Saturdays, and 32, up from 21, on Sundays.

Mount Dennis will not have any RAD buses. Details of the crew allocation are in the spreadsheet below.

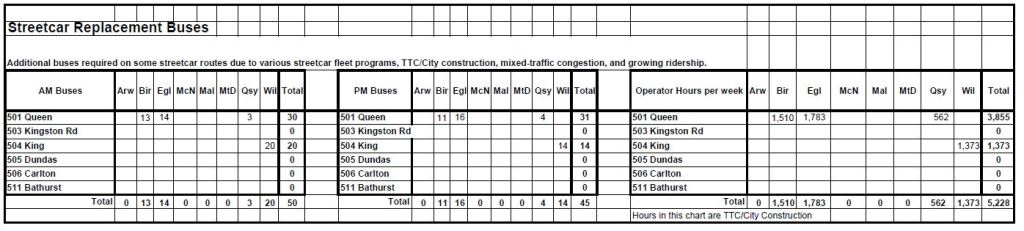

Detailed Tables of Service Changes

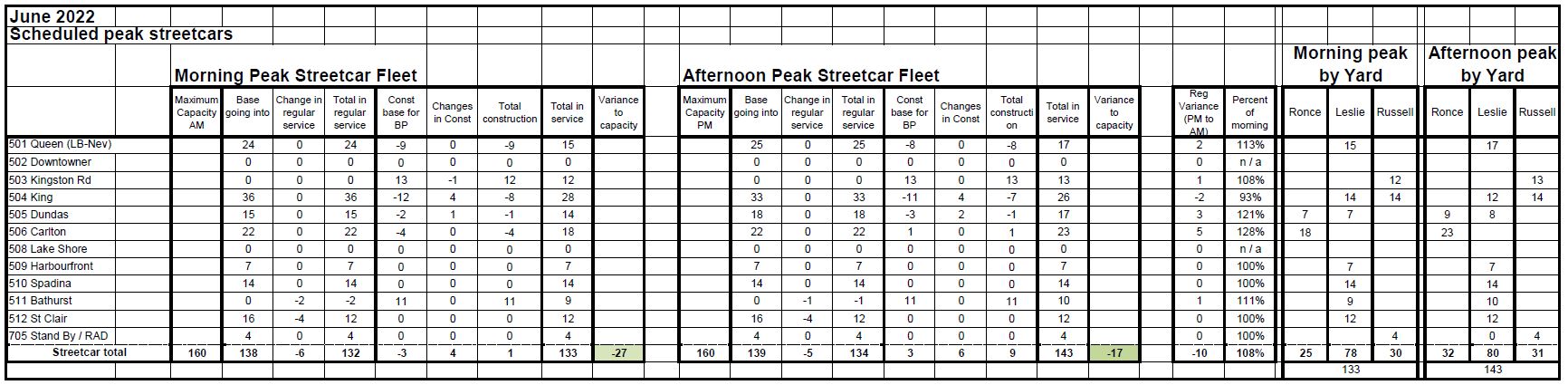

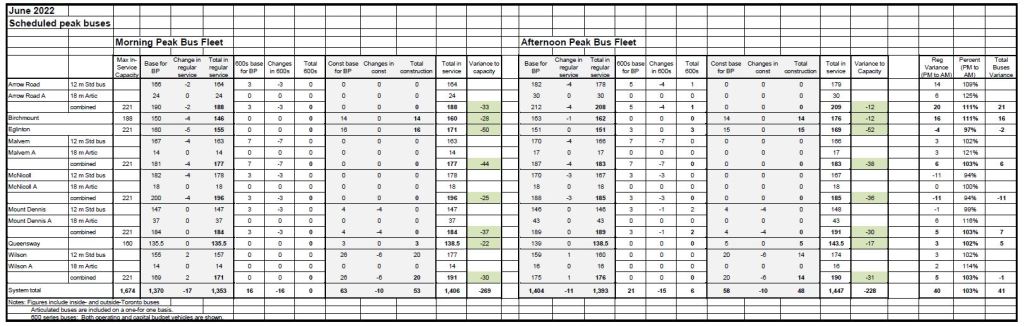

Peak Vehicle Usage

Queen Street Update – December 12, 2021

2021 has not been a good year for transit service and riders on Queen Street with the combined effect of projects stretching from Neville to Roncesvalles and beyond. Some projects have moved at a glacial pace, when they move at all, because of unexpected conditions discovered during construction, and a sense that fixing them was not exactly the City’s top priority.

This is precisely the kind of situation that leads to eye rolling whenever an agency says that it will close parts of downtown “only” for seven years.

Here, running from east to west, is a review of the current status.

Updated December 15 at 6:30 pm: The 63 Ossington bus resumed its normal route today.

Updated December 21 at 11:45 pm: I have been remiss in not mentioning that no sooner had the Ossington bus resumed its normal route via Ossington, Queen and Shaw, than it was diverted again via Dundas-Bathurst-King thanks to the closure of the Queen/Ossington intersection.

Updated December 22 at 11:15 am: As of this morning, Queen and Ossington has reopened, and the 63 Ossington is on its regular route. However, the underlying map used by service prediction apps still has the King-Dufferin-Queen layout, and service predictions at the south end of the route will be missing or inaccurate until this is changed.

The East End

Conversion of the overhead wiring system for pantograph operation was somewhat spotty east of Queen and Leslie where streetcars from pan-ready routes turned south to the carhouse. Some of the conversion was done under service, and other work was done with the streetcars replaced by buses.

Streetcar service to Neville returned on December 6 replacing a shuttle bus that had operated between Coxwell and Neville Loop. On a quiet Sunday morning (December 12), there were plenty of cars at Neville, but this is not always the case depending on conditions along the route.

Service earlier in the week was very spotty with large gaps from downtown, and an inability for riders to know when service might appear because the streetcar operation to Neville is not part of the “official” schedule transit apps use to make predictions of service at stops.

The overhead within Russell Carhouse is still trolley pole-only. The westernmost tracks have no overhead at all.

Downtown

Officially, the 501 Queen car is still diverting to King via Parliament Street. However, thanks to traffic signals at Richmond and Adelaide that prioritize traffic to/from the DVP over transit, there can be severe congestion in what should be a small link between Queen and King. Some Queen cars travel via King to the Don Bridge to escape from this.

The 501 bus services (one to Humber, the other to Long Branch) continue to operate east to Broadview looping, officially, via Broadview, Gerrard and River to Queen. In practice, some of these buses operate north to Broadview Station although whether they carry passengers is a sometimes thing. This could help to supplement capacity on what has again become a busy link that the 504/504 shuttle bus cannot always handle, but the arrangement seems to be ad hoc, not a formal part of the service.

On King, the 501 Queen cars operate west to Spadina looping via Adelaide and Charlotte Streets.

The current plan is for streetcar service to resume on Queen between Neville Loop and Bathurst Street (using Wolseley Loop north of Queen) with the January schedules.

Conversion of overhead to pan-friendly mode is substantially complete over this section, and at one location, Victoria, is pantograph-only with junctions for curves that have no frogs, only a pair of contact wires.

Queen West

The track replacement project from Bay to Fennings (east of Dovercourt) continues, much to the dismay of local merchants on a street that, by the original schedule, would have been clear of construction two months ago.

According to the City’s project site, the segments of work are being taken slightly out of sequence both for TTC operations and to suit affected merchants.

  • Queen is fully open to Bathurst Street. From there to Dufferin, buses divert both ways via King.
  • Track work and repaving is completed to Niagara Street (between Bathurst and Shaw).
  • Work is in progress between Niagara and Shaw except for the block between Gore Vale and Strachan which has a row of businesses. This will be done last in the project .
  • At Queen and Shaw, the intersection should re-open on December 13.
  • Track between Shaw and east of Ossington has been replaced and been concreted.
  • Track replacement from east of Ossington to Fennings is in progress. The intersection at Ossington is expected to close on December 14. The TTC has not yet announced what will happen to the 63 Ossington bus during this closure, but once the entire section from Ossington to Shaw opens again, the Ossington bus can resume its normal route.
    • 63 Ossington resumed its normal route on December 15.

Despite delays on this project, it is worth noting how fast track can be replaced and the roadway re-opened when all that is necessary is removal of the top pavement layer and track, and installing new track attached to the steel ties embedded in the road. Decades of rebuilding streetcar track to this standard are now paying off.

The biggest delays inevitably occur where other utilities are involved, or where the road geometry is changed triggering utility relocations. Intersections are more complex because the TTC started to build these on new foundations several years after adopting new construction for the tangent (straight) track, and the city has not yet been through a complete round of intersection replacements where new track can be installed on a pre-existing foundation. Even so, the entire Queen/Shaw project from demolition through new foundation and new track installation took only three weeks.

There are construction photos and videos on the City’s web page linked above.

King/Queen/Queensway/Roncesvalles

This project drags along and is at the opposite end of “speedy” projects compared to work further east on Queen.

With the move into “Stage 2” some weeks ago, Queen Street has re-opened for east-west traffic. The 501 bus operates straight through the intersection, and the 504 King/Roncesvalles bus dodges the intersection. Eastbound 504 and 304 (night) buses operate via Queen and Triller to King, while westbound service diverts via Dufferin and Queen.

The south leg, King Street, at the intersection is closed and has been excavated for installation of new curves linking to the special work at Queen. With the change in intersection geometry, the curve will now occur before the switches rather than after, and the intersection itself will be a conventional 90 degree layout on all four legs.

How well this will handle the substantial volume of westbound traffic from King to The Queensway, especially given Toronto’s chronic inability to provide true transit priority, remains to be seen. This was already a source of much congestion especially when construction or special events caused traffic to spill off of the Gardiner Expressway.

This view looks west on The Queensway from Roncesvalles from the west end of the new eastbound loading platform. The mound of dirt west of the intersection was formerly a small pedestrian island that was a refuge, of sorts, for pedestrians crossing to the southwest corner and the bridge to Sunnyside Beach.

A mixture of new and old overhead poles remains here and at some point all traffic will be shifted into curb lanes so that work on the streetcar track and new reserved lanes can occur from Sunnyside Loop west to Parkside Drive.

The paving at Glendale (St. Joseph’s Hospital) remains incomplete, and there are still some Hydro/TTC poles within the curb lane that have not been removed or shifted to new locations.

This entire project is a textbook example of both what can go wrong and of the extended period when road and transit users must endure the shortcomings of project planning and management.

In 2022 the area north of the intersection including the carhouse entrance will be rebuilt. Concurrently, the loading zones on Roncesvalles will be modified to work with the accessibility ramps on the Flexity streetcars. This work is planned for the Spring-Summer construction season, but I will believe that when I see shovels in the ground. Other utility upgrades are included in this project, and that always seems to be a recipe for delay rather than the supposed effect of concurrent, co-ordinated work. See the City’s KQQR construction page for more information.

All photographs in this article are by the author. The diversion map for 504 King is by TTC.

Queen/Shaw Intersection Replacement Begins (Update 2)

Work began on November 15, 2021 on the replacement of special work at the intersection of Queen and Shaw. Based on past experience with similar projects, this should last about three weeks.

Updated November 19, 2021 at 2:45 pm: Track replacement has begun with the eastern leg of the intersection, and foundation work is in progress for the other two legs.

Updated November 21, 2021 at 1:40 pm: Links to TTC diversion notices added.

The service diversion now embraces changes for multiple works along Queen Street West:

501 Queen Bus: Initially, the diversion was via Dufferin, King and Strachan both ways. However, extension of the tangent track replacement west of Bathurst now requires buses to divert both ways via Dufferin, King, Bathurst, Richmond/Adelaide, and Spadina. (Updated November 19)

63 Ossington Bus: Diverts both ways via Queen, Dufferin and King. The buses loop through Liberty Village on their normal route via Strachan southbound and Atlantic northbound, but then turn west onto King for the northbound diversion.

Elsewhere on Queen, there are diversions and bus replacements. (Updated November 19)

  • Streetcar service runs between Russell Carhouse (east of Greenwood) and King & Spadina (via Parliament) due to track and overhead work on the central section of Queen, and overhead work in The Beach. It will be extended east to Woodbine Loop on November 21.
  • A bus shuttle runs between Neville Loop and Leslie/Commissioners. This will change on November 21 to operate between Neville Loop and Coxwell.

The 503 Kingston Road car continues to operate between King & Spadina and Bingham Loop at Victoria Park.

Photos on November 19, 2021

Service Reliability on 63 Ossington: September 2021

This article continues a series about service quality on some of the TTC’s shorter routes.

63 Ossington has a similar scale to the 47 Lansdowne reviewed in the previous article in this series. Although the service is far from ideal, this route is better behaved than its neighbour, even though it is subject to severe traffic congestion at certain times near its northern terminal due to Line 5 Crosstown construction.

All service on 63 Ossington operates between Liberty Village and Eglinton West Station except during peak periods when half of the service turns back at St. Clair via Oakwood Loop.

The schedules were changed on Labour Day weekend, and so data shown here for the first week of September reflects the old schedule, while from Sunday, September 5 onward, the new schedules were in effect.

In most cases running times have been trimmed although in a few periods they have been lengthened. These changes allowed more frequent service to be scheduled without adding buses to the route. This is a reversal of past TTC practice which has seen headways widened as a way to provide more running time at no marginal cost.

The TTC’s goal for “on time performance” is a band six minutes wide (+1 to -5 minutes relative to schedule), and in some periods, much of the service lies within this band. Nonetheless, on headways ranging from 5 to 10 minutes, bunching is possible and shows up regularly with data points near the x-axis of these charts. Wide gaps, especially at evenings and weekends, are common.

Unlike Lansdowne, this route has no branching structure during most of its operation, particularly when headways are wider. Also, as we will see later in the daily analyses, the congestion at Eglinton West Station occurs mainly during the pm peak, and buses have enough running time that they can take layovers there even after being stuck in traffic approaching the station.

Northbound from King

At the south end of the route, buses operate around a long on-street loop through Liberty Village. Their typical layover point is on Atlantic Avenue northbound south of King Street. The screenline used for these analyses is on Shaw Street just north of King where the loop begins.

The weekly headway summary and the week-by-week charts show the schedule change with the shape of the weekly averages and daily trendlines.

Weekend data points are far more spread out than weekdays showing a very different approach to service management (assuming that there is any) especially on Sundays.

Southbound From Eglinton West Station

The screenline for these charts is at Eglinton & Park Hill Road, just west of the Allen Expressway. By contrast with the data at the south end of the route, weekday headways here are more scattered, especially in week 1. The standard deviation of headways begins the day in most weeks at about 3 minutes, but rises in the afternoon and evening as service reliability declines. The SD values at Eglinton West are generally higher than at King reflecting the wider scatter in headway values.

Southbound from St. Clair

These charts are included for weekdays to show the combined 63A and 63B peak service southbound from St. Clair. With all of the service present, the headways are shorter during peak periods, and far more of them are quite short indicating that buses from the two branches probably run in pairs a lot.

Continue reading

Transit Service Reliability on Short Routes

A common theme in these pages is the TTC’s constant problem with providing reliable service. Many problematic routes lie outside of the core on long east-west routes that must deal with varying traffic conditions, the difficulties of blending branched services, and a faster return of demand and post-pandemic traffic levels than in the central area.

These are not excuses for poor service, but at least represent some of the challenges faced. This is not true for short routes primarily in the old City. For these routes, a trip between Eglinton and Lake Ontario is comparatively long, and some reach only a few kilometres from Line 2 Bloor-Danforth south.

They should be routes that run like a clock, but they suffer many problems seen on their longer cousins outside of the core. If the TTC cannot operate these reliably, how can we expect them to fare with behemoths like east-west routes on Lawrence or Finch, or routes from Line 2 north to Steeles and beyond?

This article is an introduction to a series that will examine service on:

A factor among many of these routes is that service is not particularly frequent. If there is a bus missing, or pack of buses running together (effectively the same thing), the gap is wide. The added waiting time (assuming a rider bothers) can be greater than the time they will spend riding from point “A” to “B” on the route. Waiting times hurt transit because riders see them as unproductive, and this can be compounded by uncertainty about the next bus’s arrival and capacity.

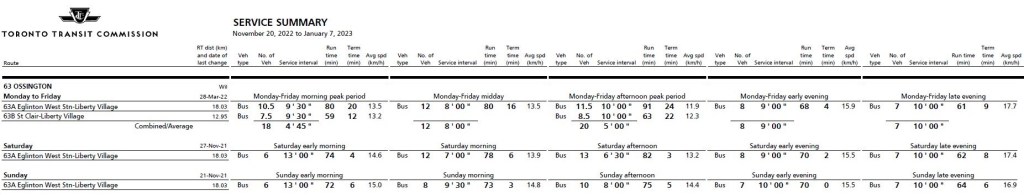

Here is an overview of service frequencies on these routes during selected periods. Some of these have 10 minute or better service during some periods, but many do not.

RouteAM PeakMiddayEveningSat AftSat EveSun AftSun Eve
22A Coxwell (Victoria Park)10′9’30”10′10′10′
22B Coxwell (Queen)8’20”8’20”
47A Lansdowne (South)4’45”9′6′8’30”10′9′10′
47B/C Lansdowne (North)9’30”18′12′17′20′18′20′
63A Ossington (Eglinton)9′7’30”8′7′10′8′10′
63B Ossington (S of St. Clair)4’30”
65 Parliament13′13′17′20′17′18′16′
70 O’Connor (South)10′11′13′13′11′11’30”15′
70 O’Connor (North)20′22′26′26′22′23′30′
72 Pape (on Pape)6′9’30”9′9′9′9′9′
72B Pape (to Union)19′19′18′18′18′18′18′
75 Sherbourne5’30”7’30”16′10′30′20′30′
94 Wellesley (East)7’30”7’30”8’30”6’30”9′6’15”9′
94 Wellesley (West)15′15′17′13′9′12’30”9′
Source: TTC Scheduled Service Summary for September 5, 2021

Common problems on these routes include:

  • Buses running in groups of two or more.
    • In some cases, pairs of buses run together over the course of two or more trips indicating that there is no effort made to evenly space service.
    • For branching services, buses on each branch do not blend evenly where the branches combine.
    • In the worst case situations, all of the vehicles on the route are running as a pack.
  • Buses missing from service, with the remaining buses not spaced to account for the gap. In some cases, a route is served by only one bus when there should be two or three.
    • Missing buses are most common during evening and weekend periods when spare operators are harder to come by, in part because many of the “run as directed” operators are used for subway replacement services. Because TTC has fewer operators than crews in some cases, there are open crews that are only filled if there is a spare operator available.

Although the TTC has standards defining what constitutes acceptable service, almost none of these address the problems listed above. That is because:

  • Buses can be running close together but still be “on time” according to the service standard.
  • There is no standard that addresses gaps and bunching explicitly.
  • There is a standard related to missed trips, but no statistics have ever been reported for it.
  • The standards accept a wide range of exceptions with a goal of achieving targets only 60% of the time. There is no reporting of the proportion of service lying outside the standard even if it would be within the target.
  • There is no co-relation of vehicle crowding with service reliability.

To put it quite bluntly, these so-called standards allow management to claim to operate the system to “Board approved” targets, even though the TTC Board members probably have no idea of just how lax these standards actually are.

In turn, when riders complain, they are often told that the service is operating within standards, and that where there are problems, “run as directed” buses are dispatched to fill the gaps. This is simply not possible because there are not enough RAD buses to fill all of the holes in the service. Moreover, the TTC does not track or report on the usage of these buses to establish that they really do provide the benefits claimed for them.

TTC management hopes to lure riders back to buses, but the single most common complaint is that more service is needed. Part of “more” service involves simply running what is already there better. There is no point in advertising frequent service if what is actually on the street is anything but.

When they were approved, there was a staff presentation that set out the standards but did not actually explain what they might allow. The Board nodded in approval of something technical that looked impressive, but was clearly beyond their ken. The old Razzle-Dazzle works every time.

TTC Service Changes: September 5, 2021

September 2021 will see expansion of TTC service in anticipation of returning demand including in-person learning at schools and universities. Many express bus routes will be improved or enhanced.

In a reversal of past practice, schedule adjustments for “on time performance” will actually reduce rather than add to travel times in recognition that buses do not need so long to get from “A” to “B”, and that they can provide better service running more often on their routes than sitting at terminals.

Full details of the schedule changes are in the spreadsheet linked below.

Continue reading

The Problem of Scheduled Service Irregularity

In a series of articles, I reviewed the quality of service on many bus routes during a period, the lull in traffic and demand during the pandemic, when it should have been relatively easy for the TTC to operate reliable service.

A consistent factor on almost every route was that buses are running in bunches with wide gaps between them. Those gaps translate to crowded buses followed by lightly-used ones, and riders rightly complain about long waits and an uncertain arrival of the next group of vehicles.

The TTC argues that service is not really that bad because they have a large number of unscheduled extras (aka “RAD” or “Run As Directed”) buses that do not show up in vehicle tracking records. Leaving aside the obvious need to track all service, not just the scheduled buses, this does not explain why buses run so close together so much of the time. These are tracked vehicles that have a schedule that should keep them apart.

Or so one might think.

TTC Service Standards include provisions for headway quality (the reliability of spacing between vehicles), but this is fairly generous, and it is never reported on as an official metric of service quality.

However, another problem is that on some routes, the service is actually scheduled to come at uneven headways. This arises from three issues:

  • Some routes with more than one branch have different frequencies on each branch. This makes it impossible to “blend” service with, for example, alternating “A” and “B” destinations.
  • In response to the pandemic, the TTC quickly adapted schedules by cancelling all express buses, and selectively cancelling individual runs as a “quick fix” to avoid complete schedule rewrites across the system. Where local trips were cancelled, this created gaps in the scheduled service.
  • On many routes, notably those that formerly had express service, the TTC scheduled “trippers” to supplement the basic service. However, these trippers were generally not scheduled on a blended basis leaving riders with scheduled, but erratic service.

In some cases, the September and October schedules corrected some of these problems, but many persist. This article looks at a number of routes where the summer (August) schedules had uneven headways to see what, if anything, has changed by mid-October. (The most recent set of schedules went into effect on October 11, 2020.)

All of the data presented here were taken from the TTC’s schedules as they are published in GTFS (General Transit File Specification) format for use by travel planning apps. This almost exactly matches information on the TTC’s online schedule pages.

Continue reading

TTC Bus Service Frequency and Reliability in 2020 (Part V)

This is the final set of route-level reviews of TTC service reliability within this series.

The routes discussed here serve parts of the central area and the old “inner” suburbs York and East York.

Continue reading
