Infrastructure Ontario has issued its quarterly update of projects that are in the planning and procurement stages. This affects several parts of the Ontario government, but my focus here is on transit projects.
The spreadsheet linked below tracks the past and current updates to show how the projects have evolved. There are two sections: one for active projects and one for projects with no currently reported info (typically for projects that are now in construction or completed, or that have been withdrawn).
Where a cell is coloured yellow, there is a change from the October 2021 report. Several cells are coloured light yellow. There is new text, but the only real change is to say “Jan-Mar” instead of “Winter”, and similarly for other seasons. This eliminates a point of confusion in past reports.
The Ontario Line North Civil, Tunnels and Stations contract dates have slipped by one quarter, and the contract type has changed from DBF (Design, Build, Finance) to TBD (To Be Determined). This covers the OL infrastructure work from East Harbour to Science Centre Station.
The Yonge North subway extension has been split into two projects: one for the tunnel and the other for the stations, rail and systems. The projected dates for the tunnel contract are unchanged, but for the stations project they are TBD.
A new line has been added for the Eglinton West LRT tunnel between Jane and Mount Dennis.
All of the GO expansion projects have slipped into 2022 for contract execution, but with dates early in the year. This implies an imminent flurry of announcements just in time for the coming election. These projects are running a few years behind their originally planned dates.
The contract type for the GO OnCorr project which includes future operation and maintenance of the system has changed from DBOM (Design, Build, Operate, Maintain) to “Progressive DBOM” which appears to provide earlier design input from prospective builders as well as a better (from the bidders’ point of view) allocation of risk between Metrolinx and the P3.
The Milton GO Station project has not been updated since October 2021. It is possible that this work is paused pending a resolution of issues between Metrolinx and CPR about all-day operation on this line.
As part of the GO Expansion plan, Metrolinx had intended to grade separate the junction at Scarborough Station on the Lakeshore East corridor to eliminate the conflict between frequent service on the Stouffville corridor which runs north, and on the Lakeshore line itself. Plans call for frequent, electrified service on both corridors. All Stouffville and about half of the LSE trains will be electric. Some diesel operations will remain on LSE for trains that will run beyond the end of planned electric territory at Oshawa.
Approval for this project was granted at the end of February 2021.
Four consortia were prequalified for the GO OnCorr project in May 2019, and the RFP process closed on November 30, 2021. The successful bid will be announced sometime in 2022. The consortia include major international rail operators including SNCF (France), MTR (Hong Kong), RATP (Paris) and DB (Germany).
In April 2021, transit video blogger Reece Martin posted an interview with Metrolinx CEO Phil Verster on a variety of topics. Verster talked about a shift in how major contracts are handled including early involvement of proponents in the design phase. The portion of interest includes the following exchange which has been edited only to remove pauses and add punctuation.
PV: Let me give you an example Reece. Just practical examples speak a thousand words for me.
RM: Sure.
PV: We have three big projects overlapping at the new East Harbour Station that we are working with Cadillac-Fairview and the City of Toronto to get built in the Docklands area. And the three projects are: GO expansion, we want more trains on the Lakeshore East; the Ontario Line is going to have platforms at East Harbour; and then we want to build East Harbour itself which is going to be the Union Station of the east. So these are three massive projects that are intersecting.
From the really quality work that we got done by our GO Expansion team, it was evident that if we had a third platform, sort of a centre platform, in the station, we could increase the capacity of trains that can stop at East Harbour by about 8 trains per hour at the peak higher than the 12 trains we had intended. So we can now stop 20 trains an hour rather than just 12, and that 20 years from now when capacity gets constrained at Union Station, we will have saved 2 of the 16 roads. We would have freed up by having this platform in terms of reducing the switchover times between lines which then occupies capacities. So we make in effect 8 trains on 12 increase in capacity at East Harbour, we save 2 platforms out of 16 at Union Station.
But more than that at Scarborough Junction by putting a centre platform at East Harbour, a couple of kilometres down the way at Scarborough Junction, we can now avoid building a rail grade-to-grade separation which saves us $140 million.
RM: That big flyover that you guys had planned before.
PV: Exactly. Now that’s not required because of a station design choice we made further upstream that benefits Union Station as well as East Harbour as well as to the east [?].
You see this is innovation. Now this sounds really boring perhaps for other people that are not sort of rail geeks like people like you and me, but I’m telling you this is unique stuff and it’s super exciting to make these changes. I call these once in 60 year, once in 100 year type decisions that we are making now that will massively benefit this network 50, 60 years from now.
Talking Transit with the CEO of Metrolinx, posted April 15, 2021
It is quite clear that Metrolinx had a revelation about its proposed design for the LSE corridor almost a year ago, and this reflects various design changes that have occurred along the way.
Originally, at East Harbour Station, the Ontario Line would have “straddled” the GO corridor with the eastbound OL track on the south side, and the westbound OL track on the north side. This would have permitted across-the-platform transfers with “local” GO trains running on the outer pair of tracks while the express trains ran through on the inner pair. This arrangement was touted in an October 2019 Metrolinx blog article that remains online.
The straddle option turned out to be problematic not just at East Harbour, but further up the GO corridor at Riverside/Leslieville and Gerrard OL stations which would be much more complex with split platforms, as well as the need for two portals at each end of the surface-running OL segment from west of the Don River to Gerrard Street. Metrolinx abandoned this scheme, and shifted the OL to the north side of the rail corridor. The across-the-platform transfer, previously thought to be essential, was abandoned.
This change allows all train-to-train interchanges to occur at a concourse level under the tracks much as at Union Station. In turn, that also makes possible a platform arrangement with stopping by all GO trains, not just those on two of four tracks.
From a rider’s point of view, it does not matter which track a particular GO service uses, and it is a short step to allocating pairs of tracks to each of two services, rather than to local and express trains. That eliminates the need for the grade separation at Scarborough. (There are implications for Danforth and Scarborough Stations, but that’s a separate matter.)
This is all very interesting stuff, although I would hardly use the term “innovation” to describe moving away from the original straddle design (something else that was an “innovation” in its time) that way. One might ask why it took Metrolinx so long to come up with this scheme and, in the process, simplify operations, increase capacity and reduce project costs.
In a recent Twitter exchange, I asked Metrolinx to confirm or deny that the grade separation had been removed from the project. The GO Expansion team replied:
The reference concept includes minimum service level requirements – how the winning proponent chooses to do that (which grade seps to build, trains, signaling, etc.) is up to them. The contract is designed to spur market innovation in this way.
Metrolinx has completed the necessary TPAPs for all potential grade seps, so needed approvals are in place for financial close, expected in the first half of this year. Once the proponent is on board, we can confirm with certainty which grade separations will go forward. 2/2 ^pp
Tweets by @GOExpansion, January 4, 2022
In other words, the design is up to the winning proponent, even though everything on the Metrolinx website still claims that the grade separation is part of the plan including this October 2020 article in their blog which has not been removed or amended.
Twitter is not an ideal place to get into technical discussions, and it was also obvious that reconfiguration of the platforms and track allocations would have other effects at East Harbour. Therefore, I wrote to Metrolinx seeking clarification of their position.
As presented in all of the consultation materials and discussed in an article on the Metrolinx Blog, there will be a flyunder at Scarborough Junction where the outer eastbound track will connect to the Stouffville corridor via a grade separation to eliminate the conflict with through service on the Lake Shore corridor.
In an interview with Reece Martin on YouTube, Phil Verster talks about a change in the configuration at East Harbour and at Scarborough Junction that eliminates the need for the flyunder and increases capacity at Union Station. Although he does not go into the details, this implies that the allocation of LSE corridor tracks to services will change so that the Stouffville trains will use the northern pair of tracks and the LSE trains will use the southern pair. Coupled with an added platform at East Harbour and through-routing of services at Union, the capacity of the combined corridor is improved by reducing train conflicts and by improving operations at Union.
This is an interesting idea, but when I raised, via Twitter, the question of why it was not reflected in published materials, the response from the GO Expansion team was that decisions on configuration were up to whatever proponent is selected for the GO OnCorr program. That directly contradicts Phil’s enthusiastic statement that this change is happening and the decision has already been taken by Metrolinx.
The only way to reconcile these positions is to say that Metrolinx has not actually “decided” on which configuration to use, but will “suggest” the new scheme as an option for bidders. Alternately, one of the bidders already came up with this idea as part of the work on their proposal evaluation and Metrolinx has embraced it unofficially.
Can you clarify what the situation actually is?
Email from Steve Munro to Metrolinx Media Relations, January 6, 2022
Changes at East Harbour station have ripple effects, and I pursued these questions as well:
There are implications at East Harbour on a few fronts.
First, does the proposed added platform that Phil mentioned alter the alignment of tracks crossing the Don River, and what does this do to the GO and OL bridges and any early works including the Ontario Line alignment?
Second, with the new hook-up of services running through at Union, is there still a need for electrification of the Bala Subdivision (GO Richmond Hill) as a turnback facility, or will you no longer have a service that only runs west from Union and needs that turnback?
Third, one of the rationales used for the Don Valley layover has been the loss of capacity in the existing Don Yard (aka Wilson Yard) due to other projects by which, I assume, you mean the Ontario Line construction. Originally, in the straddle configuration, the OL would have had two portals one on each side of the corridor, but now it has only one on the north side. How does the revised geometry work for the existing yard tracks, the bridges, the OL portal and the connection to the Bala subdivision?
Email, op. cit.
Metrolinx replied:
Hi Steve,
We don’t have any further information to share beyond what the GO Expansion account replied. For further updates, stay tuned to Metrolinx News.
Email from Fannie Sunshine, Advisor, Media & Issues Communications, Metrolinx, January 6, 2022
And there the matter sits. Phil Verster gives a gung-ho interview about innovative design eight months ago, but nothing on the Metrolinx website reflects his comments. A request for detailed feedback nets a “stay tuned” answer.
This whole exchange begs a more delicate question: to what degree can project designs be changed at the behest of the P3 proponent after all of the public reviews are completed based on a proposed design? What other changes might be in the works for any Metrolinx project, and will they just happen without any review or consultation?
To me, the proposed change in track allocation on LSE makes sense, but why is it such a secret?
On December 7, Toronto’s Executive Committee considered the long staff report on Ontario Line downtown construction effects on which I have previously reported. That report was supplemented by a staff presentation.
To watch the full presentation and debate click here [YouTube link].
Although the Building Transit Faster Act gives Metrolinx the power to do whatever it wants in advancing this project, the City hopes that they will be a co-operative partner. Much of the debate turned on the effects of the long-term shutdowns, and to that end a long series of amendments was passed. Collectively, these seek to create a monitoring and reporting structure for the project and to ensure that the scope and duration of its effects are kept to a minimum.
This will be a challenging environment because unlike a TTC project, the primary relationship is between Metrolinx and their P3 partner, generically called “ProjectCo” pending a selection of a successful bidder, and the City/TTC have no power nor contractual relationship to enforce their will on the project.
Media coverage and political reaction has focused on the planned seven year closures at many sites. The staff presentation and comments repeated that the planned closures are the maximum that will be permitted, although what the City might do if the hole in the street has not been filled is anyone’s guess. The procurement includes an incentive to reduce the duration of closures, but it will be some time before we know whether “ProjectCo” will agree to a faster project at some or all of the stations.
This is the fifth and final article in a series reviewing the construction effects of the Ontario Line downtown. It deals with overall issues across the project rather than the specific issues at each station.
In reading the report, there is a sense that working out traffic flows for motorists and trucks took a much higher priority than thinking about transit, pedestrians and cyclists.
The Ontario Line stations are projects on a scale and time frame larger than major building construction projects, and the work will be undertaken by an agency that is not noted for its sensitivity to local concerns. If Eglinton was any indication, there will be plenty of opportunity for finger-pointing between Metrolinx, the City and “Project Co.” (the placeholder name for the yet-to-be-selected P3 partner).
City Led Projects
In addition to the work of building the Ontario Line, there are other planned construction projects downtown. The list below only reaches to 2026.
The following City-led construction projects were included:
Gardiner Express Rehabilitation – Grand Magazine Street to York Street (2024 to 2026)
TTC 504 King streetcar track rehabilitation – 2024
Yonge Tomorrow – Reconfiguration of Yonge Street between Queen Street and College Street
Sewer Rehabilitation –
Richmond Street between Simcoe Street and John Street (2023);
Richmond Street between Peter Street to Spadina Avenue (2023);
Wellington Street between Clarence Square and Blue Jays Way (2024);
Front Street between Bay Street and Scott Street (2024).
Watermain Replacement –
Adelaide Street between York Street and Victoria Street (2022);
Dundas Street, between Church Street and Sherbourne Street (2024);
Front Street between Bathurst Street and Spadina Avenue (2026).
Congestion

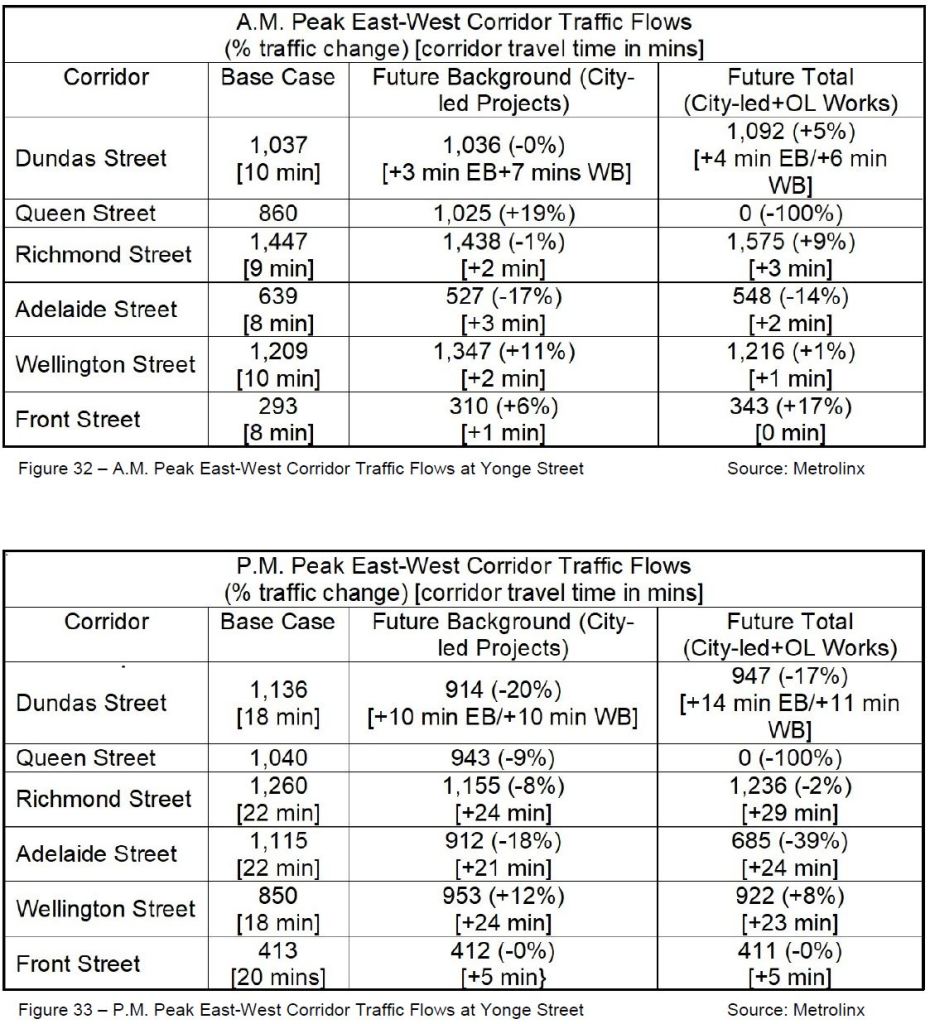

The table below shows the effect of various configurations on traffic volumes and speed for the AM and PM peak periods.
The Base Case is the existing conditions with no added projects.
The “Future Background” adds in the City projects listed above, and assumes that they all happen at once. In fact they will take place at different times.
The “Future Total” adds in the effect of the Ontario Line construction on top of the City projects.
The base number is the projected vehicle count on each corridor at Yonge Street. The number in square brackets shows the existing travel time (Base Case) and the projected change (Future Cases) between Parliament and Bathurst Street.
King is notable by its absence in the table, but it is hard to believe it will not be affected especially with the lack of enforcement of priority measures. It will be under construction in 2024, but in other years traffic will inevitably use any available street regardless of signage or paint on the roadway.
Travel times are already considerably higher in the PM peak than in the AM. The projected changes in the AM peak are small relative to the base case because the road network can absorb the reduced capacity at that time. However, in the PM peak, travel times double (or more) across the core area.
This will have a severe effect on transit service.
Considering the cataclysmic effects shown above, this table bears close scrutiny. An immediately obvious point is that almost all of the change is the result of the City-led projects and the Ontario Line construction adds very little on top of this. But the model assumed that all of the City projects planned out to 2026 would occur at the same time rather than individually.
This is lazy modelling, and it should be redone on a year-by-year basis to evaluate the effect of taking specific chunks out of the road network as planned.
Equally important should be a model run with only the Ontario Line changes included. It is possible that the model with only all of the City projects yields so much congestion that there is no room for “growth” on that account when the OL is added to the mix.
A rather obvious question here is how construction vehicles are supposed to access the OL sites if traffic is so congested during part of the day. Indeed, one might ask whether a moratorium on truck activity during at least the PM peak will be needed.
A well-known characteristic of traffic congestion is that it can build slowly with volume, but at a critical point there is a “knee in the curve” where congestion gets much worse with only a small change in the network. This is seen on a day-to-day basis when all that is needed to snarl an otherwise open road is a curb lane blocked by a delivery truck or utility workers with a few traffic cones.
This is the fourth article in a series about the anticipated effects of construction through downtown of the Ontario Line. Because the stations at Moss Park and Corktown are similar in their construction technique, I have grouped them together.
Both stations will be built as off-street using cut-and-cover rather than mining because the entire station site can be opened for access. Effects on pedestrians are less severe, and transit stops are undisturbed.
However, the scope of work is much greater at Corktown Station because this will be a Tunnel Boring Machine launch site. Not only will this see the excavation of the station itself, but the removal of “muck” from the TBMs as they progress west across the route.
This is the third article in a series about the anticipated effects of construction through downtown of the Ontario Line. Because the stations at King/Bathurst and Queen/Spadina are similar in their construction technique, I have grouped them together.
Two of the four corners at each intersection will be used for excavations down to the tunnels which will exist by the time station construction begins. The plan is to avoid road closures that would disrupt transit service, not to mention capacity on the road network.
This may sound good in theory, but transit service will suffer from new pinch points in the road network, and pedestrians will attempt to make connections between transit routes walking along roadways adjacent to construction zones. Although there are no formal cycling lanes on streets at either station, a substantial volume of cycling traffic now uses curb lane space that will disappear.
In both cases, construction is planned to run from July 2022 until mid-to-late 2029.
July 2022 to June 2023: Setup, utility relocation and enabling works
July 2023 to March 2026: Excavation
March 2026 to September 2027: Below grade concrete work
Fall 2026 to Fall 2027: Exterior station work
June 2027 to September 2028: Interior station work
March 2028 to March 2029: Station fit out and testing
There is no plan to selectively re-open parts of the street once the major works of excavation and concrete pours are out of the way.
An obvious issue for the long term is that no sooner will subway construction decamp from these sites, but new building construction will move in. The loss of sidewalks and road space could continue well into the 2030s.
When I asked the City of Toronto about this, they understandably have no information on the time frame or effects of potential developments of these “Transit Oriented Community” sites to be developed by Infrastructure Ontario.
[…] although these sites have been flagged as TOC’s we don’t currently have any details around these and their construction impacts. If lane closures are required for their construction then reports will need to come forward to City Council at the appropriate time which will spell out the occupations required and impacts.
Ashley Curtis, Director Transportation Planning & Capital Program. Dec. 2, 2021.
This continues the series reviewing the construction plans for downtown stations on the Ontario Line and their effect on roads and nearby properties.
Like Queen/Yonge station described in the previous article, Osgoode connects with the Line 1 subway in a new two-level station. However, the construction approach will be completely different.
The expanded Osgoode Station will be dug from two excavations at opposite corners of the station rather than from access pits in the middle of Queen Street. The primary entrance to the expanded station will be at the northeast corner of University and Queen, a space now occupied by part of the park in front of Osgoode Hall.
A second entrance to the station will be built at Queen and Simcoe and will use the existing bank facade for its exterior.
The diagram below shows a much larger portion of this park to be occupied for construction than was previously thought to be threatened. Compare the orange hatched area below with the next drawing from the June 2021 round of consultations.
This drawing shows “Station Building 1” occupying about half of the frontage on University between Queen Street and the gate to the walkway across the front of Osgoode Hall. In the diagram above, the entire width of this area is taken for construction as well as part of the area north of the walkway along the street, and the lawn in front of the Hall.
Given the effect any work within the Hall’s grounds will have on the park, this is not a trivial change. Quite bluntly, I believe Metrolinx showed the smaller scope in the drawing above because proposing to take so much of the park, even temporarily, would have produced an uproar. They stick handled their way around any discussion of Osgoode Station during the consultation sessions. This has the smell of deliberate misrepresentation.
If anyone is considering a design based on a proposed reallocation of lane space on University and expansion of the east side pedestrian realm, they have been very quiet about it. Conveniently for Metrolinx, this is not a residential neighbourhood with the usual population of critics quick to leap on their proposals.
All of the trees at Osgoode Hall in the photo below lie on lands shown as the construction zone for this project. Civic vandalism in the name of “progress” does not begin to describe this proposal.
University Avenue Looking North at Queen, June 2021 / Google Street View
Early Works
The main construction work begins in July 2023 with station excavation running to March 2026. The station exterior would not be complete until Fall 2027, and the lane closures would not be undone until sometime in 2029. (See the city’s report for details.)
However, some works must take place in advance of the main project:
Utility relocation from March 2022 to May 2023.
Other “setup, preparatory and enabling works” from July 2022 onward. It is not clear just what these entail or which areas of the site would be affected.
At various times in 2022 there will be short-term closures of parts of Simcoe Street and University Avenue (see the list of Early Works closures for details).
Street Restrictions
For much of the project, various lanes and parts of sidewalks will be close or restricted:
Queen Street road lanes will not be affected.
On the east side of University to north from Queen (see photo above), the street is now four lanes wide with the curb lane used for a bike path. In this area, the sidewalk will be taken over for construction and pedestrians will be shifted into what is now the northbound curb lane.
NOTE: The report is unclear about whether there will actually be a cycling lane or not, or when. “The existing northbound curbside bicycle lane on University Avenue fronting the Osgoode Hall will be closed for construction staging purposes. However, the northbound travel lanes on University Avenue will be realigned and a protected 2.0 metres wide northbound bicycle lane around the work zone will be provided.” [p 28]
On Simcoe Street, the west sidewalk and part of the street will be closed between Queen and the laneway running midblock west from Simcoe. The intent is to use the west side of Simcoe as a staging and storage area.
The east sidewalk on Simcoe will be narrowed to leave enough room for one traffic lane and a cycling lane, although that lane is not shown clearly on the drawing above.
Pedestrian access will be maintained in front of the bank/second entrance building along Queen west of Simcoe.
Here is what Simcoe Street looks like today. The bank on the left will become the second station entrance.
Simcoe Street Looking North to Queen Street June 2021 / Google Street View
Transit Changes
The only explicit changes proposed for this area are the relocation of the westbound streetcar stop east to a point clear of construction, and closing the existing station entrance north of Queen on the east side of University.
The report proposes a westbound York/University stop on Queen, but this would be closely after streetcars have stopped northbound on York at Queen. With the northeast station entrance closed, passengers transfer passengers are more likely to use the southeast entrance (through the Opera House) and a stop on the north side of Queen does not make sense. Better that transfers walk between the Opera House entrance and the proposed stop at York & Queen along the south side of the street.
The eastbound stop on Queen at University will remain.
Metrolinx has not published diagrams of Osgoode station below street level showing how the existing and new spaces and circulation patterns will work.
In the next article, I will review King/Bathurst and Queen/Spadina stations.
This is the first of a series of articles reviewing the plans for construction of the downtown Ontario Line stations between King/Bathurst and Corktown Station. The base document is a report at the Toronto Executive Committee’s meeting of December 7, 2021.
Appendix C – Key Intersection Measures of Effectiveness
This is a long report detailing the effect of multi-year construction at six sites. Beginning with early works in 2022 and continuing to 2029, each of the sites will be at some stage in construction, although the exact timetable varies from station to station.
The project will involve many curb lane closures and associated effects on sidewalks, bike lanes and transit stops. As previously reported, there will be a complete road closure of Queen from Bay to Victoria for the construction of a deep and complex link there to the existing Line 1 Queen Station. Osgoode Station is a less complex project because there are fewer nearby buildings constraining the site, although it has its own challenges.
King/Bathurst and Queen/Spadina are similar to each other in that they will use shafts on two of the four corners of their intersections as the launch points for mining out the station caverns under the street.
Moss Park and Corktown Stations are both cut-and-cover locations, but Corktown has the added complexity of also being a site for the tunnel boring machine launch and for removal of spoil from the tunnel excavation.
Each site has other issues:
Volume of spoil from the excavations and the routes trucks will use to move material from six concurrent construction sites.
The constraints on emergency vehicles while road access is limited.
Local business and residential access.
Cycling lane effects.
In all of this, we must assume that traffic, transit, pedestrian and cycling demand will be at least at pre-covid levels, although there are likely to be shifts as some traffic “evaporates” in frustration.
This first article will deal with the most complex project: Queen Station. Next will come Osgoode, to be followed by the two western stations at Bathurst and Spadina, and then the eastern stations at Moss Park and Corktown. I will wrap up with a discussion of issues common to all sites.
Little has changed in the transit projects, but IO and Metrolinx are shifting away from their original, much-ballyhooed model where public contract risk was minimized by a transfer to the private sector. Instead there is more talk about collaboration and mechanisms to make contracts more palatable to would-be bidders. It is no secret that a few years ago a major firm refused to bid on Metrolinx work on the proposed terms.
Building on the experience of the collaborative Alliance model in use for the Union Station Enhancement Project, IO’s partnership with Metrolinx to expand the GTHA’s network of public transit continues to advance and evolve. Last month, Metrolinx and IO launched the RFQ for the Scarborough Subway Extension – Stations, Rail, and Systems project, introducing a Progressive Design-Build approach. Like the Progressive P3 procurement strategy being introduced on hospital projects, the subway extension procurement includes the benefits of working with a partner on design work, addressing and avoiding considerable contract risk prior to signing a final contract to deliver the project. Following considerable discussion and consultation with industry, this complex, multi-billion-dollar project will be contracted as a targeted price versus the fixed price of our P3 models.
Like our contract packaging strategy for both Scarborough Subway Extension and Eglinton Crosstown West Extension, we expect to take a multi-package staged approach of delivering the Yonge North Subway Extension. That work would begin with an advance tunnels package that we expect to be procured using a classic DBF contract. Pending government approval, our hope is to have the RFQ for that procurement in market early next year.
Letter from Michael Lindsay, CEO of IO, October 14, 2021
The update contains projects from multiple ministries and agencies, and I have extracted the transit projects in the table linked below. This table shows the status of each project as it appears in the quarterly IO updates with the current changes highlighted in yellow.
The structure of the Scarborough Subway Extension has been changed from “TBD” to “Progressive Design Build” where first a partner is chosen with a Development Phase Agreement, and then a Project Agreement once design reaches the point of locking in the construction phase. Note that “Design Build” does not include operation and maintenance as the SSE will be part of the TTC’s subway system.
The Yonge North Subway Extension to Richmond Hill has slipped slightly for issuance of the Request for Qualifications and of the Request for Proposals, but this is offset by moving the contract award up from Fall to Summer 2023.
Several GO Transit projects are listed for award in 2021, but they have not yet been announced.
Beyond the works already in progress, no transit projects are up for award before Fall 2022. This means that if the Ford government is re-elected, they will have batch of ready-to-go announcements, but if not, there would be a last ditch chance to review some contracts either as to content (project details) or future operating principles (private vs public). Whether a Liberal or NDP government (or a coalition) would do this remains to be seen.
Updated October 14, 2021 at 12:50 am: Metrolinx’ responses to the absence of material on Osgoode Station, and of the suggestion of “ballot stuffing” have been added.
After the recent online consultation session for the Downtown Segment of the Ontario Line (Osgoode to Corktown), several issues came to mind and I wrote to Metrolinx for clarification. They have not yet answered most of them.
The Depth and Complexity of Queen Station
The cross-section for Queen Station included in the presentation shows an Ontario Line deep underground. This station is deeper than the City Hall Station on the Relief Line which was located immediately west of Yonge Street.
City Hall Station Cross Section Looking North, Relief Line. Source: Relief Line South Detailed Design
These two drawings are not at the same scale. The illustration below clips portions of each with scales adjusted to match. In both designs, the new structure leaves a gap below the existing station for structural support. However, with the Ontario Line directly under the Yonge Line, the concourse level (one above platform level) cannot share the same vertical “slice” that the Relief Line, offset from the Yonge Line, uses. This forces a deeper station than would otherwise be needed.
Metrolinx claims that transfer times between the two stations are actually shorter for the Ontario Line than the Relief Line, but this is hard to believe considering that OL riders must walk east or west at the concourse level just to reach an escalator upward from what would have been platform level on the Relief Line.
Note that in both cases, the level of the passageway under Queen Station (the remains of a never-used Yonge Station on a Queen line) connect to the circulation system of the new station. It is not clear, however, that the capacity of the existing passage, stairs and escalators is up to the potential level of transfer traffic. That problem is common to either design.
What Is Happening at Osgoode Station?
The meeting announcement clearly states that Osgoode Station would be up for discussion. This is a controversial site where Metrolinx plans to build a new entrance and access shaft where there is now a grove of trees on the northeast corner of Queen Street and University Avenue at Osgoode Hall. See: Ontario Line v Osgoode Hall. Trees on main streets downtown, let alone on an historic site, are not exactly common, and the Metrolinx plan verges on civic vandalism.
In particular, there is a proposal floating around at City Hall to substantially reconfigure University Avenue by extending the east sidewalk (shown below) into the northbound roadway. The trees at Osgoode Hall are an integral part of the new design.
This locations of station entrances for the Ontario Line are different than in the original Relief Line plans because the OL station box is shifted west. (See the article linked above for detailed layouts.) The Relief Line station ran from just west of University to York, with a new expanded entrance on the southwest corner at University and a completely new entrance at York and Queen. The Ontario Line station runs from west of Simcoe to University with new entrances through the Osgoode Hall lands and through an old bank on the southwest corner of Queen and Simcoe.
This is a controversial subject, and Osgoode Station was included in the announced meeting agenda. This agenda is still online on the meeting page. Clearly when this meeting was announced Metrolinx intended to include Osgoode Station.
That page now claims:
The presentation focused on timely updates for Queen, Moss Park and Corktown Stations. While this presentation did not feature an update on Osgoode Station, the panel welcomed and responded to questions about all four stations within the segment.
That is flatly not true. A few people asked about Osgoode Station’s absence from the presentation, but there was no substantive discussion because no material was presented.
Metrolinx has not yet posted any replies to the questions submitted online, but there is an added wrinkle in that regard. There had been a popular question about Osgoode Hall that ranked third on the list on September 28.
By October 12, this question had gained more support, but also a large number of down-votes pushing it well down the list. One might speculate that this is a question Metrolinx would prefer not to answer. In this age of challenged votes, we cannot tell whether any ballot-stuffing was involved. (See Metrolinx’ reply at the end of this section.)
I asked Metrolinx about Osgoode Station’s absence from the actual agenda, and here is their reply:
The Ontario Line virtual open house on October 7 did focus on the Downtown segment, which includes Osgoode, Queen, Moss Park and Corktown Stations. However, similar to other open houses we have hosted across the alignment, we did not feature an update on all stations in the segment.
As you noted, we did not include new information about Osgoode Station in the October 7 presentation. There are a few reasons we did not cover Osgoode in the presentation. First and foremost, we did not have significant updates to share about the station. Additionally, we aim to keep the presentations to 30-minutes to allow ample time for questions. Given that we had substantial updates to cover for all of the three other stations but not for Osgoode, we did not explicitly highlight this station during the presentation. Nonetheless, we welcomed questions related to all Downtown stations and will post responses for any questions we did not get to answer during the live event in the coming weeks.
We look forward to bringing new updates and more information to the community about all stations across the Ontario Line as they are available. We also always welcome questions and feedback via email, phone, and social media. Anyone interested in learning more about any station can also visit our website or book a meeting with a community relations team member.
Email from Caitlin Docherty, Community Relations & Issues Specialist – Ontario Line, October 12, 2021
To have no update on a controversial station site, if only to say “we have some ideas and we’re working on it”, suggests avoidance, not merely a desire for brevity. Moreover, there was no suggestion during the meeting of an alternate date when that site could be discussed.
This is not a trivial issue both in its own right, and because Metrolinx operates to a clock ticking quickly and inexorably on a compressed approval timetable. Delaying discussion makes real debate, let alone the possibility of modification, more difficult.
It is all very well to suggest that people can contact Metrolinx one-on-one, but this is not the same as a published community meeting where whatever claims Metrolinx makes are public and can be challenged. Even in public meetings, Metrolinx makes statements that can be charitably described as misinformed. They can claim to have “consulted”, ticking off a box in the legislated process, but without a public check on their accuracy.
Updated October 14, 2021 at 12:50 am:
Metrolinx has replied further:
Consultation is absolutely planned once we have new significant updates to share for Osgoode. During the virtual open house, we welcomed questions related to all Downtown stations and will post responses for any questions we did not get to answer during the live event in the coming weeks.
I want to be very direct with the second half of your email. Metrolinx does not manipulate the votes in any way on Metrolinx Engage. We use the votes to gauge community interest and determine which questions we will have time to answer.
Email from Daryl Gonsalves, Community Relations & Issues Specialist – Ontario Line, October 14, 2021
I will take this at face value, but it is clear that somebody really didn’t want to have a discussion about the trees at Osgoode Hall.
More Questions
The following questions to Metrolinx await answers.
Queen Station
At Queen Station, you stated that the transfer with Line 1, although obviously deep vertically, is shorter than from the originally proposed City Hall station on the Relief Line South. This is hard to believe. Can you explain further?
Was there any reason for the change in the OL elevation other than the geometric constraint at Yonge caused by shifting the station eastward?
From a construction point of view at Queen Station do you plan to dig two shafts down east and west of Yonge, and then mine inward from the sides?
With the station at Yonge now being an entire level below the RL plan, what does this do to elevations at Osgoode and Moss Park compared to the original RL designs?
Moss Park Station
At Moss Park Station, you talked about meeting the fire code while only having one exit building. I have been trying to figure out the plan in the presentation deck. Am I right in thinking that there are two separate sets of vertical access from the common lobby area leading to different parts of the station? How do you achieve compliance with only a single exit point? This was a known advance question and simply including a station plan would have answered this.
Corktown Station Construction Effects
There was a passing reference re the construction disruption at Corktown where you talked about the possibility that the tunnel will be one straight bore from Corktown to Exhibition rather than two separate ones east and west of Yonge Street.
Is this a decision being left to the south tunnels bidders? It obviously has significant effects on construction staging and the length of disruption at Corktown.
On a related note, how do you plan to construct the segment between Corktown and the portal west of the Don River?
Station Finishes
There was a question about station finishes where the answer quickly pivoted to the joys of above-ground stations and sunlight. This has nothing to do with downtown, underground stations. Do you plan simple bare concrete stations for the Ontario Line or not?
Steve Munro
