King Transit Priority Travel Times Update: 2016 to 2022

The priority transit lanes and other traffic measures have been in place on King Street between Jarvis and Bathurst Streets since the fall of 2017, five years ago. This article updates past charts and observations with data to October 2022.

There are three quite separate areas on these charts:

  • 2016 to fall 2017: This is the pre-priority era in which travel times were longer and, during parts of the day, quite unpredictable.
  • Fall 2017 to March 2020: This is the era of transit priority pre-pandemic. There is a marked reduction in both the length and variation in average travel times during most periods.
  • March 2020 to October 2022: This is the pandemic era. A further drop in travel times occurred almost immediately as this period began, and values have only begun to climb upward in recent months.

A troubling question, difficult to answer this early in the “recovery” period, is how far up both average trip times and the variation in these values will climb. Motorist have had free rein on King Street for two and a half years, and the “priority” scheme is a shadow of its former self.

The situation will be further complicated when Queen Street closes for Ontario Line construction and traffic diverts onto Richmond and Adelaide with, no doubt, some spillover to King. There is no sense that robust priority measures will be in place for transit, but instead that the focus will be on moving traffic generally through downtown. Transit will benefit, to the extent it might, from the “rising tides lift all boats” philosophy that sees any benefit to auto traffic as having a spin-off value to transit. That is a false but commonly used analogy.

In the charts below, there two galleries, one with westbound and one with eastbound data. This allows a reader to open the gallery and step back and forth through different hours of the day to see how the data change.

All of the charts have the same layout.

  • The x-axis gives the date over the past five years.
  • The y-axis is time in minutes with the bottom of the axis at 10 and the top at 40. This gives more “breathing room” for the variations as there are “zero” values in the chart only where there are no data due to a diversion or missing data in the TTC feed. The upper value of 40 clips some of the very high peaks, but these are rare.
  • There are two lines showing the 50th percentile (mean, blue) and 85th percentile (yellow) for the travel times.
  • There are various vertical bars marking significant events including the start of the King Street pilot (green), the onset of Covid (brown) and the annual film festival (red, omitted for 2020 and 2021).

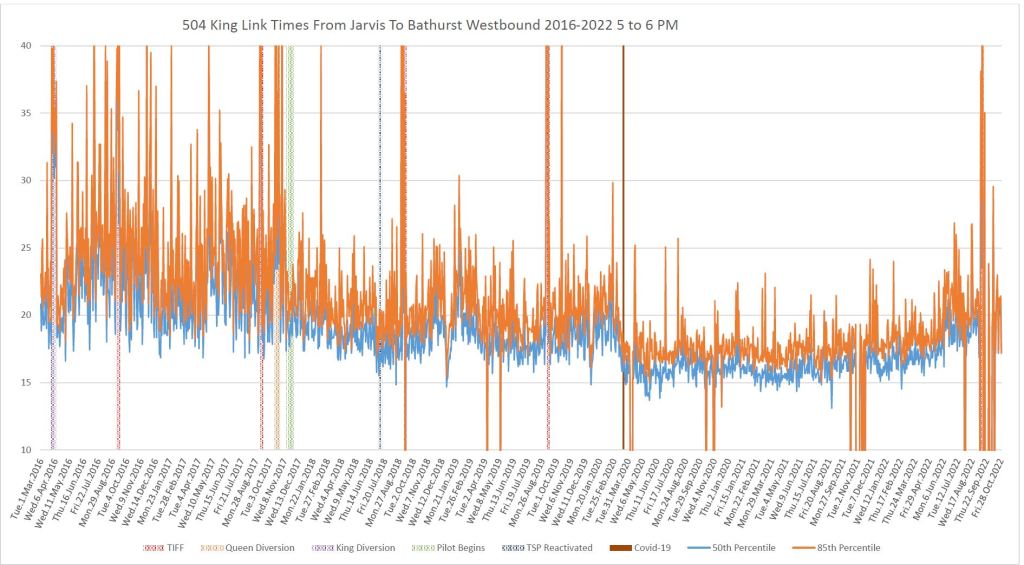

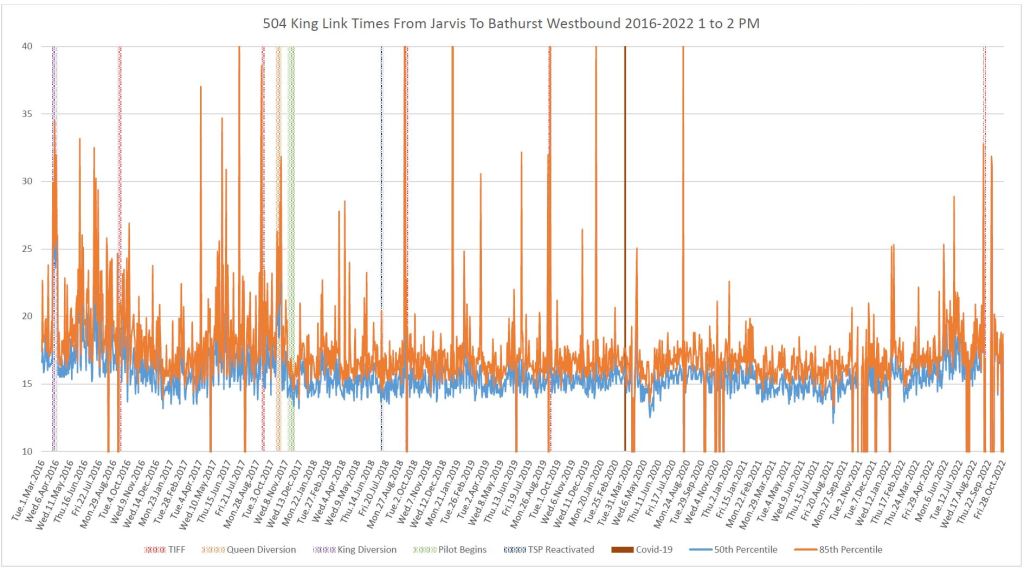

Westbound

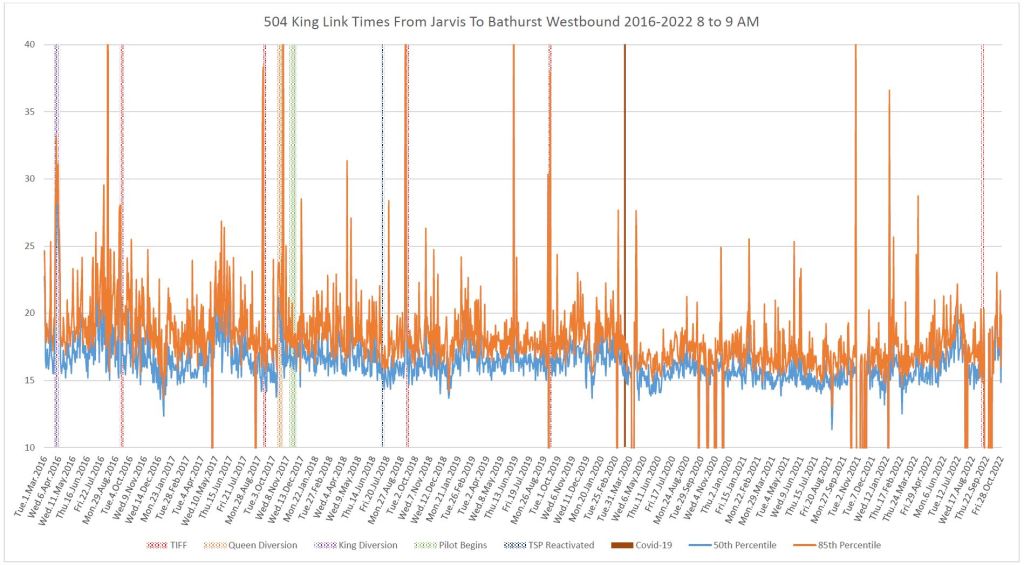

An important point about these data, one which has been studiously missed by critics of the scheme from very early days, is that the benefits vary by time of day and direction. As the “before” data show clearly, travel times were lower, and less erratic in the AM peak than at other times of the day. This meant that there was less headroom to achieve better transit service during this period, but a common complaint was “look, you failed to reduce travel times” during a period when this was unlikely to happen.

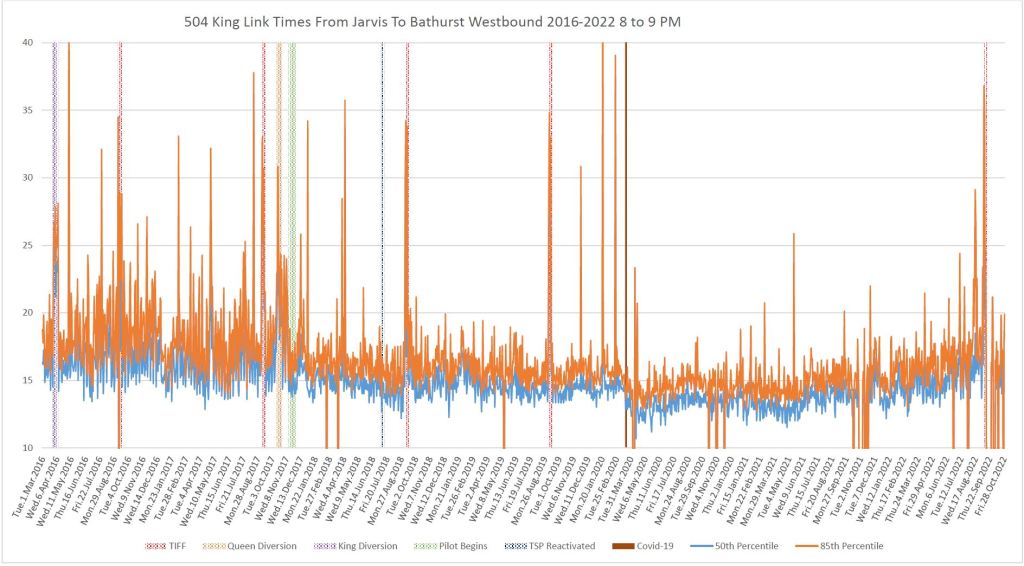

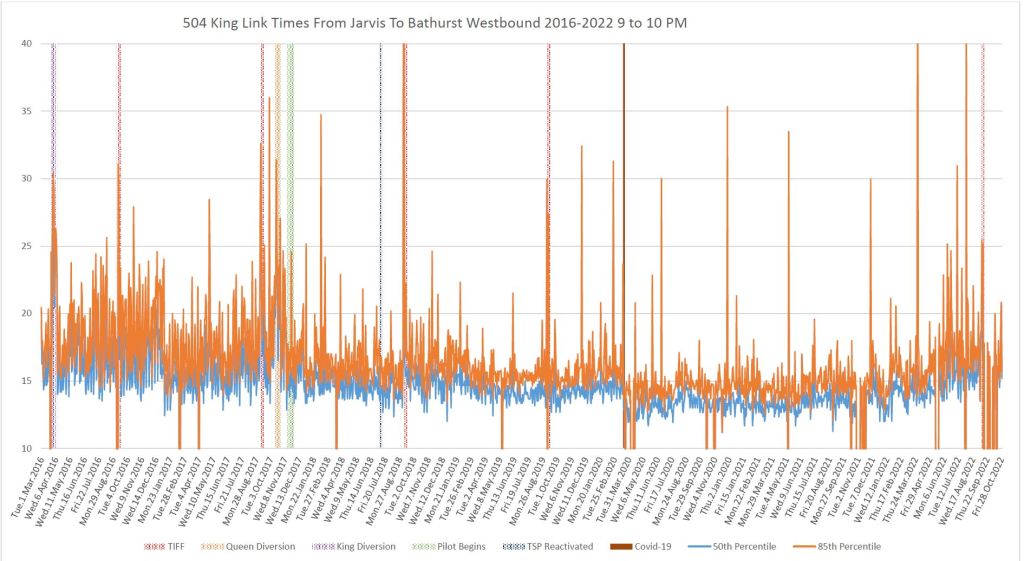

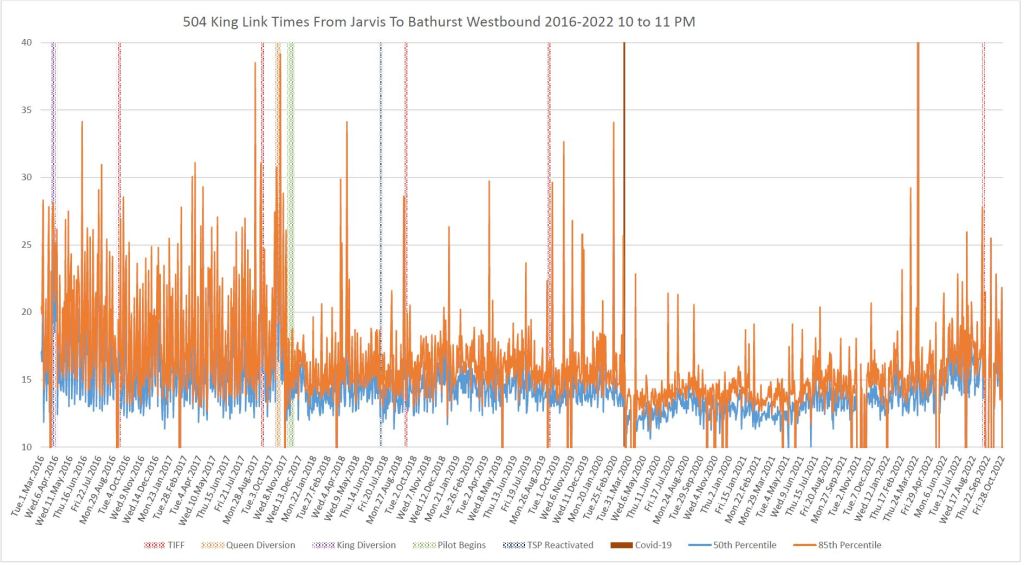

The situation is very different in the afternoon peak and in the evening where the difference in transit conditions is quite clear.

Another important factor that comes into play is that if the street operates at less than saturated conditions under “normal” load, there is more headroom to handle surge demand from special events. It is this spare capacity that smooths out the “spiky” nature of pre-priority data.

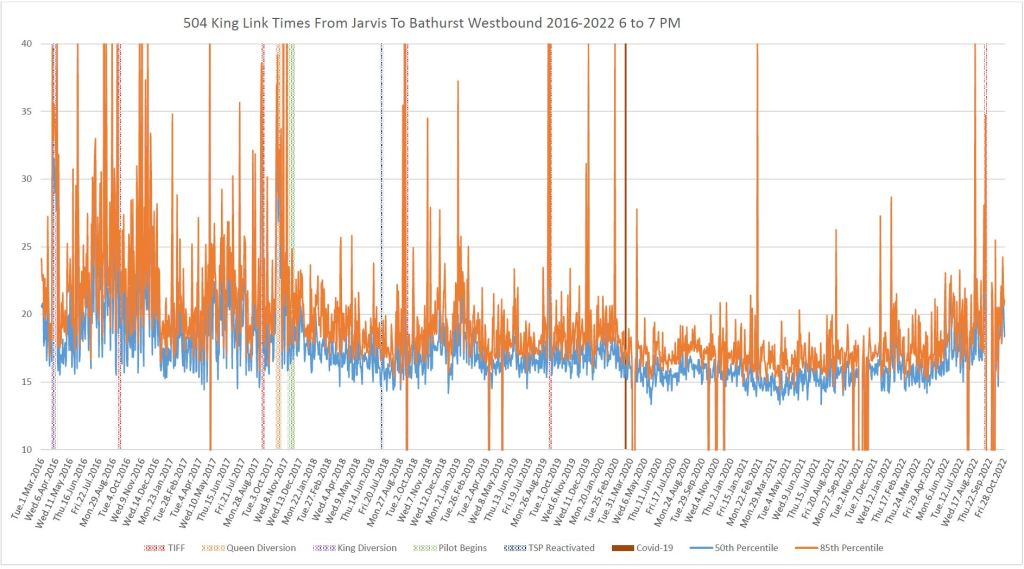

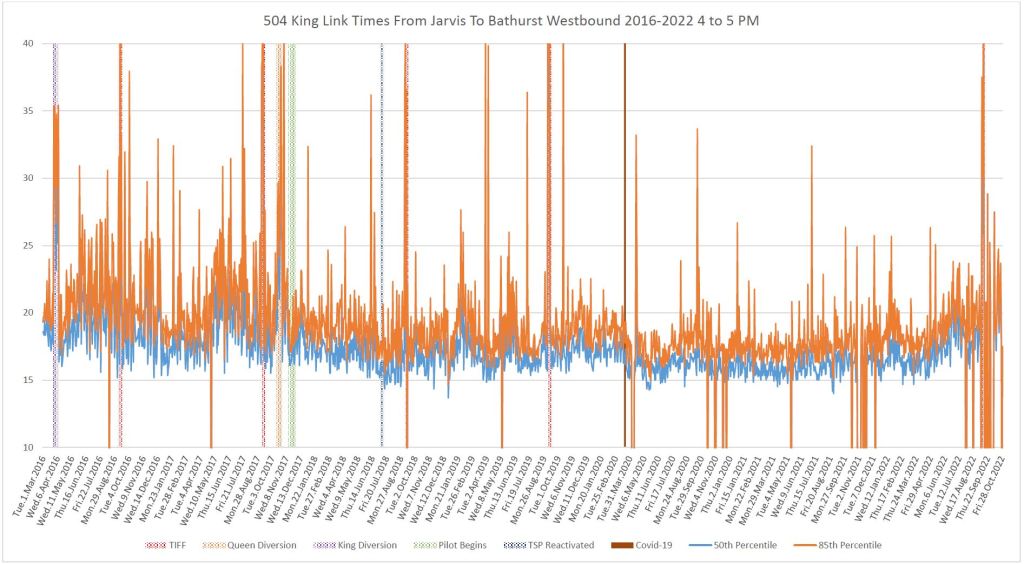

The recovery period starting in about August shows a rise in travel times and an increase in their variation. In some periods, notably from 4pm onward into the evening, values are back to or even slightly above pre-covid levels. This shows the degree to which the actual “priority” on King Street has deteriorated as travel times edge up toward pre-pilot levels.

Eastbound

The eastbound data do not behave exactly like westbound for several reasons.

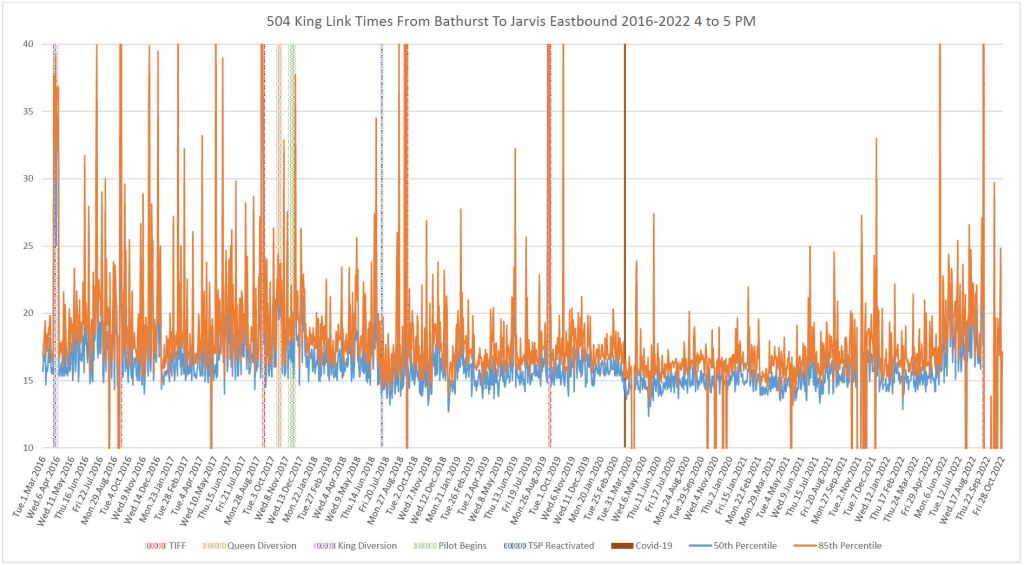

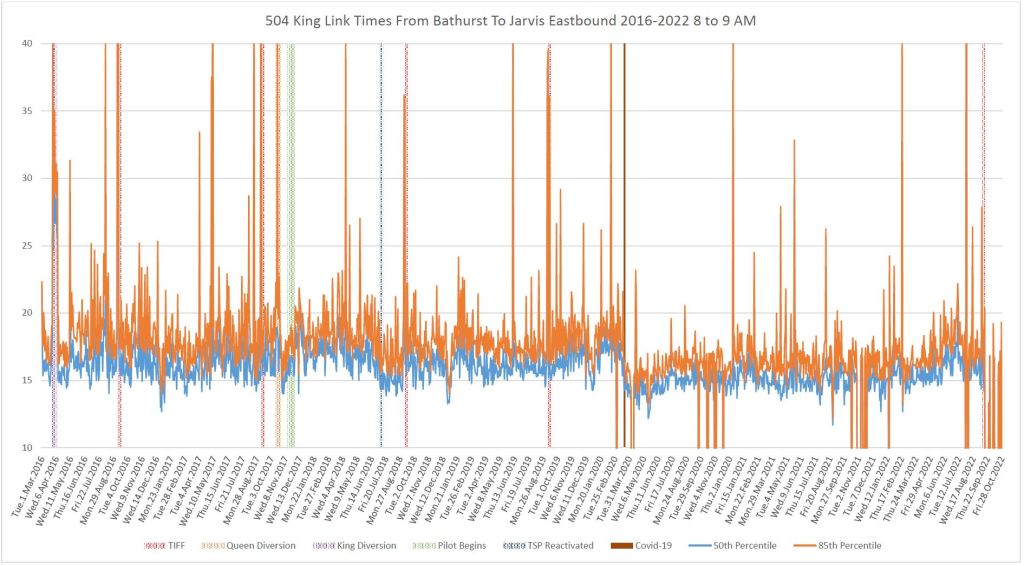

Both peak periods show the effect of reduced passenger load which would cut down stop service times. There would also be some benefit from reduced competition from other traffic.

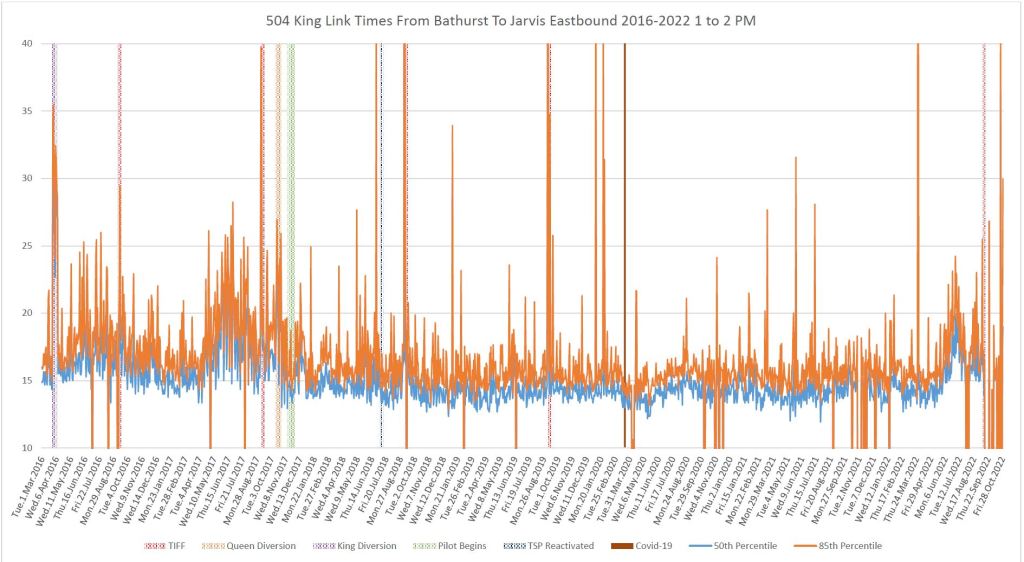

Midday data show the same general form in both directions, an unsurprising situation given that demand and traffic conditions are roughly the same both ways.

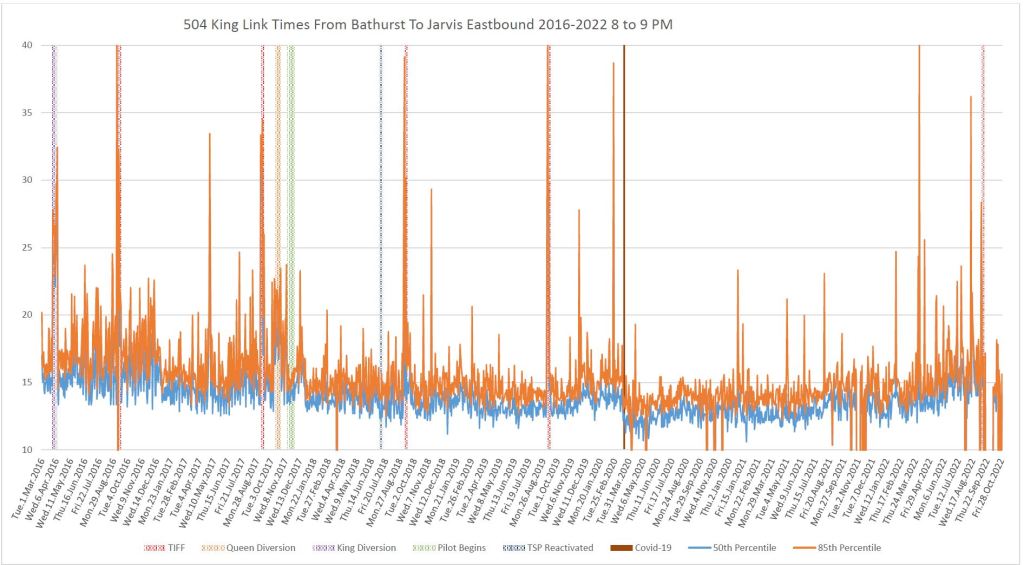

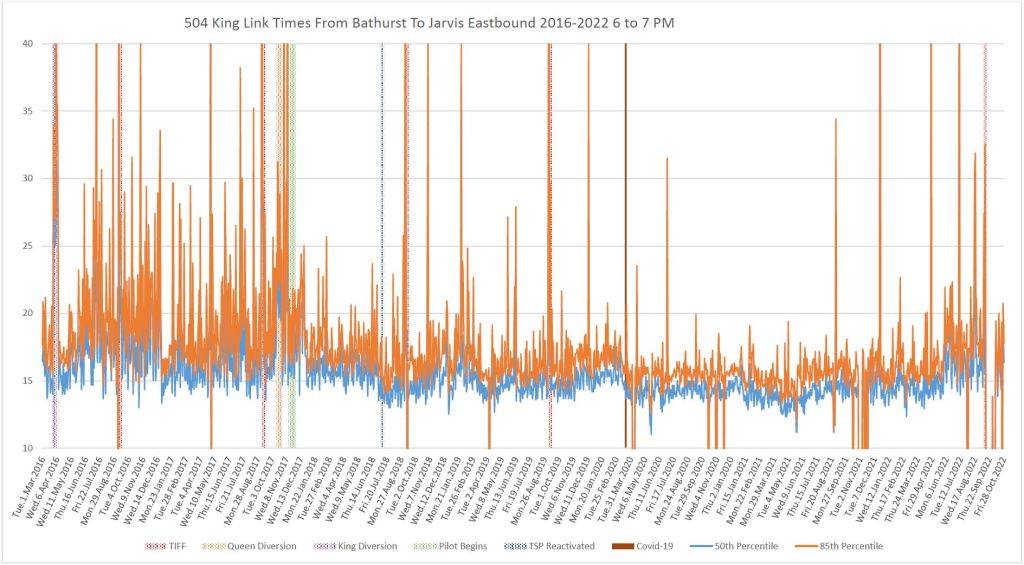

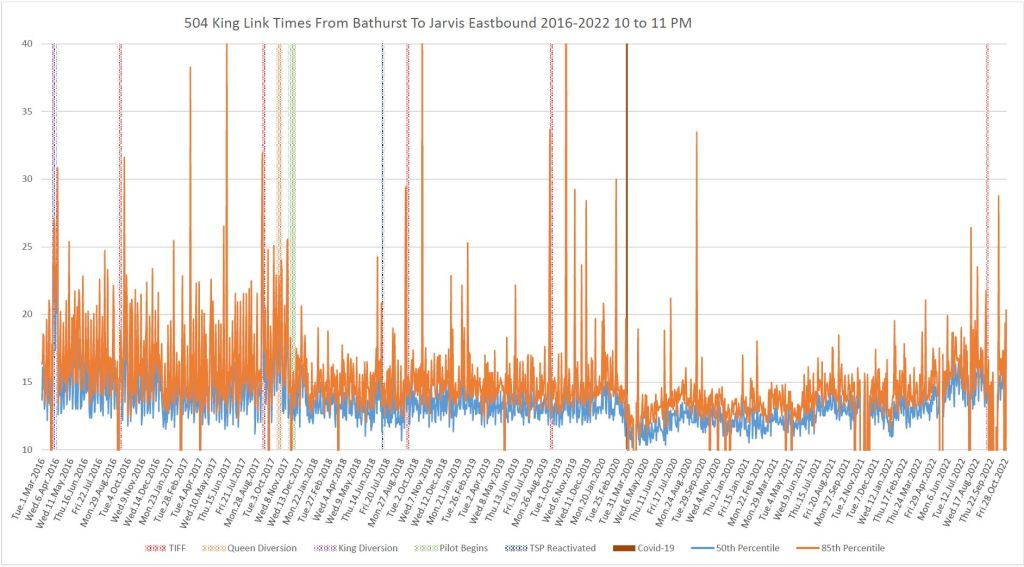

The evening service eastbound has always been “better behaved” than westbound because the primary generators of traffic delay, the theatre district and the club district, primarily attract westbound traffic. Club district traffic varies considerably by the day of the week causing travel times to spike up and down. These charts include only weekday data and so these spikes occur primarily on Fridays.

Full Chart Sets

For those wishing a set of the above charts, they are available as PDFs linked below.

Methodology Notes and Caveats

These charts were produced from TTC vehicle tracking data with software developed by the author.

For the purpose of measurement, travel times are measured between two screenlines, one at the middle of Jarvis Street, and one at the middle of Bathurst Street. Cars which do not make a full trip between the two screenlines are not included.

There is a caveat about data from fall 2022 due to track work on King west of Bathurst. This caused the route of 504 King to be changed officially to run to Exhibition Loop via Bathurst, but in practice many cars short turned at Spadina. This had two effects:

  • Times westbound at Spadina for through cars could be affected by delays from 504 short turn cars making the turn onto Spadina.
  • Times both ways at Bathurst could be affected by delays in making the turn and from Bathurst rather than proceeding straight through the intersection.

When through service at least to Dufferin and King resumes in early December, we will see whether there is a drop in travel times because delays at Bathurst will no longer exist.
