TTC Crowding Quarterly Report Details

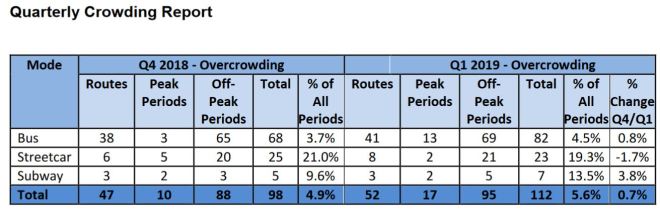

The May 2019 TTC CEO’s Report included a small table summarizing crowding statistics on the transit system.

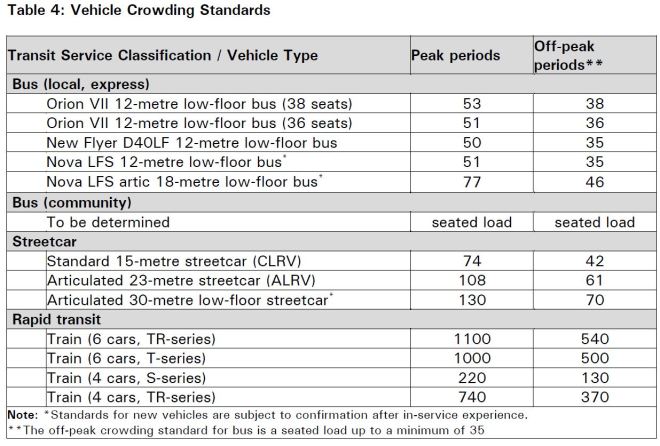

The TTC Service Standards, adopted in May 2017, set out the target loads for each type of vehicle and period of operation.

TTC does not regular produce route-by-route loading or crowding stats, and the Quarterly Crowding Report is an attempt to address the Board’s desire for more information.

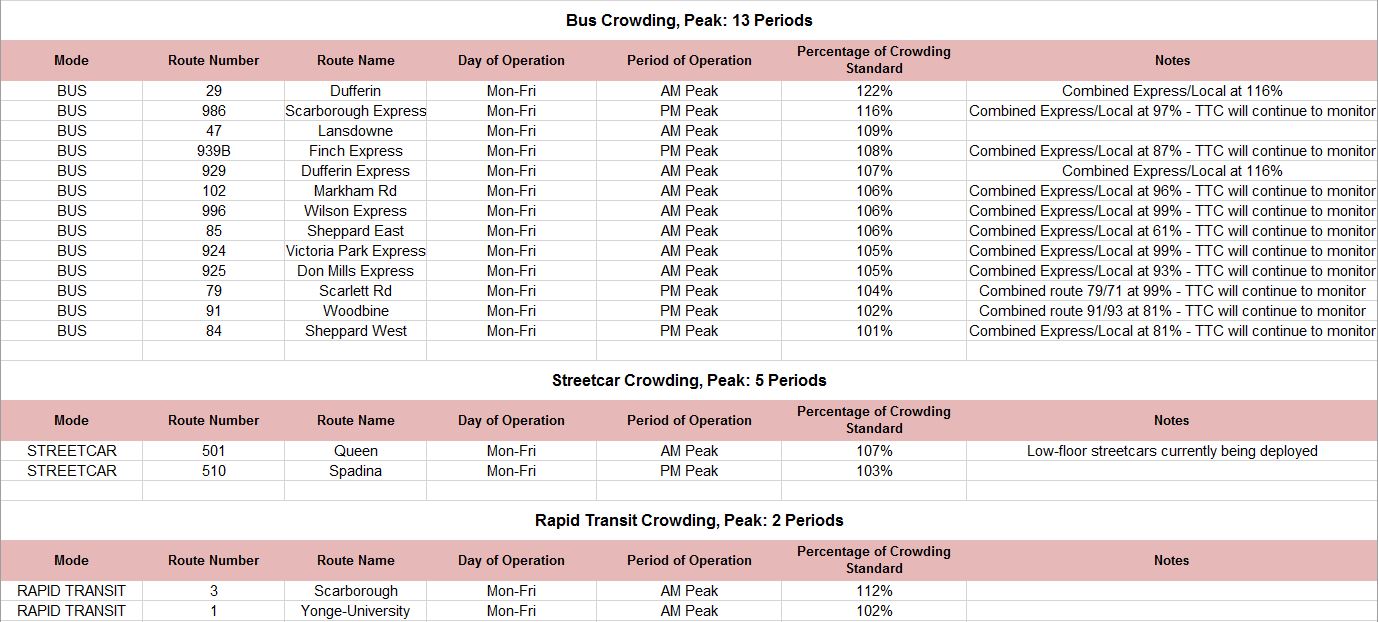

The TTC has now provided the details behind the summary report. These reveal where and when the problems exist as well as situations that could be addressed by service redesign.

One important aspect that shows up is that for routes with express and local branches, the crowding situation is uneven between them. Overcrowding might exist on only one branch indicating an inbalance in service levels, or it might be on both branches showing that more service is required overall.

Where a service is only slightly above the standard, the situation is usually “wait and see” whether demand continues to build. For example, a peak bus service with regular-sized vehicles has a standard of about 50 passengers on average over the peak hour. A change of 1 person represents a 2% change in loading.

A major problem for riders, however, is that service is rarely evenly spaced, and some buses will have many more than the standard load. The “average” rider sees a crowded bus even though a half-empty one might only be minutes behind. Telling them that “on average” their bus is not full is cold comfort. Unreliable service is as big a TTC problem as getting the resources to operate the system because it affects the credibility of the transit option all over the city.

Overcrowding on the 501 Queen car is a concern given plans to replace the existing service with all low-floor equipment on June 23. The actual increase in scheduled capacity will be small because although larger cars will serve all trips, they will come much less often (9.2 cars/hour on the new schedule vs 14.1 cars/hour on the existing one). Many 501 Queen trips are already served by the larger low-floor cars, and the new schedule actually represents a decrease in capacity when this is taken into account.

Crowding on the SRT cannot be addressed until 2020 when the fleet rebuild will be complete and the full 7-train fleet is available for service.

In the off peak, many routes are running well over the target seated load standard. The TTC often cites a shortage of vehicles when talking about constraints on better service, but these are all off peak operations when spare vehicles are available. The lack of improvement is more a political issue – staffing and budget – than an operational one. The current city funding crisis will only further limit the TTC’s ability to improve services even when they have vehicles available to do so.

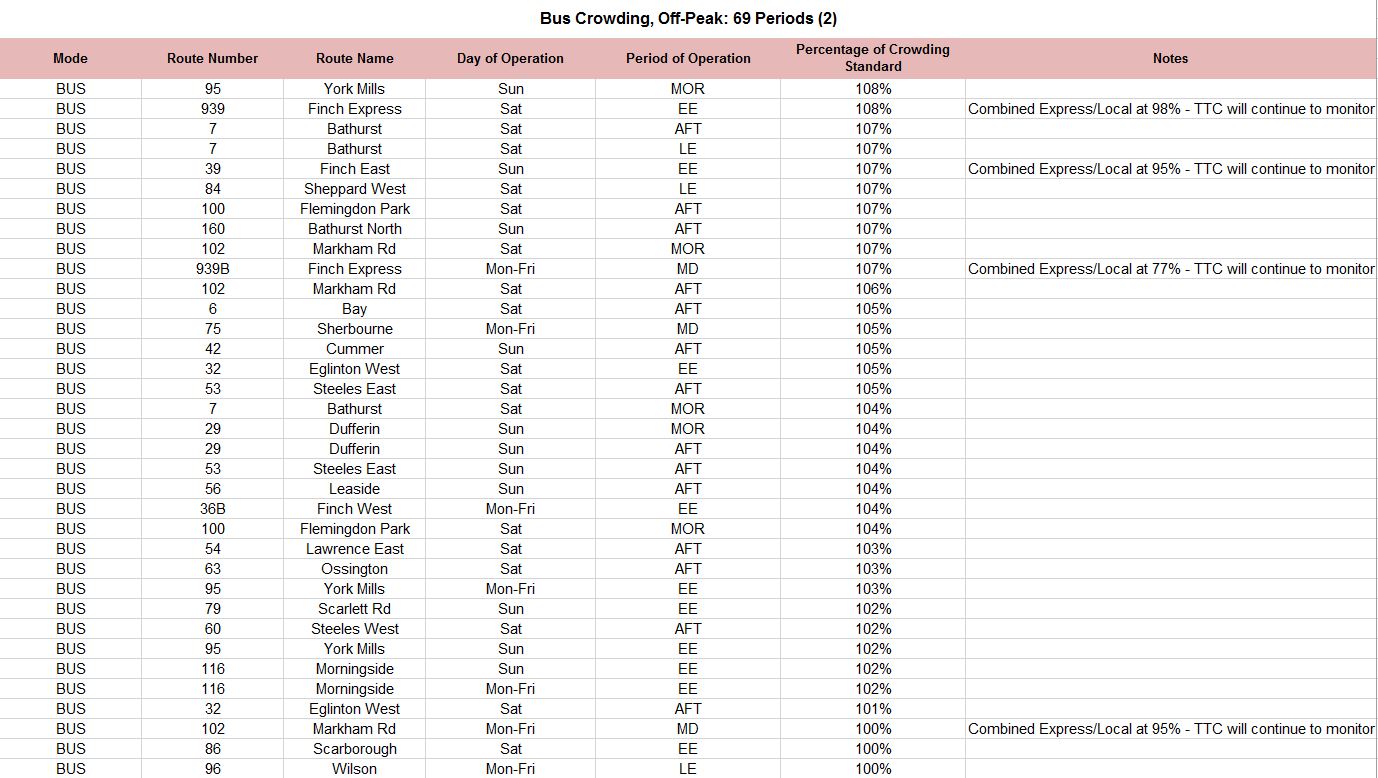

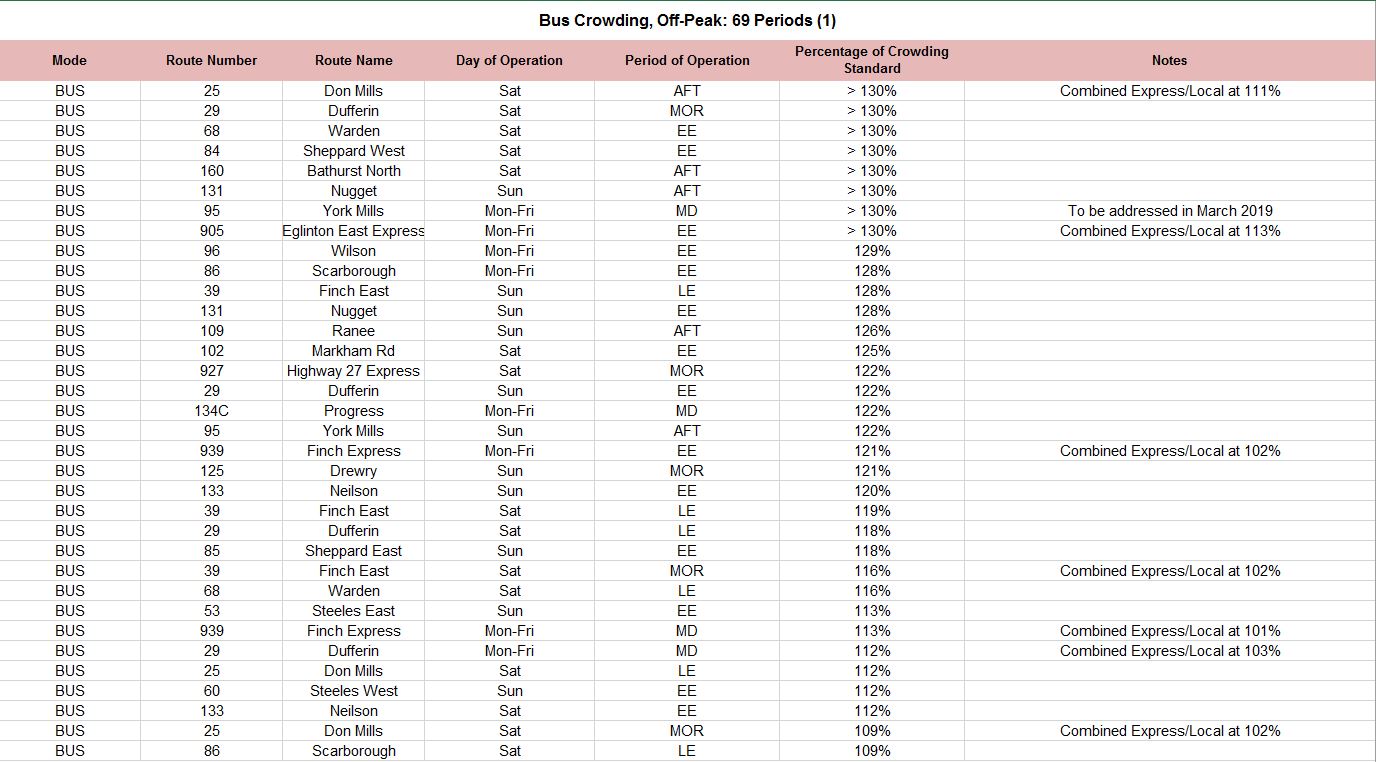

In the chart  below, the periods of operation are abbreviated:

  • MOR: Morning
  • MD: Midday (the interval between weekday peak periods)
  • AFT: Afternoon
  • EE: Early Evening
  • LE: Late Evening (start time varies by route, generally after 9 pm)

On the streetcar system, there are proportionately more route/period combinations that are over capacity than on the bus network. This is a direct result of the long-term shortage of vehicles and the lack of service improvements for many years. Worth noting in this table is that low floor operation is coming to 506 Carlton in the fourth quarter of 2019, and to 505 Dundas in the first quarter of 2020 thanks to the completion of Flexity deliveries. The status of the 502/503 Kingston Road services is still uncertain. 511 Bathurst returns to streetcar operation on June 23, and the 501L Long Branch service will switch to Flexitys in the fall.

Although the table below shows that off peak crowding on the SRT is “to be address by June 2019”, in fact the schedules for June 23 contain no change for Line 3 Scarborough.

The problem with summaries is that crucial details can be left out, and the actual situation riders face can vanish within averages that combine what is good in the system with what is not. Riders ride real routes at specific times, and good performance on other routes and other times don’t do them much good when they cannot get on a vehicle. From a political point of view, it is useful to know where the problems are because the more parsimonious members of Council and the TTC Board often regard transit service as excessive and wasteful.

In an era when there will be many discussion about “efficiency” and varying opinions on what quality of transit service riders deserve, let alone what governments will fund, understanding current demand levels is a crucial part of any debate. Transit routes provide service. Even in areas and at times when specific services are less-used, the vehicles are still part of a wider network. Roads do not disappear overnight when fewer people use them, and transit must strive to serve all of the city, not just the parts that will bring “high productivity”.

Full chart set: QuarterlyCrowdingReport_2019Q1_Details

by

501 Queen: Low Floor Cars But Wider Headways (Update 2)

Updated May 20, 2019 at 4:40 pm:

Another factor in the travel time conundrum may be related to a “no short turns” edict that went into effect for the second half of April 2019. One effect of this can be that there are often large gaps and associated loading delays which drive up travel time. This will be the subject of a separate article.

Updated May 21, 2019 at 8:45 am:

Charts for detailed changes in eastbound travel from Humber to Neville have been added to this article.

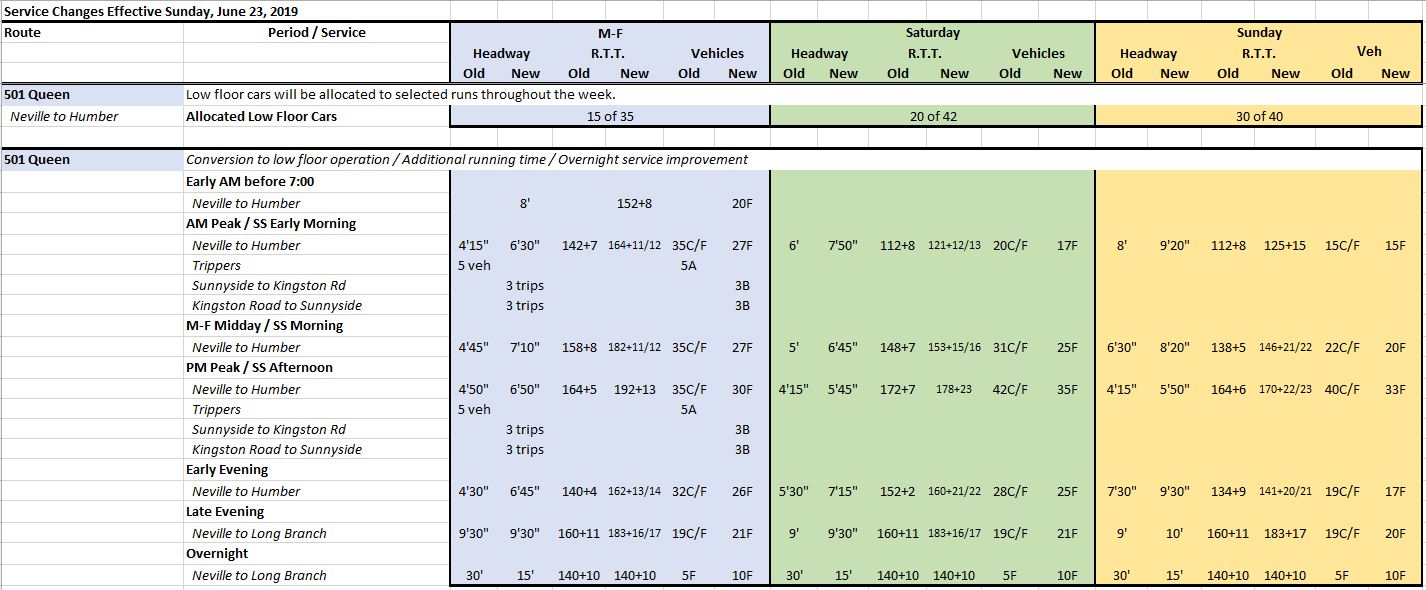

With the June 23, 2019, service changes, the TTC will officially make route 501 Queen a low-floor streetcar route. Concurrent with this change, the number of cars on the route will be reduced during all operating periods. The degree of reduction should be cause for celebration because reduction in cars is nowhere near the ratio of low-floor to CLRV capacity. However, at the same time, the TTC will substantially increase running times during many periods. The combined effect of fewer cars and longer scheduled trips will be much wider headways than are now provided, especially on weekdays.

The number of cars/hour will be cut by about one third on weekdays and one quarter on weekends. This is very much the sort of change Queen Street riders saw when the two-section ALRVs replaced the shorter CLRVs, and the end result, thanks to the lackluster line management, was a loss of 1/3 of the route’s riding. This is precisely the opposite direction the TTC should be moving at a time when there is known demand on the streetcar lines as shown by the King Street Pilot.

When the fact that 501 Queen is already partly served by the larger Flexitys, the capacity on the route will actually be reduced on June 23 compared to what is operating today.

In the peak periods roughly half an hour will be added to the scheduled round trip time from Neville to Humber (from 149 to 176 minutes AM, and from 169 to 205 minutes PM) resulting in much wider headways that would be provided if the Flexitys ran on the same operating plan as the existing service.

TTC management seek to reduce or eliminate short turns with extended running times, but in the process produce a service plan that will be demonstrably worse for all riders. The wider scheduled headways will be compounded by the uneven spacing of cars that is commonly seen on Queen and other routes, and it would not be surprising to see pairs of cars travelling on headways over 10 minutes almost all of the time.

This would be a far cry from the type of service that clearly warrants transit priority on King Street. Any discussion of priority for Queen would first have to ask why the streetcars that are so infrequent would deserve so much road space to be devoted to them.

Such a large change in scheduled travel time raises the question “why”. Is this simply a padding of schedules to minimize short turns and make life easier for operators, or is it a shift to recognize a change on the route? If the latter, what has changed and how have travel times evolved over time.

Looking into the details, what appears is that there has been a build-up in travel times across the route over the past year, and particularly in recent months. Further exploration will be needed to determine what is happening, but the situation is cause for concern when there can be such a large change in travel times and, in turn, a degradation in service frequency.

501 Queen Trippers

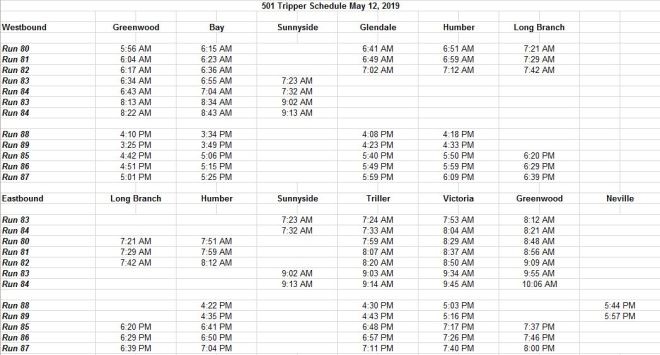

The schedule in effect in May-June 2019 includes five tripper cars operating from Russell Carhouse (at Greenwood/Connaught) in both the AM and PM peaks. Three of these provide through Long Branch/Downtown service. In the AM peak the other two provide two round trips between Greenwood and Sunnyside Loop (runs 83 and 84 below). In the PM peak , they make only one trip from the carhouse west to Humber and back to Neville (runs 88 and 89).

The choice of timepoints below may look a bit odd, but these are the ones used in schedules exported by the TTC to NextBus. Glendale is the St. Joseph’s Hospital stop west of Sunnyside Loop. Triller is the first stop east of Roncesvalles.

In the June-July schedule, buses will provide three trips each way from Kingston Road to Sunnyside in both peak periods. These are separate vehicles, six in all for both peaks. These are one-way trips. With the peak design load of a bus being about 40% of a Flexity, this does not represent a substantial amount of service beyond what the streetcars will provide.

Eastbound from Sunnyside:

  • AM: 8:15, 8:20 and 8:25
  • PM: 4:30, 4:40 and 4:50

Westbound from Kingston Road:

  • AM: 8:15, 8:20 and 8:25
  • PM: 4:35, 4:45 and 4:55

The 501L Long Branch service is not affected by the schedule change according to the service memo. I will verify with the TTC that the Long Branch/Downtown tripper streetcars remain in the new schedule.

Continue reading →

by

Analysis of 501 Queen: January-April 2019 (Part II – Headways at Humber Loop)

In Part I of this series, I reviewed the operation of the 501 Queen car at the east end of the route, specifically to review the amount of short turning and the regularity of the service. Now in Part II, I turn to the west end of the main segment of the route at Humber Loop.

It is no surprise that the results here are quite similar to those at Neville. Specifically:

  • The average headway at Humber is somewhat wider than at Roncesvalles, just east of Sunnyside Loop where some service scheduled for Humber short turns.
  • There is a peak in the difference between these locations just after the morning peak, and again after the pm peak showing the effect of recovery actions from those periods.
  • Headways (the time between cars) are quite erratic leaving the terminal at Humber, and this pattern continues east over the route.

An important issue here is that both short turns and erratic headways can have similar effects on riders, and they might not always know the difference.

If you are riding a car that is short turned, you know about this because you get turfed off and must transfer to the following car whenever it appears. However, if you are waiting for a car and there is a long gap, this could be due to a short turn (one or more cars is missing) or simply due to bunching (all the cars are there, but running in packs). Short turns affect riders on the outer parts of routes, while bunching affects riders across the entire line.

The TTC reports riding stats from time to time, although not anywhere as often as they should, and these are calculated as hourly averages. The problem with this is that averages do not reflect the uneven wait times, nor the uneven loading that results from a gap car carrying more passengers than its follower. Indeed, a route’s average load may lie within standards, but most of the riders are actually on crowded gap cars. This is a long-standing problem on the TTC and with the reporting of demand versus service. Also, of course, riders who never board are never counted, and we do not know the latent demand if only service were provided more reliably and with capacity for all to board.

Continue reading →

by

King Street Update: March-April 2019 Part III (Revised)

May 13, 2019 at 9:00 am: In response to a reader’s comment, I have modified the analysis of operations at Dufferin Loop to split out time spent within the loop itself from queuing southbound on Dufferin approaching the loop.

This article continues the analysis of 504 King operations in early 2019 with the following posts:

A major problem with 504 King car operations at both Dundas West and Broadview Stations is the queuing of streetcars approaching the station but unable to enter because the platform space is occupied. As the route changed over from the “standard” length streetcars around which these stations were designed to the double-length Flexitys, what had been an occasional nuisance is now a daily experience.

Living near Broadview Station, I am quite aware of this problem (not to mention the flocks of 505 Dundas buses which are quite another matter), but with the TTC’s May 12, 2019 schedule changes that will add running time to 504 King, there is the potential for this problem to become even worse. This article looks at the situation at all four of the loops used by the 504A/B King service: Broadview Station, Distillery, Dufferin and Dundas West Station in April 2019. I will update this information when data for May is available and a before-and-after comparison will be possible.

Unlike the travel time charts in other articles where the route segments extend over many city blocks, the “map” used for this analysis is very finely-grained with screenlines at spacings of under 100 metres. Please refer to the Appendix to this article for notes about methodology and the choice of screenline locations for calculation of travel and queuing/layover times.

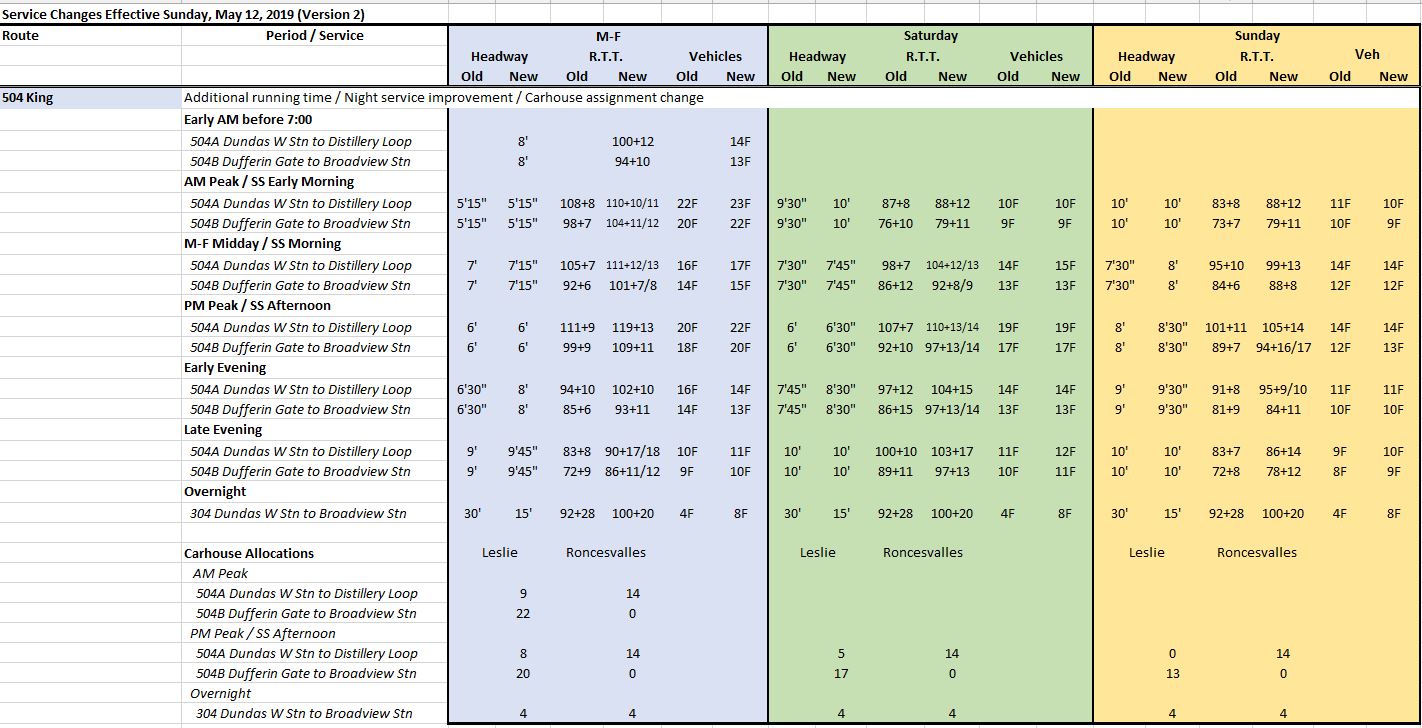

The chart below is taken from my summary of the May 12 service changes.

  • During most weekday periods, the number of streetcars in service goes up, but the headway stays the same or gets wider. The result is that cars have more time to get from one end of the line to the other.
  • During weekday early evenings, headways widen from 6’30” on each branch to 8’00” and running times are increased.
  • On weekends, there is a combination of wider headways and/or added cars to produce additional running time.

From the actual data showing time spent by streetcars at the four terminals of the 504 King route (Broadview Station, Distillery Loop, Dufferin Loop and Dundas West Station), it is far from clear than any additional running time is actually needed during many periods of operation. The TTC appears to be making a broad brush change to the schedule rather than targeting fixes to periods and locations where they will actually improve service.

Moreover, at a recent meeting of City Council, TTC staff advised that there would be more cars on King starting in May, but neglected to mention that this would not improve the scheduled service level, and in some cases would actually reduce service. Further changes on 504 King are expected in the fall, but the details are not yet available.

Apologies to readers for the plethora of charts in this article. I have used excerpts from chart sets for each location and included a link to the full sets for those who want them.

Continue reading →

by

Analysis of 501 Queen: January-April 2019 (Part I – Headways at Neville Loop)

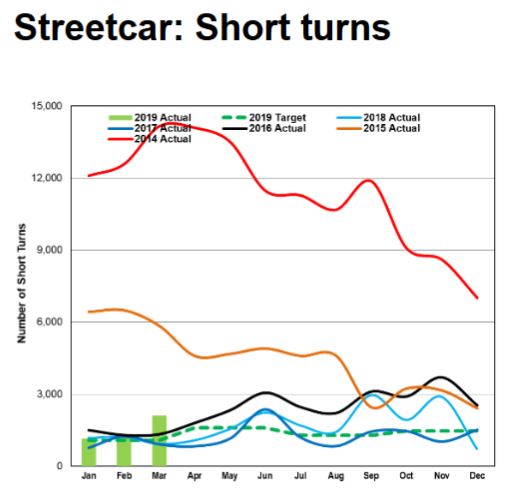

A recent report by the CBC on May 8 claimed that the “transition to new streetcars will help alleviate short turns on major routes”. TTC spokesman Stuart Green, citing the May 2019 CEO’s Report, said that a large increase in short turns during March 2019 was caused by, among other things, the mix of new and old cars on the route with the strong implication that things will be better once Queen goes 100% low-floor in late June.

The CEO’s Report cites various factors:

Over the five-week period, the 501 Queen route made up approximately 40% of all short turns. This increase on the 501 route was due to several factors:

First, the reduction in Run-As-Directed (RAD) streetcars beginning in Week 8 (from 6 a.m./p.m. to 3 a.m./p.m.) has hurt the operational flexibility to respond to incidents and service gaps on all routes.

Second, the Queen route is largely serviced by CLRVs. These legacy vehicles experienced a high number of mechanical delays and disablements in March.

Finally, the Queen route is in a transition period with LFLRVs making up a small portion of the vehicles on the route, mixing with the CLRVs that have historically operated on the route. The different speed and operating characteristics of the two vehicle types inherently leads to more bunching and gapping on the route. [p 37]

The situation on Queen is even more complex than this and includes factors not listed in the CEO’s report:

  • Weather varied substantially over the winter months and yet short turns were at a substantially lower level in January and February.
  • Many delays on streetcar routes were caused by the City of Toronto’s failure to clear snow resulting in many cars parking foul of the tracks.
  • There is a persistent problem with uneven headways (bunching and gapping) leaving terminals, and little evidence of attempts to evenly space service. The mix of vehicle types can compound this problem depending on the capacity of the “gap car”.

From a rider’s point of view, irregular service and short turns may be indistinguishable especially for someone beyond a common short-turn location. On the east end of Queen, this is Woodbine Loop. It does not matter whether a 20 minute gap to Neville is caused by a short-turn at Woodbine, or because the service is running in packs separated by long gaps. In practice, most of the scheduled service does reach Neville, but it neither arrives nor leaves on a reliable headway (the time between cars).

At the May 8 TTC Board Meeting, Acting CEO Kirsten Watson noted that there had been a change in operational strategy in April whereby operators who were “late” to the schedule short-turned by trading vehicles with another car near a terminal rather than physically short-turning their own car. The result is that the operator gets back on time while their original car continues to the terminal.

Continue reading →

by

Subway Upload I: The Getting Ontario Moving Act

Transportation Minister Jeff Yurek introduced Bill 107, the Getting Ontario Moving Act, in the Ontario legislature on May 2, 2019.

This is an omnibus bill amending several other Acts to implement various policies, one of which is the first stage of the “upload” of responsibility for subway extensions and new builds from the City of Toronto. Schedule 3 of the Bill amends the Metrolinx Act. In brief, the amendments provide for:

  • The Cabinet (legislatively known as “The Lieutenant Governor in Council”) may “prescribe a rapid transit design, development or construction project as a rapid transit project that is the sole responsibility of Metrolinx”. For such projects, the City of Toronto and its agencies are barred from taking “further action” on the project, and all of the project’s “assets, liabilities, rights and obligations” can be transferred to Metrolinx. Such projects are known as “sole responsibility projects”.
  • The Cabinet may prescribe that a project is “subject to the Minister’s direction”, and for such projects “the Minister may issue directives to the City of Toronto and its agencies”, and the Cabinet may require that “a specified decision about the project be subject to the Minister’s approval”. Such projects are known as “direction and approval projects”.

These provisions address two separate types of project organization. In the first case, control of and responsibility for a project is transferred completely to Metrolinx. In the second, a project could remain in the City’s hands but be subject to Ministerial direction and approval.

Sole Responsibility Projects

Where a project is declared to be a sole responsibility project, the City of Toronto is barred from undertaking a project “that is substantially similar and in close proximity to” such a project. Why Toronto would attempt to duplicate a provincial project such as the extension of Line 2 in Scarborough is a mystery, but Queen’s Park clearly wants to ensure this does not happen. An exception provides that the Minister “may authorize” the City to undertake work on a sole responsibility project.

The Cabinet may order the transfer of City assets related to a sole responsibility project “with or without compensation”. The list of “assets” is quite extensive and includes real estate. This begs the question of how such property becomes “related” to a project as opposed to simply being property previously owned by the City.

The City is required to participate in this process and “take all such actions as are necessary and practicable to give the Corporation possession of property transferred”.

Direction and Approval Projects

A project could be left nominally under the City’s control, but subject to Ministerial direction, in particular that “a specified decision with respect to the project” could be subject to Ministerial approval. The City is barred from taking action that would arise from a decision without such approval. In other words, the City cannot launch work that could be in conflict with a Ministerial approval that has not yet been granted.

Legal Protection

Many of the amendments address the transition of projects from the City to the Province and preclude legal action against the parties for the implementation of the new regime.

What the Legislation Does Not Address

The legislation is completely silent on matters of capital or operating costs of projects undertaken by or under the direction of the province. Specifically, there is nothing to explain:

  • Any aspect of capital cost sharing that might be sought or imposed by the Province on the City of Toronto or other municipalities for sole responsibility projects.
  • The future operation of projects created under the “sole responsibility” or “direction and approval” regimes.
  • The subdivision of “maintenance” costs between the Province and the City of Toronto or any other municipality.

The “other shoe” still to drop is the question of uploading the existing subway network. This is a much more complex transfer that will be the subject of future legislation.

This is the bare bones of legislation needed to give Metrolinx control over rapid transit construction so that Ontario can “get on with the job” of building transit, but much more is involved in actually doing the work.

Minister Yurek is good at repeating his talking points including the bogus claim that there has been no rapid transit expansion for decades. Taking pot shots at the City for alleged chaos in transit planning is easy, although both Premier Ford and the Conservative Party have rampant amnesia about their own contributions. Now Metrolinx and Infrastructure Ontario will have to deliver rather than just posturing.

by

TTC Updates Flexity/CLRV Replacement Schedule

Over past months there has been some inconsistency in TTC statements about the fate of the “legacy” CLRV and ALRV fleets with conflicting information that

  • some legacy cars would survive into early 2020,
  • all of these cars would be retired by the end of 2019,
  • all of the buses now operating on streetcar routes would be available for bus service improvements in 2020.

It is self-evident that these statements cannot all be true.

The situation is now clarified in two reports on the TTC Board’s Agenda for May 8, 2019.

The CEO’s Report includes the following:

On streetcar services, we’ll address crowding through the continued rollout of new high-capacity, low-floor streetcars. Low-floor vehicles are expected to be on all streetcar routes by early 2020.

Supplementary bus service may be used on some routes during the busiest times.

…

With the continued delivery of new low-floor streetcars, we are advancing their deployment on more routes.

Currently, the 504 King, 509 Harbourfront, 510 Spadina and 512 St Clair are fully served with low-floor streetcars. We began deploying these streetcars on the 501 Queen in January 2019. We expect that all service on Queen, between Humber Loop and Neville Park Loop will be operated by low-floor streetcars by early summer.

Subsequent routes for streetcar deployment will be: 511 Bathurst (summer 2019), 501 Queen (Long Branch Loop to Humber Loop, fall 2019), 506 Carlton (late 2019), and 505 Dundas (spring 2020). Low-floor streetcar service on Kingston Road will be introduced in 2020 following a review of streetcar services as part of our Five-Year Service Plan. [pp 11-12]

The CEO’s Report now shows the decommissioning plan for all legacy cars in 2019 as “Projected” [p 39].

The 2019-2023 Accessibility Plan includes:

By the end of 2019, the remainder of the order of low-floor streetcars is expected to be received and the TTC plans to retire all high floor streetcars from regular service. [p 27]

The Five-Year Service Plan mentioned above will not be out until December 2019, but with the Capital Investment Plan now showing spending on a further order of streetcars in the mid-2020s, there will be an extended period where expansion of streetcar capacity will be limited to whatever can be provided with supplementary bus service. From King Street, we know that there is a latent demand for better service on the streetcar network, but actually addressing that will be challenging in the current climate.

Crowding is a problem on all parts of the system, but the political focus is on new subway lines that will not address most of these problems, and certainly not in the short-to-medium term. The CEO’s Report now includes a table showing crowding levels, although on a system-wide basis, not for individual routes.

These numbers should be understood in the context of “periods” as defined in TTC schedules. There are five periods through the day:

  • Weekdays: AM Peak / Midday / PM Peak / Early Evening / Late Evening
  • Weekend: Early Morning / Late Morning / Afternoon / Early Evening / Late Evening

The transition points between these periods vary from route to route depending on local demand patterns.

In the chart below, the combination of routes and periods shows that in the first quarter of 2019, 41 bus routes were overcrowded during 82 periods, but this means the combination of one route and one period. With 82 representing only 4.5% of the total, this means that there are over 1,800 possibilities for the bus fleet.

The methodology of counting weekend days individually yields 15 periods overall for most routes. (Some routes do not operate in the Early AM period on the Sunday schedules.) The reason for this is that there is a common schedule for all weekdays, but separate schedules for each of the weekend days. However, this methodology consolidates the majority of the service (weekdays) into only one third of the period count undervaluing the number of riders affected by weekday problems. Moreover, crowding that varies by day-of-week could be masked by averaging over a five-day period.

There also appears to be a mathematical problem for the subway where 7 periods are claimed to be 13.5% of the total. This implies that there are over 50 subway “periods”, but with only 3 lines and 14 periods per line (no early Sunday service), this is impossible (it is unclear where the SRT fits in here). This chart needs work to improve its content.

Reliability of the new Flexity fleet bounced back from a big dip in January 2019, but the mean distance between failures of 13,223 km is still below last year’s performance and less than half of the contracted target. This does not bode well for any move to extend the existing contract with Bombardier.

CLRV reliability continues to track at under 4,000 km MDBF, and the TTC no longer publishes stats for the ALRVs as they have been out of service over the winter. The May schedule plans show a return of five ALRVs to 501 Queen, but this is tentative and the affected runs might simply show up with CLRVs or Flexitys. The CEO’s report notes:

As this legacy fleet is scheduled to be decommissioned by end of this year, maintenance staff will continue to ensure the vehicles are safe to operate in service. However, technical efforts moving forward are being shifted to the new LFLRV fleet and to providing Bombardier with additional assistance. [p 40]
