TTC 2022 Service Plan Consultation

Updated June 28, 2021 at 6:10 pm:

The TTC has filled in some of the details on 51 Leslie, 88 South Leaside and 354 Lawrence East Night. See the individual sections of this article for details.

The TTC has launched public consultations for its 2022 Service Plan. This will be a difficult year in which ridership is expected, at best, to climb back to 75 per cent of pre-pandemic levels. Budgets will be tight because the transit system plans to be operating close to 100 per cent of is former service (building up gradually on the buses for January 2022, then streetcars and finally the subway) even though fare revenue will be at a lower level. The TTC recognizes that it needs to provide good service to attract riders back to the system.

For the week of June 4-11, boardings on each of the TTC’s networks by vehicle type are still below 50 per cent of January 2020 values:

  • Bus: 40%
  • Streetcar: 27%
  • Subway: 23%
  • Overall: 31%

Trip occupancy for buses is generally below the target level.

  • 4% of trips are over 50% full
  • 0.6% of trips are over 70% full
  • 0.3% of trips are over 80% full

An important distinction about crowding measurements is that as ridership recovers, a the definition of a “full” bus will rise from 25 riders today, to 35 and then to the “standard” full load of 51. Service levels and crowding in 2022 will be measured and allocated against this shifting target. In the short term, service will be provided at a crowding level below pre-pandemic times.

Crowding levels reported now are all day, all route, all week values, and they hide problem areas in the system. The TTC still does not break out reports on crowding or service quality by route, location or time of day. Their “On Time Departure Report” has not been updated in several years, and although there is still a link to it from the Customer Service page, the link is dead.

The 2018 Customer Charter is still linked and it includes a commitment, carried forward from the 2013 Charter:

Posting the performance of all surface routes on our website so you know how your route is performing.

One might ask why Rick Leary, the man Andy Byford hired to improve service, is incapable of producing reports of service quality beyond the extremely superficial level found in his monthly CEO’s Report. The TTC have detailed crowding data and use them internally, but do not publish them. As for on time performance or headway reliability, I have written extensively about problems with service quality and these metrics. Even though service is the top of riders’ desires, it is not reported by the TTC probably because the numbers would be too embarrassing.

This is a gaping hole in TTC Service – the absence of meaningful reporting and measurement of service quality as experienced by riders.

Although the TTC plans to return to 100 per cent service, this does not mean that the service patterns will match those of early 2020. Demand patterns have changed both in daily patterns (peaks or their absence) and location (heavier demand to suburban jobs in sectors where work from home is impossible). To the extent that peaks are smaller or non-existent, this works in the TTC’s favour by allowing a higher ratio of service hours to driving hours (buses spend less time, proportionately, going to and from garages). This also, of course, spreads out demand and can reduce crowding.

A new phenomenon is the early morning peak caused by commutes to jobs outside the core. This produces crowding even on some Blue Night Routes, and the TTC is looking at how this can be resolved.

There is a page on the TTC’s site including a link to a survey about planned changes including some new and revised routes, as well as the plan for route restructuring to accompany the opening of Line 5 Eglinton Crosstown. Tentatively, that line is expected to begin running on July 31, 2022 according to the TTC, but that is simply a planning target, not a hard date.

In this article, I have grouped the planned changes geographically to pull together information on related routes rather than numerically as they appear on the TTC’s site. I have also included information on some changes planned for later in 2021 to put the proposed 2022 route structure in context.

There is a separate consultation process launching soon regarding the future service design for the period between the shutdown of Line 3 Scarborough RT in mid 2023 and the opening of the Line 2 Scarborough extension in fall 2030.

There are three major components in the 2022 plan:

  • Optimize the network to match capacity with demand.
  • Restructure the network for the opening of 5 Eglinton Crosstown.
  • Modify the network to respond to customer requests, evolving demand patterns and new developments.

All maps in this article are from the TTC’s website.

Continue reading →
by

TTC Service Changes Sunday, March 28, 2021

March 28, 2021, will see revenue service begin from the TTC’s new McNicoll Garage. This will entail the reassignment of many routes between all garages as the TTC rebalances it fleet and service to relieve crowding and minimize dead-head times.

There are few service changes associated with this grand shuffle. The primary effect is that garage trips at the end of peak periods will change to reflect the shift of some routes to a new home in northern Scarborough.

For example, north-south routes that formerly had transitional peak-to-evening service southbound will go to evening service levels sooner because buses will dead head to McNicoll rather than making a southbound trip before running back to Eglinton or Birchmount Garage.

  • 17 Birchmount
  • 43 Kennedy
  • 57 Midland
  • 68 Warden
  • 129 McCowan North

The short-turn point for 39 Finch East and 53 Steeles East off-peak garage trips will change so that buses do not double back on themselves. These trips will be shortened to end at Kennedy rather than at Markham Road. Trips on 39C to Victoria Park will end at McNicoll & Victoria Park rather than at 480 Gordon Baker Road.

The 45 Kipling and 945 Kipling Express move from Queensway to Arrow. Trips to the garage after the AM and PM peak will no longer make southbound trips. Trips at the beginning of the PM peak will no longer travel north from Queensway.

The old and new garage assignments are at the end of this article for those who are interested.

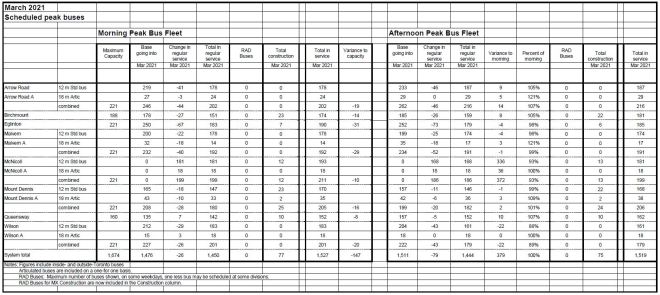

Fleet utilization continues to be well below system capacity. In January 2020, the total AM peak buses in service was 1,625. In March 2021, it will be 1,527. This does not include buses used in Run As Directed (RAD) service. Although the TTC now has an additional bus garage, its capacity is not included in the table below.

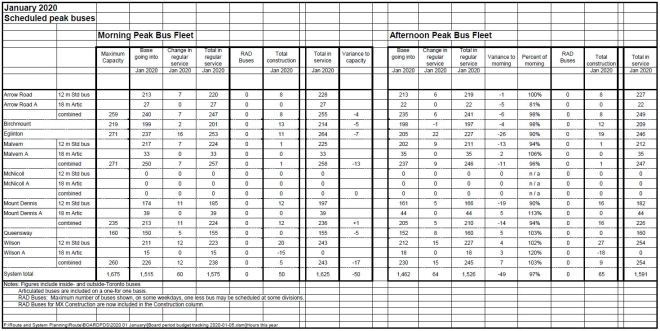

For comparison, here is the January 2020 (pre-pandemic) table.

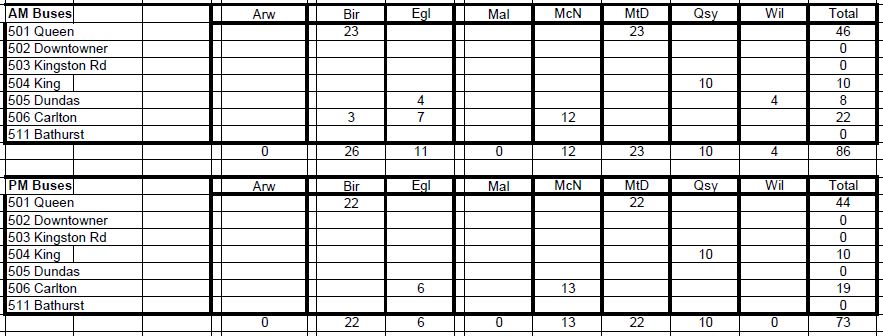

The number of buses used on streetcar routes continues to be high. These vehicles are included in the counts above, and represent additional capacity available for bus routes when the construction projects now underway finish. 506 Carlton will return to all-streetcar operation in May, but other routes will be affected by construction for much of 2021 notably at KQQR and on Broadview north of Gerrard (starting in May).

Here is the streetcar peak service table. Note that there is an error in the afternoon peak “base going into Mar 2021” column where the streetcar total should read 127, not 142.

Construction Projects

During the construction of McNicoll Garage, all trips on 42 Cummer were operated as 42A to Middlefield. This will continue, and the 42B and 42C services will remain suspended. An eight month long water main project on Cummer will require that westbound service divert via Leslie, Finch and Bayview. New farside stops will be added southbound on Leslie at Cummer, and westbound on Cummer at Bayview to serve the diversion.

At the King, Queen, Queensway, Roncesvalles intersection (KQQR) construction work will block transit service beginning on March 31. This will affect all services that pass through this busy location.

  • 501 Queen buses (501L Long Branch and 501P Park Lawn) will operate via King and Dufferin Streets to route. The official east end of the route will remain at Jarvis Street. In current operations, many runs have been extended as far east as River because the schedule is very generous in anticipation of construction traffic delays that have not yet materialized. Buses are also taking extended layovers at Long Branch Loop because they arrive early.
  • The 504 King west end shuttle will be broken into two parts.
    • A 504G King shuttle will operate between Dundas West Station and Roncesvalles Carhouse (entering and leaving via the North Gate).
    • A 504Q King shuttle will operate between Triller and Strachan. The west end loop will be via Dufferin, Queen and Triller. The east end loop will be via Duoro and Strachan. This is a change from the current shuttle terminus at Shaw.

Operation of the 506 Carlton bus shuttle will be officially changed to use the loop that was informally implemented almost immediately after this service began in January. All buses will loop via Gerrard, Sherbourne and Parliament. Full streetcar service will resume on 506 Carlton with the May 9, 2021 schedules.

Miscellaneous Route Changes

Weekday scheduled round-trip travel time on 1 Yonge-University-Spadina will be shortened from 161 to 154 minutes in recognition of time savings with Automatic Train Control. This will address some of the train queuing problems at terminals. Headways will also be widened slightly to reflect lower demand.

43C Kennedy service to Village Green Square will be modified so that all trips begin and end there. Half hourly service will be provided northbound from Kennedy Station from 6:30 to 8:30 am, and from 4:00 to 7:00 pm. Southbound service will leave Village Green from 5:58 to 8:28 am, and from 3:30 to 6:30 pm.

The Amazon Fulfillment Centre at Morningside & Steeles will be served by two routes:

  • 53B Steeles service to Markham Road will be extended via Passmore to the cul-de-sac at the site. This operation is already in place.
  • 102 Markham Road service will be routed north on Markham Road, east on Select Avenue, south on Tapscott Road, east on Passmore Avenue to cul-de-sac, west on Passmore Avenue, north on Tapscott Road, west on Steeles Avenue, to south on Markham Road. This route will be changed when the the intersection of Steeles & Morningside fully opens later in 2021.

Trip times on 167 Pharmacy North will be standardized so that the weekday and Saturday schedules are the same. The first trips will run northbound from Don Mills Station and southbound from Pharmacy Loop at 5:30 am. Service at all times will be on the half-hour (:00 and :30).

Articulated and regular buses will shuffle between routes:

  • Three artics now used on 60 Steeles West will be changed to standard buses. The artics will return in late May.
  • Most runs on 89 Weston will switch from artics to standard buses. In late May, all 89 Weston local buses will be standard-sized, but the 989 Weston Express service will resume.
  • Six standard buses now used on 929 Dufferin Express will be changed to artics.

310 Spadina night service will be cut to half hourly. This route was missed in January when other night services reverted to a 30 minute service (previously every 15 or 20 minutes).

Details of the changes and service plan comparisons are in this spreadsheet.

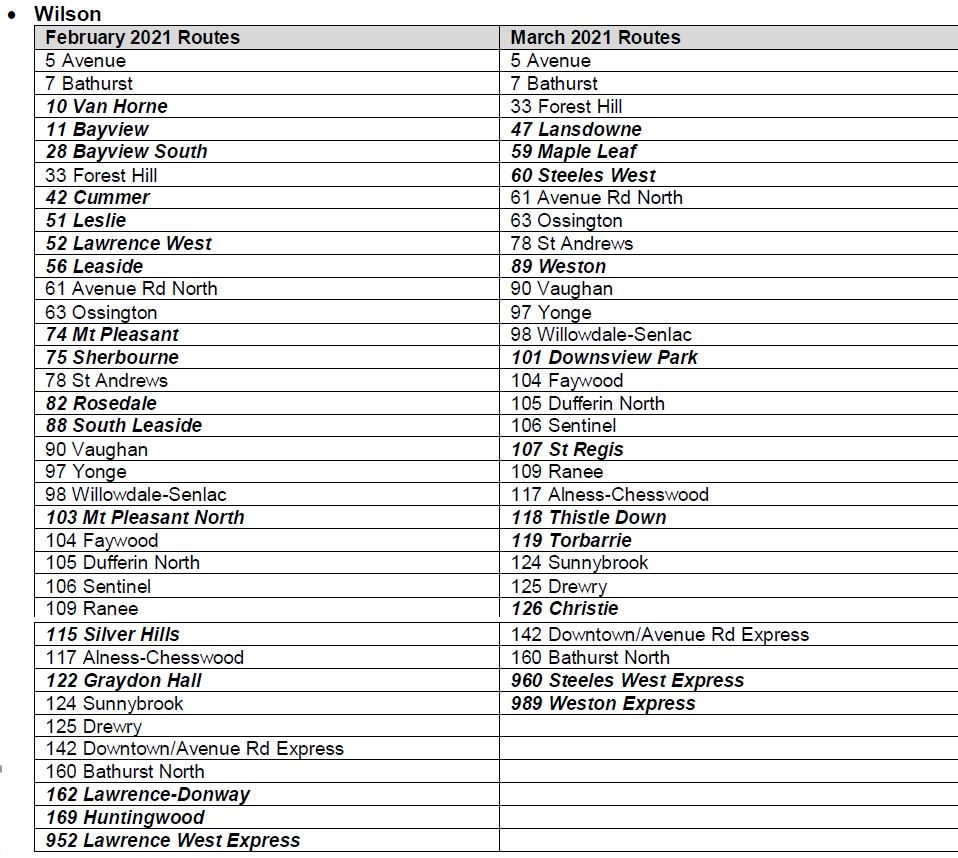

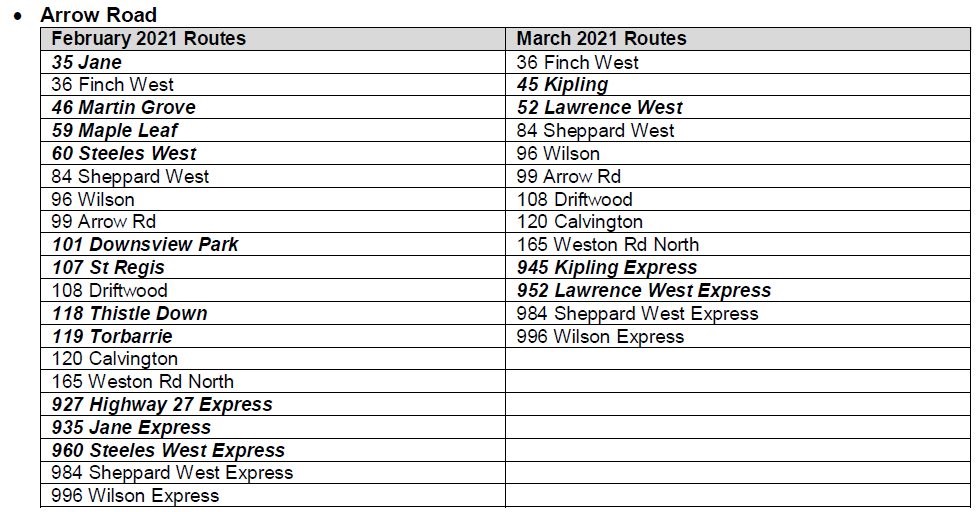

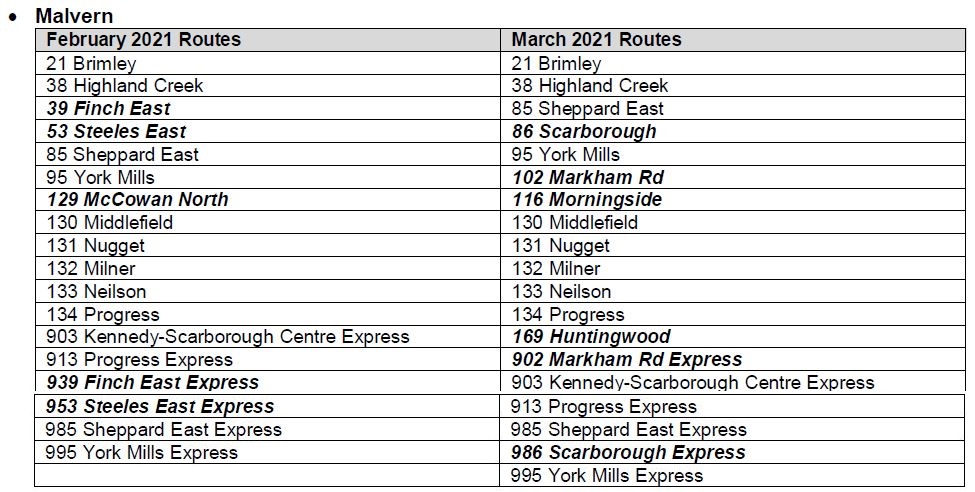

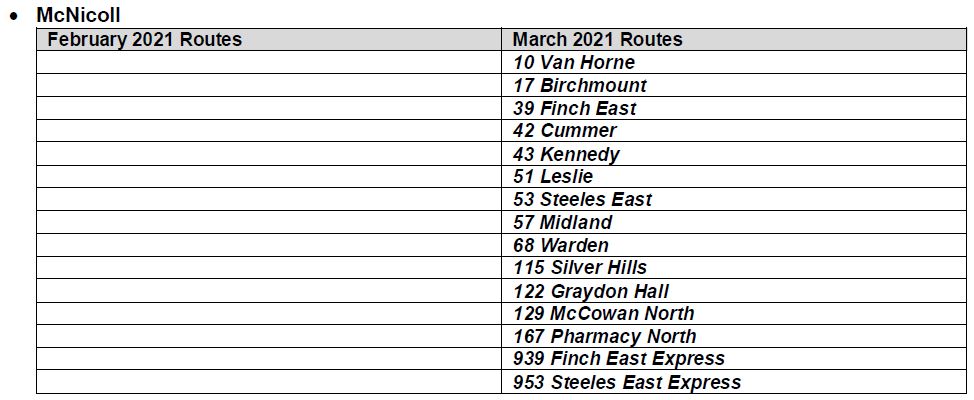

Revised Garage Assignments

by

TTC Service Changes January 3, 2021: Part II Buses

Updated January 7, 2021: Comparative service level charts have been added for routes 53/953 and 60/960 showing changes between the November 2020 and January 2021 schedules.

Updated January 5, 2021: Information about express routes 953 Steeles East, 960 Steeles West and 984 Sheppard has been updated in the route summary. Comparative service charts will be added for weekday service on 953 and 960 in a separate update.

Updated December 26-28, 2020: This article has been extensively updated with charts to illustrate the change in service levels on corridors that have or had 9xx Express services. I will turn to other routes in a separate article.

Some of you have probably been wondering where my list of bus service changes for January 2021 has wandered off to.

The problem is that some of the information in the TTC’s service change memo is inconsistent, and a new version to be issued after Christmas. Some information about planned schedule changes is available through the City of Toronto’s Open Data Portal which has the electronic versions of all schedules for use by various trip planning apps.

Because the difference between some new and old schedules is not as straightforward as usual, I have added charts comparing service levels by time of day rather than the breakdown into peak, midday and off peak periods.

Information here should be considered “preliminary” in case the TTC makes further revisions before the new schedules take effect.

Scheduled Erratic Service

The schedules for many routes suffer from build-in irregular headways. If the route runs on time, the buses are not evenly spaced, and “on time” performance is the metric the TTC uses, for better or worse, to evaluate service. This irregularity arises from several factors that can also interact on the same schedule:

  • The route has branching services that are not on a compatible headway. For example, it is easy to blend two services running every 20′ to give a 10′ combined service on the common mileage. However, if it is a 25′ and a 10′ headway, this is impossible.
  • For pandemic-era schedules, some trips were cancelled without adjusting surrounding buses to even out the headways. This might have occurred unofficially, but it would take a lot of work to ensure that spacing stayed ideal even if the buses were not strictly “on time”.
  • For pandemic-era replacement of express services, “trippers” operated usually on schedules that did not blend with the basic service. These buses were typically in service from 5 am to noon, and from 3 to 10 pm.
  • Some “Run as Directed” (RAD) buses (aka Route 600 series) operated where needed to supplement scheduled service. These do not appear on any schedule nor in a route’s vehicle tracking logs.

My purpose in looking in detail at the January 2021 changes is to show how all of these factors interact.

Continue reading →
by

TTC Bus Service Frequency and Reliability in 2020 (Part III)

This article continues a series reviewing the quality of service scheduled and operated over the COVID-19 era in summer 2020 that began with an introduction and continued with Part I looking primarily at Scarborough and Part II moving further west looking at north-south trunk routes between Victoria Park and Jane.

In this article, I continue further west to review these routes:
