The City of Toronto, Waterfront Toronto and the TTC held an online open house on April 5 to present the current status of the Waterfront East LRT project.
The presentation video and slide deck are be available on the project website. All illustrations here are taken from that deck.
Updated April 9 at 8:15 am: There is also a FAQ addressing many questions about this project.
Because this session fell on the first day of Passover, there will be a second Q&A session on April 11, 2023.
There is an online survey available to provide feedback on the project. Please note that although members of the project team almost certainly read this blog, comments left here will not be part of the formal record and might be missed by the team. Do not treat the comments section here as an alternative to using the survey.
The WELRT project has taken an extraordinary amount of time to reach this point, and only part of that can be put down to the pandemic. Indeed the last public session was conducted in 2021. The biggest problem is that the waterfront is nobody’s top priority. Even former Mayor Tory, who talked a good line about waterfront development, did not push the project until quite recently, and his momentum, such as it might have been, has now vanished.
Recently, many on Council and in the wider community have worried that residential developments along Queens Quay East and on Villiers Island (the new island to be created as part of the Don River rerouting work now in progress) would all be for high-end buyers or investors, and would not address Toronto’s housing needs. With a move to increase planned densities in the eastern waterfront, there is an even stronger need for much better transit. The area is now served by the Bay, Sherbourne, Parliament and Pape buses, but service can be quite unpredictable.
For the record, the AM peak service planned for schedules coming into effect May 7, 2023, is:
- every 20 minutes on 19 Bay,
- every 7 minutes on 75 Sherbourne,
- every 7 minutes on 65 Parliament, and
- every 19 minutes on 72 Pape.
Each route serves a portion of the waterfront and, depending on your destination, not all of them might be useful. Notably the two which link to Union Station are infrequent and unreliable. This is hardly a “transit oriented” neighbourhood.
In spite of the poor transit service, the eastern waterfront is hardly at a standstill. Many condos as well as commercial and academic space have appeared, and much more is planned. How a projected 50,000 workers/students and 100,000 residents will get around for the next decade is a mystery.
This project has been underway for a very, very long time as the chart below shows.

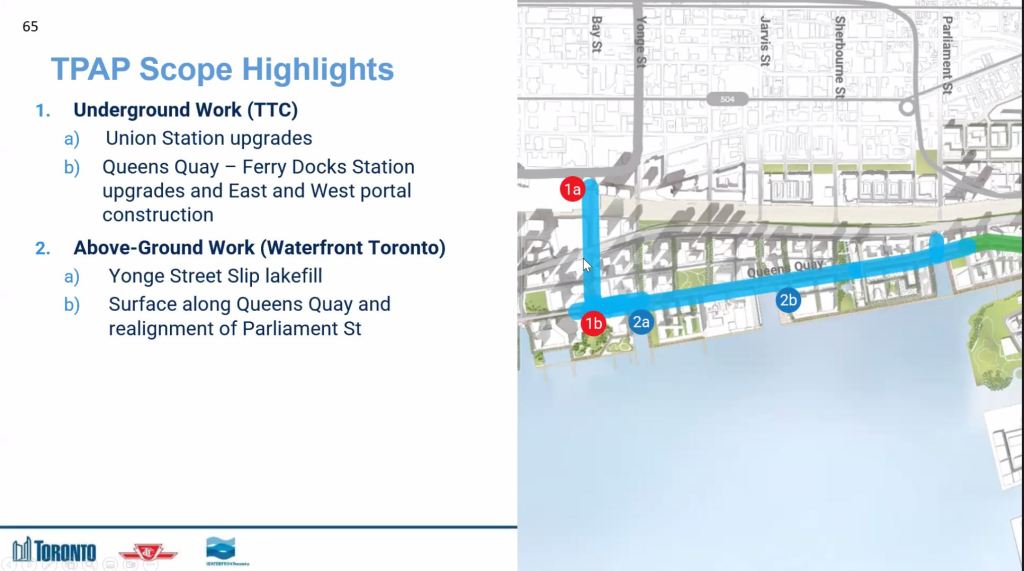

The current study is subdivided into three segments, plus future extensions into the Port Lands east of the Don River (dotted blue lines below).
- Segment 1 (red) includes the Bay Street tunnel and the portal area on Queens Quay.
- Segment 2 (turquoise) runs from Bay Street to New Cherry Street (which will open later this year).
- Segment three includes the link via Cherry from the Distillery District south to Commissioners Street and east to an around-the-block loop just west of the realigned river (yellow).
Segment 1 Videos
There are three overview videos about the project’s Bay Street Segment 1. Only one of these was shown to the public meeting (the intro), but not the more detailed reviews of plans for and construction at Union and Queens Quay stations.
The presentation sped through a description of Union Station, but omitted construction details. It also revealed that major upgrades to Queens Quay Station are for a future project, although provision will be included in this phase of construction. This is cold comfort for many who long for an improved link to the Jack Layton Ferry Terminal. (See the section on Queens Quay and the new Portals below.)
Union Station

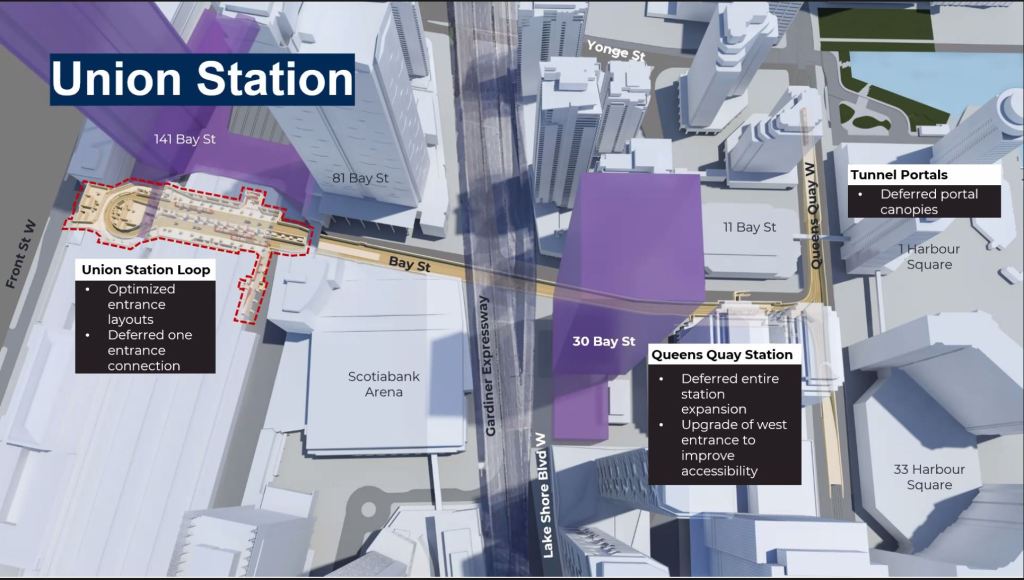

As previously reported, the design for an expanded Union Station Loop includes double platforms on both the northbound (unloading) and southbound (loading) side of the loop. Crossovers will be provided to allow cars to bypass each other at the platforms.

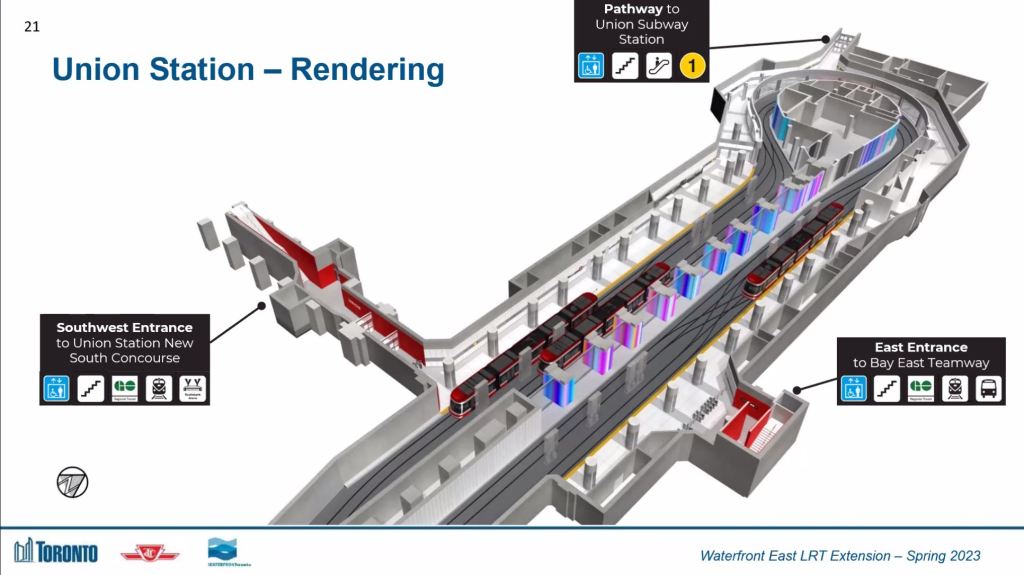

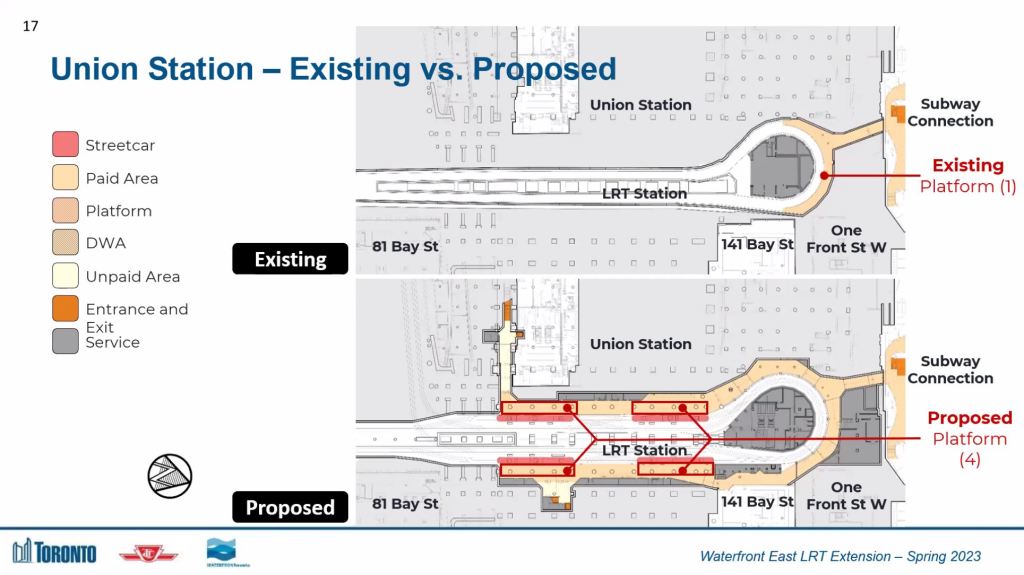

The first drawing below (click on any drawing to open the set in a gallery) shows the full Bay Street tunnel and planned works in an aerial view. The second drawing contrasts the small existing loop with the much expanded new loop including its new exits at the south end of the platforms.

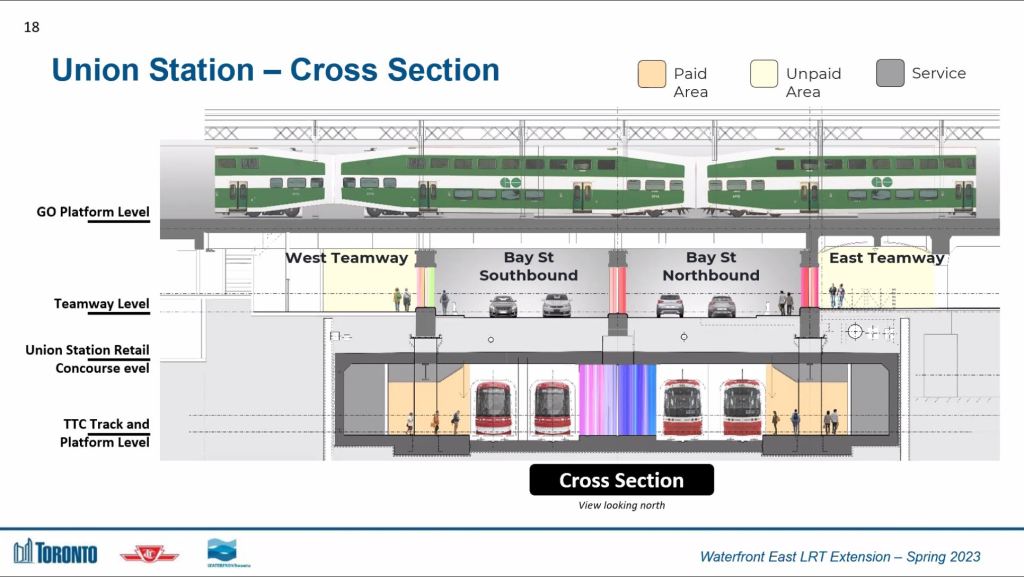

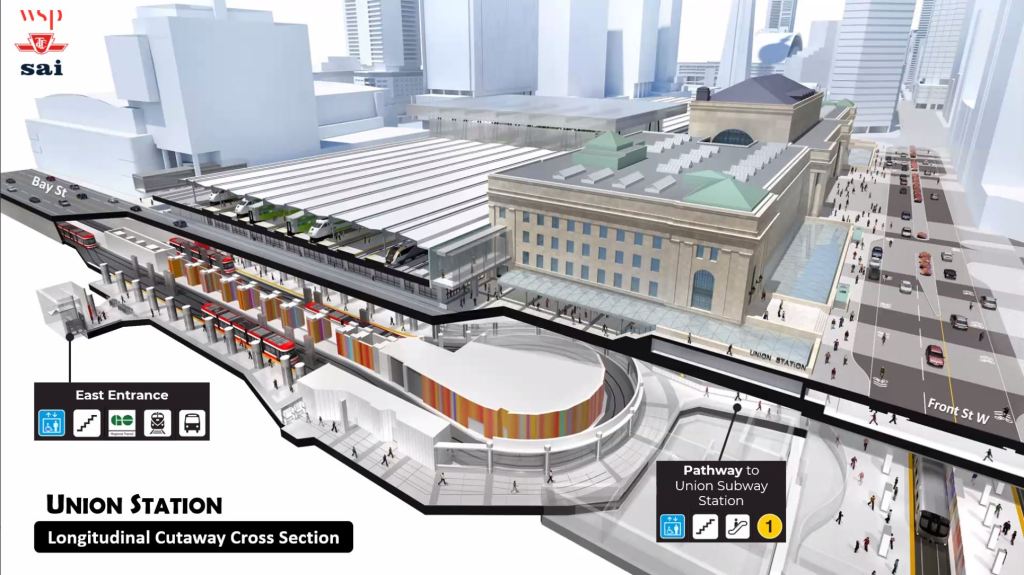

The third drawing (upper right) shows the station in profile looking north. Note the three pillars that run from the underside of the GO track slab down to the foundation of the expanded LRT tunnel. These will be built in a manner similar to the “dig down” that occurred in the main Union Station building to provide the new lower level concourse. (This is illustrated in one of the videos linked above.)

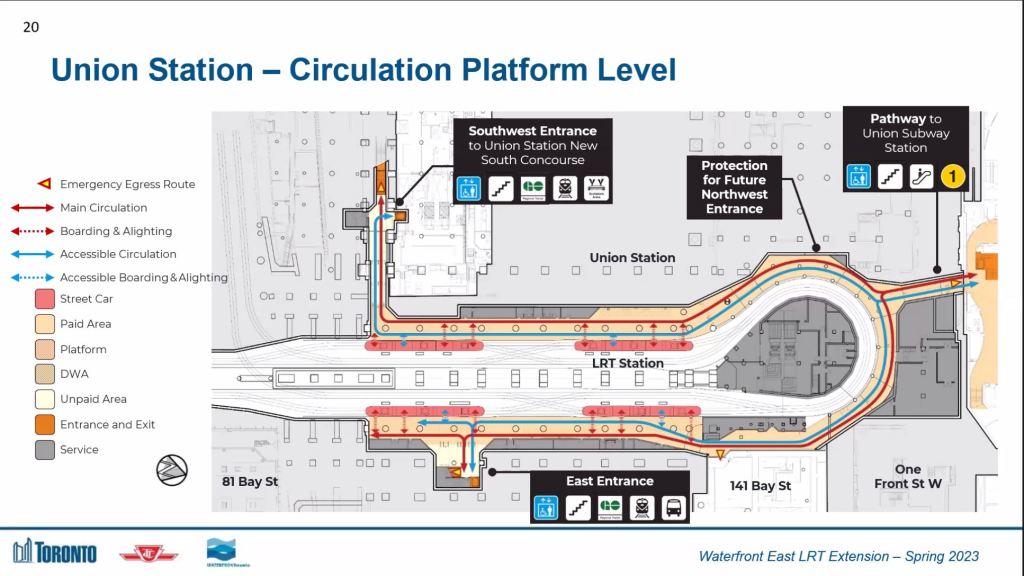

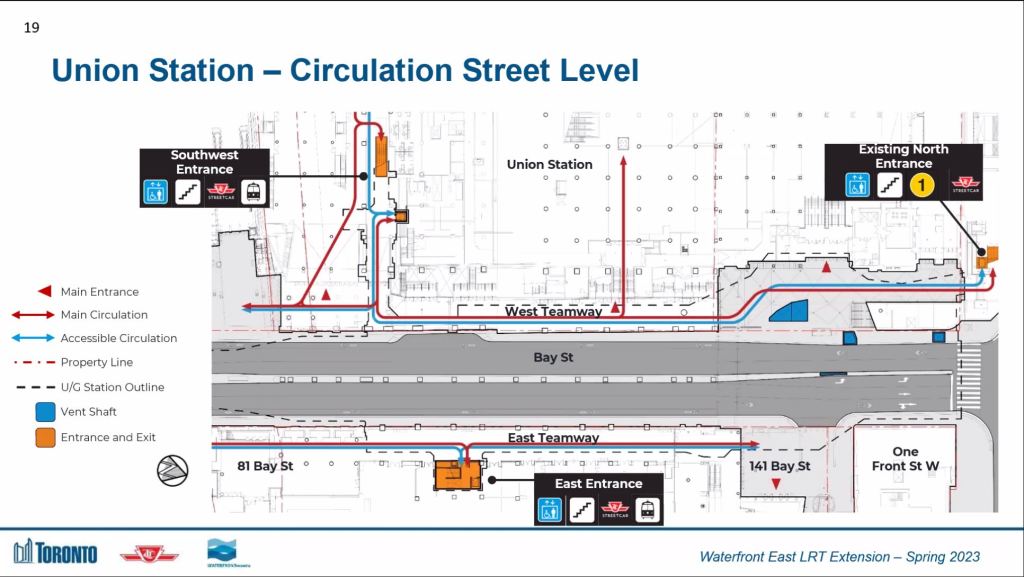

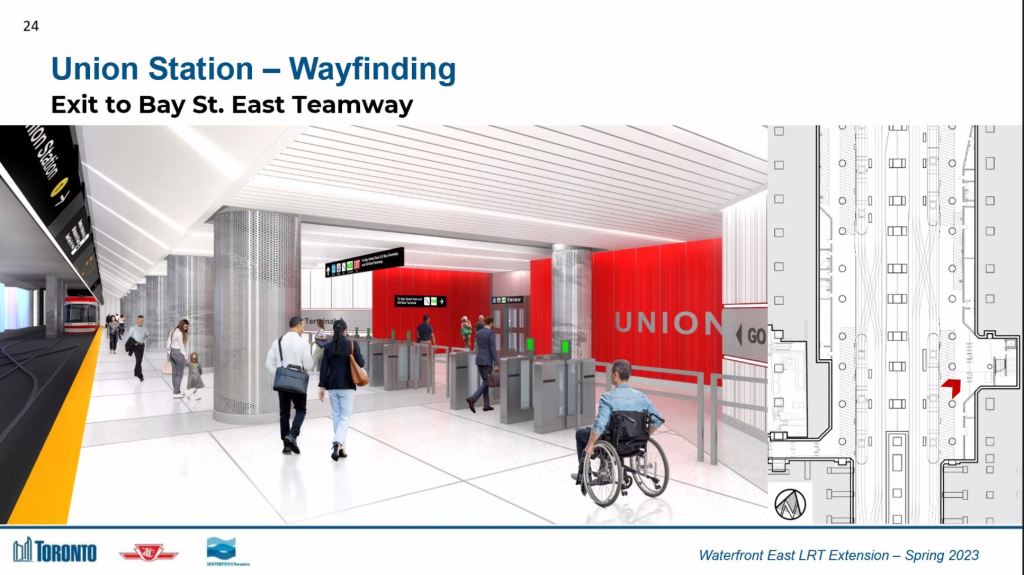

The lower three drawings show circulation patterns at street and platform levels, and a cutaway view of the full station looking northwest. The so-called “Bremner LRT” (which would branch off to the west through the basement of the Air Canada Centre) is not shown in these plans, although they do not preclude its addition later. From a planning point of view, that line is still part of Toronto’s Official Plan, even though it is extremely unlikely to be built.
A major change in the access to and from loading areas comes from shifting them away from the curved platform at the north end of the tunnel where they are today to separate, straight sections beside the northbound and southbound tracks. With this shift, the passageway to the Line 1 subway station would no longer jam up with waiting passengers, and its capacity would be available for people moving to and from the streetcar loop.
Demand will also be spread out via the new entrances at the south end of the expanded station.

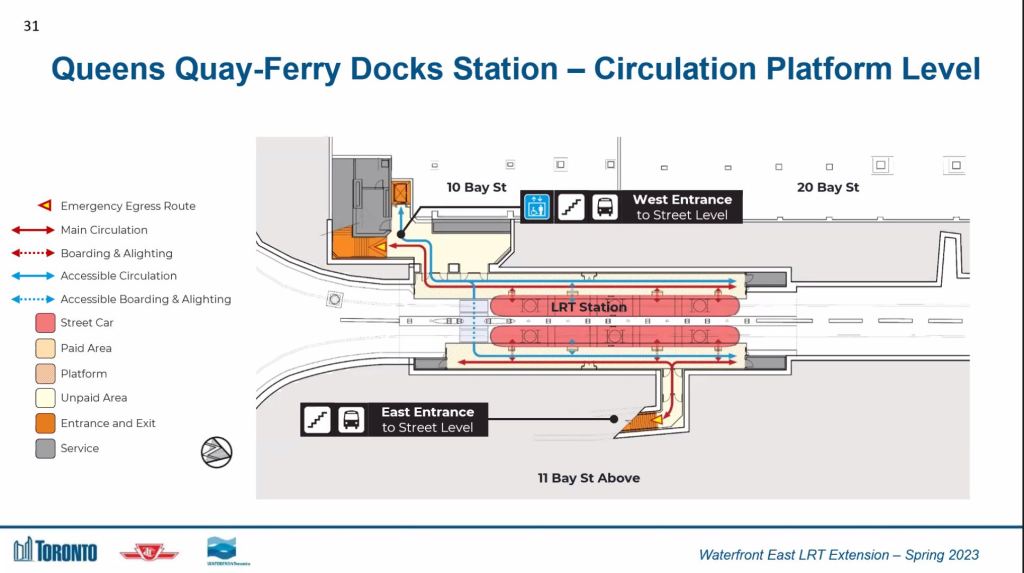

Queens Quay Station and Portals

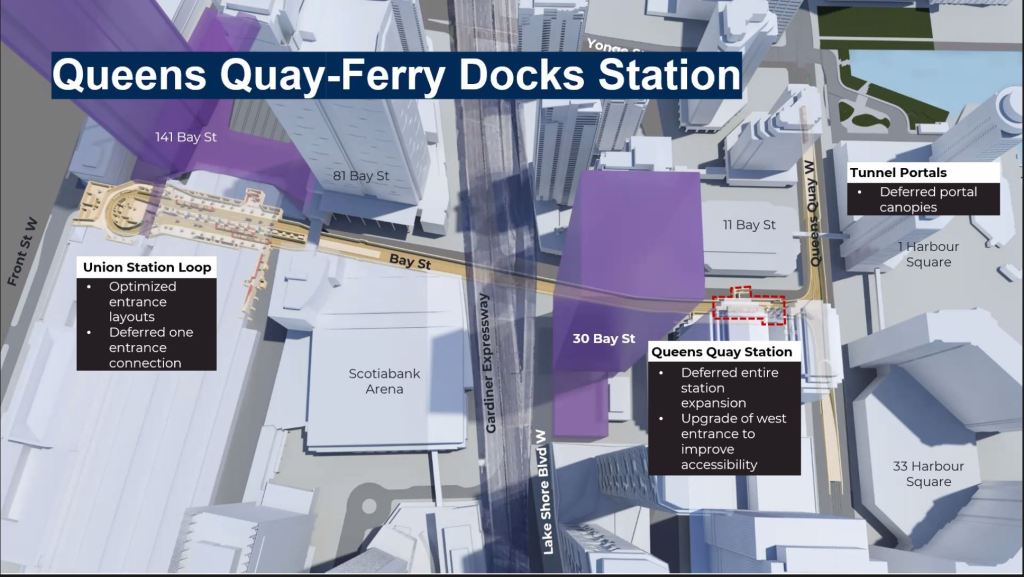

Th online presentation skimmed over the fact that the planned expansion of Queens Quay Station has been almost completely deferred. This is partly a cost control issue, but also is related to delay in a development proposal for the northeast corner of Bay & Queen’s Quay through which a new and improved link to the station would be possible. (This site was to be a CreateTO development, but that is on hold.)

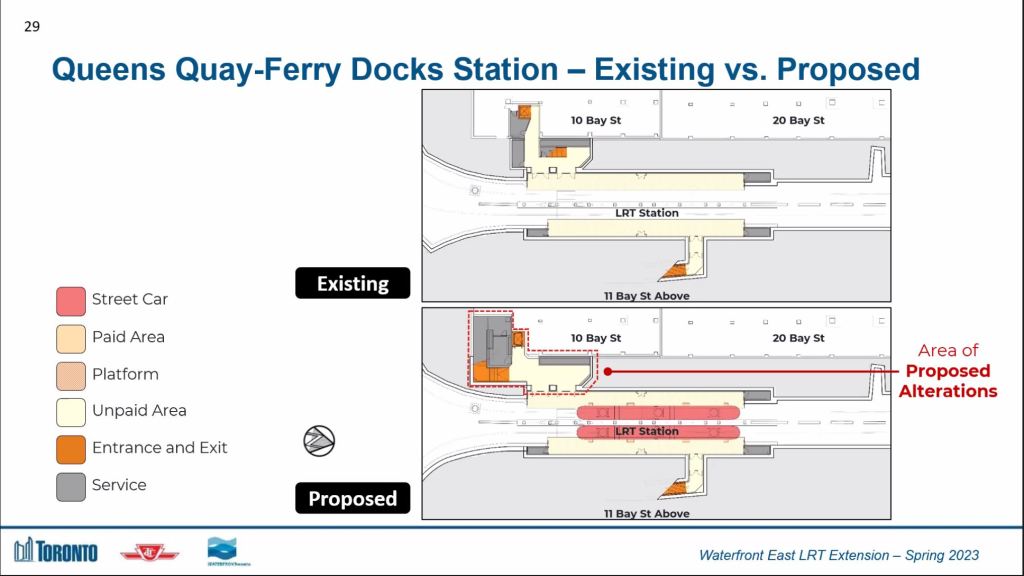

The one surviving work at this stage will be expansion and reconfiguration of the existing exit to improve the stairway and install a new elevator that will be designed both for better reliability, and for ride through flow by users of mobility devices. There will not, however, be redundant elevators here, and this is an issue that will require attention in design of the east side of the station and development at 11 Bay Street.

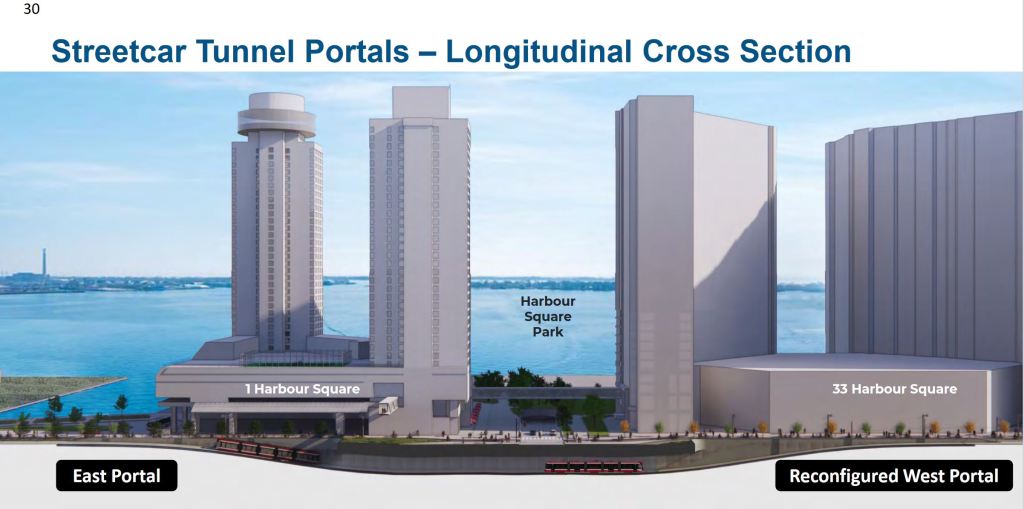

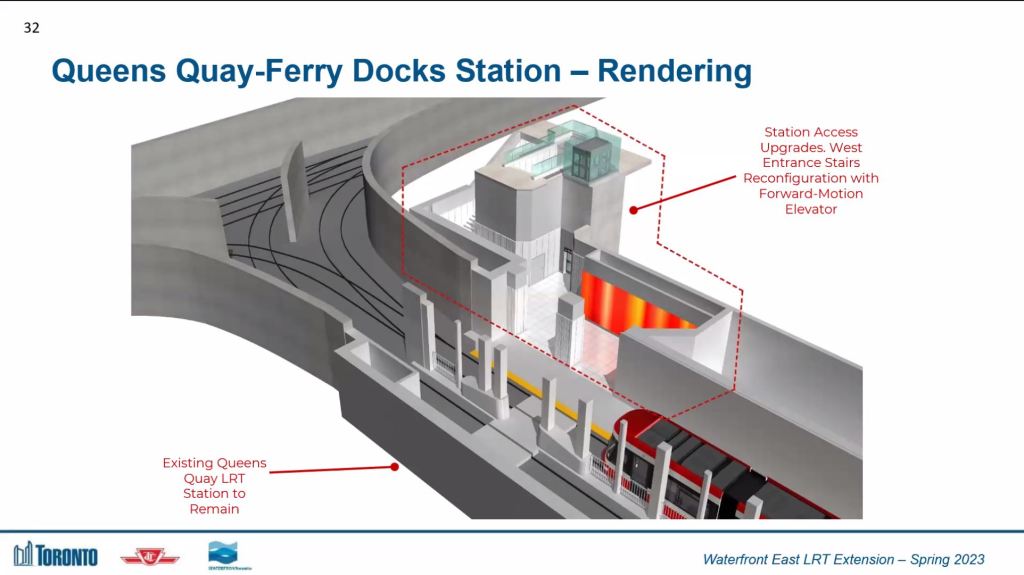

In the cutaway view (centre, below) note that the revised portal structure includes a full “T” junction so that streetcars can enter Bay Street from the west or the east, or they can operate straight through on Queens Quay.

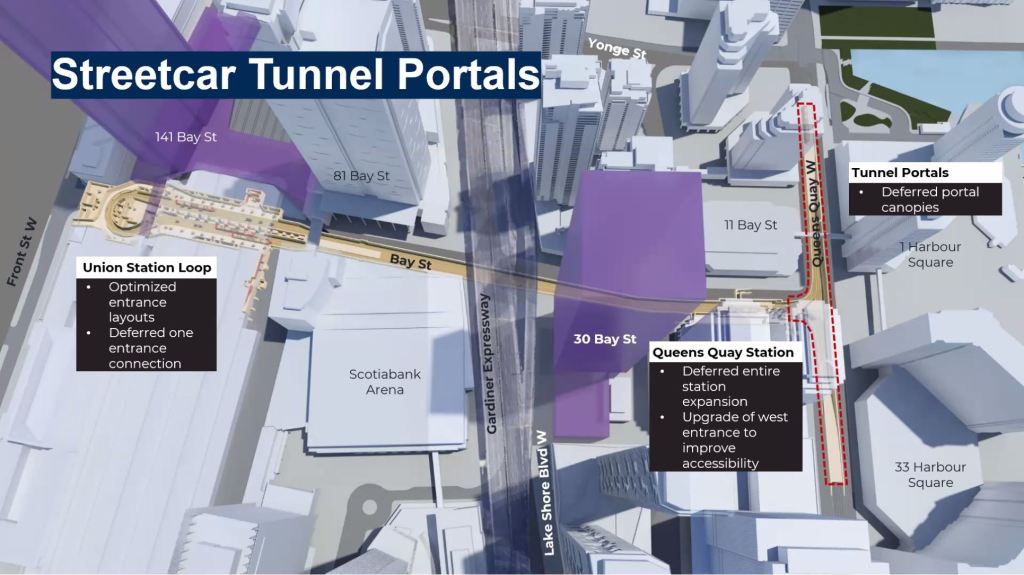

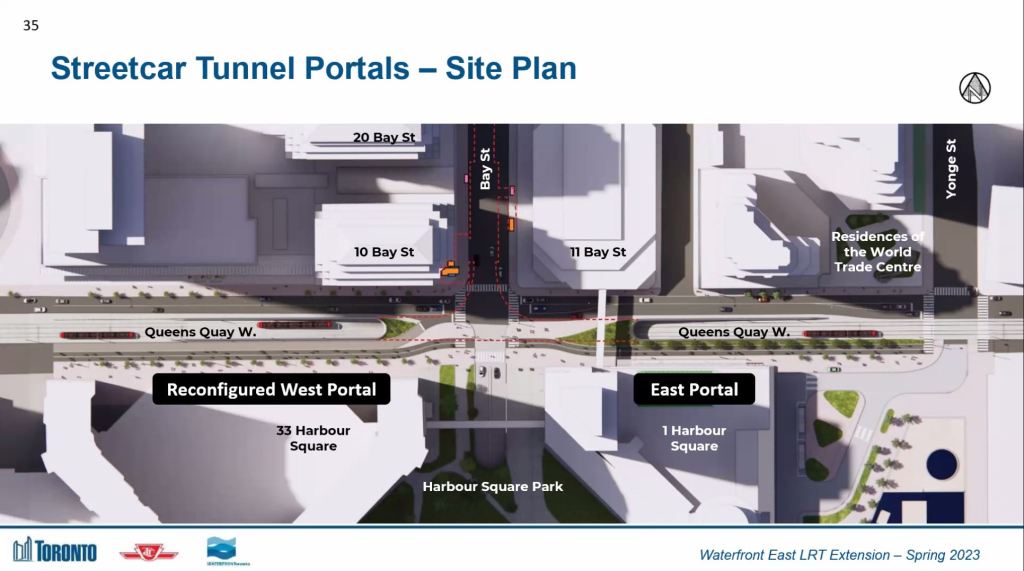

There will be two portals on Queens Quay. One is the existing west portal which will be rebuilt, and a new east portal that will lie west of Yonge Street in front of the Harbour Castle Hotel.
Decorative canopies were originally proposed for these portals, but they have been cut as a cost saving measure. The portals will be built so that the canopies can be added in the future when funding is available.
The Yonge Street Slip

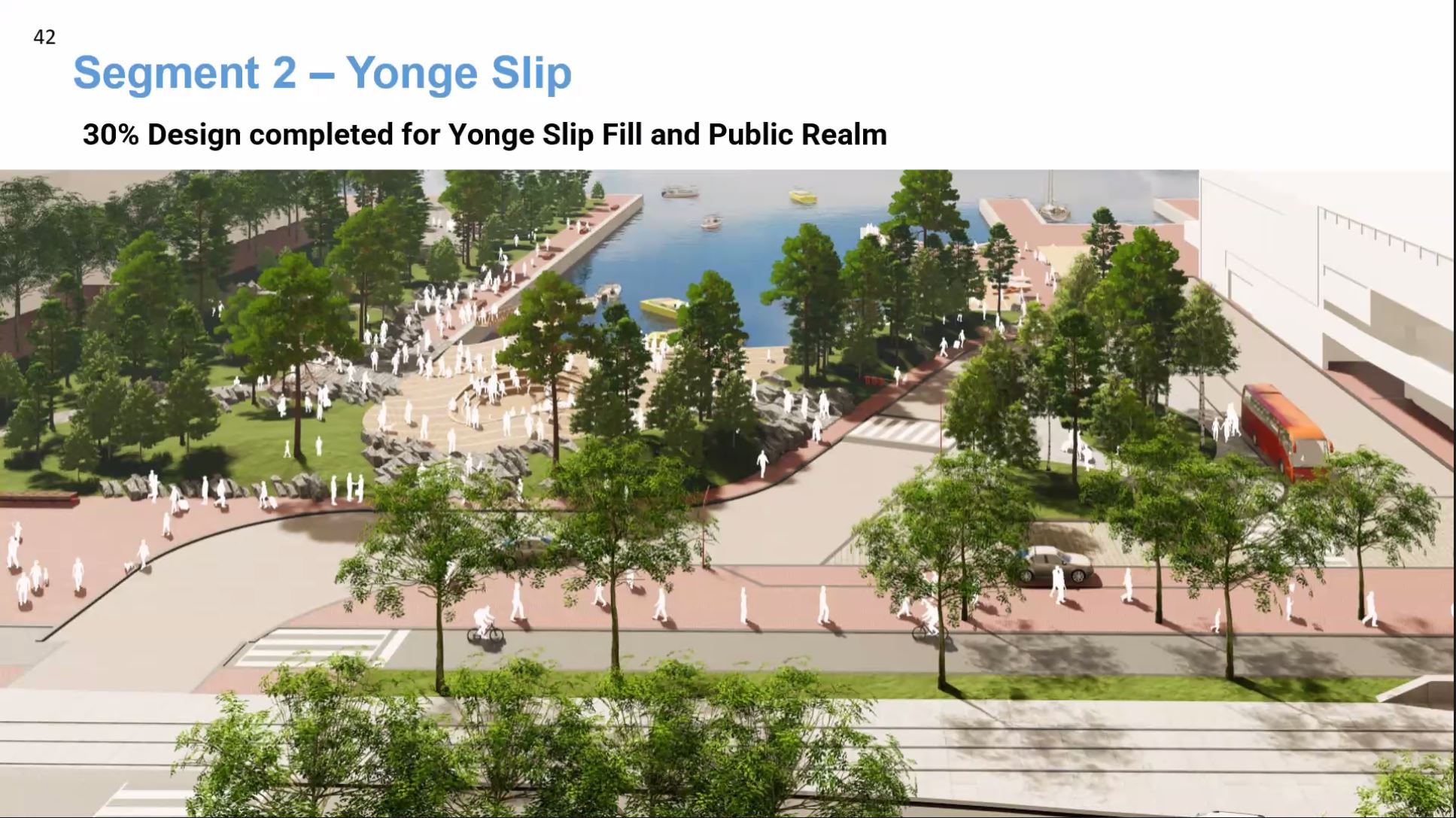

The area east of the Harbour Castle Hotel at the foot of Yonge Street is now occupied by the Yonge Street Slip. The WELRT plan would partially fill this slip and create a new driveway into the hotel as well as an access to the Ferry Docks (behind the hotel).
Note that the park on the east side of the slip is not formally part of this project which would provide the land, but not the landscaping.
The Ferry Docks
Access to the Jack Layton Ferry Terminal has been a burning issue throughout this study. However, with the scope reduction at Queens Quay Station, discussion of ferry access has all but disappeared from the project.

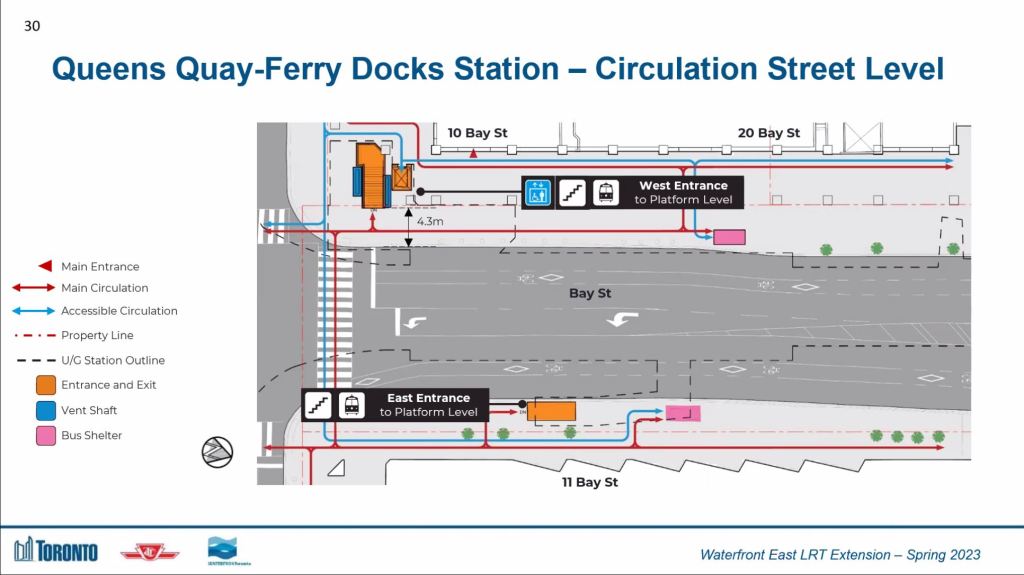

With the planned construction in the Bay & Queens Quay intersection, an alternate route will be needed for pedestrian traffic coming south on Bay from Union Station. This will probably be diverted east to Yonge and the expanded slip shown above. However, there is also the question of transit access during various phases of construction and when the project is complete, but this has not been addressed.
Queens Quay East Street Design

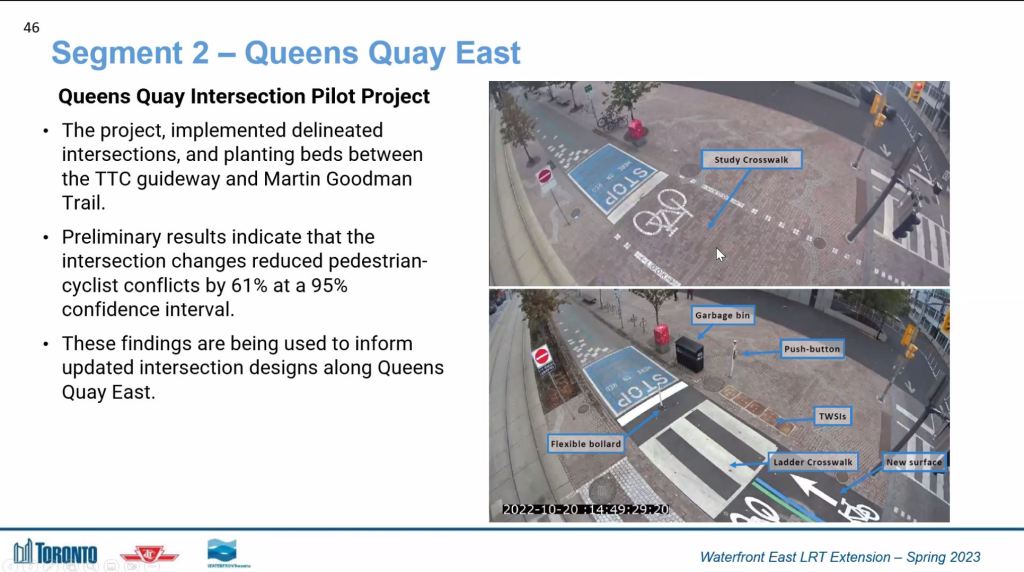

The design for Queens Quay East is descended from the original Waterfront LRT project west of Bay, but with some important changes.
Taking advantage of the space available for much of its length, the design provides stronger delineation between the Martin Goodman Trail (cycling lanes) and the surrounding pedestrian and transit lanes. The design also includes stronger visual cues about where each “realm” begins and ends to reduce conflicts at intersections. These changes are being tested on Queens Quay West with good results, according to the project.
Cherry Street

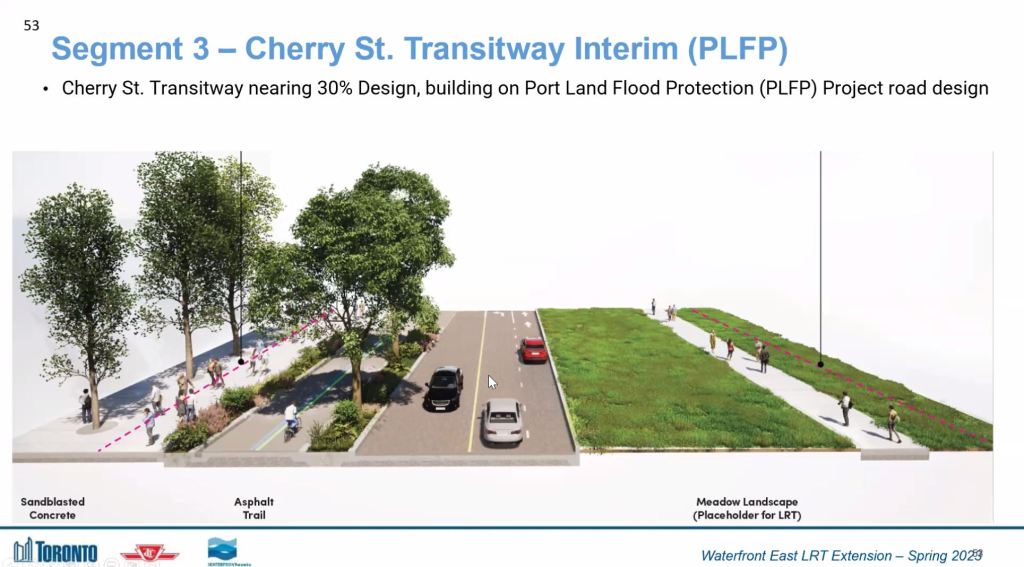

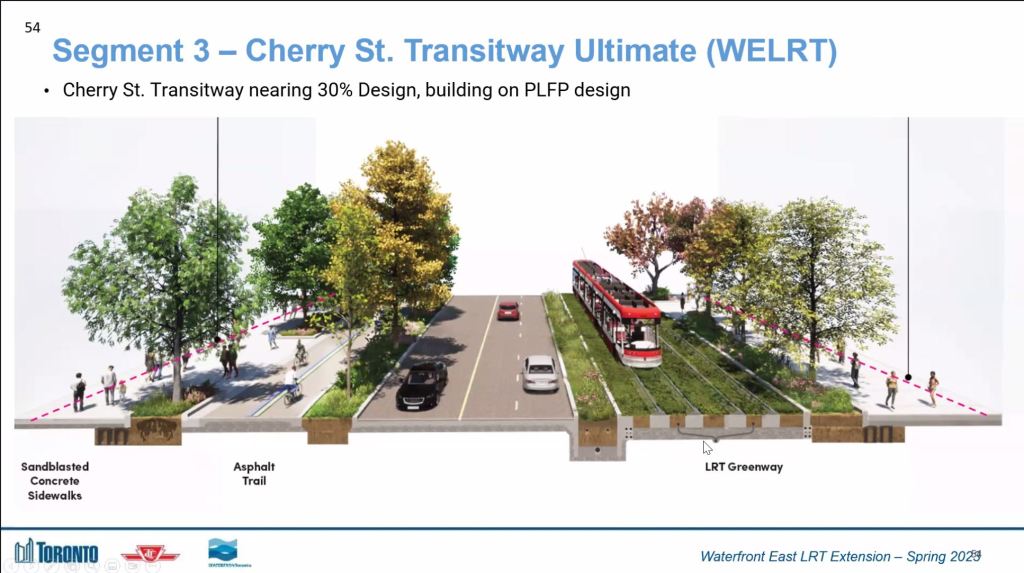

The Cherry Street portion (segment 3) will connect the existing trackage at Distillery Loop with the WELRT tracks at Queens Quay and New Cherry Street. The existing loop cannot be retained because there is a grade change from the north to the south side of the rail corridor, and the new through tracks conflict with the existing loop.
As part of the work, the Cherry Tower will be shifted (it says “west” in the slide, but I think they really mean “east” here) to make room for the new underpass. In the drawing below, the new east portal holds the two LRT tracks plus a wide pedestrian connection.
The existing loop area will be partly repurposed as a small wetland.
New Cherry Street is under construction now (the portion south of Commissioners is already open), and it makes provision for a future transit corridor as shown in the left and centre views below (looking north). The Cherry North bridges already include the span for the future transit service over the Keating Channel to Queens Quay.

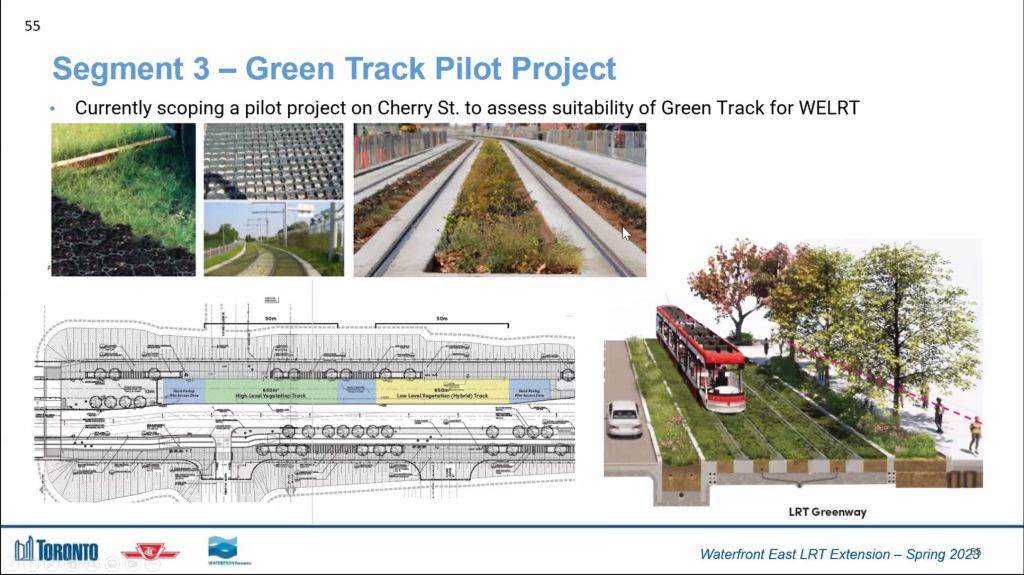

Also planned here is a test area of green track using various construction techniques. The intent is to build this before the actual LRT line as a trial particularly for use by emergency vehicles and buses. One wonders why this work is needed given the green track already built on Eglinton.
Villiers Island Loop

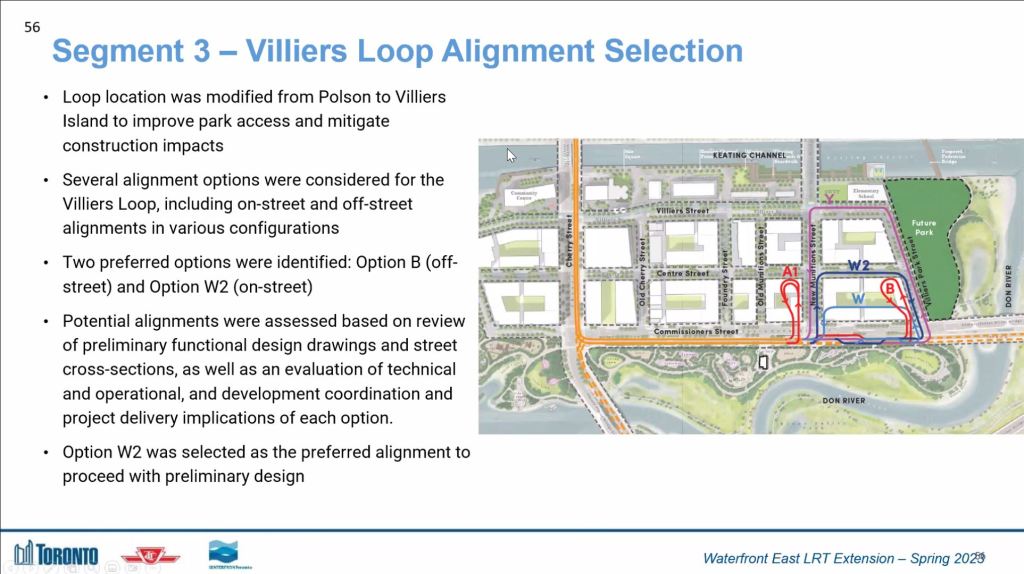

I reported previously on the Villiers Island Loop selection. The design uses a curb running loop via New Munitions Street, “Centre Street” (we already have one of those in Toronto), and Villiers Park Street. As and when the link east via Commissioners to Broadview and Leslie Barns is added, the existing Commissioners bridge over the new river (the orange double span for those who know the area) would be twinned for the LRT right-of-way.
Also shown in the map below is a southern extension via Cherry that would end just north of the Ship Channel in a new loop. If built, this will require twinning of the Cherry South bridge (yellow) that is already in service over the future path of the Don River. There is no intention to take the streetcar service south of the Ship Channel.
East Harbour and the Broadview Extension
Not included in this presentation was any discussion of a future extension east on Commissioners to at least Broadview and a link north to the East Harbour development and future station. Although a project to extend Broadview south from Eastern Avenue to Lake Shore is underway, the connection to Commissioners Street and the waterfront network is sitting on the back burner.
One aspect of a Commissioners track is the need to relocate the existing Hydro corridor in the middle of the street. Another is the need to twin the new Commissioner’s Street bridge over the future Don River with an LRT span.
Updating the “TPAP”

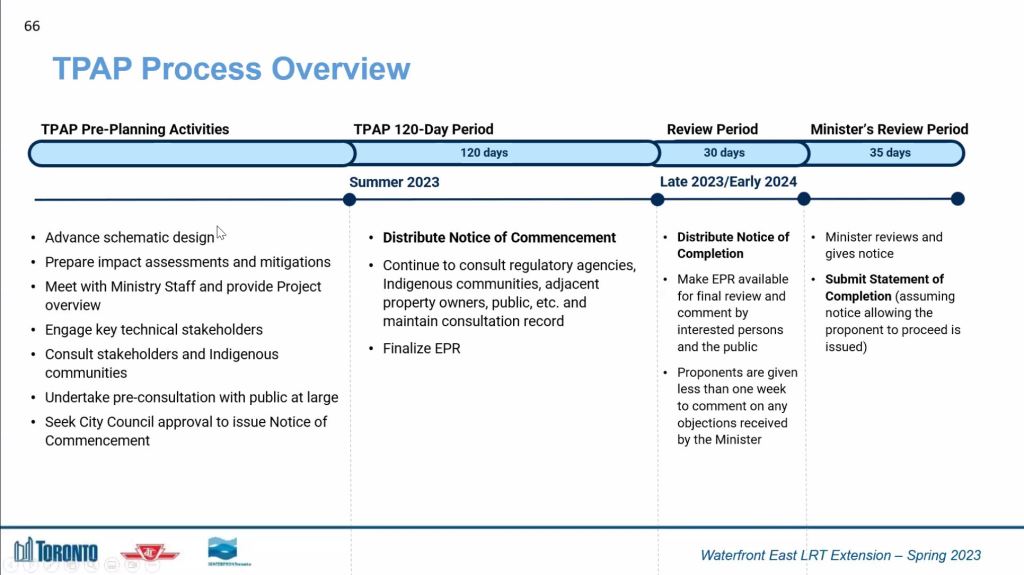

A TPAP is a streamlined environmental assessment for transit projects. The existing Waterfront TPAP from 2010 is old enough that it must be updated both from its age, and to include changes to the project since it was approved. This only covers the area east to Parliament Street which was the original terminus of the scheme.

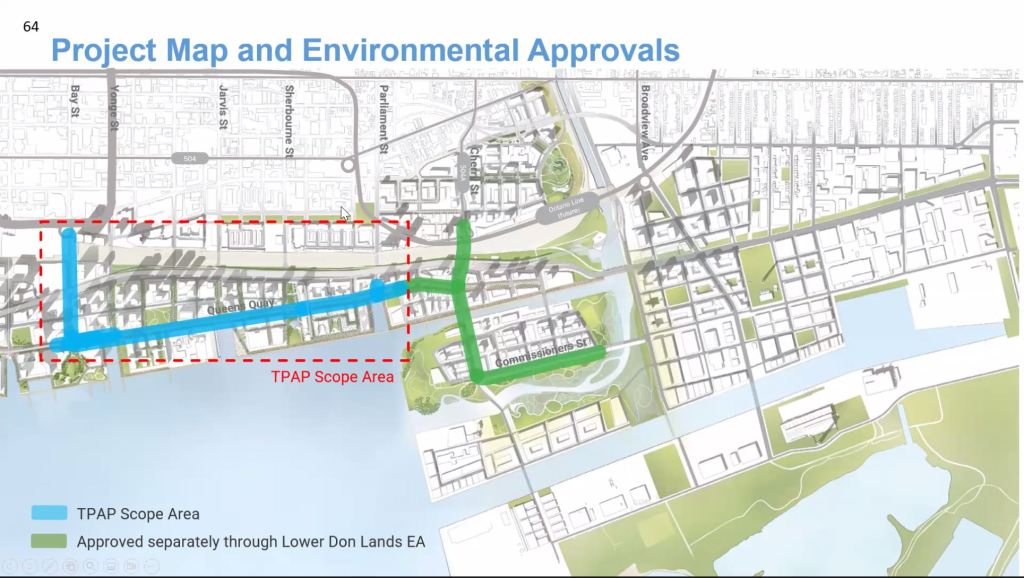

The area east of Parliament including Cherry Street and Villiers Island has a separate approval through the Lower Don Lands EA and this does not have to be revisited.
Such is one of the many cost of years of delay: studies go out of date and approvals expire. We have announced and built lots of transit, just not on the waterfront which was supposed to be a “transit first” neighbourhood.
The TPAP and associated Business Case are constrained to follow the Metrolinx methodology to establish the value of options. There are really only two on the table given the area to be served.

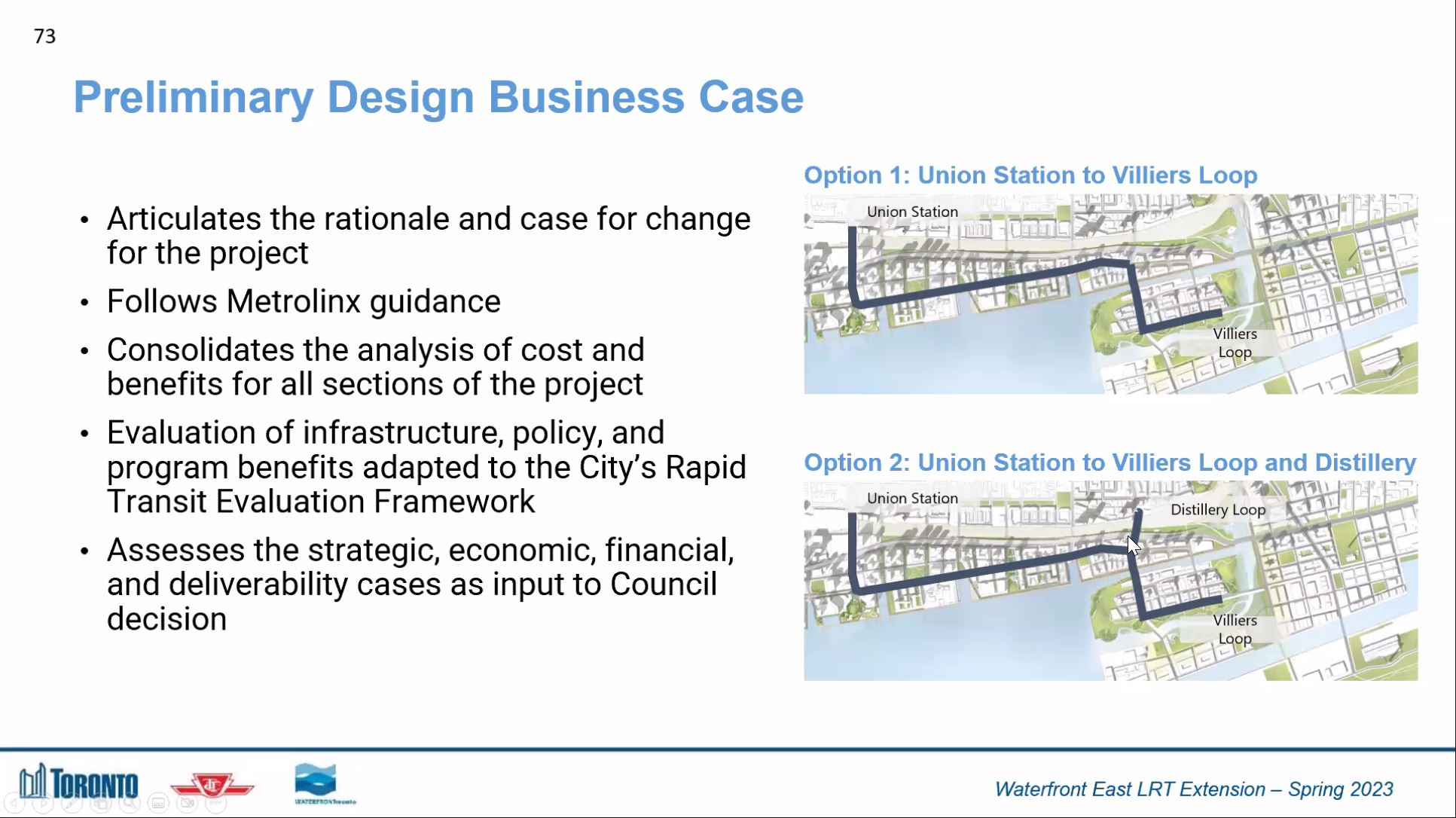

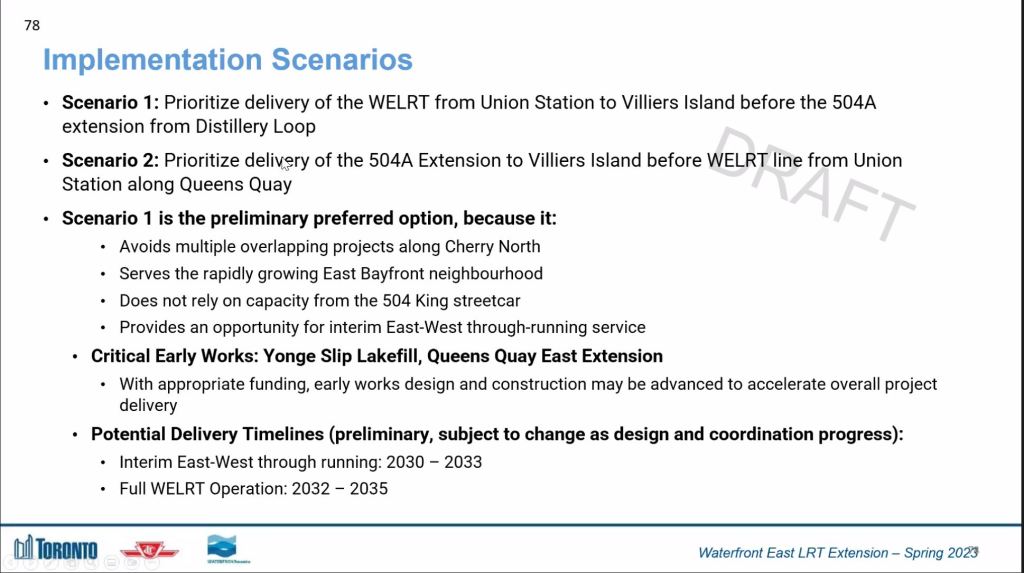

The business case options boil down to building only the Queens Quay link, or including the Cherry Street connection to King Street. While I have a certain love for rigour and honesty in transit planning, I cannot help contrast this exercise with the “Doug Ford smote the earth” planning on a much grander scale.
With the Distillery link as an “option” and its place in the overall schedule at the end of the queue, one cannot help wondering if we will ever see it built, even though it is an important part of the overall waterfront network and is touted as a future link to Corktown Station on the Ontario Line.
Construction
Thanks to the many delays in starting this project, there is a lot of conflicting work in the area. Timelines have drifted into the 2030s before anyone will ride a streetcar onto Villiers Island.

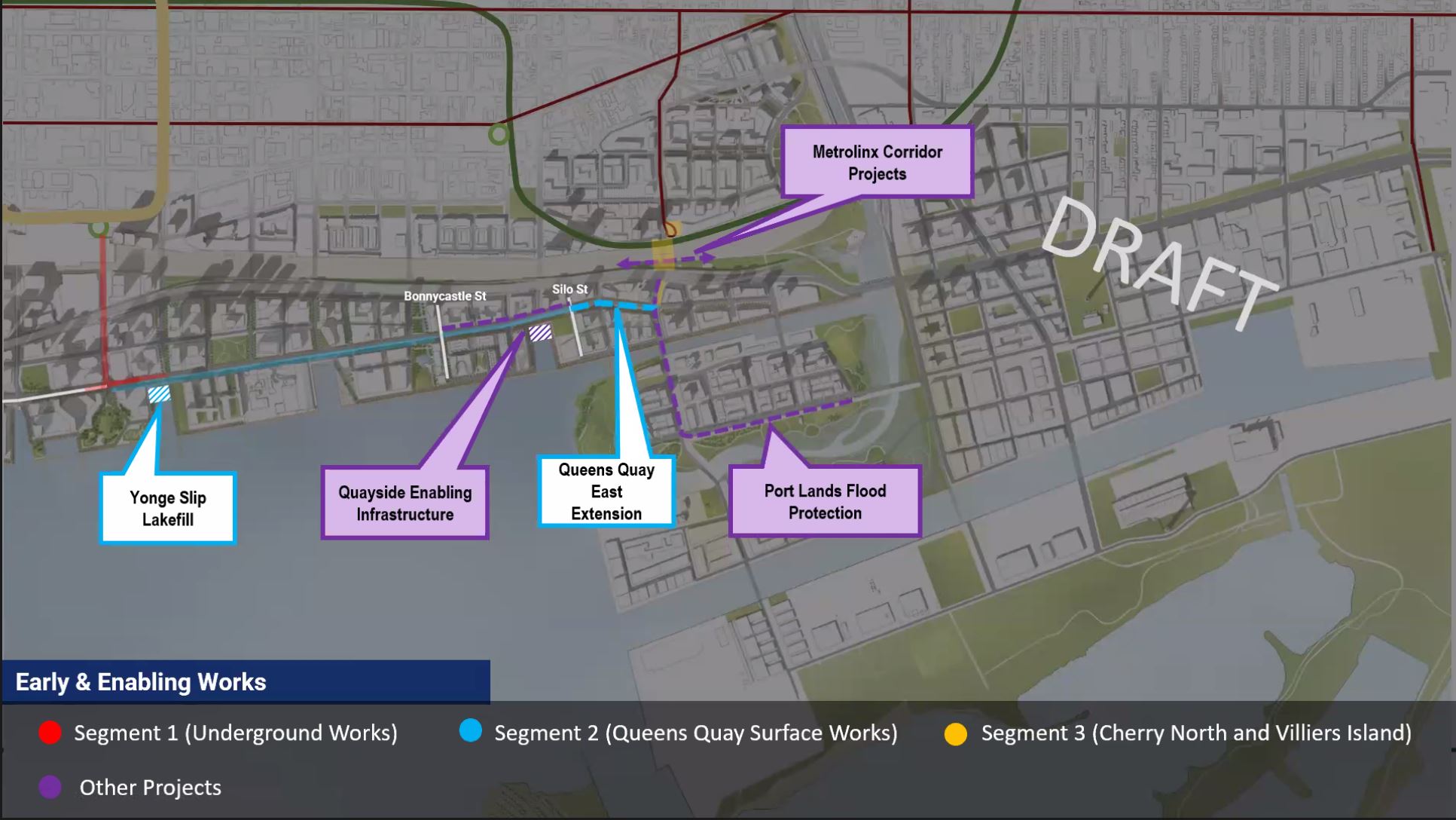

Several works must occur first before major work could begin to establish the “new” Queens Quay, the future right-of-way on Villiers Island, and conflicts with the Metrolinx corridor at Cherry Street.
Because of many potential conflicts at Cherry Street in the medium term, building this link south to Villiers Island is not the preferred option for staging.

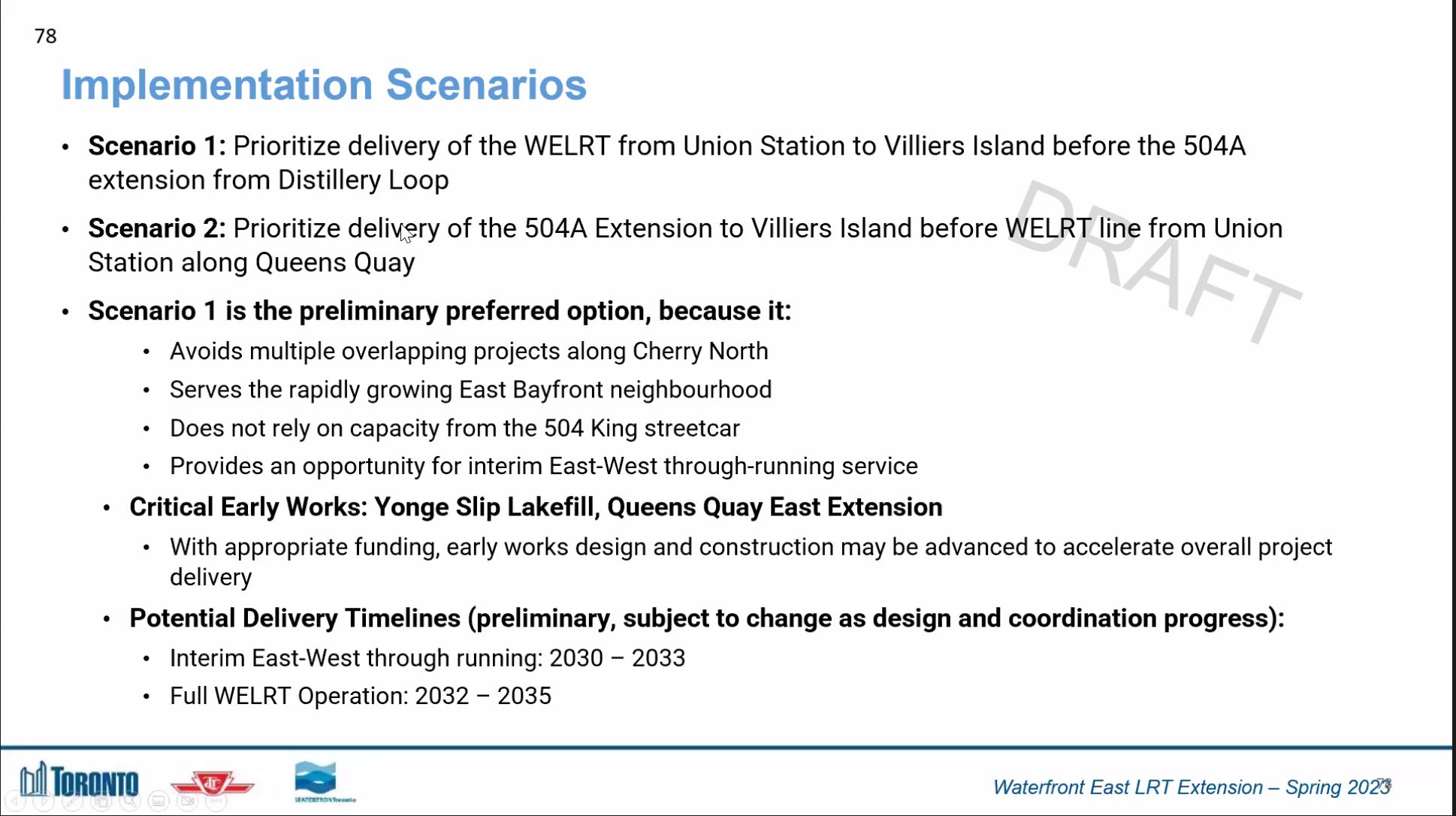

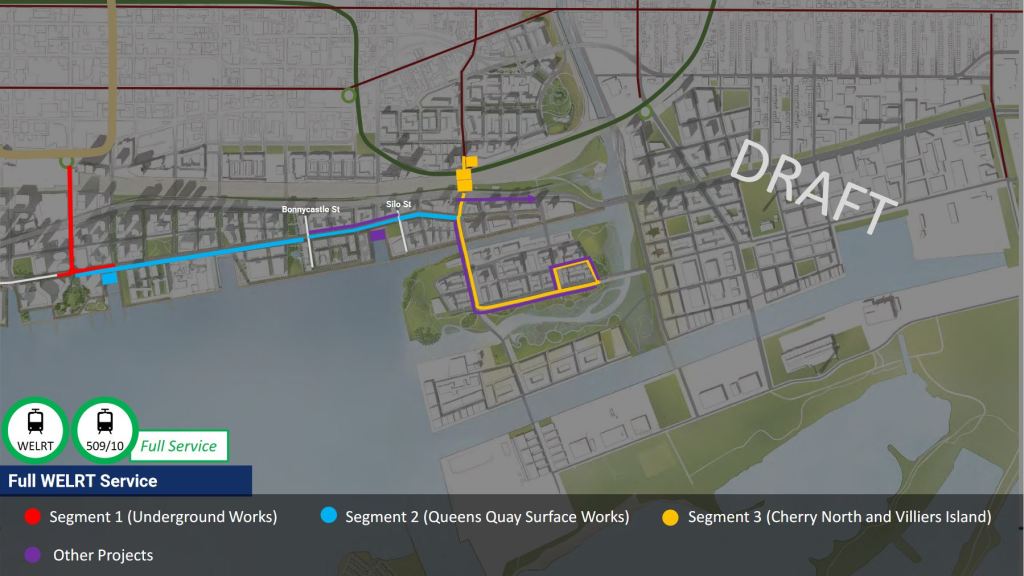

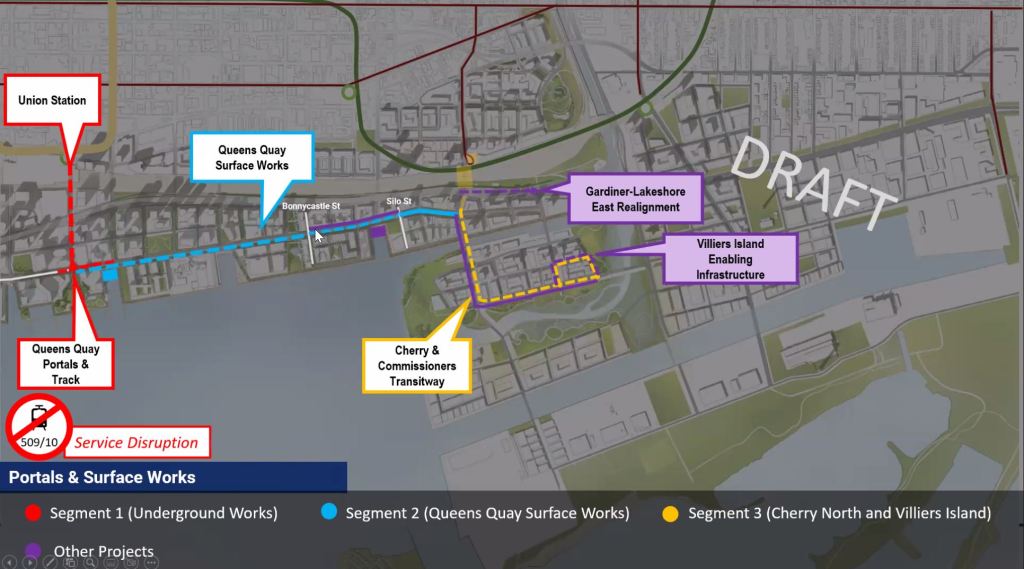

The proposed staging will see a period of possibly three years while the portal area at Bay & Queens Quay is rebuilt and expanded, following which through service from Queens Quay West to Villiers Island could begin to operate. This is an obvious target for construction design that will minimize the length of the outage.
After the reconstruction of Union and Queens Quay Stations, service to Union from both the east and west could be established. The Cherry connection would come independently of other work depending on when the link from the Distillery to Queens Quay could be built.
There is an obvious need to move up the availability of this transit project, but funding and the timing of other conflicting works will be major problems. The idea that full operation might be 12 years away in 2035 is extremely disheartening. It is a mockery of every pro-transit, pro-housing pitch from any of our so-called transit boosters.
Other Issues
Although the Constructability Review was listed on the agenda, the update was quite perfunctory saying that this work was in progress and would report out in May 2023.
During the Q&A session, the issue of waterfront traffic congestion was raised by some people. This is a major concern given the number of public and private projects in this area that will add to traffic and/or reduce road capacity. The problem is an obvious one, and it is odd that the project has not yet addressed the situation.
Access to the Ontario Line is a regular question. The project team notes that there will be streetcar service from Corktown Station via the 504A King car, as well as eventually from East Harbour Station via the Broadview extension and Commissioners Street. However, both of these are well in the future, almost certainly beyond the Ontario Line’s opening date.
A related question is how well the two Ontario Line stations will interface with surface transit in terms of transfer convenience and time.

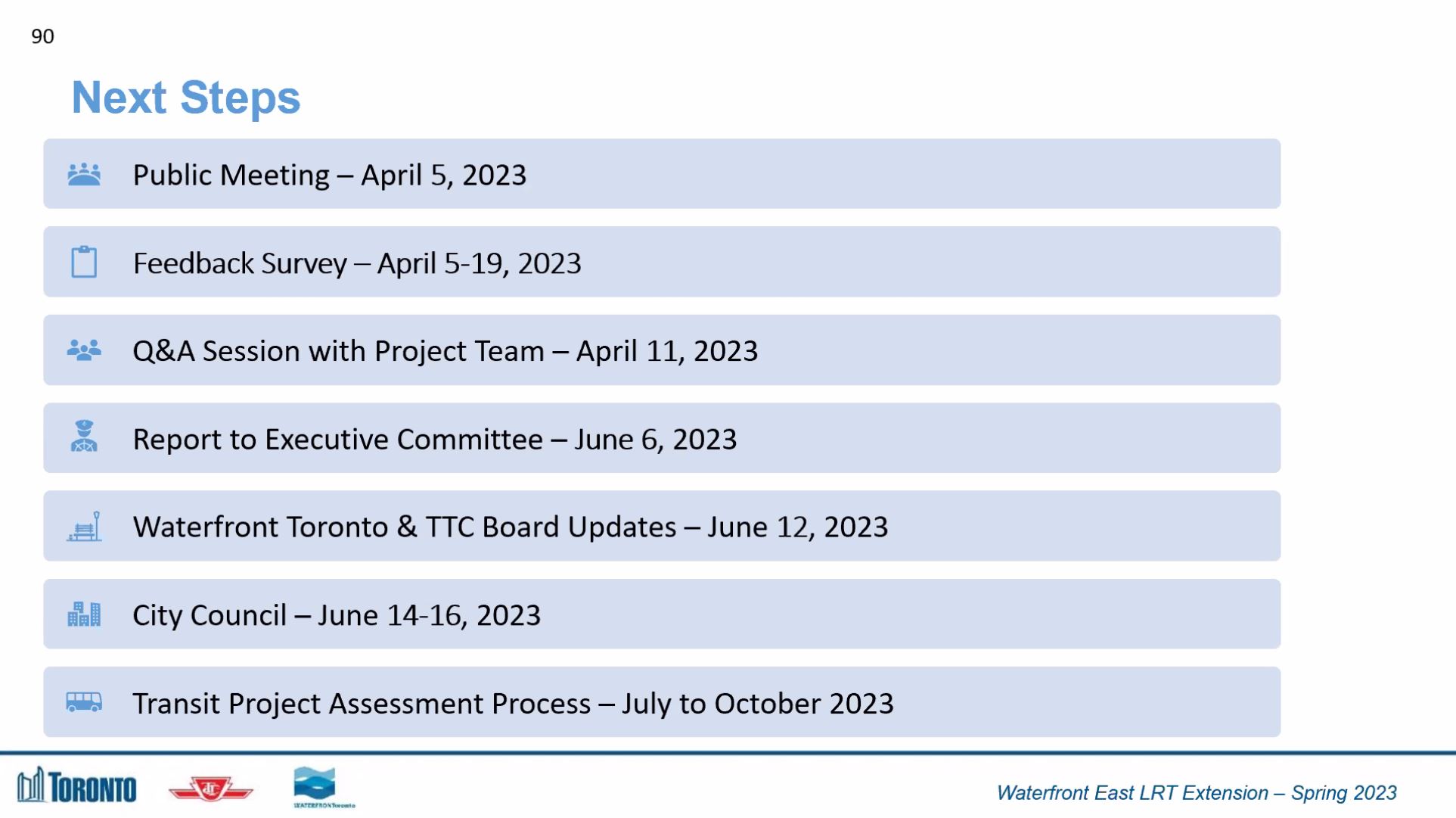

Next Steps
