Today, January 31, 2018, marks the twelfth anniversary of this site.

Sitting down to write my annual celebration, I have mixed feeling this year. Two elections are staring at Toronto and its transit systems, with only middling prospects for improvement in the years ahead.

Depending on the outcome, the damage that was started by Rob Ford’s crew and continued by John Tory, not to mention the meddling from Queen’s Park, might continue us on a downward path, or our transit fortunes could turn around.

Downward path? With so much happening on transit?

What I see is a love of spending big dollars on capital projects, and the price per photo op is well into the millions. Tell people you are building what they want and deserve. Buy those votes.

Actually providing better transit is quite another matter. Toronto’s obsession with lower property taxes hogties transit growth both for physical infrastructure, basics like buses and garages to house them, and service on the street. Queen’s Park doles out new subsidies rarely, and promptly claws back part of their generosity with requirements that municipalities help to underwrite Metrolinx projects. Ottawa occasionally finds spare change in its pockets for infrastructure “stimulus”, but imposes timelines on projects that leave needed work unfunded simply because it does not fit their political calendar.

Through all of this, there are glimmering spots in a cloudy sky.

The Relief (Don Mills) subway line is now recognized as a necessity, and not just as a little shuttle between Danforth and downtown, but as a true parallel route to the Yonge line. Whether the money for this will ever appear is a mystery, but at least detailed engineering work is underway to figure out where and how the line might be built. Commitment to actual construction will be a few years closer than forever sitting in “we need a study” mode.

Parts of Transit City might actually be completed in my lifetime. With them (and other LRT lines to open in Ottawa, Kitchener-Waterloo, Mississauga and Hamilton) lies my great hope that Ontario will finally be past its vain idea that a “missing link” in transit technology needs to be invented. Ontario forced Toronto to buy what we now know as the SRT rather than simply getting off the shelf LRT technology common around the world then, as now. A network Toronto could have begun in the 1970s (with a TTC plan from the 60s) might start to take shape half a century later.

Even Metrolinx shows signs of thinking beyond the classic downtown commuter market, although their electrified “RER” (Regional Express Rail) network is many years and at least one more election cycle in the future. However, the supposedly “regional” agency still leaves the finely-grained local service to local municipalities, and focuses on parking lots as the solution to the “last mile” problem facing transit in the dispersed suburbs.

We hear a lot about how the GTHA is one network, but that’s code for “let’s take over the TTC”, not for a truly region-wide push to make transit competitive beyond central Toronto. Local service is a big issue in Toronto especially with the concentration of new residents and jobs in the “old” city, but also in the outer 416 and beyond where many, many riders rely on the bus network for most or all of their journeys.

You, gentle readers, are a big reason this blog exists. Without an audience, even a critical one, there is no point to spending my time like an actor on a stage in an empty theatre. We are close to 2,100 posts over those 12 years, but also in striking distance of 50,000 published comments!

If only we could get the politicians to address transit needs that don’t involve a subway station in their ward or a GO station in their riding.

Fools and cretins with paper-thin dedication to transit remain, but theirs is not the only voice. The quality of transit debates I hear in many quarters – media, academics, a growing generation of young [well, some of you] urbanists, professionals and [gasp!] even politicians – rises year by year. That theatre has a buzz in the house, and many new players on the stage.

Toronto and the GTHA can rise to have “the best transit system” not because someone gives us an award, but because transit is truly valued, even loved, as an integral part of the city region by the people who live here.

For my part, I will keep writing – sometimes on policy, sometimes on arcane technical matters, and very occasionally on Swan Boats.

Happy reading!

by

TTC Service Changes Effective Sunday, February 18, 2018

Changes are coming to TTC routes in February with the most significant being on the streetcar network. I provided an overview of the streetcar changes in a previous article, but the details of headways and running times are in the spreadsheet linked below.

On the bus network, there are several tweaks to running times and headways.

Extra running time for Metrolinx construction projects will be provided on 36 Finch West, 63 Ossington and 71 Runnymede.

Evening service on the 12 Kingston Road bus will be modified so that trips after 10:30 pm on weekdays and 5:30 pm on weekends run via the 12B routing along Kingston Road instead of dodging north to serve Variety Village.

Service on 121 Fort York-Esplanade will lose one bus during weekdays all day except the AM peak, and weekend evenings. This route has chronically erratic service that affects demand, but that is not addressed in the change.

Minor service cuts and/or running time adjustments will widen headways on:

  • 17 Birchmount (AM peak)
  • 37 Islington (Midday weekdays)
  • 40 Junction (Saturday morning)
  • 79 Scarlett Road (PM peak)
  • 111 East Mall (AM peak and midday)

Minor improvements and/or running time adjustments will shorten headways on:

  • 40 Junction (Sunday afternoon)
  • 42 Cummer (Weekdays)
  • 102 Markham Road (AM peak)

On 1 Yonge-University, all crew change will now occur at Wilson Station rather than being split between Wilson and Eglinton Stations due to pending construction at the latter.

2018.02.18_Service_Changes

by

Streetcar Service Updated Effective February 18, 2018 (Updated)

Updated February 8, 2018: The TTC has announced details of changes to bus and streetcar services on the west end of the 501 Queen route. This information has been added below in the section on that route.

The February 2018 schedules will bring major changes to the streetcar system. I will include these in a coming article with all of the details for the new schedules, but with the scope of the streetcar changes and the interest in this topic, here is a wrap-up of what is planned for these routes.

King Street Corridor

The current schedule calls for trippers to operate, primarily buses and in the AM peak, over the entire 504 King route. These will be replaced with four ALRVs (articulated streetcars) operating from Sunnyside Loop to Broadview. As actually operated, the AM trippers are already using CLRVs (regular sized streetcars) swapped from the 505 Dundas route. Four more ALRVs will be used as standby “run as directed” cars to supplement service on King as needed.

January Schedule January Actual February Schedule
AM Peak
CLRV 33 33 33
CLRV Tripper 7
ALRV Tripper 4
ALRV Run as Directed 4
Bus Tripper 7
PM Peak
CLRV 33 33 33
CLRV Tripper 2
ALRV Tripper 1 1 4
ALRV Run as Directed 4
Bus Tripper 2

The tripper schedules have been changed so that they better cover the peak periods.

  • Eastbound trips leave Sunnyside Loop at: 7:41 a.m., 7:57 a.m., 8:12 a.m., 8:27 a.m., 9:10 a.m., 9:27 a.m., 9:42 a.m., 9:56 a.m.
  • Westbound trips leave Broadview & Queen at 3:07 p.m., 3:20 p.m., 3:33 p.m., 3:46 p.m., 4:50 p.m., 5:03 p.m., 5:16 p.m., 5:29 p.m.

The 503 Kingston Road Bus which now operates from Bingham Loop to York & Wellington during peak hours only will be replaced by a streetcar with service on weekdays peak and midday. This will replace the 502 Downtowner bus which changes to peak-only operation.

During the peak periods the 12′ headway of buses will be replaced by a 12′ headway of CLRVs on the 503 service, and it will be extended west to loop via Spadina, Adelaide and Charlotte Streets. Midday service will operate every 9′ replacing the existing 10′ service on the 502 Downtowner bus. This removes 6 buses/hour from Queen Street, and adds not quite 7 cars/hour to the section of King east of Spadina.

According to the TTC, track construction is planned on Wellington east of Yonge in May. It is not clear whether, when this is complete, the 503 will revert to its usual York street terminus as this would remove the added service between York and Spadina. Whether the Wellington Street work actually occurs remains to be seen as there were plans to defer this until 2019 to avoid complications with the King Street Pilot. The track recently became operational with the restoration of overhead on the one missing section between Church and Yonge westbound.

Service on 514 Cherry during the midday and early evening will be improved from every 15′ to every 10′ to provide added capacity on the King corridor. On Sundays from 10:00 am to 7:00 pm, service will improve from every 15′ to every 11′. (The 514 Cherry route is notorious for irregular headways at its terminals and so the scheduled headways may not match actual experience. This will be the subject of a separate article.)

In combination, these changes will increase the level of service on King Street with the effect concentrated downtown. In particular, there is little AM peak relief for riders inbound from Parkdale, Liberty Village and Bathurst/Niagara beyond a change in the timing of the trippers, whatever benefits the “run as directed” cars might provide and the gradual replacement of runs now operated with CLRVs by the new Flexitys as they become available.

501 Queen & 502/503 Kingston Road

As noted above, the 502 Downtowner midday bus service from Kingston Road to Queen & University will be replaced by the 503 Kingston Road streetcar operating to Spadina & King. Peak service on the 502 bus is not changed, and peak 503 streetcar service will operate at the same frequency, every 12′, as the former bus service. Midday service on the 503 streetcar will be slightly better at 9′ than the 10′ headway now on the 502 bus.

The 501 Queen schedules were written on the basis that Humber Loop would re-open, but work there will not be completed until later in the spring. The planned service would have seen 501 Queen cars operating from Neville to Humber with the 501L Queen bus running from Long Branch to Windermere. Pending the completion of Humber Loop, the streetcars will turn back at Sunnyside Loop, and the 501L buses will operate east to Roncesvalles. 501L buses will no longer run east and south to Dufferin Loop.

The looping and transfer arrangements for the 501L bus at Roncesvalles, and later at Windermere, have not yet been announced.

When 501 Queen streetcar service to Humber Loop resumes, the last service stop will be at South Kingsway because there will be no connecting services at Humber.

The 501M bus service via Marine Parade will be dropped because of low use. The 66 Prince Edward bus is available as an alternative, and it will continue on its diversion routing.

The 301 Queen night service is unchanged with two branches continuing to operate from Neville to Sunnyside (streetcars) and from Dufferin Loop to Long Branch (buses). This will be modified with the April schedules (details not yet announced).

Service on 501 Queen streetcar will be scheduled to operate with a mix of CLRVs and ALRVs on a more frequent headway than the current schedules that presume all ALRVs and their capacity. This has been a long-standing problem for Queen street where smaller cars attempt to handle demand on a service designed for larger vehicles. The improvement is about a 10% increase in cars/hour in the peak, and a 20% improvement off-peak.

Updated February 8, 2018

The planned changes to routes on the west end of Queen is different from that originally described in the service change memo. The following information is taken from the TTC Service Advisory page.

Effective February 18:

  • Streetcars will operate between Roncesvalles and Neville as originally planned.
  • 501L buses will operate between Long Branch and Dufferin/Queen looping via Gladstone, Peel and Dufferin instead of running south to Dufferin Loop as they do now.
  • 301L night buses will continue to run between Long Branch and Dufferin Loop.
  • The 501M Marine Parade shuttle will be discontinued as originally planned.

Effective April 1:

  • Streetcars will operate between Humber and Neville. However, Humber Loop will not be ready to reopen as a transfer point with bus routes, and so the connection to the 501L service will be at Windermere (if the information in the service memo still holds).

Effective early June:

  • Streetcars will return to the full route from Long Branch to Neville.

Work now underway at Humber Loop includes:

  • new streetcar tracks including new spur track
  • accessible platforms
  • new/wider pedestrian tunnel walkway
  • new sub-station building and underground conduits for electric cables
  • realignment of all existing overhead wiring in the loop and in the tunnel leading to Lake Shore Boulevard West

According to the TTC notice:

Track installation and some overhead adjustments for the Queen turn-back will completed by April 1, 2018, weather permitting. Remaining work, including passenger platform renewal, track renewal and overhead adjustments for the Lake Shore turn-back, as well as a wider pedestrian tunnel walkway will be completed by early June 2018.

506 Carlton & 505 Dundas

Service on both the 506 Carlton and 505 Dundas routes will be converted to bus operation. In addition to the streetcar shortage, several construction projects will affect these routes in coming months:

  • Track construction on Broadview from south of Dundas to Hogarth (north end of Riverdale Park) beginning in May
  • Track construction at Parliament/Gerrard in May
  • Track construction at Broadview/Dundas and Broadview/Gerrard in the summer
  • Track constuction at Dundas/Lansdowne in September
  • Water main construction on Dundas from Bathurst to Huron in September
  • Main Street Station construction through the summer

506 Carlton buses will run to Keele Station as their western terminus rather than to High Park Loop.

The bus replacements for streetcar service vary in the ratio of buses to streetcars depending on the time of day.

Dundas Streetcar Dundas Bus Carlton Streetcar Carlton Bus
AM Peak 18 27 32 45
M-F Midday 18 27 28 36
PM Peak 19 30 29 42
M-F Early Evening 14 20 18 25
M-F Late Evening 10 12 14 18
Sat Early Morning 10 10 14 15
Sat Morning 16 20 18 22
Sat Afternoon 25 28 25 30
Sat Early Evening 11 14 16 20
Sat Late Evening 10 10 13 16
Sun Early Morning 9 9 11 12
Sun Morning 14 17 12 17
Sun Afternoon 19 20 18 22
Sun Early Evening 10 11 12 13
Sun Late Evening 9 10 11 12
Night Service 3 3

511 Bathurst

The 511 Bathurst route will revert from bus to streetcar operation using CLRVs. All service will operate between Bathurst Station and Exhibition Loop.

Service on weekdays will generally be less frequent with the streetcars than the buses reflecting their larger capacity, although peak service south of King and west to Exhibition will improve with the elimination of the short turn 511C bus service.

Weekend streetcar schedules are the same as those used in November 2015. Saturday daytime service will be at similar headways with the streetcars as with buses reflecting demand at those hours. Sunday afternoon and early evening service will be slightly less frequent with the streetcars.

509 Harbourfront, 510 Spadina and 512 St. Clair

There are no changes to the schedules for these routes.

Roncesvalles Carhouse

This carhouse will close until late 2018 for construction in the yard. Service will be operated from the east end carhouses as below:

  • Leslie: 509 Harbourfront, 510/310 Spadina, 514 Cherry
  • Russell: 501/301 Queen, 503 Kingston Rd., 504 King, 511 Bathurst, 512 St. Clair
by

The King Street Pilot: Sorting Fact From Fiction (Part IV: Headway Reliability)

The King Street Pilot has been a success in reducing travel times for streetcars through the core area with knock-on benefits to the outer parts of the route in reduced short turns and more reliable service especially outside of the peak period.

Headway (the space between vehicles measured in time, not distance) is a big issue for riders, and it also affects crowding levels.

If a service is scheduled to show up every 4 minutes, and actually does so, then on average each car will have a similar load (subject to surges that will upset this), and riders can expect an average waiting time of half a headway. Even if they just miss a car, they know fairly certainly that the next one will be along soon, and it might even be in sight.

A chronic problem on all transit services is the bunching of vehicles that can yield two (or more) cars or buses close together followed by a long gap. When cars bunch, riders inevitably pack onto the first one. This is not simply a lemming-like desire to rush the first car, but the effect of years of experience telling riders than when there is a bunch, some of the cars will be short turned. If they are on the first one, they can at least drop back one car when this happens. If they are on the second or third in the parade, they may get dumped off and face the next big gap.

Some transit systems implement time points along a route where vehicles will hold for a scheduled departure time. A more sophisticated version of this is to hold in order to space out service regardless of the schedule. Riders do not care if a car (and its driver) are “on time”, only that the headway is close to the advertised value. It is the transit system’s problem to sort out operator crewing with schedules that can be achieved most of the time, but which are not excessively padded to the point service dawdles along a street. The latter has been a problem on some TTC routes where extra running time overshot the mark leading to annoyingly slow service and congestion at terminals where vehicles arrive early.

With the removal of much of the downtown congestion, and hence the variability in travel times for that part of the route, there was hope that headway reliability would improve. Results to date leave a great deal to be desired. There has been some reduction in the most annoying of wide gaps, but bunching remains a problem.

To be fair, when the scheduled headway is under 4 minutes, some bunching is inevitable. Even if cars leave the termini like clockwork, demands at stops vary as does the traffic enroute, and cars will get slightly off schedule. The follower will catch up, in part because of the lighter load from its shorter headway.

The TTC has a service quality target that all vehicles will leave their termini no more than 1 minute early or up to 5 minutes late. This is the only point on the route where schedule reliability is measured. (Until early 2015, the value was measured at several points along the route to provide a blended score, but this practice was dropped.) There are three basic problems with this scheme:

  • A terminus is the simplest place to monitor and dispatch service, and headway variations should always be the lowest at these points.
  • When the scheduled headway is small, the allowed 6-minute window for being “on time” permits vehicles to depart in bunches and still be “on time” because they remain within the allowed variation.
    • A perfect four minute headway would depart a terminal at 0, 4, 8, 12, 16, 20, 24 … minutes past the hour.
    • The same vehicles operating in pairs at 0, 7, 8, 15, 16, 23, 24 … would be “on time” because the alternate cars in the sequence are only three minutes late.
    • This problem is worse for wider scheduled headway because until the “five minutes late” line is crossed, the service is on time.
      • 0, 6, 12, 18, 24, 30, 36 … and 0, 11, 12, 23, 24, 35, 36 … are both “on time” but the latter actually provides a 12 minute headway of vehicles in pairs.

The TTC has, in effect, constructed a target for “on time performance” that considers bunched service to be acceptable even at a terminal. The problem with this is that as vehicles move along the route, the headway variations get bigger and bigger. It is ironic that even with this generous standard, actual service across the system does not achieve anywhere near the target on the streetcar or bus networks. The streetcar network itself went into a long slide through 2017 thanks to declining vehicle reliability and the proliferation of construction projects.

Continue reading →

by

The King Street Pilot: Sorting Fact From Fiction (Part III: Service Capacity)

An important issue for the King Street Transit Priority pilot is the rising demand on that corridor. Previous TTC stats showed a total of 65,000 riders using the 504 King and 514 Cherry lines combined, but this has now been updated to 71,000 even before the pilot began. Further growth comes from riders attracted to the improved service, and the line is now crowded beyond capacity at some times and locations.

The TTC has announced “improvements” from time to time on the King route, but this masks declines in service capacity.

The service design for the am peak period uses a base service about every 4 minutes overlaid by peak “trippers” that bring the headway down to about 2 minutes. However, the number of trippers has fallen over the years and in practice, the “wave” of very frequent service now lasts only about half an hour. This comes eastbound on King at Dufferin 6:50 and 7:20 am, westbound at Broadview between 7:45 and 8:15 am, and eastbound again between 8:55 and 9:25 am.

There are now seven trippers where once there were sixteen, and for some time streetcars on the trippers were replaced by buses at a lower capacity. Recently, peak vehicles were swapped between 504 King and 505 Dundas so that the trippers could revert to streetcar operation.

When buses began operating on 504 King, the TTC claimed that this was a service improvement. This was true for a time when buses allowed the service to build back to its previous high point, but over time the number of bus trippers fell.

Using the TTC’s vehicle tracking data, one can plot the actual capacity operated at various points and times on King Street. These are actual, not scheduled, capacities, and they reflect the day-to-day fluctuations in service and vehicle types. For the purpose of the charts here, the Service Standards planning capacities are used. These are not the crush capacity of vehicles, but a target level in Board-approved TTC standards for an average level of crowding that should not overwhelm the service with loading delays and severely uncomfortable conditions. Whether the TTC actually achieves this is another matter, but the numbers give an indication of the relative levels of service operated over time.

The Service Standards for peak period vehicle capacity are:

  • Bus: 51
  • Standard streetcar (CLRV): 74
  • Two-section streetcar (ALRV): 108
  • New five-section streetcar (Flexity): 130

[Service Standards at p. 10]

Here is an example of one chart showing capacity eastbound at Bathurst & King between 7:00 and 8:00 am from January 2016 to December 2017 (note that February 2016 data are missing).

The capacity provided here was at its height in the spring and summer of 2017 when ALRVs normally used on 501 Queen were redeployed to 504 King. In fall 2017, service levels were reduced because of the change in vehicle type.

Noteworthy in this chart is the growth in capacity provided by Flexitys first on 514 Cherry (building up to full low-floor operation by mid 2017) and more recently with the addition of the new cars to 504 King. Although they do not make up half of the vehicles operating on King, they account for half of the capacity in the central section.

For a longer-range view of capacity, here is the same chart with data (where I have the details) going back to December 2006. This illustrates the long period during which the capacity provided on 504 King was static even as land along the route redeveloped. This is a chronic problem on the streetcar routes because an order for new cars and a larger fleet was delayed so long.

The sets of charts below illustrate capacities at five locations and times. Each set contains four charts covering the peak periods from 6-10 am and 3-7 pm depending on which period is illustrated.

Jameson AM Peak EB

Service eastbound at Jameson does not include the 514 Cherry cars which enter the route at Dufferin. Flexitys appear here only after their recent addition to 504 King. Note how the capacity provided here drops in the hour from 8-9 am compared to those on either side of it.

Bathurst AM Peak EB

Service eastbound at Bathurst includes the 514 Cherry cars and the growing contribution of Flexitys on this route is evident from June 2016 onward.

Yonge PM Peak WB

The PM peak service design is different from the AM in that there are few or no trippers (depending on which schedule one considers), and so this location has been less affected by cutbacks in that part of the service. However, service capacity has not changed much over the past two years especially during the peak 5-6 pm hour.

Bathurst PM Peak WB

The situation at Bathurst is similar to that at Yonge, although it can be affected by cars short-turning at Spadina. After the 503 service is added in February, the capacity at Yonge will be slightly higher than at Bathurst.

Jameson PM Peak WB

The capacity of service outbound west of Dufferin is, if anything, lower now than it was in past years. This reflects the concentration of service east of Dufferin with the coming of the 514 Cherry route.

In summary, riders who believe that service, as measured by capacity, has been better in the past are in many cases correct. An important part of the King Street Pilot will be to determine how much latent demand can be attracted to the route through the combination of lower travel and wait times, and greater route capacity.

by

King Street Pilot: TTC January 2018 Update (Corrected)

Updated January 19, 2017 1t 12:45 am: The TTC advises that the numbers that were included in the speaking notes of the Powerpoint presentation regarding Presto usage were incorrect. The info I used showed the change for both 504 King and 501 Queen to be about equal, begging the question of how this could show a King-specific ridership growth. Correct data now appear in the article.

TTC Staff presented updated information on the King Street Pilot to the Board at its January 18, 2018 meeting.

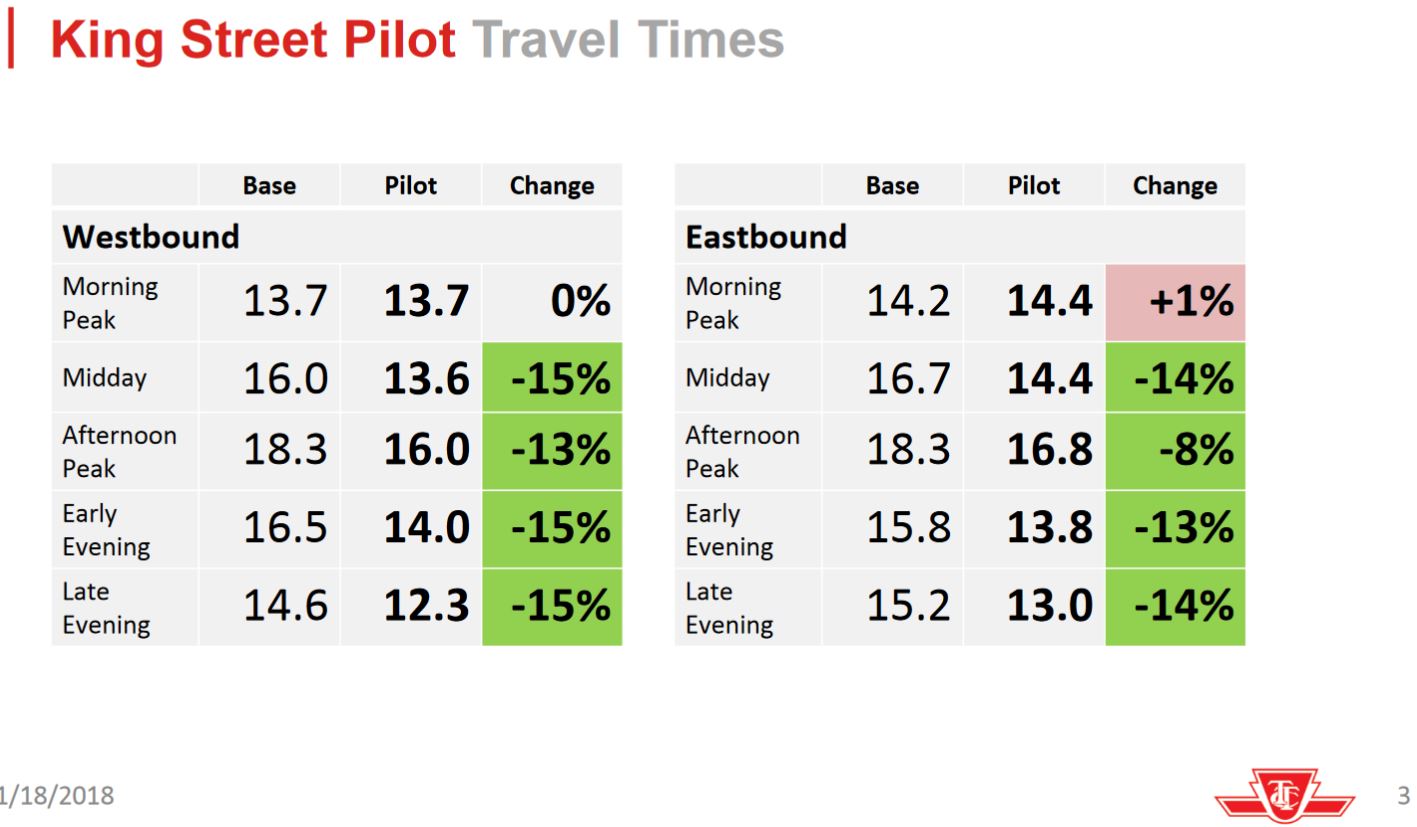

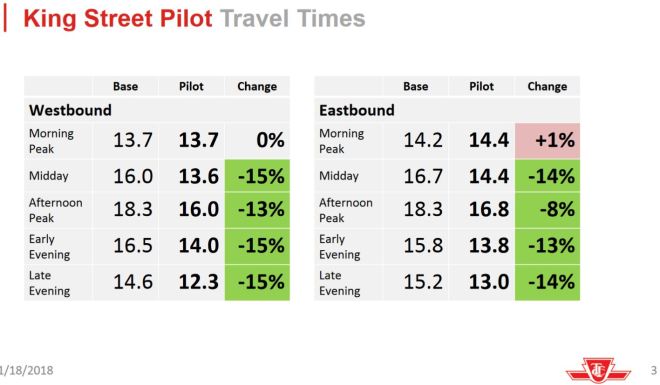

The changes in travel times are shown for all periods during the day, not just for the peak periods as shown in the City’s December 2017 dashboard.

These numbers are different from those reported by the City because the TTC uses a different definition of the peak period (6-9 am, 3-6 pm) while the City’s figures cover begin and end one hour later in both cases. In either case, averaging over a three hour period reduces the benefit during the peak hour.

The TTC emphasizes that the benefits involve not just the pilot area, but the entire route through improved service reliability and reduced wait times.

Original reports of rididership growth cited only the peak eastbound hour at Spadina where demand rose from 2,100 to 2,600. Additional information about ridership growth based on Presto card usage shows that the improvement is more widespread. The table below compares the rise in Presto card usage on King and Queen streets from November 1 to January 8 with other routes. Both show higher figures than the balance of the system.

Correction: The following section includes figures that were taken from a TTC-supplied Powerpoint that had incorrect information in the speaking notes. Corrected info appears below..

It is unclear whether this simply represents a faster uptake of Presto by downtown riders than an increase specific to King Street. Indeed if Queen were showing similar riding growth, one would expect calls for much more service on that route too.

The original, incorrect, numbers for Queen were: AM Peak 32%, PM Peak 48%, Off Peak 44%, All day 43%

The corrected data shows that the change in Presto usage on Queen lies in the same range as on other routes while on King it has gone up substantially. This is not just an AM peak value, but an all-day one indicating a general rise in demand on King throughout its operating periods.

AM Peak PM Peak Off Peak All Day
King 36% 48% 39% 41%
Queen 20% 27% 29% 26%
Other 26% 25% 25% 25%

[Source: Speaking notes to Powerpoint presentation, p. 4, corrected version for Queen from Stuart Green at the TTC]

Although an all-day ridership on the King corridor was previously cited as 65,000, a recent count was 10% higher at 71,000.

In mid-February, service on 514 Cherry will be improved during the off-peak. 503 Kingston Road will revert to streetcar operation between Kingston Road & Victoria Park  and King & Spadina during weekday peak and midday periods. This will replace the 502 Downtowner bus which will now operate only during peak hours to Queen & University to shift some capacity to King Street.

Schedules will be adjusted to meet peak demand periods. Additional unspecified changes will occur in May based on updated ridership information.

Full operation of 504 King with low floor cars is planned for the end of 2018 with most of the route converted by the fall.

by

The King Street Pilot: Sorting Fact From Fiction (Part II: Travel Times)

On the Torontoist, I wrote an article reviewing experience with the King Street Transit Pilot and some of the preliminary claims and reactions to it. This piece is the first of the technical follow-ups to that article with more detailed data about the behaviour of transit service on King.

Note that this analysis only covers the operation of transit vehicles, not of general traffic. For information on other data collected by the City of Toronto, please refer to the “data” page on the project’s site.

This article deals with travel times on various parts of the King route both inside and outside of the Bathurst-Jarvis pilot area. Following articles will address capacity and service reliability.

For a review of operations up to the end of November 2017, please see:

Averages versus Individual Data

In reporting the change in travel times, the City of Toronto cites averages, maxima and minima for the “before” and “after” conditions. For example, in the chart below, eastbound trips in the PM peak before the pilot ranged in length from 13.0 to 25.0 minutes with an average of 18.9.

However, the “before” numbers omit some of the worse cases for travel times:

  • The period of the Toronto International Film Festival from September 7-17, 2017. During early days of TIFF, service was diverted via Spadina, Queen and Church adding greatly to travel times. Even after King Street nominally reopened, service was interrupted from time to time with unannounced diversions.
  • The period of track construction at Queen and McCaul Streets from October 16-27, 2017. This period saw 501 Queen streetcars shift south to King adding turning movements at Church eastbound and Spadina westbound that took place generally without any transit priority. Some traffic spillover from Queen to adjacent streets occurred, but this was not measured.

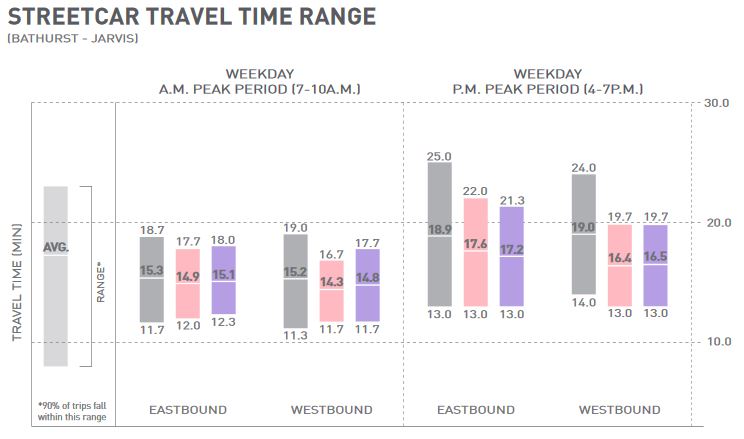

Gray: Pre-pilot Pink: November Mauve: December

Although omission of these two periods puts the best possible light on the “before” conditions and avoids criticism that the project is making a worst/best case comparison, it is a fact of life that service and travel times on King are routinely affected by various projects including construction and special events. A valid test for the pilot will be the street’s operation during a Queen Street shutdown for an event at City Hall or at Much Music. How will transit service and other traffic behave when part of the downtown network is taken “offline”? This remains to be seen.

The averages are the most commonly cited data in the press and in political comments. However, these averages hide a great deal.

  • Travel times vary considerably from hour to hour, and from day to day.
  • A three-hour average over the peak period includes many trips that occur under less-than-peak conditions, and this pulls down the averages.
  • Averaging data for several weeks smooths out the effect of daily variation.
  • Averaging over the entire pilot area merges data from areas where the pilot’s effect is small with those where it is large.
  • Averaging over only the peak periods misses the benefits, if any, of the pilot for off-peak operations.

Continue reading →

by

TTC Streetcars and Buses Swap Routes in February 2018 (Updated Jan. 19, 2017)

The TTC has confirmed the following changes in the allocation of streetcars and buses to various routes effective with the February 18, 2018 schedules:

  • Streetcars will return to 511 Bathurst.
  • The 502 Downtowner bus will continue to operate, but only during peak periods (Bingham Loop to Queen & University).
  • The 503 Kingston Road car, normally a peak only tripper, will operate Monday to Friday peaks and midday (similar to the existing 502). The 503 car will run between Bingham Loop and Charlotte Loop (King & Spadina) to supplement service on King Street.
  • The 505 Dundas and 506 Carlton routes will be converted to bus operation.
  • Updated: The 514 Cherry service will be improved during the off-peak period.

The buses for 505/506 will come from a variety of sources:

  • Existing buses operating on 503 Kingston Road,
  • Tripper buses originally scheduled for 504 King but swapped to 505 Dundas since December, and
  • Buses that have been freed up from construction service and the route reorganization following opening of the Vaughan subway extension.

Both Dundas and Carlton will be affected by planned construction projects this year that would require partial replacement with buses even if there were no streetcar shortage.

  • Main Station construction and Hydro work
  • Broadview Avenue track replacement from south of Dundas to Wolfrey (north end of Riverdale Park) including intersections at Dundas and Gerrard. This will also affect the east end of 504 King.

Updated:

  • The TTC has confirmed that they are reviewing stops on both routes for the need to remove adjacent parking spaces that would prevent vehicles from pulling in fully to the curb. Bus operation will use the same POP rules as on the streetcar routes.
  • At the TTC Board meeting on January 18, Acting CEO Rick Leary stated that although the bus conversion of 505/506 was originally announced for all of 2018, he hopes that with delivery of new streetcars this can be reversed sometime in the fall.

In other news:

  • Roncesvalles Carhouse will close for the remainder of 2018 for maintenance work, and operations will be centralized at Russell and Leslie.
  • 501 Queen service to Humber Loop is planned to return with the schedule changes planned for May 13, 2018.
  • The King-Queen-Roncesvalles intersection replacement, the associated road reconfiguration and the extension of the right-of-way east from Parkside Drive to Roncesvalles remains in the 2019 schedule.

Even if buses were not filling in for streetcars, the TTC has no plans for bus service increases.

The bus replacement service is not preventing us from making bus improvements. In 2018, we do not have any budget for new improvements. Any improvements we make will be through reallocation. [Email from Stuart Green at the TTC]

More information is expected at the TTC Board Meeting on January 18, 2018. Also, the detailed memo of service changes for February should be out soon, and I will publish the usual condensed version when it is available.

Thanks to Stuart Green at the TTC for the information.

by

The Bogus Business Case for Fare Integration

In my reporting of the September 2017 Metrolinx Board Meeting, I reviewed a presentation on Regional Fare Integration. At the time of writing, only the summary presentation to the Board was available, but the full Draft Business Case appeared some time later. This is the sort of timing problem that Metrolinx has vowed to correct.

A basic problem with such a delay is that one must take at face value the claims made by staff to the Board without recourse to the original document. This will mask the shortcomings of the study itself, not to mention any selective reinterpretation of its findings to support a staff position.

In the case of the Regional Fare Integration study, this is of particular concern because Metrolinx planners clearly prefer that the entire GTHA transit structure move to Fare By Distance. However, they keep running into problems that are a mix of organizational, technical and financial issues, not to mention the basic politics involved in setting fares and subsidies. If FBD is presented as the best possible outcome, this could help overcome some objections by “proving” that this is the ideal to which all systems should move.

At the outset, I should be clear about my own position here. The word “Bogus” is in the article’s title not just because it makes a nice literary device, but because I believe that the Fare Integration Study is an example where Metrolinx attempts to justify a predetermined position with a formal study, and even then only selectively reports on information from that study to buttress their preferred policy. The study itself is “professional” in the sense that it examines a range of options by an established methodology, but this does not automatically mean that it is thorough nor that it fully presents the implications of what is proposed.

The supposed economic benefit of a new fare scheme depends largely on replacement of home-to-station auto trips with some form of local transit (conventional, ride share, etc) whose cost is not included in the analysis. This fundamentally misrepresents the “benefit” of a revised fare structure that depends on absorption of new costs by entities outside of the study’s consideration (riders, local municipalities).

The set of possible fare structures Metrolinx has studied has not changed over the past two years, and notably the potential benefits of a two-hour universal fare are not considered at all. On previous occasions Metrolinx has treated this as a “local policy” rather than a potential regional option, not to mention the larger benefits of such fares for riders whose travel involves “trip chaining” of multiple short hops.

One must read well into the report to learn that the best case ridership improvement from any of the fare schemes is 2.15% over the long term to 2031, and this assumes investment in fare subsidies. Roughly the same investment would achieve two thirds of the same ridership gain simply by providing a 416/905 co-fare without tearing apart the entire regional tariff. In either case, this is a trivial change in ridership over such a long period suggesting that other factors beyond fare structure are more important in encouragement or limitation of new ridership. Moreover, it is self-evident that such a small change in ridership cannot make a large economic contribution to the regional economy.

Specifics of the Board Presentation

The Board Presentation gives a very high level overview of the draft study.

On page 2:

The consultant’s findings in the Draft Preliminary Business Case include:

  • All fare structure concepts examined perform better than the current state, offering significant economic value to the region
  • Making use of fare by distance on additional types of transit service better achieves the transformational strategic vision than just adding modifications to the existing structure, but implementation requires more change for customers and transit agencies
  • More limited modifications to the status quo have good potential over the short term

“Significant” is the key word here, and this is not supported by the study itself. Ridership gains due to any of the new fare structures, with or without added subsidies, are small, a few percent over the period to 2031. The primary economic benefit is, as the draft study itself explains, the imputed value of converting park-and-ride trips to home based transit trips thanks to the lower “integrated” fare for such services, encouraged possibly by charging for what is now free parking.

A large portion of automobile travel reduction benefits come from shift from park and ride trips to using transit for the whole trip – highlighting the importance of exploring paid parking to also encourage a shift from automobile for transit access. (p. xiv)

However, local transit (be it a conventional bus, a demand-responsive ride sharing service, or even a fleet of autonomous vehicles) does not now exist at the scale and quality needed, and this represents a substantial capital and operating cost that is not included to offset the notional savings from car trips.

Fare by distance does perform “better” than the alternatives, but none of them does much to affect ridership. Moreover, the fare structure, to the limited extent that the study gives us any information on this, remains strongly biased in favour of cheaper travel for longer trips. An unasked (and hence unanswered) question is whether true fare by distance and the sheer scale of the GTHA network can exist while attracting long-haul riders and replacing their auto trips with transit.

On page 3, the presentation includes recommendations for a step-by-step strategy:

  • Discounts on double fares (GO-TTC)
  • Discounts on double fares (905-TTC)
  • Adjustments to GO’s fare structure
  • Fare Policy Harmonization

This is only a modest set of goals compared to a wholesale restructuring of the regional tariff, and it includes much of what is proposed by “Concept 1” in the study – elimination of the remaining inter-operator fare boundaries, restructuring GO fares (especially those for short trips) to better reflect the distance travelled, and harmonization of policies such as concession fare structures and transfer rules.

Further consultation is to follow, although as we now know, the first of the four steps has already been approved by TTC and Metrolinx.

On page 6:

Without more co-ordinated inclusive decision making, agencies’ fare systems are continuing to evolve independently of one another leading to greater inconsistency and divergence.

This statement is not entirely true.

  • The GO-TTC co-fare is an indication of movement toward fare unification, although the level of discount offered on TTC fares is considerably smaller than the discount for 905-GO trips. That distinction is one made by the provincial government as a budget issue, and it cannot be pinned on foot-dragging at the local level.
  • Assuming that Toronto implements a two-hour transfer policy later in 2018 (and the constraint on its start date is a function of Presto, not TTC policy), there will be a common time-based approach to fares across the GTHA. All that remains is the will to fund cross-border acceptance of fares (actually Presto tap-ons) regardless of where a trip begins.

Without question, there should be a catalog of inconsistencies across the region, and agreement on how these might be addressed, but that will involve some hard political decisions. Would Toronto eliminate free children’s fares? Would low-cost rides to seniors and/or the poor now offered in parts of the 905 be extended across the system? Will GO Transit insist on playing by separate rules from every other operator as a “premium” service? These questions are independent of whether fares are flat, by distance, or by some other scheme as they reflect discount structures, not basic fare calculations.

Pages 6 and 7 rehash what has come before on pp. 2-3, but the emphasis on fare by distance remains:

Fare by distance should be a consideration in defining the long-term fare structure for the GTHA. [p. 7]

“A consideration” is less strong language than saying that FBD should be the target framework. If this is to be, then Metrolinx owes everyone with whom they will “consult” a much more thorough explanation of just how the tariff would work and how it would affect travel costs. The draft report is quite threadbare in that respect with only one “reference” tariff used as the basis for a few fare comparisons, along with a caveat that this should not be considered as definitive. That is hardly a thorough public airing of the effects of a new fare structure.

No convincing rationale has been advanced for moving to a full fare by distance system, including for all local travel, and it persists mainly because Metrolinx planners are like a dog unwilling to give up a favourite, long-chewed bone. At least the draft study recognizes that there are significant costs, complexities and disruptions involved with FBD, begging the question of why it should be the preferred end state.

On page 8:

Amend [GO Transit fares] to address short/medium trips and create a more logical fare by distance structure based on actual distance travelled instead of current system to encourage more ridership.

This is an odd statement on two counts:

  • Lowering fares for short trips will encourage demand on a part of the GO system that overlaps the local TTC system, and will require capacity on GO that might not be available, especially in the short term before full RER service builds out.
  • True FBD will increase long trip fares on GO and discourage the very long haul riders whose auto-based trips GO extensions were intended to capture. The reference tariff implied by sample fares in the draft report is most decidedly not FBD with short haul fares at a rate about four times that of long hauls.

In other words, the goal as presented to the Board does not match the actual sample fare structure used in the draft study.

On page 14:

GO/UP uses tap on/off, other agencies are tap on only. Emerging technological solutions may allow tap on-only customer experience while maintaining compatibility with fare-by-distance or –zone structures.

The technology in question, as described in the study, would require all Presto users to carry a GPS enabled device that could detect their exit from vehicles automatically without the need to physically tap off. This requires a naïve belief that all riders will carry smart mobile devices to eliminate the congestion caused by a physical tap on/off for all trip segments, and is is a middle-class, commuter-centric view of the transit market.

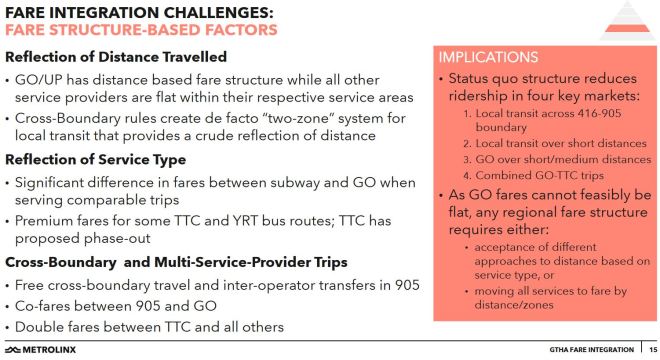

On page 15:

Completely missing from the discussion is any consideration of loyalty programs such as monthly passes or other “bulk buy” ways of paying fares. Already on the TTC, over half of all rides (as opposed to riders) are paid for in bulk, primarily through Metropasses. GO Transit itself has a monthly capping system which limits the number of fares charged per month, and software to implement the equivalent of a TTC Day Pass through fare capping is already in place on Presto. (It has not been turned on because of the possible hit to TTC revenues if riders were to start receiving capped fares without having to buy a pass up front.)

Several issues are listed here that reflect the complexity of a system where the lines between local and regional service have already started to blur, and where simplistic segmentation of classes of service simply do not work. The argument implicit in this is that only a zonal or distance based fare will eliminate many of the problems, but there is no discussion of the benefits obtained simply by a cross-boundary co-fare plus time-based transfer rules to benefit multiple short-hop trips. This demonstrates the blinkered vision at Metrolinx and a predisposition to distance-based “solutions”.

For those who will not read to the end of the detailed review, my concluding thoughts:

There are major gaps in the analysis and presentation of the Draft Report. By the end of the study, it is abundantly clear that the target scheme is FBD and future work will aim in that direction. Metrolinx’ FBD goal has not changed, and this begs the question of how any sort of “consultation” can or will affect the outcome.

The remainder of this article examines the 189-page Draft Report and highlights issues in the analysis.

Continue reading →
