Toronto’s Network Plan 2031: Part IV, Relief Line

This is the fourth part of my review of the reports on the agendas of Toronto’s Executive Committee and the Metrolinx Board. The full list is in the first article.

This report reviewed here is the Relief Line Initial Business Case.

Following a series of public meetings and background reports over past months, the Relief Line study has settled on a proposed alignment from Pape Station south to Eastern Avenue, then west to the Don River (passing beside the Unilever/Great Gulf development site), jogging north back to Queen Street west of the river, and thence to University Avenue. This is referred to as Option 3. The other options were:

  • 1: Surface transit improvements on Queen and King, but no Relief subway line
  • 2: Relief line from Pape Station to downtown via Queen
  • 2A: Relief line from Pape Station to downtown running diagonally from Gerrard to Queen via the GO rail corridor.

Future extensions to the north and west are also contemplated, but this “Business Case” report deals only with the first phase.

As the route selection process evolved, so did the scoring system used to rank the options. For example, the employment benefits of the Unilever site were not considered in earlier schemes where a Queen Street alignment all the way from Pape to University ranked highest. By the time we get to the “final” ranking, the Pape/Eastern/Queen alignment clearly wins out. Some of the change is due to the use of the City’s “Feeling Congested” evaluation matrix that has been brought to many of the recent studies. The priorities of these evaluations are more weighted toward social and city building benefits, and less to raw travel-time saving.

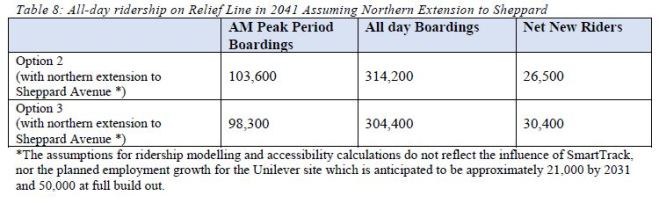

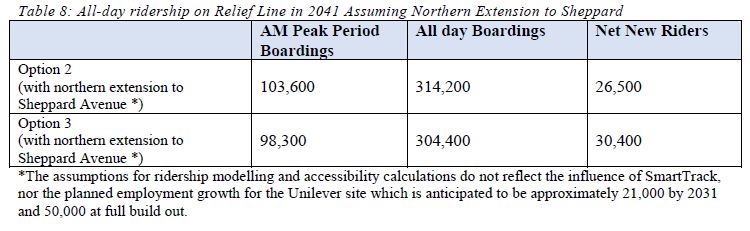

Relief to the Bloor-Yonge interchange is projected, although the larger benefits occur when the line is extended north to Sheppard & Don Mills.

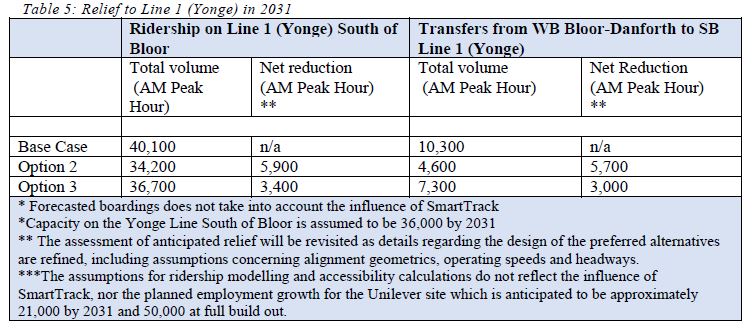

The first phase of the Relief Line is anticipated to provide a net reduction of 3,400 to 5,900 riders on Line 1 (Yonge) south of Bloor during the AM peak period. The subsequent extension of the Relief Line north to Sheppard Avenue is projected to provide even greater relief, with a net reduction of 6,500 to 9,900 riders relative to the Base Case in 2041. [p 3]

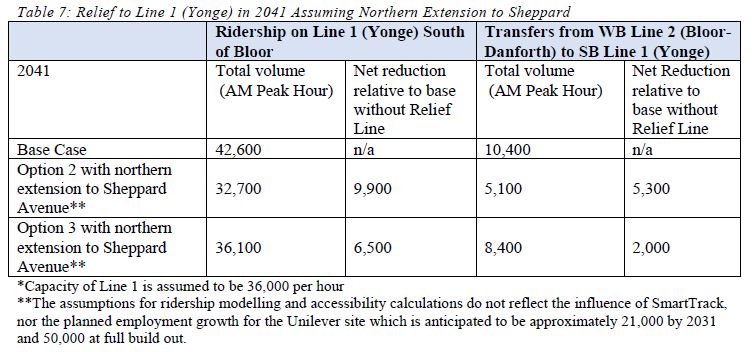

The future second phase is shown in this map:


The detailed ridership estimates have not been published, but the presumed network elements that would exist for the modelling are:

• Eglinton Crosstown LRT from Mt Dennis to Kennedy Station (currently under construction);
• Toronto-York- Spadina Subway Extension (currently under construction);
• Sheppard Avenue East LRT (funded);
• Scarborough Subway Extension (3 stop) (funded); and
• Connections to new subway stations from existing local bus and streetcar routes [p 16]

Notable by their absence are SmartTrack and the Crosstown East LRT to UTSC, and the Scarborough Subway is presumed to be the 3-stop version to Sheppard Avenue. Considering that the configuration of the “optimized” Scarborough network changed some months ago, the use of an out-of-date model is surprising.

The projected cost of the Relief Line has been widely reported as almost doubling. This is misleading because it contrasts current 2016 dollar estimates ($4.1 to $4.4 billion) with projected spending when the project is actually constructed sometime in the late 2020s or beyond. Earlier estimates have been quoted in older dollars at correspondingly lower projected total cost.

Of the increase, $300-400 million is due to the selection of the Pape/Eastern alignment which makes for a longer route. Roughly $2 billion is due to inflation between the 2016 estimates and the likely period of construction.

An interesting observation in the report is that the benefits case methodology confers a substantial value to reduction of travel time. However, the RL’s primary effect is not intended to speed riders from the outer suburbs to downtown, but to improve flows through the network, especially on the initial downtown-to-Pape phase. Therefore, a significant component of some “benefit” estimates – travel time savings – is not available to the Relief Line despite the major contribution it brings to network behaviour and the expansion potential it creates.

It is important to note that the focus in the Metrolinx business case guidance is on travel time savings benefits and benefits associated with reduction in auto-use. As a result, there are several key benefits associated with local transit and city building objectives that are not monetized in this economic evaluation. Further work is required in the development of the business case tool to ensure the economic evaluation includes the monetization of the types of benefits expected from transit expansion projects which provide a more local service. [p 33]

This begs the question of whether the traditional “benefit analysis” which does contain a travel time saving component truly presents the “value” of new transit lines, or if it is skewed to reward projects serving longer commuter-type trips and the infrastructure they require.

The two options have different effects at Bloor-Yonge with Option 2 ranking better because of the shorter travel time. This is yet another example of how a model focused on travel time could skew results. The difference in travel time is about 2.5 minutes, but avoiding the congested transfer and travel on the Yonge line has a value to riders. When the line is extended, this difference in running time will be even more trivial compared to the benefit of a trip to downtown that does not pass through Bloor-Yonge.

An improved travel experience for the passengers has many elements, including the travel time between origins and destinations, the number of destinations a rider can access using the transit network and the ability to mitigate crowding on transit. [p 21]


The effects of SmartTrack and of Unilever development are not included even though they are major factors in network planning. Indeed, the very reason the Eastern Avenue option is favoured is to serve Unilever. Therefore, this chart and the one following (for the extended line in phase 2) misrepresent the potential of the Relief Line. One might wonder whether this is an attempt to downplay the line’s benefit.

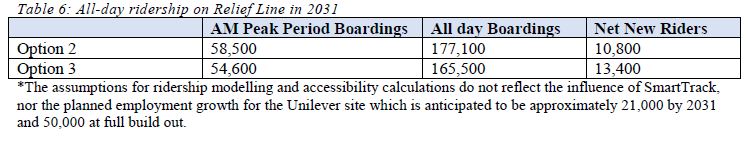

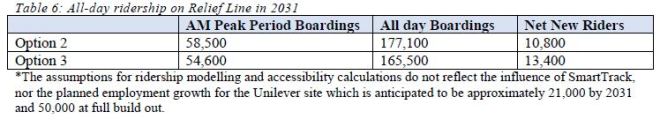

All day ridership is quite strong, and again this is without provision for the effect of ST or Unilever.



Substantial peak congestion relief on the 501 Queen and 504 King streetcar corridors is projected based on 2031 modelling. However, it is unclear how much the travel time actually changes when the need to transfer between routes is taken into account. The King route is fairly close to downtown where the Relief Line night intercept it, and the transfer penalty could represent a substantial addition to trip time.

In previous alignment evaluations, the proximity of stations to concentrations of low-income residences, such as Regent Park and Moss Park, contributed to the Queen alignment ranking more highly than Eastern. However, by the time of this round, other considerations come into play under the rubric of “social equity”.

Option 3 would serve more equity seeking individuals and households, as a result of having an additional station and improved access for more people in general. The proposed station at King-Sumach offers a key opportunity to consider additional social infrastructure and community space while bridging the West Don Lands and Regent Park neighbourhoods in Corktown. The station at Eastern-Broadview would improve city-wide transit accessibility for equity seeking populations to the planned employment node at the Unilever site. This option supports the more equity-seeking individuals in terms of gender, income, family status and age class. [p 24]

On the matter of supporting city growth, this evaluation again picks up more points for the effect of any new route on its surroundings that in previous studies.

In summary, Option 2 is less effective in supporting growth as it provides only indirect service to the future employment growth planned for the Unilever lands. The proposed station at Queen-Broadview (compared to Eastern-Broadview) is not anticipated to support significant new employment in its immediate vicinity and may result in significant impact to the existing small-scale, mature retail environment during construction. Although Option 2 supports some development in the Queen-Broadview area, including Riverside Square development and existing higher density uses on Broadview south of Queen, the site is constrained in terms of the development that can be supported as a result of Queen Street East Heritage Conservation District. There is also limited ability to support growth at the West Don Lands.

Option 3, and its associated station locations, is best positioned to support businesses and improve city-wide access to employment opportunities as it provides more direct service to the Unilever lands with a station at Eastern/Broadview. This station would support future employment growth planned for the area while also leaving intact the established small-scale retail environment at Queen-Broadview. Option 3 supports development at the West Don Lands, Keating Channel Precinct, Distillery District, and Villiers Island/Port Lands. A station at King/Sumach offers opportunities to use the station to help reconnect the neighbourhood by overcoming the barrier presented by the GO Rail corridor. [p 29]

These issues were abundantly clear earlier in the evaluation process, and yet they appeared to be ignored. Was the “fix” in for an all-via-Queen alignment, only to have the focus shift to Eastern when the other benefits could not be ignored? We may have arrived at the correct decision the long way around, but this begs the question of what might have happened here (or on other alignment studies) without an “Aha!” moment among the planners. It is likely that the “Aha!” was triggered by Great Gulf, the developer of the Unilever site who may have been less than impressed by having their site served only by SmartTrack. Indeed, recent presentations by Great Gulf show their site as a major node served by multiple lines including the southerly extension of streetcar service from Broadview which would link to the Port Lands line on Commissioners Street.

In the financial analysis, the presumed service level (used to calculate the fleet size) is 3 minutes peak, 4.5 minutes off peak. This is not the same as the service level of 2 minutes peak, 3 minutes off-peak cited in the Initial Business Case Options [Table 4 on pp 15-16].

Using the more frequent service, the Relief Line would require 11 4-car trains for service plus spares, and the study presumes that they would be stored at Greenwood Yard. This is not possible without the construction of a new subway yard, currently planned for property near Kipling Station. That is an added cost that will be triggered by various subway options including the RL and some service configurations of the extended BD/Scarborough subway.

As mentioned earlier, the Metrolinx Benefits Case methodology is weighted to the regional effects such as reduced travel time and congestion. The Relief Line provides different benefits that are not “monetized” by the methodology including the value of network redundancy and the potential for avoidance of costs and heroic efforts to accommodate growth entirely on the existing subway network.

Both options generate the same BCR of 0.3. Although the BCR for both options is less than 1.0, the benefits monetized through this process focus more on regional objectives (i.e. reduce auto use or generate travel time savings). Since the Relief Line is a local transit service intended to provide alternative routes on a heavily congested TTC transit network, in addition to serving key city building objectives, local economic benefits are not truly captured in this BCR. The City and TTC will continue to work with Metrolinx as the business case methodology is further developed to ensure economic evaluation of transit projects considers benefits associated with transit projects that are more local service oriented. The economic case should be read in conjunction with the Strategic Case to understand the full benefits of the Relief Line project. [p 34]

Constructing the Relief Line will have a major effect on streets and neighbourhoods through which it will pass, notably at Pape and Danforth where the tunnel boring machine’s launch site would be somewhere north of Danforth. This is the tradeoff for a bored tunnel (as opposed to cut-and-cover over the route’s length). The tunnel will be deep enough that most of it is in bedrock unlike the TYSSE (Spadina extension) or Eglinton LRT project. At Danforth, the Relief Line will pass under the existing Danforth Subway, but would have service track connections from the westbound Danforth rails to the new line in a manner somewhat like the connections between the Sheppard and Yonge subways.

Queen’s Park has given Metrolinx $150 million to continue the planning and design work on the entire Relief Line, although initial work will focus on Phase 1 from Danforth to downtown.

Among the definite requirements in the short term is a reconciliation of the inconsistencies in service levels and land use assumptions for the Relief Line demand and financial models. If anything, the RL should prove even more important than previously thought with the combined effect of (a) the limited level of SmartTrack service that will actually compete for riders, and (b) the inclusion of direct service to the Unilever site and the Great Gulf development planned there.

The benefits of future extensions should also be better understood to blunt the bias against a “downtown” line. At the very least, the modelling should tell us the origin-destination patterns both for the Relief Line and for other riders whose trips will benefit from diverted demand on the Yonge-University subway. This would reveal who really will benefit from this project and, with luck, establish that this is far more than a pet project for a few downtown-living, latte sipping transit advocates.

A Relief Line, or the Don Mills Subway as I prefer to think of it, is long, long overdue in Toronto. This is not just a railfan’s toy, a line sketched on a map because it looks nice, but a vital part of Toronto’s transit network looking forward to the mid-century.
