The Unhappy State of SRT Track

On July 24, 2023, at about 6:43 pm, a southbound SRT train derailed south of Ellesmere Station after snagging the reaction rail. This event lifted the rear truck of the car off of the track and also caused it to break away from the rest of the train.

The detailed investigation reports were quietly posted on the TTC’s website, and I wrote a summary of them at the end of January:

I filed a Freedom of Information (FOI) request with the TTC at the beginning of 2024 for “track inspection reports and work orders” for the SRT between June 1 and August 31, 2023. The reason for the extended cutoff date was to pick up any inspections and repairs that took place after the derailment.

In due course, the TTC responded with extracts from its MAXIMO database listing the track inspection reports, but only work orders that initiated the inspections, not any separate WO’s for repairs. According to the TTC:

The inspection work order spreadsheet only contains inspections scheduled and completed and the defects found during these inspections are entered into MAXIMO which becomes a defect item listed in the defect spreadsheet.

A defect is “cancelled” when it has been reviewed by a staff employee in the office and assessed as a duplicate of a previous already reported defect.

The information in each line item of the defect sheet are the work orders and come directly from the MAXIMO database that stores these work orders.

The date a defect is discovered is listed under report date (column v); when the work on the defect is completed the status (column i) is changed to resolved; and the status date (column x) + change date (column ab) are updated sometime after the actual repair work is completed to reflect the date the defect was marked as resolved. No other records exist that provide additional detail on the work performed.

Email from TTC Legal Department, Feb. 2. 2024

Note the last sentence. There is no record of the work performed to correct any defect, and there is only a “resolved” status to indicate that the defect was corrected. The table below (which is also available as a PDF) is an edited version of the information provided by the TTC. The following changes were made for compactness and privacy:

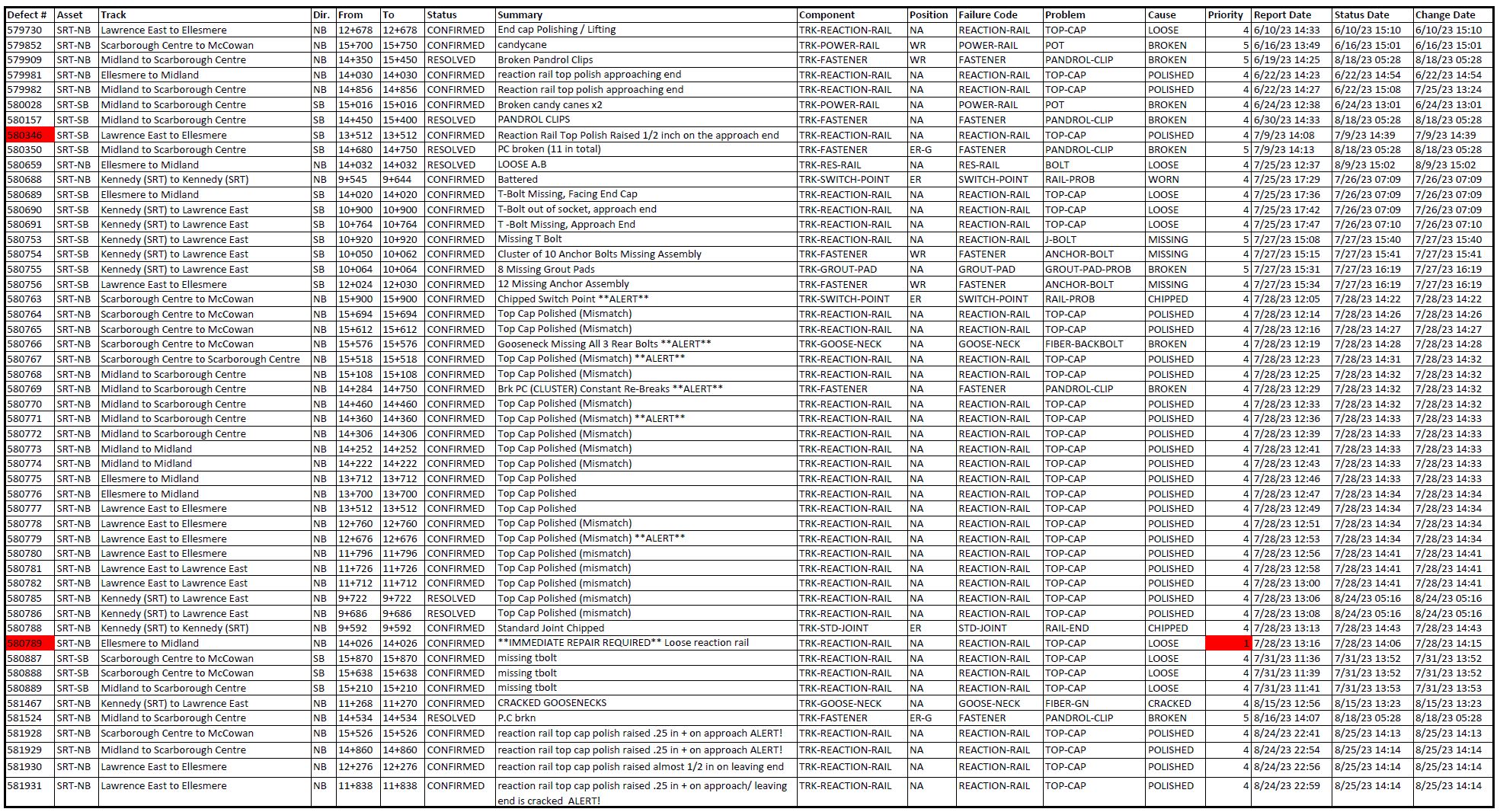

  • Columns that were blank, contained redundant information, or contained employee identification have been hidden.
  • Rows for cancelled defects (i.e. duplicates) have been hidden.
  • Rows are sorted in Report Date sequence.
  • Two defects are highlighted for easy location. They are discussed later in the article.

A few notes about the information:

  • The “From” and “To” columns identify the “chainage” where the defect was reported. This is a measure in kilometres+metres.
  • As stated by the TTC, items listed as “Resolved” were reported and corrected. Items listed as “confirmed” are outstanding.
  • There are many reports of “top cap polished” indicating friction between the linear induction motor face on passing trains and the reaction rail.
  • A variety of other problems are shown notably missing or loose bolts.
    • See the article on the technical review of the derailment for further information on these issues.

The first item flagged in red, defect number 580346, is shown at chainage 13+512. The Gannett Fleming report cites the derailment as 135+10 which is really the same place with the “+” sign shifted.

This defect shows that the reaction rail was raised 1/2 inch on the approach end, a serious condition, but it was filed with a priority 4 (the scale runs from 1 to 5, high to low) on July 9, two weeks before the derailment. The status is “confirmed” indicating that no repair has been logged.

This is the last defect reported before the July 24 derailment. I have asked the TTC to clarify why there is a gap from July 9 to 25 in reported defects.

Following the derailment, there is a flurry of defect reports, one of which, 580789, is filed as priority 1 with “IMMEDIATE REPAIR REQUIRED Loose reaction rail” on July 28. The location is between Ellesmere and Midland northbound.

It is clear from the many defects reported after the derailment that inspection of the line found many problems that had not been previously reported. Most of these are listed as priority 4. A problem identified in the technical reports was that the importance of defects was poorly understood, and the priority of defects might have been understated.

With such a long defect list covering many locations along the SRT, it is clear that re-opening the line was not in the cards. The amount of work needed to bring the infrastructure to a trusted, safe level would have been substantial.

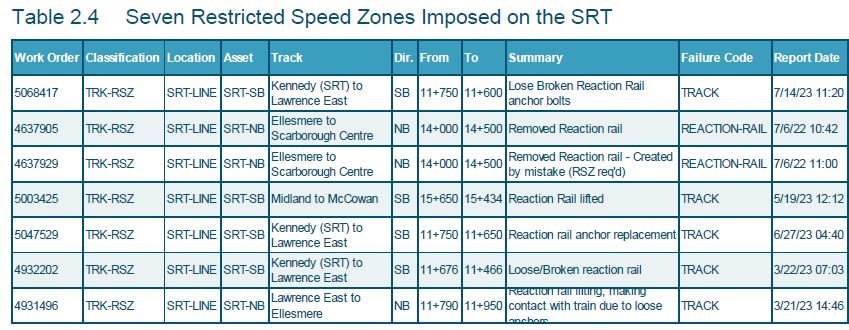

A further issue lies with information in the Network Rail consultant’s report on the derailment. It contains lists of work orders pulled from the same MAXIMO database related to Restricted Speed Zones. Note that the first of these is dated July 14, 2023, during the period when there are no defect reports in the FOI response. Note also that this lists the work order number, not the related defect number.

This may be only one row in a table in a consultant’s report, but it suggests that the TTC has not looked hard enough in responding to my FOI.

There are three key questions here:

  • Why are there no defects reported after July 9 until July 25, the day after the derailment?
  • Why does Network Rail show a problem with loose/broken reaction rail anchor bolts on July 14 that was not included in the FOI response?
  • How many defects reported before July 24 were, in fact, still unresolved? Is the problem that repairs were not made or that the defect reports were not updated?

There is an obvious shortcoming in the TTC’s database in that it simply has “resolved” defects with no indication of the repair work to correct problems. This makes it impossible to audit whether the repairs were appropriate and durable.

The SRT may be closed, but the larger issue is the overall quality of TTC track inspection, maintenance and record keeping. This type of problem was raised in the City Auditor General’s review of the TTC streetcar overhead section.

For a few months, riders have lived with many “restricted speed zones” on Lines 1 and 2. TTC management claims that this is a routine situation after an annual review of track condition.

That explanation is very hard to believe because there have never been this many speed restrictions at the same time on the subway. My understanding of the problem was that track in many locations was found to be out of gauge beyond TTC and industry standards. This does not happen overnight. I am contemplating an FOI request for subway inspection and maintenance records.

Safety is a fundamental issue. The TTC prides itself for this, and “Safety” is one third of the corporate motto along with “Courtesy” and “Service”.

We know from experience what happens when maintenance standards fall be it from poor training, poor oversight or budget cuts. Much remains to be learned about the real state of TTC infrastructure. The TTC Board has important questions to ask and answers to demand.
