King Street Update: April 2018 Data

This article continues the series reviewing streetcar service on the King Street Pilot area between Jarvis and Bathurst Streets. Previous installments are available here.

Except for two major storms, April 2018 continued more or less in the pattern of previous months. Schedule changes in mid-May will reduce the scheduled travel time across the route, and this should reduce queuing at terminals. However, it could also lead to an increase in short-turns when the line is under stress. This is always a balancing act in schedule design.

Because of this, I will not publish an updated headway reliability article this time around, but will return to that subject later in the year when a few months’ experience with the new schedules has accumulated.

The charts in this article contain the same data as in the March versions with the addition of April 2018 data and a few cosmetic fixes.

Updated May 11, 2018 at 10:10 am: Capacity charts reformatted to correct headings and date ranges. No change in content.

Weather

There were two major storms in April:

  • An ice/snow storm over the weekend of April 14-15 with rain continuing into Monday, April 16
  • Heavy rain on Wednesday, April 25

Although there was a considerable reallocation of streetcars between routes during the ice storm, and heavy rain generally fouls up traffic, neither of these events shows up as a major effect on travel times in the pilot area.

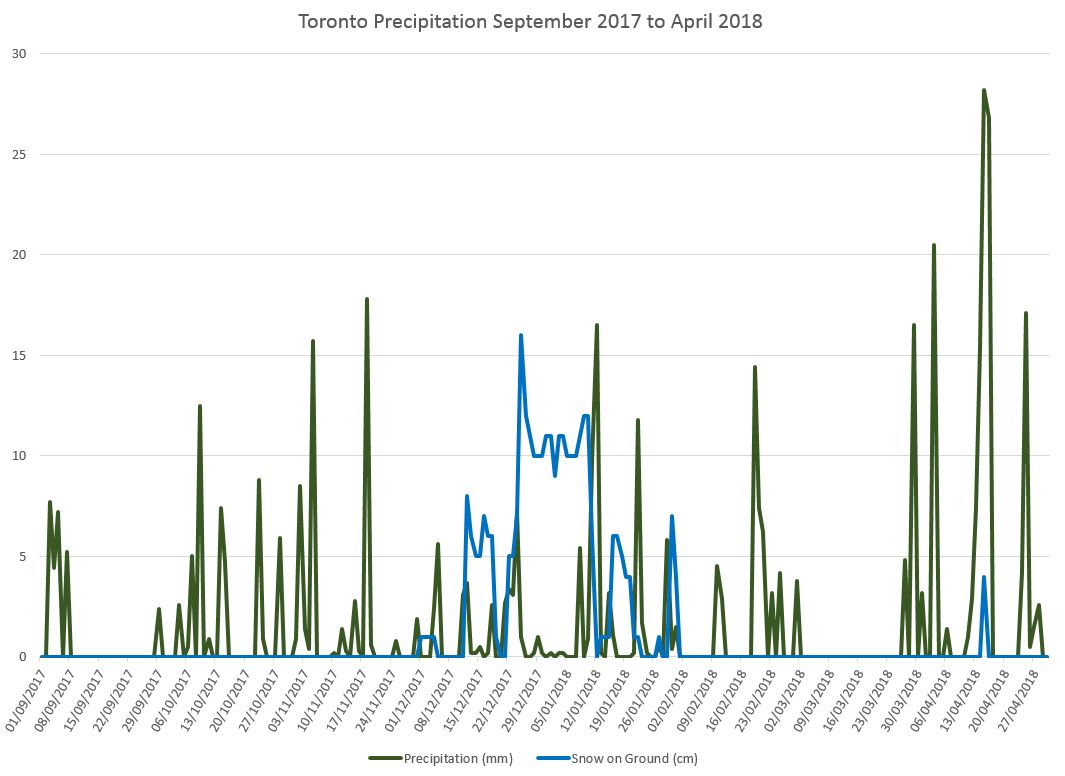

Weather_Stats_201709_201804 [pdf]

PM Peak Travel Times

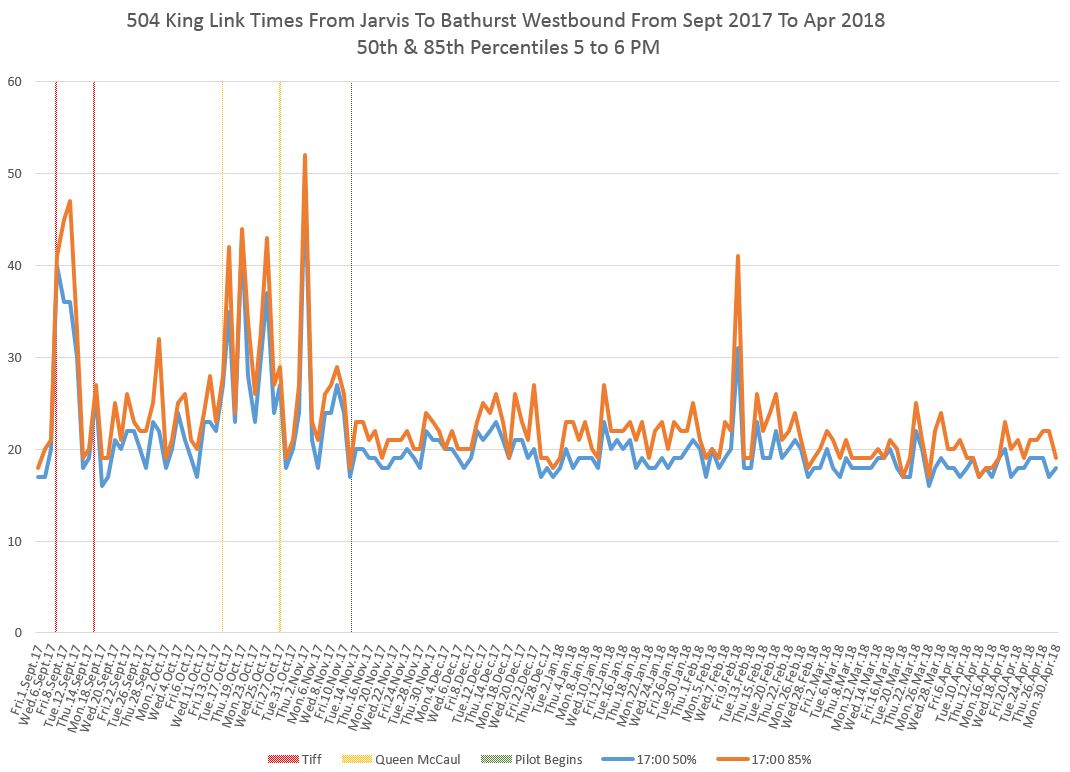

The chart below shows PM peak (5-6 pm) travel times for westbound cars between Jarvis and Bathurst Streets. (This continues from a widely-published chart that appeared earlier in the pilot.)

The uptick in mid-April falls on the 18th, not a storm day. This was caused by congestion westbound at University Avenue, typically the result of cross-traffic not clearing the intersection. This was a Blue Jays home game day.

The full sets of 85th and 50th percentile charts are linked here:

Unusual events visible in these charts are listed below. Note that there are several cases where short-term congestion pushes up the 85th percentile value, but not the 50th percentile showing that this affected only part, but not all of the service. On the charts, this shows up as a case where the orange line (85%) moves upward but the blue line (50%) does not.

  • 8-9 AM, Wednesday April 11: A collision at University Avenue caused service to be diverted between York and Spadina WB. Most EB service was held for the duration of the delay.
  • 8-9 AM, Friday April 20: A “stalled streetcar” at Spadina held service for over 20 minutes WB, and caused shorter delays to EB service, although it is not clear how.
  • 1-2 PM, Monday April 9, WB: A collision at John Street caused service to be diverted between York and Spadina.
  • 1-2 PM, Monday April 16, EB: Congestion between University and Jarvis between 1:40 and 2:00 pm pushed up the 85th percentile value.
  • 1-2 PM, Thursday April 19, WB: A delay west of Yonge pushed up the 85th percentile value.
  • 5-6 PM, Wednesday April 4, EB: Congestion between Yonge and Jarvis pushed up the 85th percentile value.
  • 5-6 PM, Thursday April 19, EB: Congestion at Spadina pushed up the 85th percentile value.
  • 8-9 PM, Friday April 6, WB: A medical emergency east of Yonge required service to divert between Church and Spadina. (Wellington Street was likely available, but was not used.)
  • 10-11 PM, Monday April 16, WB: A collision at Charlotte Street held service for about 15 minutes.

Line Capacity

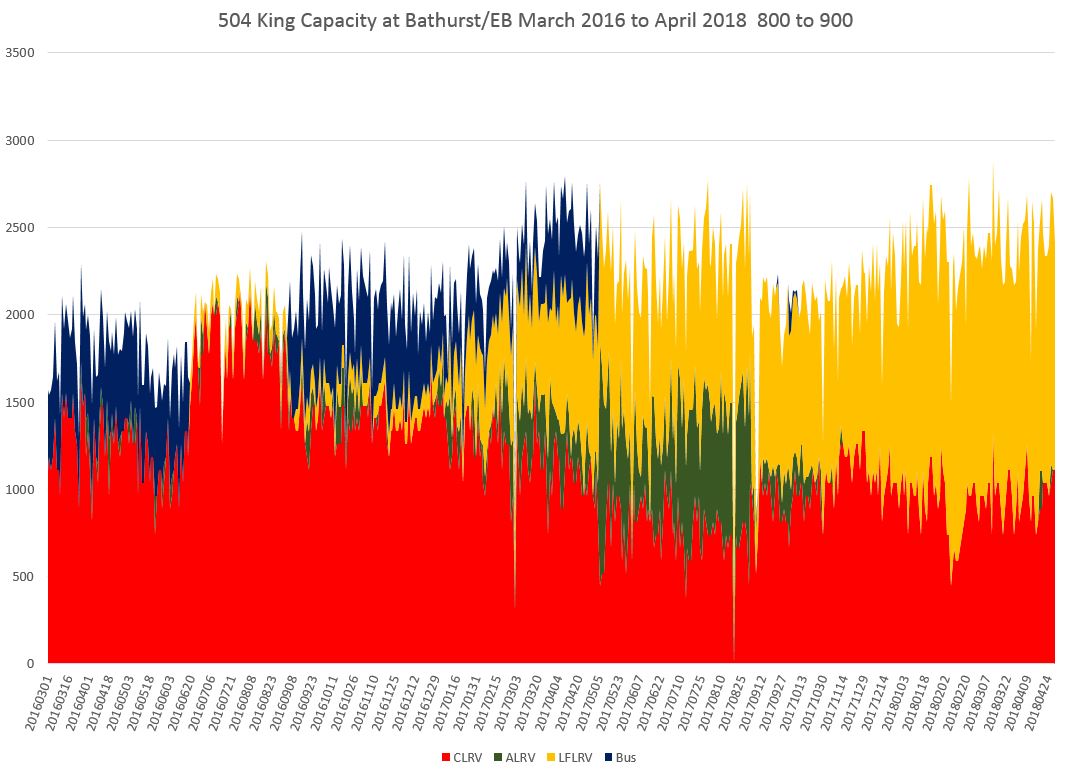

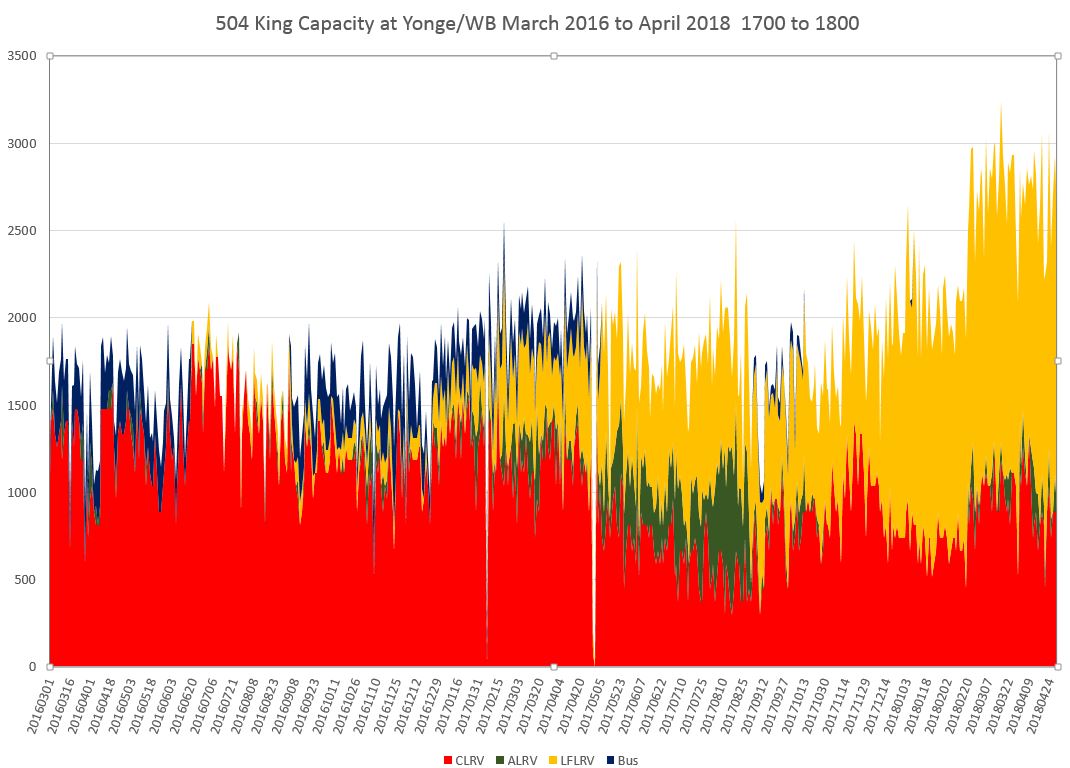

The proportion of service operated by the larger Flexity cars did not change much in April, and so there is little change in the capacity of service actually provided. The following charts show the actual capacity (based on service design values of 74 for CLRVs, 108 for ALRVs, 130 for Flexitys, and 51 for buses) for AM Peak service eastbound at Bathurst, and PM Peak westbound at Yonge. As in March, over half of the capacity provided in the central part of the route is with Flexitys operating on 504 King and 514 Cherry.

The jump in capacity westbound at Yonge in mid-February is due to the introduction of the 503 Kingston Road service operating west to Spadina which is provided by CLRVs. The 503 is not included before this change because the buses operated westbound via Wellington and only went to York Street.

The full set of capacity charts is linked below:

504_201603_201804_Capacity_Jameson_AM_Peak_EB

504_201603_201804_Capacity_Bathurst_AM_Peak_EB



504_201603_201804_Capacity_Yonge_PM_Peak_WB

504_201603_201804_Capacity_Bathurst_PM_Peak_WB

504_201603_201804_Capacity_Jameson_PM_Peak_WB

Detailed Breakdowns of Travel Time Data

This set of charts presents four sets of percentile values for the travel times. The degree to which the red 100% line and the purple 25% line stay close together shows the consistency (or not) of travel across the pilot area. This has been consistently better since the pilot began in mid-November.

The green line shows the median (50th percentile) values with half being above and half below, while the orange (85th percentile) show the upper bound for trips as seen by most riders.

Weekday Travel Times

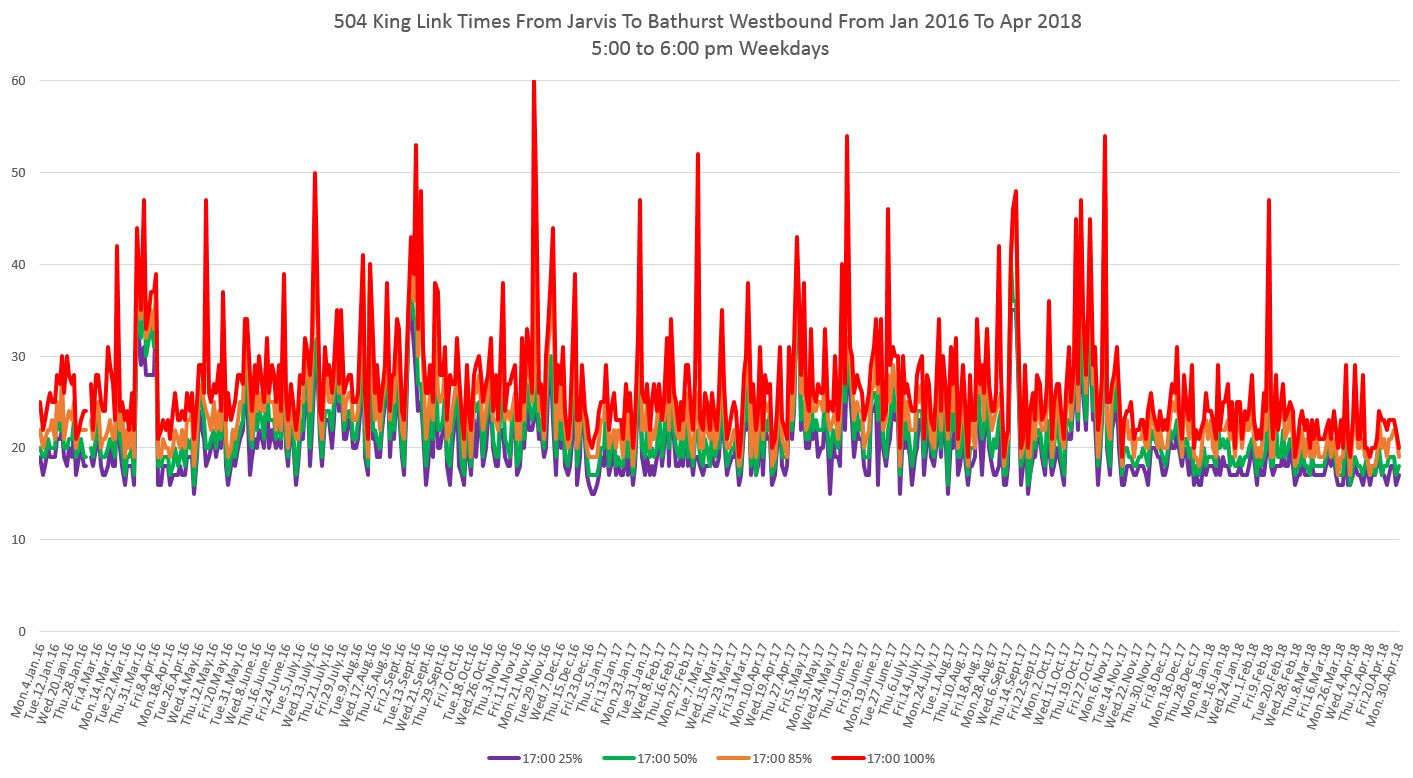

This example shows travel times from 5-6 pm westbound through the pilot area. The full set of charts for each direction with data for five separate time periods is linked below.



Day-by-Day Breakdowns

The travel times vary considerably by day of the week and time of day. The chart sets below show the percentile data for both peak hour and for late evenings separated by day. The marked reduction in travel times in the late evening continues into April, but these values have been rising as the weather improves and activity builds up in the Entertainment District.

Hour-by-Hour 85th Percentiles

All of the preceding charts look at specific hours of service through the day, but in the sets that follow, the 85th percentile values are shown for each hour so that the evolution of values through the day can be seen. Improvements are not confined to the peak periods, especially on weekend evenings when congestion in the Entertainment District has been reduced.

In the chart below, the spike on Friday, April 6, 2018 in the 7-9 pm period (19:00 and 20:00 lines) was due to a medical emergency east of Yonge Street that caused service to divert westbound between Church and Spadina. The delay spanned the period from about 7:40 to 8:30 pm, and several trips were affected in both hours pushing up their 85th percentile values.
