Updated February 11, 2023 at 1:45 pm: In response to a reader comment, I have added illustrations from the City’s presentation deck showing the technologies used for traffic monitoring and analysis at the end of this article.
This article continues a series of reviews of operations on the King Street Transit Priority Lane of which the most recent is King Street Travel Times: May-December 2023.
On February 9, 2024, Mayor Chow held a press conference to announce various changes coming to King Street and the success of the Traffic Agent program in taming congestion downtown, particularly on King.
Regular readers will know the graphs below showing day by day travel times eastbound from Bathurst to Jarvis by hour from 3pm to 9pm. These charts have been updated with January 2024 data. (Note: Gaps in the charts in mid October and early December correspond to diversions via Church and Queen for water main repairs east of Jarvis. No streetcars covered the full Bathurst-Jarvis segment during these periods.)
The graphs illustrate the change in congestion levels peaking in the 5-6pm hour, but still quite evident in 6-7pm and to a small extent in 7-8pm. The build-up through the fall was caused by construction on Adelaide coupled with a complete lack of enforcement of the transit corridor and of “box blocking” at major intersections where cars enter but cannot cross in the allotted green time. With the introduction of Traffic Agents to enforce the rules on November 27, 2023, the street ran much more smoothly and the peak in congestion vanished.

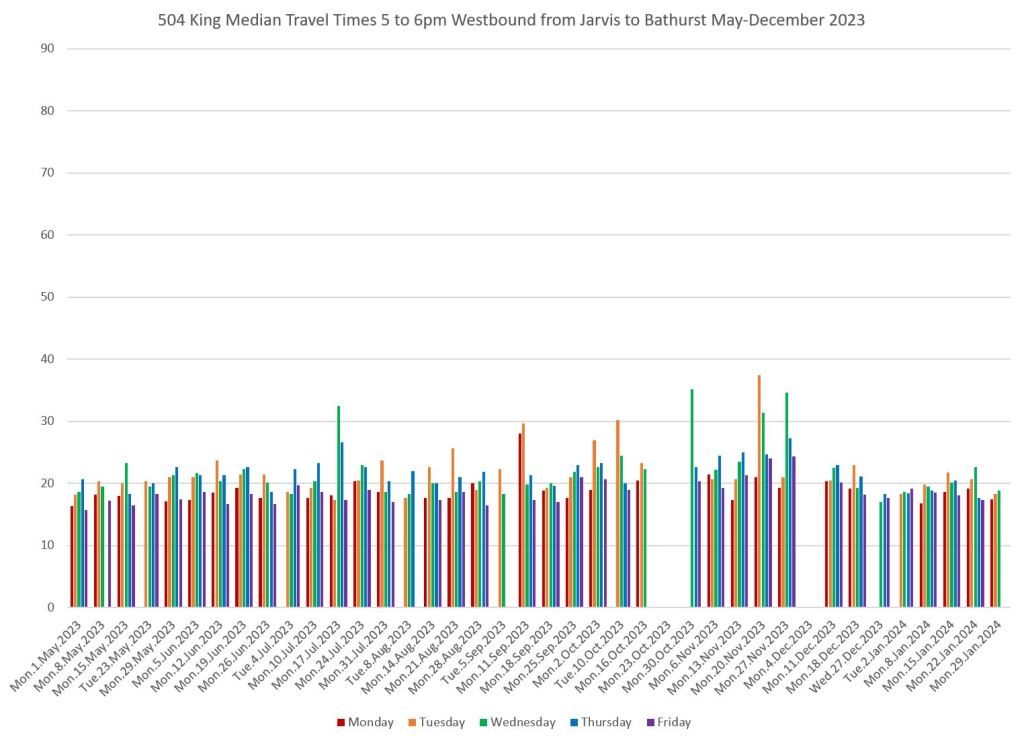

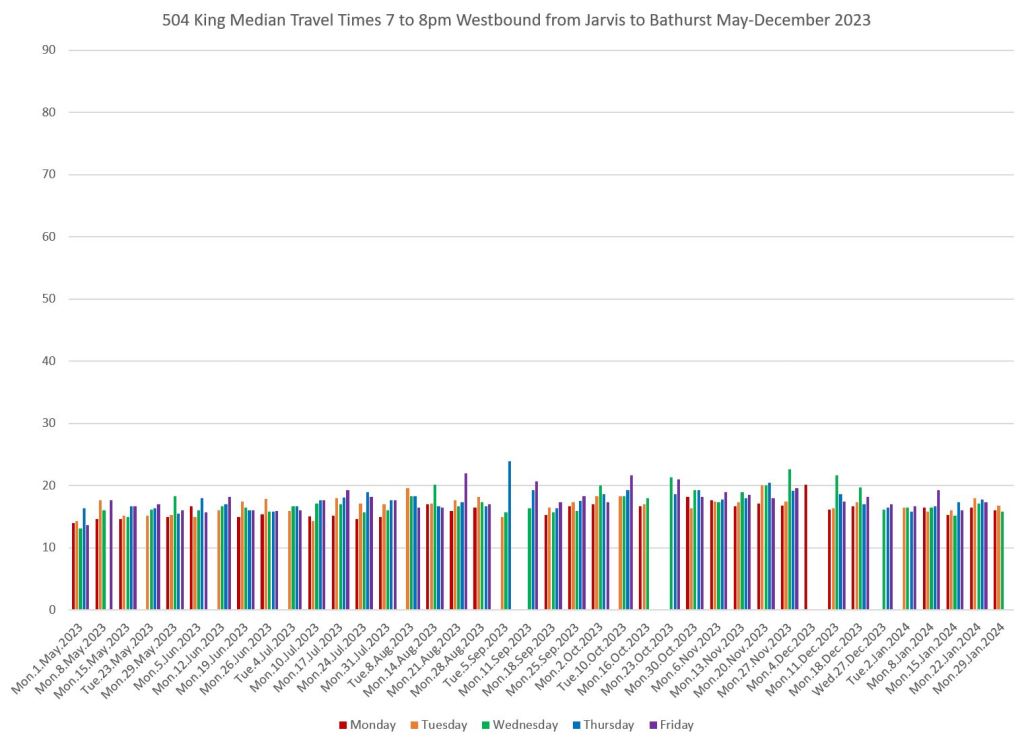

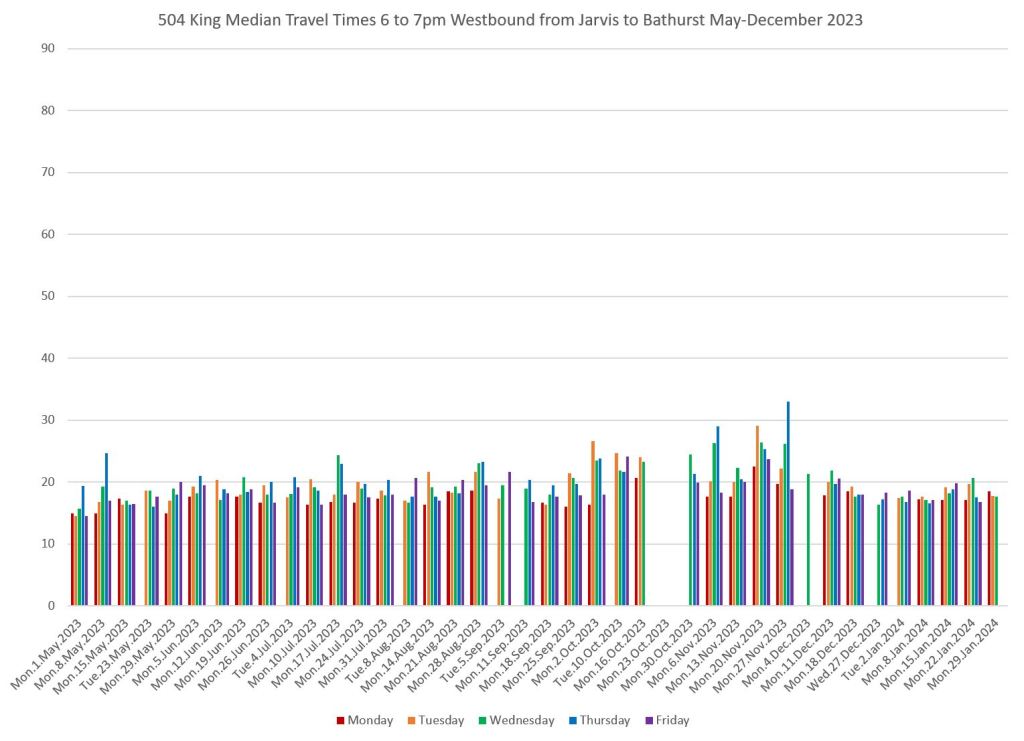

The problem was less severe westbound because Adelaide is one way eastbound and westbound traffic was not diverted. Moreover, there was no westbound equivalent of the delays caused by buses and streetcars making left turns eastbound at Church.

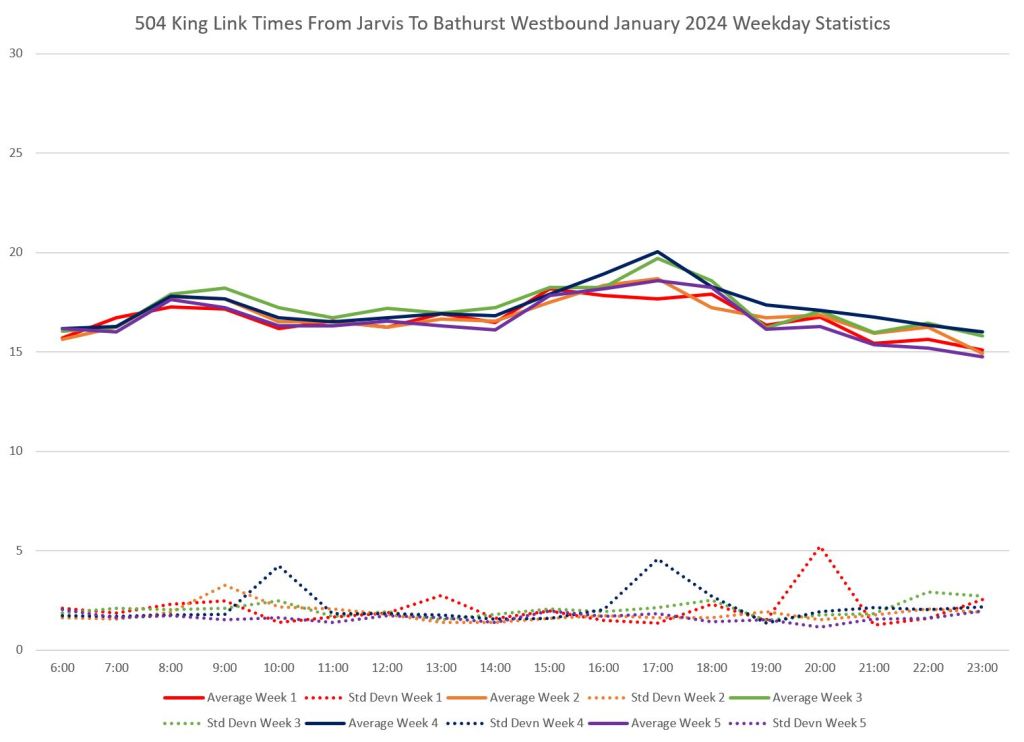

The uniformity of travel times in January is visible in all day charts. There are conventional AM and PM peaks, but they re fairly small. The standard deviation of the values is also generally small showing that individual trips fall within a narrow band of times. The largest peak (week 3, eastbound, 8am) was caused by a major delay and diversion on Monday, January 15. Because these are weekly averages, the effect of this delay is muted by averaging in with four other “normal” days.
The highest peaks are in weeks 3 and 4 when full traffic had returned after the New Year’s holiday. Week 5 has lower values because it includes only Monday-Wednesday January 29-31 and the values are dominated by the quieter early week conditions.

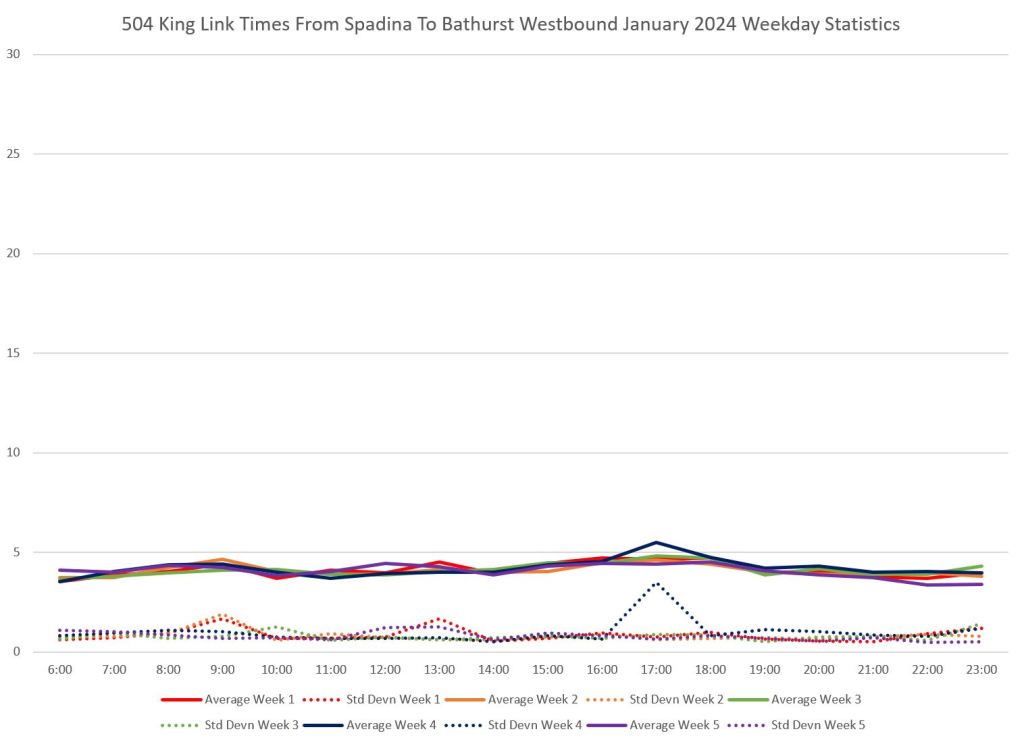

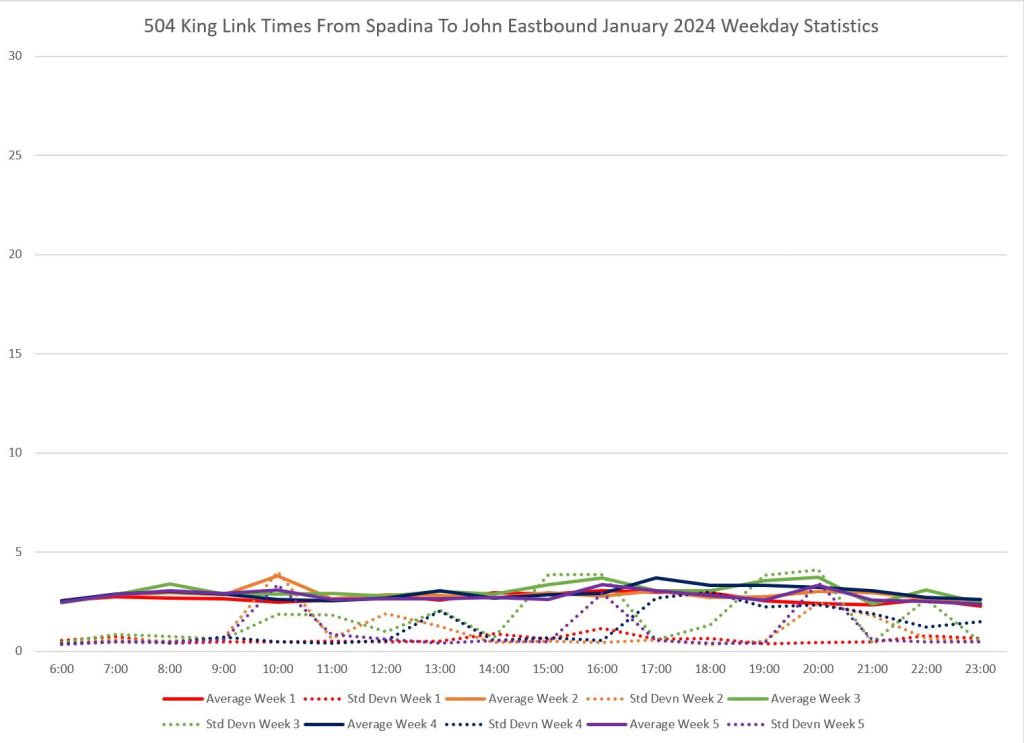

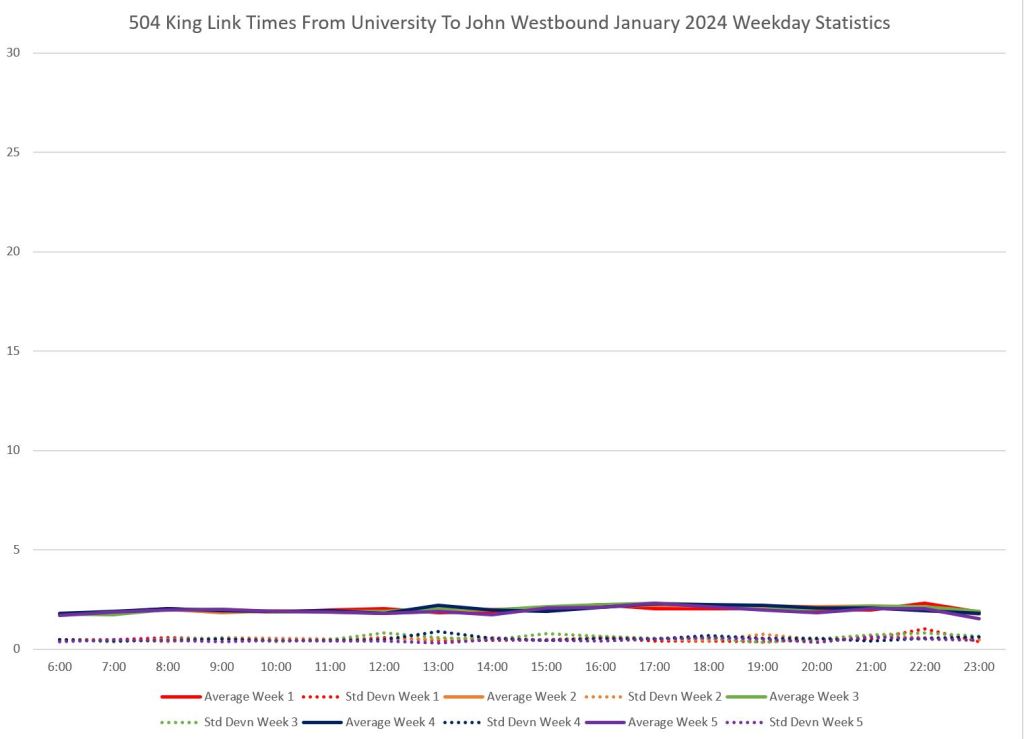

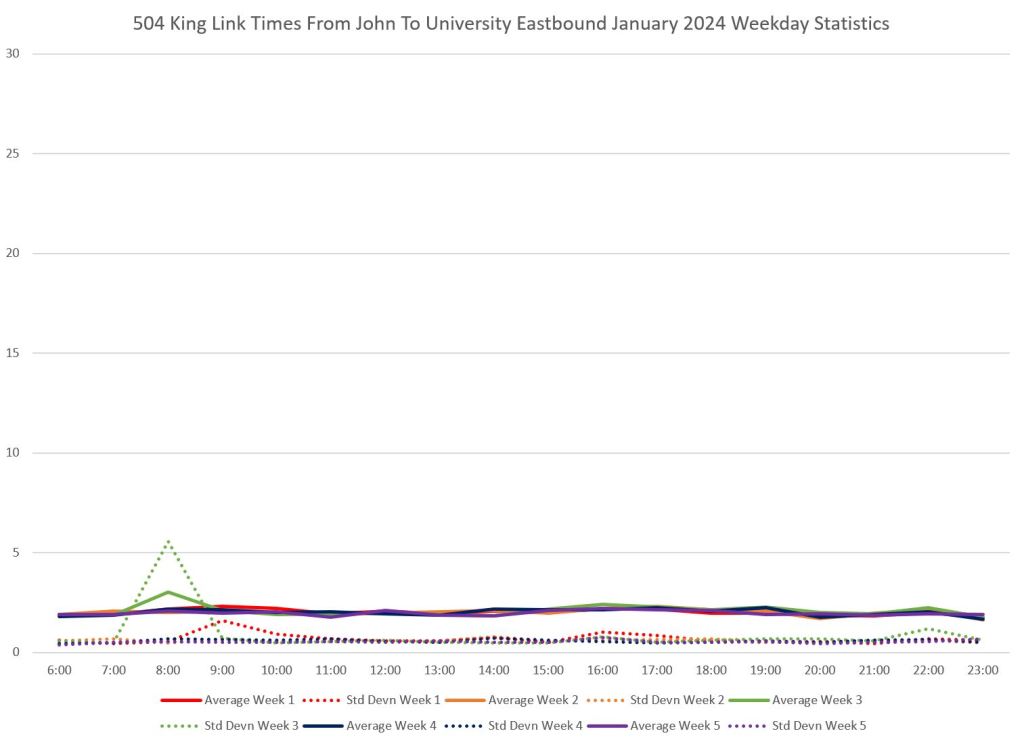

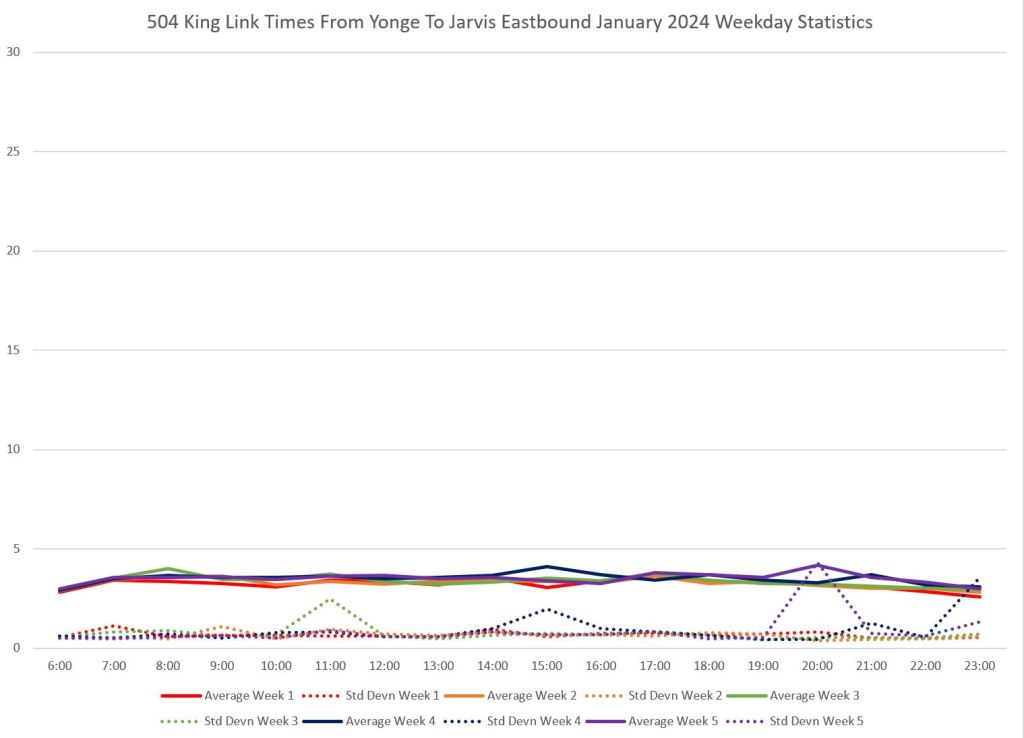

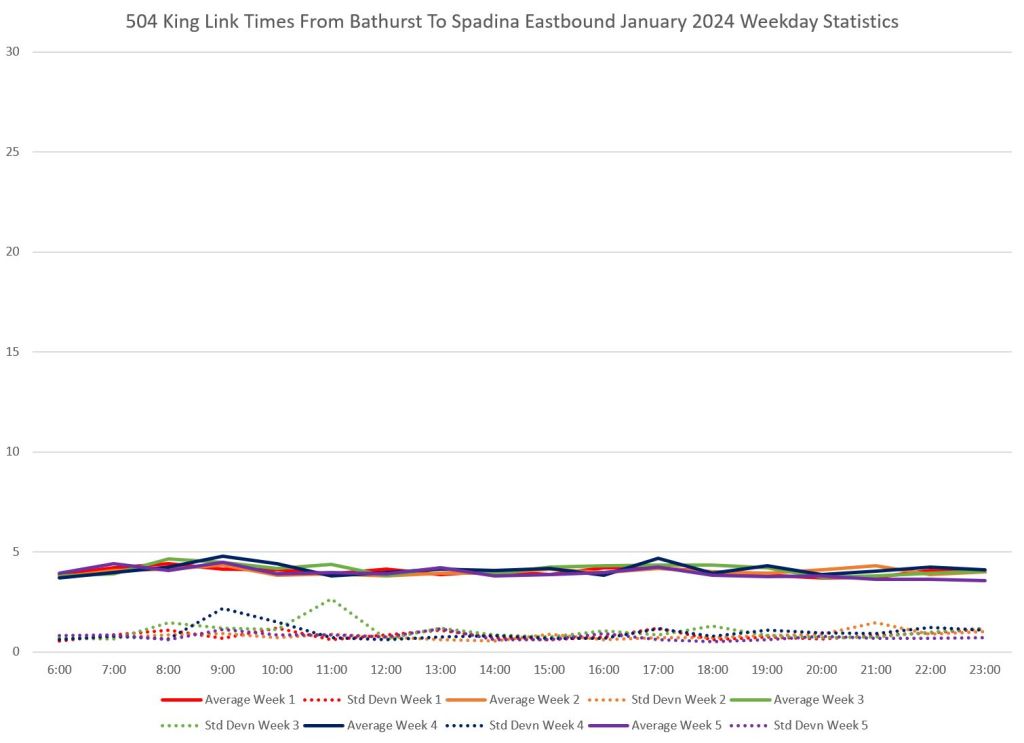

On a segment-by-segment basis, the locations of slowdowns, if any, are evident. Note that the segment charts can contain trips omitted from the overall charts above because streetcars can enter the transit corridor midway following a short turn. This is most pronounced eastbound from Spadina to John because the data include cars short turned via Spadina, Adelaide and Charlotte which took extended layovers on Charlotte awaiting their scheduled time. (Yes, gentle reader, there are short turns despite the TTC’s claim that they do not exist. They just don’t report many of them in their stats.)

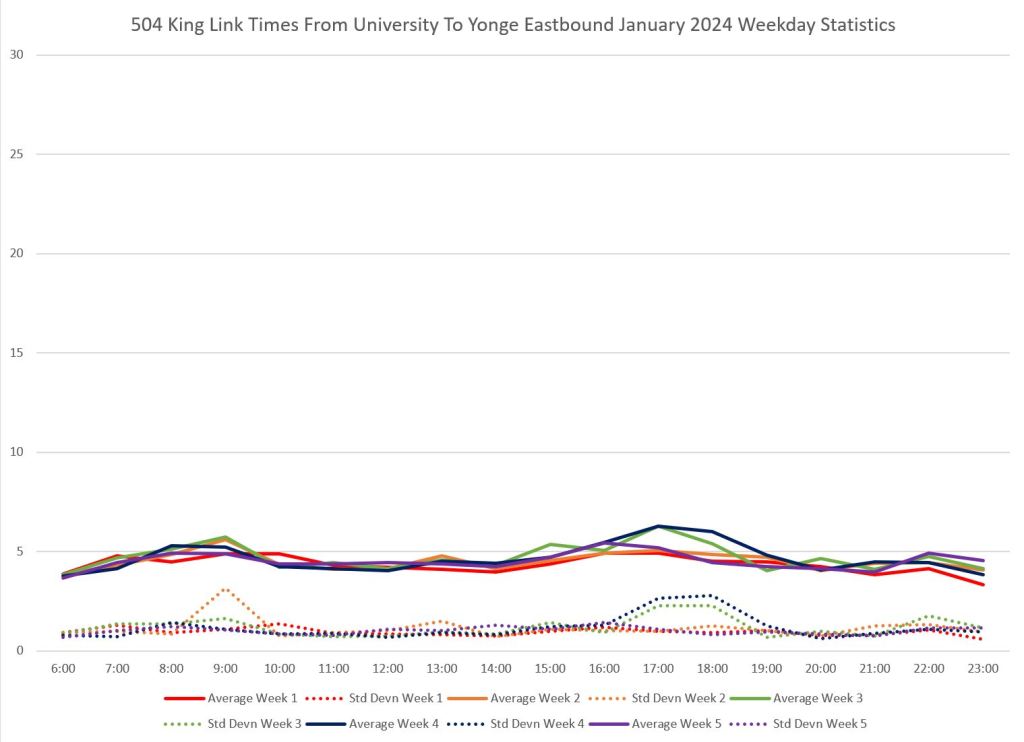

Most of the rise in eastbound peak period travel times is in the University-to-Yonge segment.

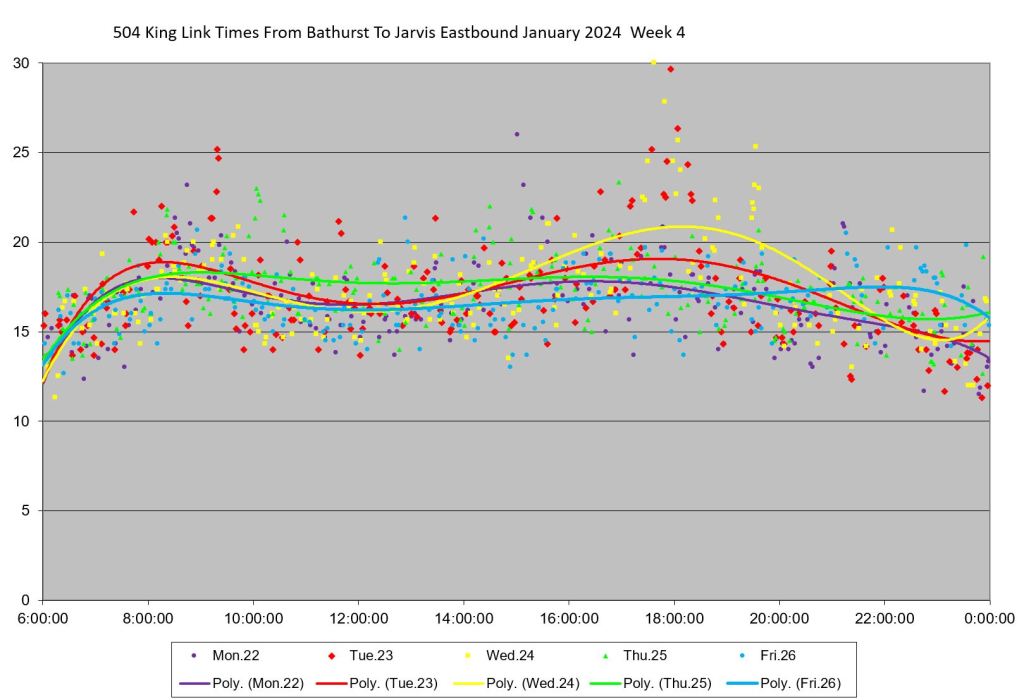

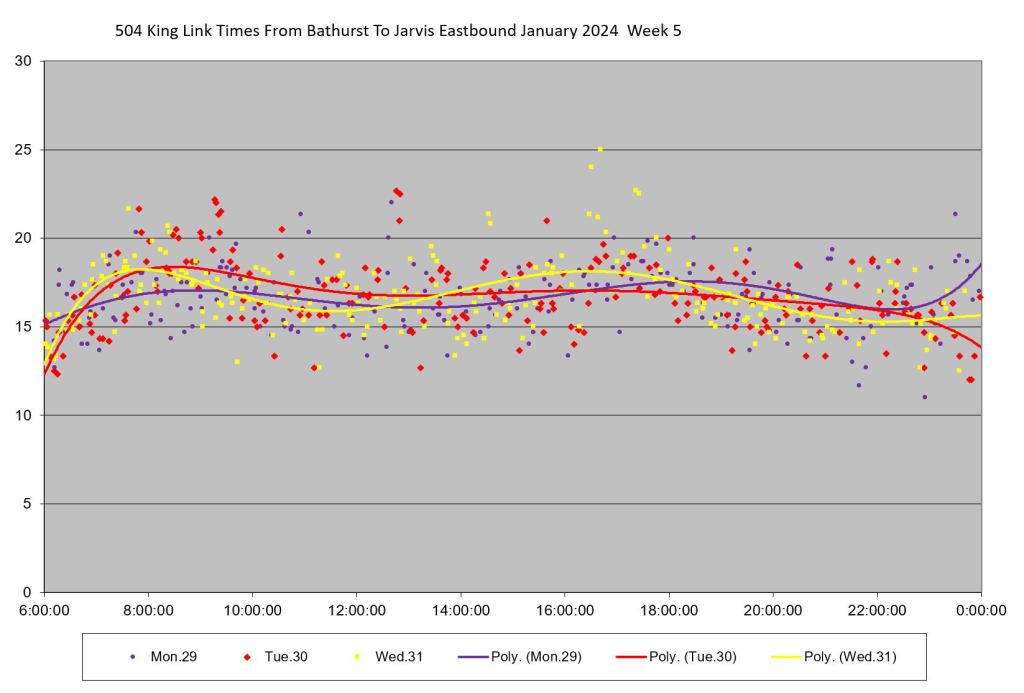

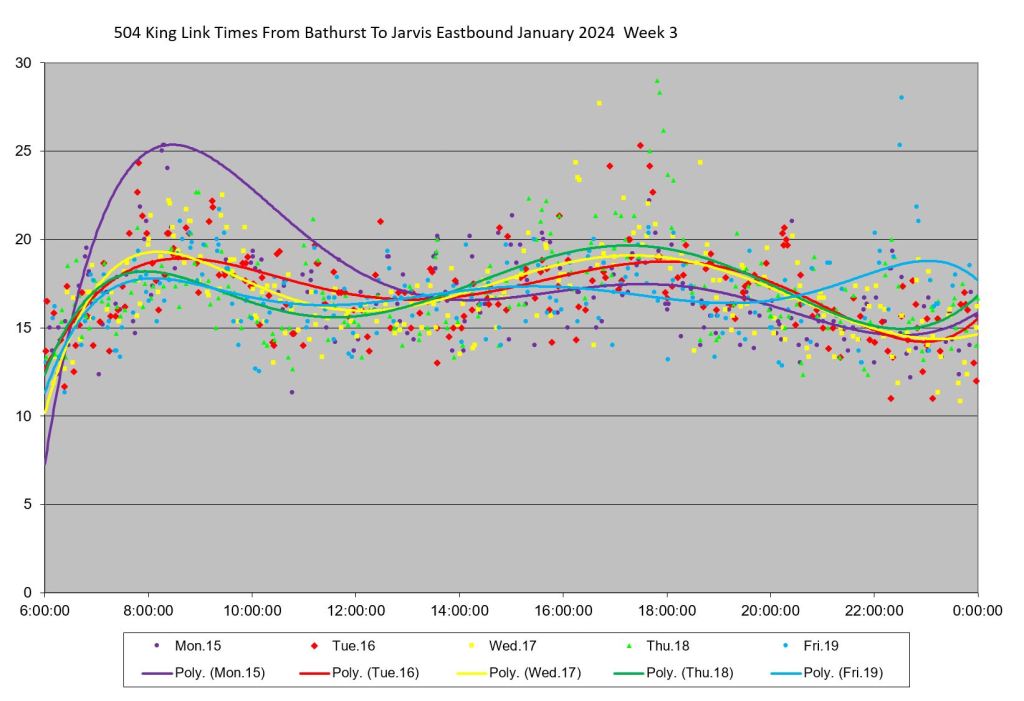

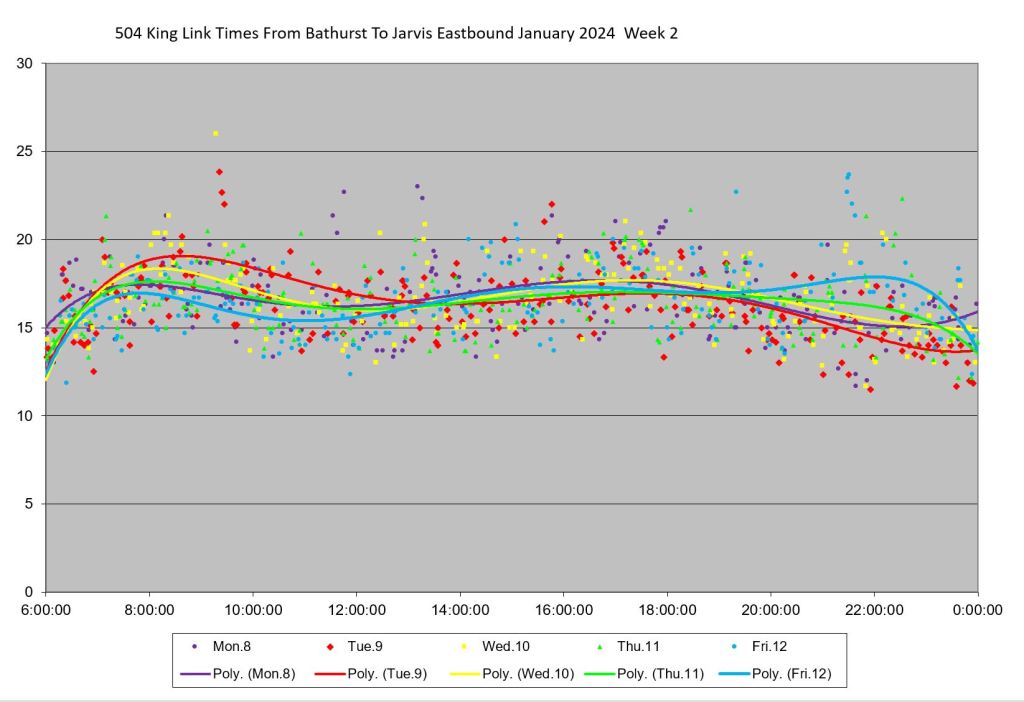

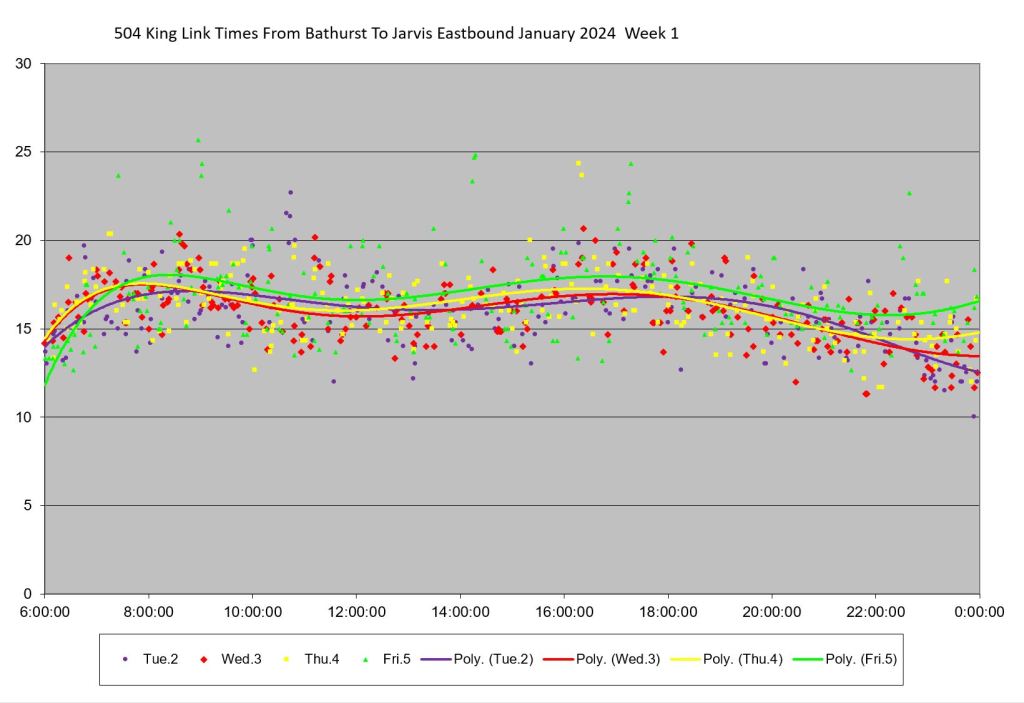

The detailed level view of day-to-day variations is shown in the following charts. Of particular note are the higher values on the shoulders of the peak periods especially after 6pm.
Mayor Chow’s Press Conference
The presentation deck accompanying the Mayor’s press conference illustrated several points about King Street and the Traffic Agent program.
The City uses a variety of techniques to monitor traffic movements at a very granular level for car, transit, cyclist and pedestrian data, and this is archived for analysis. Detection includes video, bluetooth readers (tracking device movement, and by implication people on foot or in vehicles carrying them), LiDar and Microwave. All data are anonymized. This allows examination of a street’s behaviour in great detail.
Two notoriously congested intersections benefited greatly from having Traffic Agents.
| Bay & Front | York & Bremner | |
|---|---|---|
| Reduction in vehicles blocking the intersection | 64% | 53% |
| Reduction in travel time for vehicles | 33% | 38% |
| Increase in traffic flow | 25% | 14% |
Notable by their absence are stats for pedestrians and cyclists. The early stages of the Traffic Agent program addressed auto congestion, and the co-existence with other road users is an important policy issue that will also affect King Street where the clear priority is for transit vehicles.

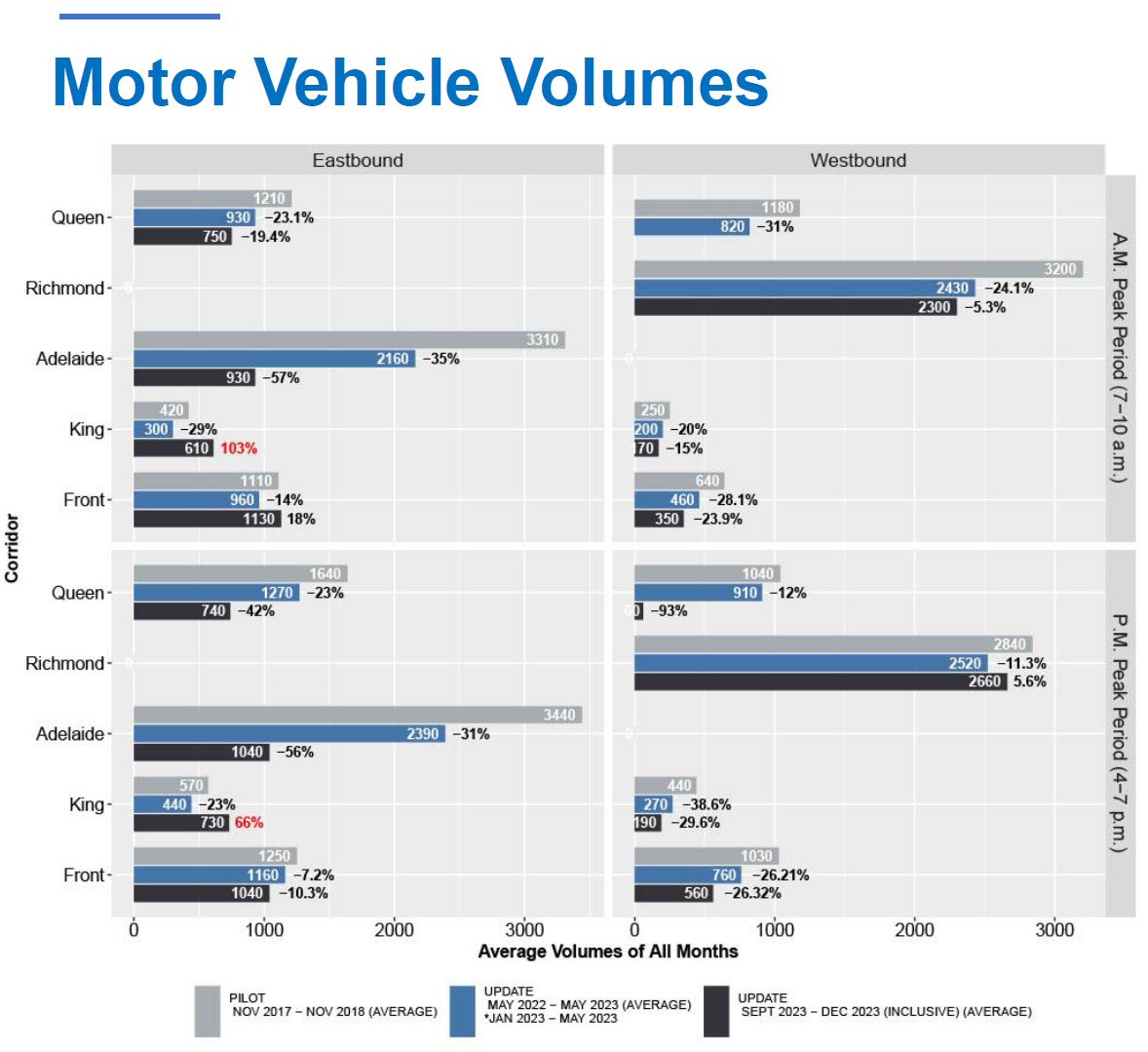

The volume of auto traffic is illustrated in stats collected by the City. Each quadrant of this chart represents a direction and time period, and the bars within the quadrants show traffic volumes crossing Bay Street on the east-west corridors. Various points of note:
- Adelaide Street carries a much larger volume of eastbound traffic, and Richmond handles a corresponding volume westbound. The capacity of Adelaide, and hence the traffic volume, was very substantially reduced in fall 2023. These are both very auto-oriented streets.
- These values are averages from several months and therefore the decline in capacity month-by-month through the fall of 2023 is not fully reflected.
- Eastbound volume on King rose above pre-pandemic values in fall 2023.
- Overall crossings of Bay Street declined by 28% compared to the previous year.

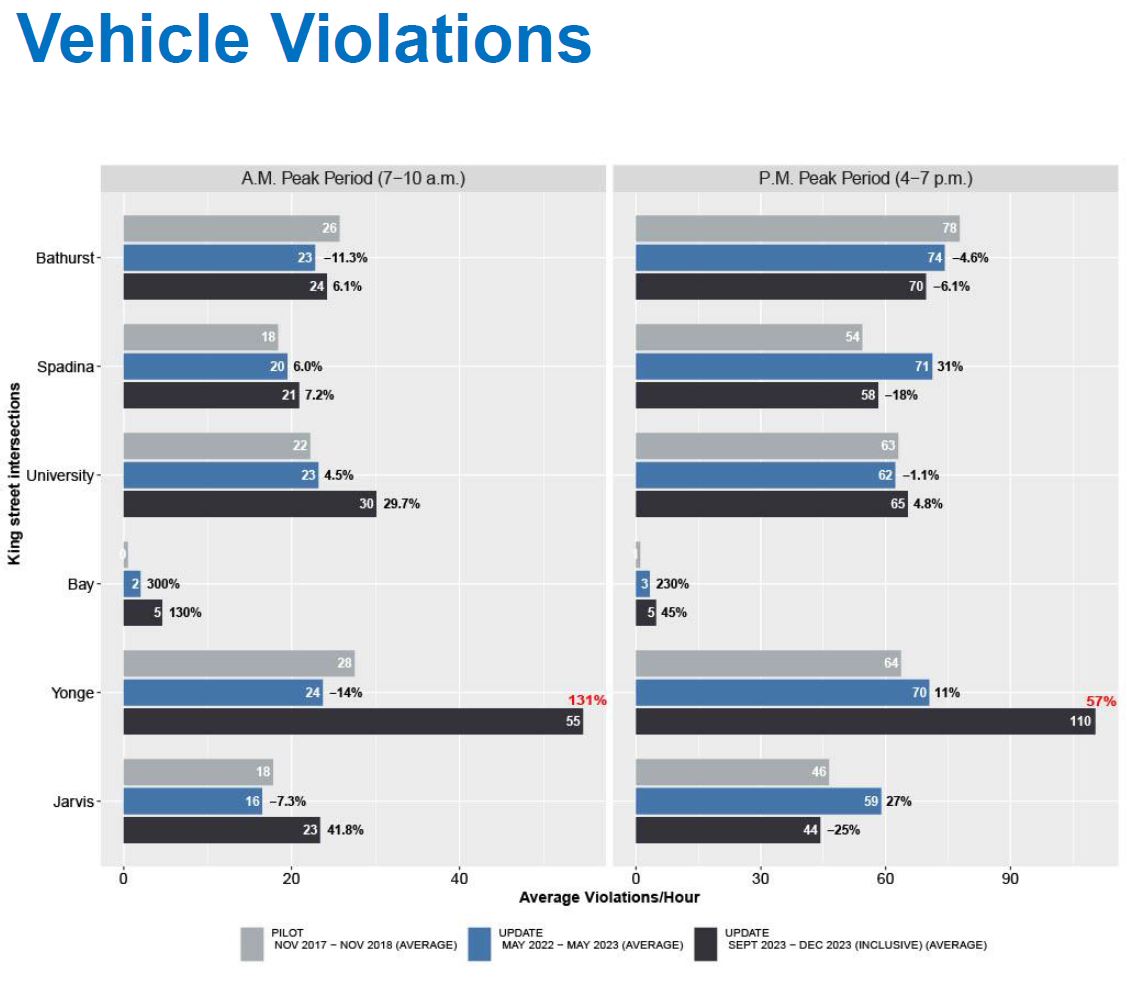

Violations of the traffic regulations along the King Street corridor have become a very serious problem at Yonge Street and to a lesser extent at some other locations. Traffic Agents prevent the banned movements, and in time, motorists might avoid King Street knowing that they will be forced to obey the rules, a practice that has been absent for a long time.

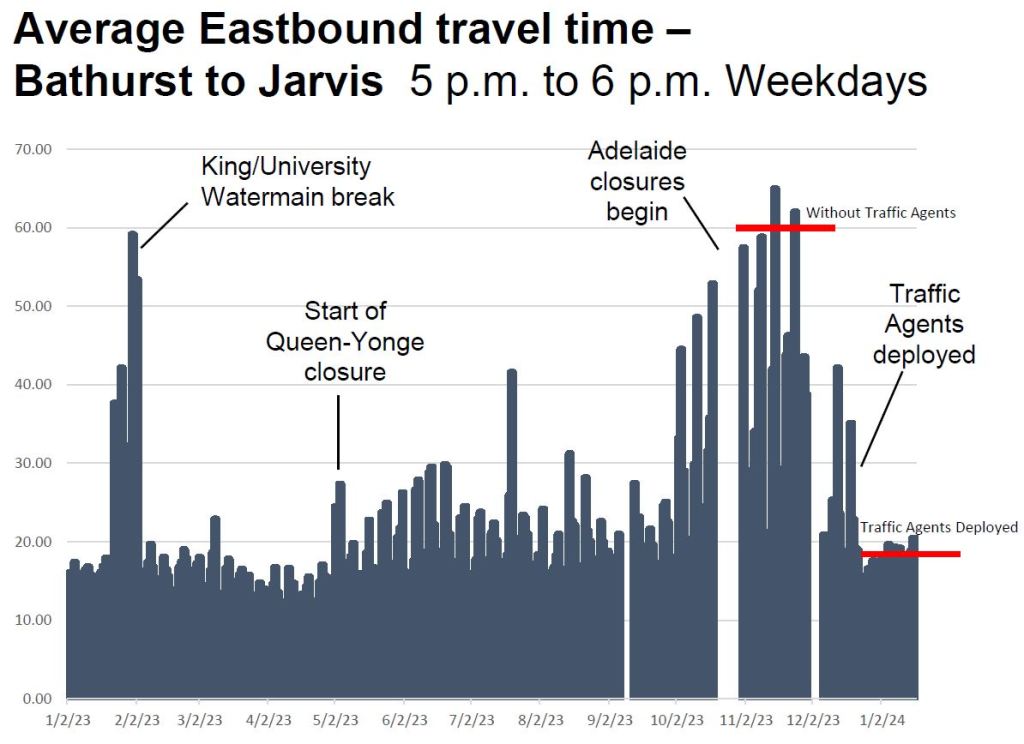

The City’s data tracking King Street travel times echoes my charts above. Note that this is for all vehicles, not just 504 King streetcars.
The benefit of the Traffic Agents is quite evident, although the ratio of travel times will probably improve once Adelaide fully reopens, and some transit traffic (501 Queen streetcars and buses) is removed from King. The timing of this change is unknown, although the current construction schedules do not show work on the streetcar diversion finishing until Fall 2024 thanks to Metrolinx delays.
The City’s observations about shoulder peak congestion mirror the travel time data in my own charts showing a rise in travel times after 6pm. They are considering a change to the hours of Traffic Agent coverage.
An important change still in the design stage will be to modify traffic signals to be more effective in getting motorists to follow the rules. This would involve, at a minimum, separate signals for transit and other traffic clearly giving transit a green through intersection while presenting motorists with a constant red signal and green arrows only for the allowed turns.
That scheme raises a few questions about groups that have special exemptions:
- Cyclists are allowed to travel through intersections where motorists are not. They will require a signal indicating what they can do.
- Taxis are supposed to only drive through between 10pm and 5am, and ride share vehicles are not included in this exemption.
We already know what intersections on Spadina look like with their multiple transit, motorist and pedestrian signals, and cycling signals would add yet another layer.
As for taxis and ride shares, the question arises of whether the through-movement restrictions would have to vanish for all motorists to avoid confusion about who could run through a red light.
Council has just approved a change to the handling of traffic violation tickets to speed and simplify processing. This will allow for, among other things, an increase in red light violations from automated ticketing.
Traffic signal timings have been adjusted to benefit transit vehicles, but the details are not in the presentation. Moreover, the timing of the changes could have co-incided with the Traffic Agent deployment, and specific effects would be hard to tease out of the data.
The condition of platforms at stops has been a disgrace for several years thanks to lack of maintenance and the relocation of some stops to suit condo construction zones. The City plans to implement 20 new temporary platforms beginning in mid 2024. Full reconstruction of King including sidewalk extensions is still in the future and is unlikely to occur while Queen is under construction for the Ontario Line. Meanwhile a Spring cleanup will deal with some condition problems as a short term improvement.
A detailed report will come to Council in the second quarter of 2024.
Illustrations from the City’s presentation courtesy of Mayor Chow’s office by way of Matt Elliott.
Traffic Sensors Used by the City
This section was added on February 11, 2024, in response to a reader’s comment.

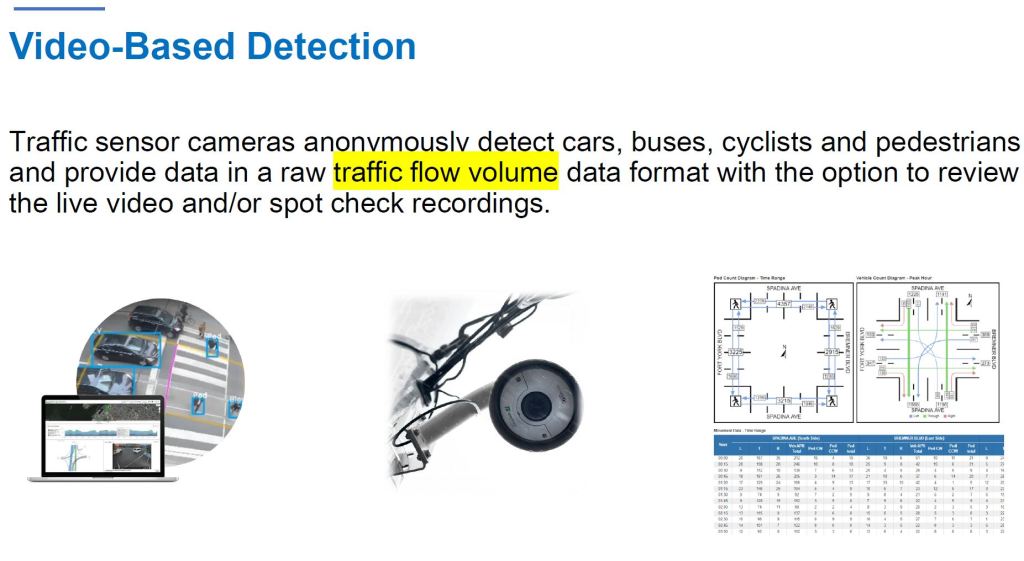

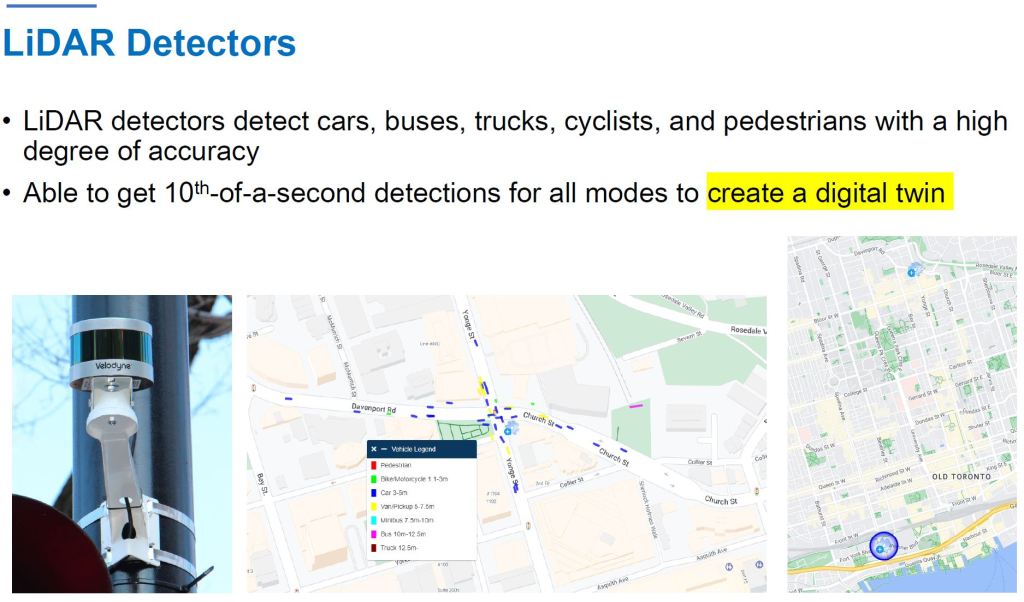

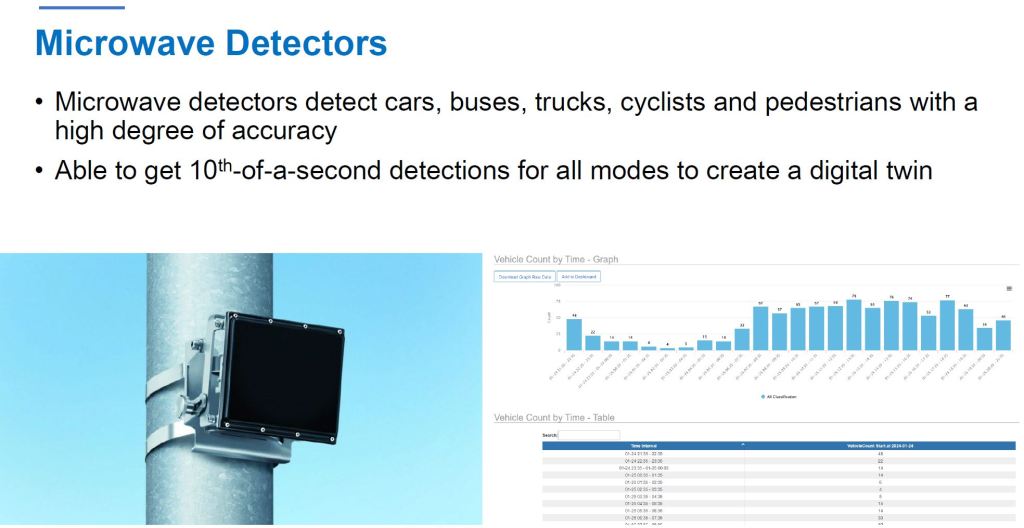

Various sensors are used by the City to monitor traffic and provide both real time and archival stats for analysis. I had omitted this part of the City’s presentation from my original article.
